A standard 7-way RV blade 5th wheel RV setup routes electrical power and plumbing monitoring lines together. Pin 1 (white) provides ground, Pin 2 (blue) feeds electric brake controller output, Pin 4 (black) delivers 12V auxiliary power, and Pins 3/5/6/7 power running lights, turn signals, and backup functions alongside holding tank sensor wiring.
📌 Key Takeaways
- Pin 1 (White, 10 AWG) acts as main ground and must handle total system amperage up to 30A.
- Pin 2 (Blue, 12 AWG) transmits variable voltage output directly from the tow vehicle brake controller.
- Pin 4 (Black, 10 AWG) supplies 12V auxiliary power to charge house batteries and run water pump controls.
- Improper grounding at the RV blade connector causes flickering running lights and tank sensor errors.
- Always use dielectric grease on trailer plugs and check 12V DC fuses before replacing harnesses.
Modern fifth-wheel trailers utilize complex electrical schematics to integrate high-draw chassis operations with interior house utilities. Understanding a 5th wheel rv plumbing diagram alongside its main 7-way RV blade wiring harness is critical for maintaining reliable 12V DC power distribution across fresh water pumps, macerator systems, automated holding tank valves, and electronic brake controllers. Fifth-wheel units rely on heavy-duty 7-pin connections conforming to SAE J2863 standards. This technical guide provides a complete terminal mapping breakdown, wiring instructions, step-by-step pin assignment testing, and electrical diagnostics for equipment technicians and experienced RV owners.
Pinout Assignments for a 5th Wheel RV Plumbing Diagram Electrical Harness
The standard 7-way RV blade connector acts as the primary electrical interface between the tow vehicle chassis and the fifth-wheel utility distribution panel. According to OEM specifications, proper wire gauge sizing and terminal orientation are vital to prevent severe voltage drops when simultaneously operating the electric brake magnets, exterior running lights, and high-amp 12V DC fresh water pumps or holding tank heaters.
| Pin # | Wire Color | Function | Notes & Ampacity Rating |
|---|---|---|---|
| 1 | White | Main Ground Pin | 10 AWG (Minimum) / 8 AWG (Recommended); Chassis ground return path |
| 2 | Blue | Electric Brake Controller | 12–10 AWG; Modulated output signal to electric brake drum magnets |
| 3 | Green | Running Lights / Tail Lamps | 14–12 AWG; Feeds clearance lights & low-voltage plumbing compartment illumination |
| 4 | Black | 12V DC Auxiliary Power | 10–8 AWG; 30A–40A protected line for battery charging & 12V pump circuits |
| 5 | Red | Left Turn Signal & Stop Light | 14–12 AWG; Combined turn/brake command line |
| 6 | Brown | Right Turn Signal & Stop Light | 14–12 AWG; Combined turn/brake command line |
| 7 | Yellow | Reverse / Auxiliary Control | 14–12 AWG; Backup light feed or automated waste gate valve lockout relay |
Always use stranded copper SAE J1128 GPT or SXL wire for all 7-way RV blade jumper leads. When connecting to high-current equipment like 12V DC diaphragm water pumps, maintain wire run lengths under 15 feet to restrict total voltage drop to less than 3% at 15 Amps.
How to Wire a 5th Wheel RV Plumbing Diagram System Step by Step
Integrating a new 7-way RV blade harness with your fifth wheel’s electrical subpanel and plumbing distribution network requires logical step-by-step execution to protect sensitive control electronics and keep trailer braking systems reliable. Follow these five procedural steps during assembly or harness replacement.
- Establish the Primary Ground Pin Connection: Crimp a copper 10 AWG or 8 AWG white ground wire into Pin 1 of the 7-way plug. Terminate this wire directly at the fifth wheel main frame rail using a zinc-plated star washer and self-tapping fastener. Ensure paint and oxidation are scraped clean to achieve less than 0.2 Ohms resistance between the ground pin and frame chassis.
- Connect the Electric Brake Controller Harness: Route a 10 AWG blue wire from Pin 2 through the pinbox junction box directly to the tandem-axle electric brake assemblies. Connect these in parallel across all brake magnets. Verify magnet coil resistance measures between 3.0 and 3.8 Ohms per axle pair using a calibrated digital multimeter. Refer to technical guidelines on trailer breakaway switches for secondary emergency safety wiring.
- Wire the Auxiliary Power and Plumbing Bus: Attach a 10 AWG black wire to Pin 4 for the 12V DC auxiliary power circuit. Direct this conductor to an inline 30-Amp auto-reset thermal circuit breaker before routing to the house battery bank and main 12V plumbing fuse panel. This supply line delivers vehicle alternator charging power to operate fresh water pumps, tank level sensors, and waste macerators while under tow.
- Hook Up Running Lights and Signal Circuits: Fasten the green wire (Pin 3) to the running lights distribution block. Terminate the red wire (Pin 5) to the left turn/brake lamp circuit and the brown wire (Pin 6) to the right turn/brake lamp circuit. For integrated service bay lighting near grey and black tank valves, tap into the green running lights lead through an isolated 5-Amp inline fuse switch.

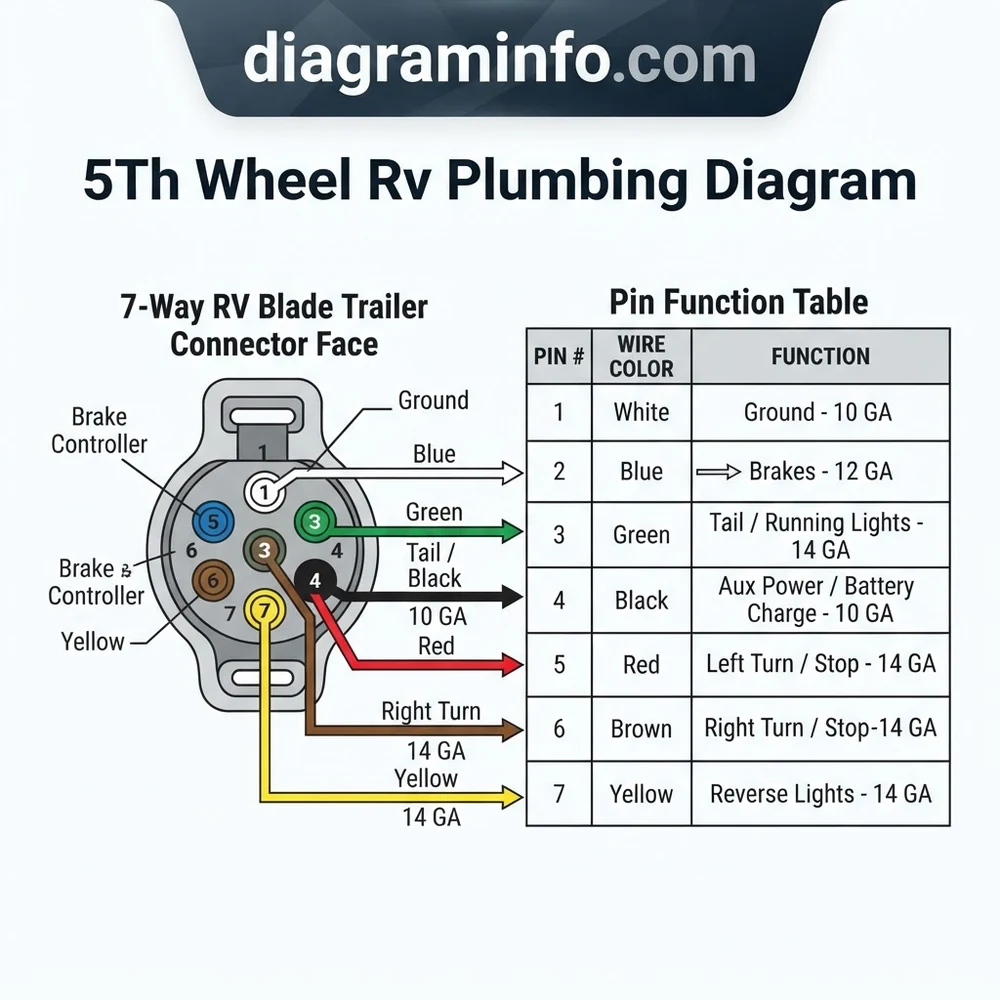

- Integrate Auxiliary Lines and Test Terminal Pinout: Wire the yellow central pin (Pin 7) to reverse lights or an optional automated dump-valve actuator switch. Prior to connecting the plug to the tow vehicle, apply 12V DC power using a bench power supply to verify individual circuit activation and test pin continuity across all terminals as illustrated in the main wiring schematic above.
Never route the 12V auxiliary power feed directly to fresh water pumps without installing a properly rated inline fuse or circuit breaker. A shorted pump motor connected directly to Pin 4 auxiliary power can cause severe wiring harness melt-downs and electrical fires inside closed underbelly compartments.
Common Wiring & Grounding Faults in 5th Wheel RV Plumbing Diagrams
Trailer wiring failures often manifest as intermittent lighting, sluggish water pump operation, or erratic electric brake response. Equipment diagnostic history points to specific physical causes during routine maintenance:
- High-Resistance Ground Pin Termination: Corrosion at the primary white wire ground point causes voltage back-feeding through light filaments or water pump motor windings. This results in dim running lights whenever the brake controller or water pump engages.
- Undersized Auxiliary Power Wire Gauges: Installing standard 14 AWG wire instead of 10 AWG or 8 AWG for Pin 4 restricts current delivery. When running a 12V DC macerator pump drawing 15–20 Amps, voltage at the pump drops below 10.5V, causing motor overheating and premature failure.
- Short Circuits inside Wet Utility Bays: Plumbing bay leaks can spray water into unsealed electrical junction blocks, causing current tracking between the auxiliary power terminal and signal lines. Review guidelines on weight distribution hitch wiring to ensure junction boxes are kept fully weather-sealed.
- Crossed Turn Signal and Brake Conductors: Reversing the red (Pin 5) and brown (Pin 6) leads inside the 7-way plug housing causes inverted turn signal indications on trailing traffic.
Apply dielectric grease (such as NYOGEL 760G) generously into the female terminal blade cavities of the 7-way plug. This prevents pin corrosion caused by road spray and moisture common around fifth-wheel wet bays and underbelly plumbing channels.
Adapting 4-Pole Flat Connector Harnesses for Electric Brake and Auxiliary Power
Lighter utility trailers often employ basic 4-pole flat connector systems that carry only basic lighting functions (ground, tail lights, left turn, right turn). However, fifth-wheel trailers require upgrading to a full 7-way RV blade configuration to support heavy utility loads, electronic braking, and auxiliary plumbing demands.
When converting a vehicle equipped with a 4-pole flat connector to a full 7-way system, the original 4-pin plug handles the basic lighting signals (white ground, green tail lights, yellow/brown turn signals). You must run three additional dedicated conductors from the tow vehicle cab and engine bay directly to the 7-way RV blade receptacle:
- 10 AWG Blue Brake Line: Routed from the aftermarket brake controller output terminal under the dash directly to Pin 2 of the 7-way receptacle.
- 10 AWG Black Auxiliary Power Line: Connected directly to the vehicle battery positive terminal through a 40A automatic reset circuit breaker, terminating at Pin 4. This supplies continuous charge power to onboard fifth-wheel house batteries and 12V plumbing equipment.
- 10 AWG White Heavy-Duty Ground: Secured directly to the vehicle chassis frame, terminating at Pin 1. Standard 4-pole flat connector ground wires (typically 16 AWG) are far too small to handle combined brake magnet current and 12V water pump operations without excessive heating.
Frequently Asked 5th Wheel RV Plumbing Diagram and Wiring Questions
What wire gauge is required for the 12V auxiliary power and ground pin lines?
Manufacturer specifications recommend a minimum wire size of 10 AWG stranded copper for both the Pin 4 auxiliary power line and the Pin 1 main ground pin on fifth-wheel trailers. If the distance from the tow vehicle battery to the trailer house battery bank exceeds 25 feet, upgrade to 8 AWG wire to prevent excessive voltage drop under heavy current loads from fresh water pumps and onboard inverter-charger setups.
How does the 7-way RV blade connector integrate with 5th wheel fresh water and waste plumbing systems?
The 7-way RV blade connector provides auxiliary power through Pin 4 (black wire) directly to the trailer’s interior 12V DC power center. This circuit charges the onboard house battery bank while towing, which in turn powers the 12V fresh water demand pump, automated grey/black tank dump valves, tank level monitoring panels, and propane water heater igniters.
Why do my electric brakes engage or pulse when the water pump runs?
This issue indicates a floating or high-resistance ground pin connection on the main 7-way harness. When the white ground wire (Pin 1) loses solid contact with the trailer frame, current from the high-draw water pump seeks alternative ground paths through the electric brake magnet wiring (Pin 2) or taillight filaments, causing false activation of the electronic brake magnets.
How do I test pin output signals on a 5th wheel RV blade receptacle using a digital multimeter?
Set your digital multimeter to measure DC Volts. Connect the negative black probe to Pin 1 (ground pin). Place the positive red probe into Pin 4 to verify 12.6V to 14.4V DC continuous auxiliary power. To test electric brake output, have an assistant activate the manual override on the in-cab brake controller while measuring DC voltage between Pin 1 (ground) and Pin 2 (blue wire); voltage should ramp smoothly from 0V up to full battery voltage based on controller gain settings.
Step-by-Step Guide to Understanding the 5Th Wheel Rv Plumbing Diagram
Identify – Unplug power, isolate the 7-way RV blade harness, and locate plumbing electrical monitoring wires.
Locate – Map individual pin terminals on the trailer junction box using standard color-coded pinout references.
Reference – Match the blue brake wire, black auxiliary line, and green/yellow running light leads to their terminal posts.
Connect/Route – Route 10 AWG ground and auxiliary wires cleanly away from freshwater lines and drain pipe manifolds.
Verify – Use a 12V circuit tester to check turn signals, brake controller signals, and 12V auxiliary battery voltage.
Troubleshoot – Inspect frame ground contacts, re-seat loose blade terminals, and apply dielectric grease to prevent corrosion.
