2 Pin Push Button Switch Wiring Diagram: Easy Setup Guide
A 2 pin push button switch completes a circuit by connecting the hot wire to the load. One pin attaches to the incoming power source, while the second pin connects to the device. Ensure the neutral wire bypasses the switch and the ground wire is secured to the metal housing for safety.
📌 Key Takeaways
- Main purpose is simple interruption of power for momentary or latching control
- Identifying the hot wire versus the neutral wire leads is essential
- Always ground the circuit to prevent electrical shock or shorts
- Check the switch amp rating before connecting to high-voltage loads
- Use this diagram for basic DIY ON/OFF device control projects
Finding a clear and accurate 2 pin push button switch wiring diagram is the first step toward successfully completing your electrical project, whether you are working on a simple DIY electronics hobby or a more complex home automation task. A 2-pin switch serves as a fundamental component in circuit design, acting as the gatekeeper that allows or interrupts the flow of electricity with a simple press. This article provides a comprehensive breakdown of how these switches function, the specific color codes you need to recognize, and the safest way to connect your components to ensure long-term reliability. By the end of this guide, you will understand how to identify terminal points, choose the correct wire gauge, and implement a professional-grade installation.
The 2 pin push button switch wiring diagram typically illustrates a Single Pole Single Throw (SPST) configuration. In a visual representation, you will see two distinct terminals, often referred to as pins, extending from the base of the switch housing. Unlike more complex switches, there is no common terminal or traveler wire involved here; instead, the switch acts as a bridge specifically for the hot wire. The diagram shows the hot wire (usually black or red) entering one pin and exiting the other, while the neutral wire (white) and the ground wire (green or bare copper) bypass the switch entirely to connect directly to the load or the source.
A 2-pin push button switch is non-polarized, meaning it generally does not matter which pin receives the incoming power and which pin sends it to the load, provided you are only interrupting the hot leg of the circuit.

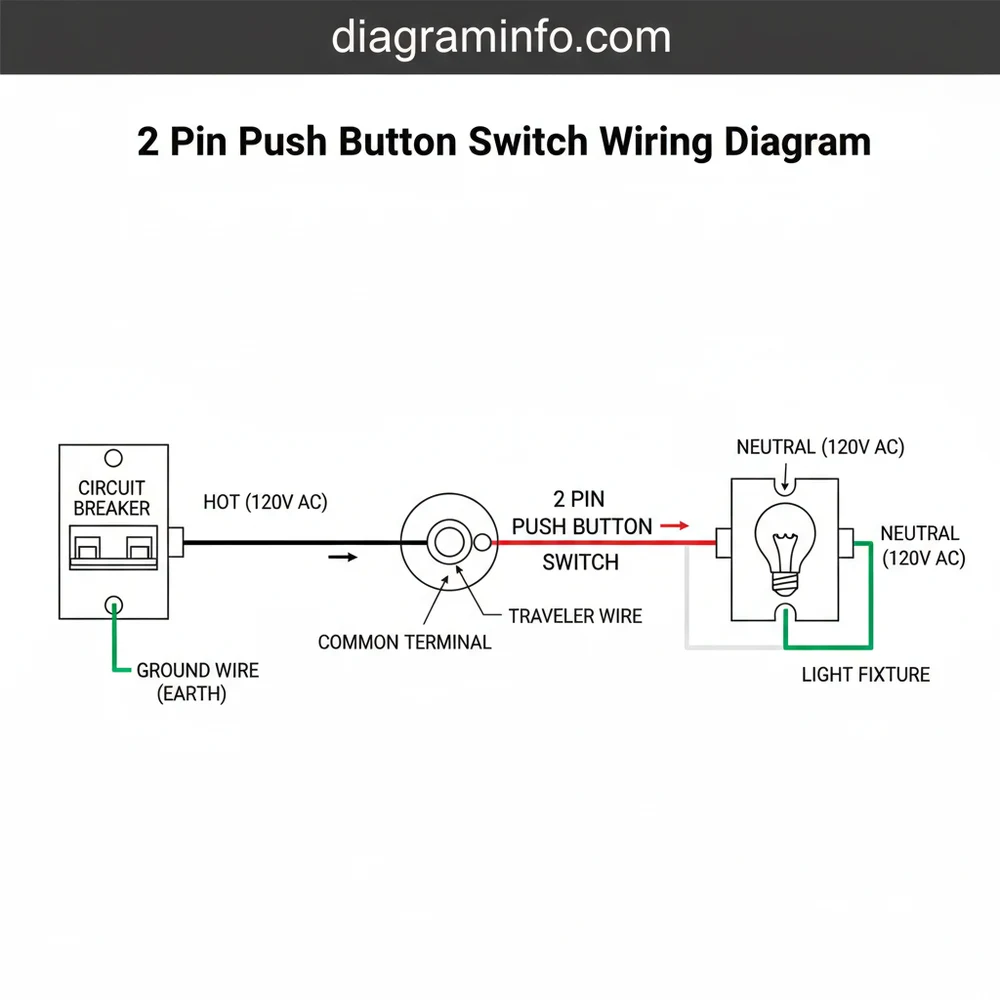

In the diagram above, you can see the internal mechanism. When the button is in the “off” or “open” position, there is a physical gap between the two internal contacts. Pressing the button closes this gap. For high-voltage AC applications, the terminals might feature a brass screw to ensure a low-resistance connection. The visual breakdown also highlights the importance of the wire gauge; for instance, a 120V residential circuit typically requires 14-gauge or 12-gauge wire, whereas a low-voltage DC project might use thinner 22-gauge wire. Understanding these visual cues ensures you don’t accidentally create a short circuit or overheat the components.
To effectively use a 2 pin push button switch wiring diagram, you must first understand the anatomy of the circuit you are building. Every standard circuit requires a path for electricity to travel from the source to the device and back again. The 2-pin switch is designed to be placed “in-line” with the hot wire. This means you are not connecting both the hot and neutral wires to the switch itself. Connecting both would cause a direct short circuit the moment you press the button, likely tripping a breaker or damaging your power source.
Always disconnect the power supply or remove the battery before attempting any wiring. Use a non-contact voltage tester to verify the circuit is dead before touching any exposed terminals or wires.
Follow these steps to complete your installation:
- ✓ Step 1: Preparation and Tool Selection. Gather your tools, including a wire stripper, needle-nose pliers, and a screwdriver or soldering iron depending on the terminal type. Ensure your wire gauge is appropriate for the expected voltage and amperage of the circuit.
- ✓ Step 2: Identify the Wires. Locate your hot wire (carrying the current), your neutral wire (the return path), and the ground wire (safety path). In standard DC electronics, these are usually red (positive) and black (negative). In AC home wiring, these are black (hot), white (neutral), and green (ground).
- ✓ Step 3: Strip the Insulation. Use your wire strippers to remove approximately half an inch of insulation from the ends of the wires that will connect to the switch. Be careful not to nick the copper conductor, as this can weaken the wire and lead to breakage.
- ✓ Step 4: Connect the Incoming Hot Wire. Take the hot wire coming from your power source and attach it to the first pin of the switch. If the switch uses a brass screw, wrap the wire clockwise around the screw before tightening it. This ensures the wire stays tucked under the screw head as you tighten.
- ✓ Step 5: Connect the Outgoing Load Wire. Attach a second piece of wire to the remaining pin on the switch. This wire will carry the current to your light, motor, or electronic device. This is often called the “switched hot” wire.
- ✓ Step 6: Complete the Neutral and Ground Path. Connect the neutral wire from your power source directly to the neutral terminal of your load. Similarly, ensure the ground wire is connected to the metal housing of the switch or the load to provide a safety path for stray electricity.
- ✓ Step 7: Inspect and Test. Check all connections for tightness. Ensure no stray wire strands are touching other terminals. Once secure, restore power and test the button to confirm the circuit operates as intended.
Understanding the nuances of the 2 pin push button switch wiring diagram involves recognizing the difference between momentary and latching switches. A momentary switch only completes the circuit while your finger is physically pressing the button; once you let go, the connection is broken. These are common for doorbells or reset buttons. A latching switch, on the other hand, works like a standard light switch—you press it once to turn it on, and it stays on until you press it again. The wiring diagram for both is identical, but the behavior of the circuit differs significantly.
If you are soldering wires to the pins of a small push button, use a heat sink or a pair of pliers to hold the pin. This prevents excess heat from traveling up the pin and melting the plastic housing of the switch, which can ruin the internal spring mechanism.
Even with a clear 2 pin push button switch wiring diagram, you may encounter obstacles during installation. One of the most common issues is a “floating” circuit, where the device stays on or flickers because the connections are loose. If the button is pressed but the device does not activate, the issue is often a poor contact point at the brass screw or a cold solder joint. Another frequent problem occurs when users confuse a 2-pin switch with a 3-pin switch. While a 3-pin switch uses a common terminal and a traveler wire to toggle between two different paths, the 2-pin version is much simpler and cannot be used for 3-way lighting configurations.
If you notice the switch becoming warm to the touch, this is a major warning sign. Heat usually indicates that the current (amperage) flowing through the circuit exceeds the rated capacity of the switch or that the wire gauge is too thin for the load. For example, using a switch rated for 1 Amp on a motor that draws 5 Amps will quickly lead to failure and potentially a fire. Always match the switch’s voltage and amperage ratings to your specific application. If you are unsure about the load requirements, consulting a professional electrician is the safest course of action.
When working with these components, quality matters. Many budget-friendly switches use thin metal for the pins, which can snap easily under stress. Selecting high-quality components with sturdy terminals will make the wiring process much smoother. Additionally, consider using heat shrink tubing over the connections if you are working in an environment with vibration or moisture. This provides mechanical strength and insulation that electrical tape simply cannot match.
Maintenance for a 2-pin push button is generally minimal, but in dusty or outdoor environments, the internal contacts can become oxidized. If the switch requires multiple presses to work, you might be dealing with internal carbon buildup. While some high-end switches can be cleaned with specialized contact cleaner spray, most small 2-pin buttons are sealed units and should be replaced if they begin to fail.
To ensure the best results, always plan your layout before cutting your wires. Use a 2 pin push button switch wiring diagram as a blueprint, and label your wires using small tabs of masking tape. This is especially helpful if you are working with multiple switches in a single enclosure. If you are using the switch in a DC environment, such as a vehicle or a robotics project, remember that the “hot wire” is the positive lead. While the switch will work on the ground (negative) side, it is industry best practice to switch the positive side to ensure the device is completely de-energized when the switch is off.
For AC projects, the “hot” wire is typically black, but in older homes, you might encounter different colors. Always test with a multimeter to confirm which wire is live before following the diagram.
In conclusion, mastering the 2 pin push button switch wiring diagram is an essential skill for any DIYer or electronics enthusiast. By focusing on the correct terminal identification, respecting the limitations of the switch’s voltage rating, and ensuring secure connections to the brass screw or pins, you can build reliable and safe circuits. Remember that the switch’s only job is to interrupt the hot wire; let the neutral and ground wires do their jobs by bypassing the switch and heading straight to the source or load. With the right tools, a bit of patience, and the safety precautions outlined in this guide, your wiring project will be a resounding success. Always prioritize safety, double-check your connections against the diagram, and don’t hesitate to upgrade to a higher quality switch if your project demands high durability. Successful wiring is all about the details—from the gauge of the wire to the integrity of the contact—so take your time and do it right the first time.
Step-by-Step Guide to Understanding the 2 Pin Push Button Switch Wiring Diagram: Easy Setup Guide
Identify the incoming power source and the specific load device wires.
Locate the common terminal or input pin on the push button switch housing.
Understand how the hot wire will be interrupted by the switch mechanism for control.
Connect the hot wire to one pin and the load wire to the remaining pin.
Verify that the neutral wire is connected directly to the load, bypassing the switch.
Complete the installation by securing the ground wire to the metal chassis or frame.
