John Deere 325G Parts Diagram: 2026 Repair Guide
The John Deere 325G parts diagram illustrates the structural layout and hydraulic, electrical, and engine system configurations for this compact track loader. It details key component part numbers, torque specifications, and assembly breakdowns, allowing technicians to precisely locate hydrostatic pump drives, lift arm pins, and wire harness routing paths.
📌 Key Takeaways
- Main hydrostatic relief valve setting operates at 3,450 PSI across drive circuits.
- High-flow auxiliary hydraulic configuration increases fluid output from 21 GPM to 32 GPM.
- Track tensioner grease fitting check valve requires 80-100 ft-lbs torque specification.
- Lift arm pivot pin bushings and drive motor shaft seals are high-wear inspection areas.
- Routine pin, filter, and roller service is DIY-friendly; internal drive pumps require shop tooling.
Navigating the factory John Deere 325G parts diagram is essential for performing accurate repairs, sourcing OEM component numbers, and executing scheduled maintenance on this G-Series compact track loader. Engineered with a 74-horsepower Yanmar 3.3L Turbo Tier 4 Final engine, advanced electro-hydraulic (EH) controls, and a high-flow hydraulic system, maintaining the structural integrity of the 325G requires strict adherence to OEM technical schematics. Whether diagnosing a pressure drop in the drive motor circuit or reassembling the undercarriage tensioning mechanism, this blueprint guide provides the technical breakdown necessary to maintain equipment uptime and peak operational efficiency.

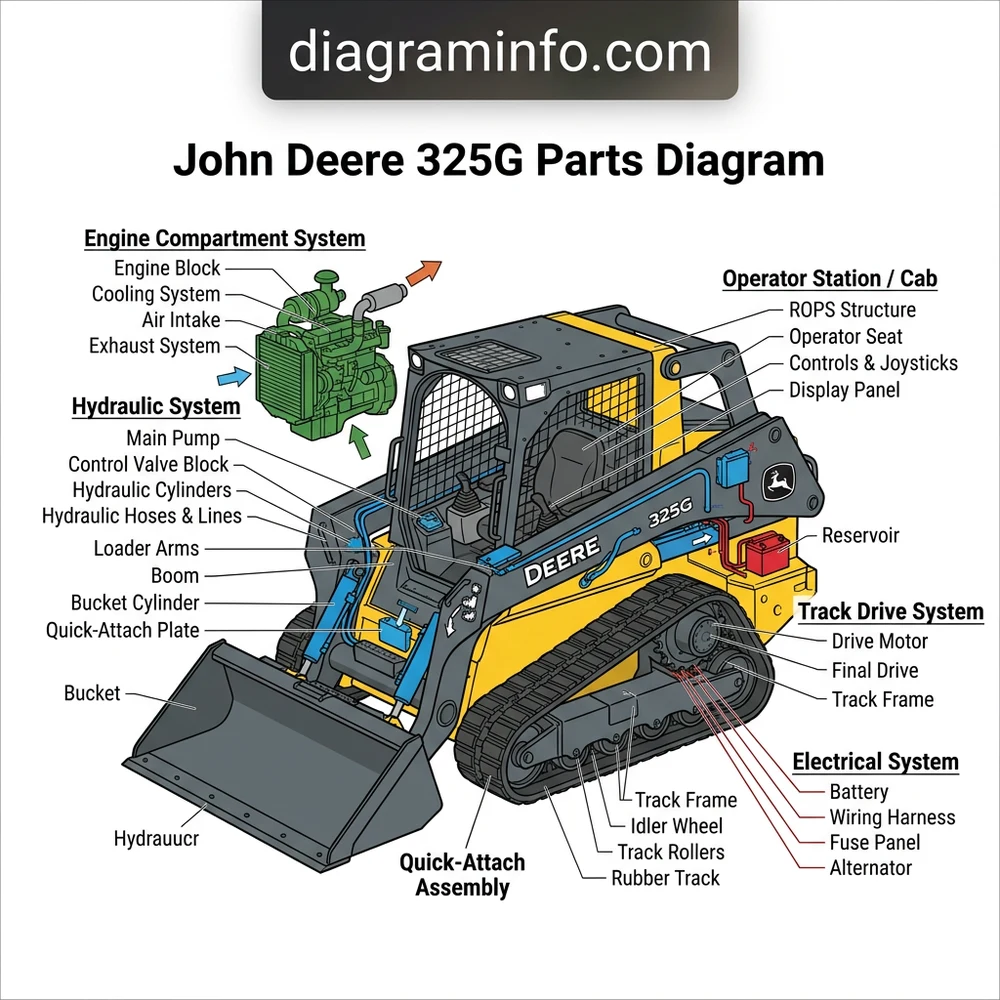

John Deere 325G Parts Diagram and Primary System Layout
The overall mechanical structure of the John Deere 325G compact track loader is divided into distinct modular groups within the factory master schematics. Understanding these major subsystems allows technicians to quickly cross-reference exploded views with physical machine assemblies during teardown and overhaul operations.
Recommended Best Deal Products
Engine Compartment and Powertrain Configuration
Positioned longitudinally at the rear of the frame, the Yanmar 4TNV98CT-NMS2 diesel engine connects directly to the dual hydrostatic tandem pump group. The official schematic details the cooling package arrangement, including the swing-out oil cooler, charged-air cooler (CAC), and hydraulic fan drive assembly. Technicians referencing the powertrain view can trace the mechanical drive coupling from the engine flywheel to the variable-displacement axial piston pumps, ensuring correct alignment specifications are met during pump replacement.
Electro-Hydraulic System and Hydrostatic Drive Component Group
The hydraulic system architecture encompasses the primary gear pump for auxiliary functions, the closed-loop hydrostatic drive circuit, and the main electro-hydraulic control valve block located under the operator cab. Referring to a comprehensive John Deere hydraulic schematic alongside the physical parts manual reveals how electronic solenoid signals translate into hydraulic flow. Key components outlined in this section include the pilot pressure manifold, two-speed drive motors, boom lift cylinders, bucket tilt cylinders, and return-to-dig sensors.
Undercarriage and Track Frame Assembly Blueprint
The 325G utilizes a heavy-duty, open-pivot undercarriage configuration. The schematic illustrates the relationship between the drive sprocket, front/rear idler wheels, triple-flange bottom rollers, and the grease-cylinder track tensioning unit. Fastener torque specs, seal sleeve orientations, and internal bearing configurations are comprehensively mapped within the undercarriage view, serving as a critical guide during routine compact track loader maintenance.
| Subsystem Group | Key OEM Component Callouts | Standard Factory Specification |
|---|---|---|
| Engine Auxiliary | Primary Fuel Filter / Water Separator (MIU800645) | 10 Micron Filtration with Water Sensor |
| Hydrostatic Drive | Main Hydraulic Charge Filter (AT335834) | Main Circuit Relief Pressure: 3,450 PSI (23.8 MPa) |
| Undercarriage | Bottom Track Roller Assembly (AT331223) | Cap Screw Torque: 177 lb-ft (240 N·m) |
| Electrical System | Main System Control Unit / ECU Controller | 12V Nominal / CAN-Bus 120-Ohm Termination |
How to Interpret the John Deere 325G Schematic Blueprint
Properly interpreting a john deere 325g parts diagram requires a systematic approach to reading index keys, callout lines, and hardware coding standards. Factory diagrams use standardized drafting conventions to convey structural depth, fastener mounting order, and kit inclusions.
Deciphering Callout Numbers and Sub-Assembly Explosion Views
Each component within the diagram is marked with an item number enclosed in a circle or box. Solid callout lines point directly to individual standalone parts, while dashed lines enclose complete sub-assemblies. When ordering parts for the 325G loader tower or boom arms, pay close attention to nested callouts; an item number pointing to a complete cylinder assembly will list sub-callouts for internal rod seals, piston rings, wiper seals, and gland nut components.
Mapping Hydraulic Hose Routing and Wire Harness Schematics
Complex electro-hydraulic systems can present tracing challenges. In the 325G parts manual, hydraulic lines are identified by rigid tube shapes and flexible hose dash sizes (e.g., -4, -6, -8, -12). Wire harness diagrams utilize alphanumeric connector designations (e.g., X12, X24) alongside standardized wire color codes (e.g., RED/BLK for switched power, ORG/BLU for CAN-high signals). Cross-referencing connector IDs between the schematic map and physical terminal blocks under the cab ensures pinout accuracy during electrical repair.
Recommended Best Deal Products
When reviewing the Yanmar engine parts diagram sections for the 325G, verify your machine’s exact engine serial number suffix. John Deere integrated slight mid-generation revisions to the exhaust gas recirculation (EGR) valve mounting brackets and DEF/aftertreatment harness routing starting with PIN serial breaks around machine serial number 310000.
Tracing Torque Sequence and Mechanical Fastener Locations
Factory schematics do not merely indicate where parts belong; they also define fastener grade specifications and thread-locking requirements. Look for small letters adjacent to bolt callouts: “M” indicates metric thread, followed by diameter and pitch (e.g., M12x1.75). A small star or shaded triangle usually denotes that a pre-applied micro-encapsulated thread locker or specific torque-angle sequence is required during reassembly.
Main Frame-to-Drive Sprocket Gearbox Bolts: Grade 10.9 Flange Bolts. Factory Torque Specification: 217 lb-ft (295 N·m) with clean, dry threads treated with Medium Strength Threadlocker (Blue 242 equivalents).
John Deere 325G Parts Diagram Troubleshooting for Hydraulic and Electrical Faults
Utilizing the john deere 325g parts diagram during diagnostic procedures allows mechanics to quickly isolate component failures, verify system pressures, and locate hidden relief valves or electrical grounds that may cause machine malfunction.
Diagnosing Hydrostatic Drive Imbalance and Pressure Loss
If the 325G tracks unevenly or exhibits weak drive force under heavy load, reference the tandem hydrostatic pump schematic view. Locate the high-pressure relief valves (HPRVs) and the charge pressure relief valve built into the pump manifold block.
By installing a 0–5000 PSI pressure gauge into the diagnostic test ports (designated as gauge ports M1 and M2 on the schematic blueprint), you can compare operational system pressures against factory ratings. If charge pressure drops below 310 PSI (2.13 MPa) at 2200 RPM, consult the diagram to inspect the internal charge pump wear plates, suction line O-rings, or the charge filter bypass valve for contamination blockage.
High-pressure hydraulic fluid hazard. Always relieve system residual pressure by cycling EH controls with the ignition key ON (engine OFF) and lowering the boom arms fully onto the stop blocks before disconnecting hydraulic lines shown in the 325G parts diagram.
Isolating Electro-Hydraulic Joystick and ECU Wiring Faults
Intermittent loss of boom or bucket control functions often stems from wire harness chafing or harness connector corrosion near the cab tilt pivot point. Using the 325G electrical layout view, locate main harness bracket locations and check continuity across the EH controller signal wires. Pay specific attention to harness routing callouts near the cab firewall where movement can cause hidden conductor fatigue inside the wire insulation.
John Deere 325G Parts Diagram Technical Reference FAQ
How do I identify serial number breaks on the John Deere 325G parts diagram?
Serial number breaks are clearly listed in the part description headers within the factory manual. John Deere uses “PIN” (Product Identification Number) ranges to mark manufacturing changes. In the parts breakdown list, look for notations such as “( – 309999)” which designates parts valid for machines built up to that specific serial number, or “(310000 – )” indicating parts implemented on machines from serial number 310000 onward. Always verify the 17-character PIN plate located on the lower right-hand side of the front main frame before selecting replacement components.
What are the primary hydraulic relief valve settings shown in the 325G manifold diagram?
The standard main hydraulic system relief pressure setting for the John Deere 325G is rated at 3,450 PSI (23,786 kPa) for standard-flow models. On high-flow models equipped with auxiliary secondary relief valves, high-flow system pressure is governed at approximately 3,450 PSI with a maximum flow rate of 35 gallons per minute (132 L/min). The pilot pressure regulating valve maintains a steady pilot control circuit pressure of approximately 475 PSI (3.27 MPa) to ensure responsive EH joystick operation.
Where is the main fuse panel and ECU relay configuration located on the schematic?
In the 325G electrical layout schematic, the primary power distribution center (fuse/relay box) is located inside the operator cab behind the seat removable access panel. A secondary high-current mega-fuse block (containing 60A and 80A main fuses for glow plugs and system power) is positioned inside the engine compartment adjacent to the master battery disconnect switch. Refer to the electrical diagram key to match fuse positions (F1–F32) and relay sockets (K1–K12) with their respective system circuits.
How does the track tensioner cylinder assembly appear in the undercarriage diagram?
The track tensioning system is depicted as a self-contained spring-loaded piston assembly mounted inside the track frame channel. The diagram reveals the internal recoil spring, hydraulic grease cylinder barrel, piston rod, dual seals, and the grease zerk check valve (fitting). When servicing, the diagram shows how the grease valve threads directly into the front cylinder housing, allowing grease injection to force the front idler yoke forward, setting correct rubber track tension sag (typically 0.75″ to 1.25″ sag measured at center roller).
Which hydraulic fluid and filter specifications match the John Deere 325G blueprint?
According to OEM fluid specifications detailed in the maintenance diagram, the 325G utilizes John Deere Hy-Gard™ transmission/hydraulic fluid (or ISO VG 46 equivalent meeting J20C standards). The hydraulic system uses a primary spin-on 10-micron charge filter (Part #AT335834) along with an internal high-flow tank suction strainer screen. Filter replacement intervals indicated in the schematic maintenance legend require charge filter changes every 500 operating hours, with full fluid reservoir flushes performed at 1,000-hour intervals.
Step-by-Step Guide to Understanding the John Deere 325G Parts Diagram
Identify – Determine the specific loader system (e.g., hydraulics, engine, or frame structure) requiring maintenance.
Locate – Find the corresponding section in the John Deere 325G schematic using the machine’s PIN/serial number.
Reference – Cross-reference the diagram callout numbers with the sub-assembly key to identify exact component part numbers.
Route/Assemble – Position replacement components, seal rings, and wire harnesses according to the exploded layout diagrams.
Verify – Torque all structural bolts and hydraulic fittings to factory specification using the technical spec table.
Troubleshoot – Test system function under load and check for fluid leaks or electrical fault codes.
