Marine Fuel System Diagram: Troubleshooting Guide 2026

This detailed article provides an in-depth examination of a modern common rail marine fuel system diagram. Understanding this complex system is crucial for marine mechanics, experienced vessel owners, and technical professionals. We will dissect the primary fuel path, from the fuel tank through the filtration stages, precise high-pressure delivery, and the fuel return line back to the tank. This visual guide, representative of many current marine diesel engines (such as those incorporating principles from Yanmar 4JH-series or Volvo Penta D-series), will equip you with the knowledge to identify components, interpret operational flow, and effectively diagnose potential issues. Pay close attention to the specific roles of components like the high pressure fuel pump (HPFP) and the injection pressure regulator.

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

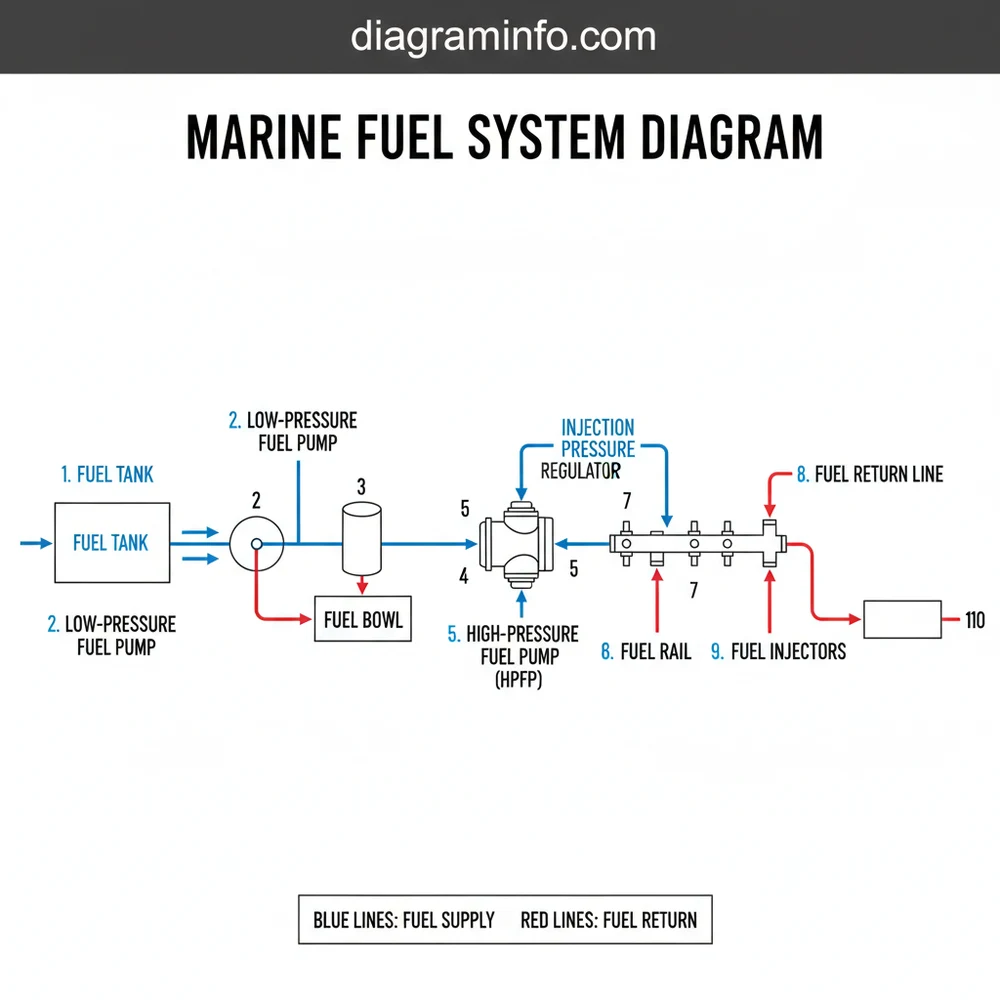

FUEL SYSTEM COMPONENTS BREAKDOWN

Interpreting a marine fuel system diagram requires a precise understanding of each component’s function and its interaction within the overall system. Modern common rail systems are engineered for efficiency and emissions compliance, featuring intricate controls and high-pressure capabilities.

1. Fuel Tank: The primary storage for diesel fuel. Often equipped with baffles to prevent sloshing, a vent line, and a pick-up tube extending above the tank bottom to avoid drawing sediment.
2. Fuel Shut-off Valve: A critical safety component typically located at the tank outlet. Allows manual isolation of the fuel supply to the engine for maintenance, repairs, or in emergency situations.
3. Primary Fuel Filter/Water Separator: This essential component removes larger particulate contaminants and, most critically, separates water from the fuel. It typically features a clear fuel bowl at the bottom for visual inspection and manual draining of accumulated water and sediment.
4. Lift Pump (Low-Pressure Fuel Pump): Responsible for drawing fuel from the tank, pushing it through the primary and secondary filters, and supplying a consistent low-pressure flow to the high pressure fuel pump (HPFP). Many systems incorporate a manual primer pump for bleeding air after maintenance.
5. Secondary Fuel Filter: Provides finer filtration than the primary filter, protecting the sensitive, high-precision components of the common rail system, especially the HPFP and injectors, from microscopic particles.
6. Fuel Heater: Prevents fuel waxing or gelling in cold ambient or water temperatures. It typically heats the fuel before it reaches the secondary filter, ensuring optimal flow and preventing filter blockage.
7. High-Pressure Fuel Pump (HPFP): The core of a common rail system, the HPFP (also known as a high-pressure pump) pressurizes the fuel to extremely high levels, often exceeding 2,000 bar (29,000 psi), and delivers it to the common rail. It’s a precision component, critical for injection timing and atomization.
8. Fuel Cooler: Modern high-pressure fuel systems generate significant heat due to the work done by the HPFP and the high flow rates. The fuel cooler reduces the temperature of the excess fuel returning to the tank via the fuel return line, maintaining optimal fuel density and preventing tank degradation.
9. Common Rail: A robust, high-pressure accumulator that stores fuel at constant pressure, ready for injection. It acts as a buffer, smoothing out pressure fluctuations from the HPFP and ensuring consistent pressure for all injectors.
10. Injection Pressure Regulator (IMV/MPROP/DRV): This valve precisely controls the pressure within the common rail by regulating the amount of fuel supplied by the HPFP to the rail or by diverting excess fuel. It responds to engine ECU commands to maintain desired rail pressure based on engine load and speed.
11. Fuel Injectors: Electronically controlled, precision devices that spray atomized fuel directly into the combustion chamber at the exact moment and duration commanded by the engine control unit (ECU), ensuring efficient combustion.
12. Fuel Return Line: Carries excess fuel from the common rail, injectors (leak-off), and the HPFP (internal cooling/lubrication) back to the fuel tank. This line is crucial for managing system pressure and carrying away heat.

COMMON FAILURE POINTS & SYMPTOMS

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Effective troubleshooting of a marine fuel system diagram requires an understanding of typical failure modes. Identifying symptoms early can prevent catastrophic engine damage and ensure vessel reliability. For detailed insights into preventative maintenance schedules, refer to our comprehensive guide on Engine Maintenance Schedules.

1. Fuel Filters (Primary & Secondary):
   • Symptom: Reduced engine power, hesitation, black smoke under load, engine stalling, or difficulty starting.
   • Diagnosis: Clogged filters restrict fuel flow. Check vacuum gauge readings before the lift pump (if equipped). A dirty fuel bowl on the primary filter indicates water or excessive particulate accumulation. A significant pressure drop across the filter housing confirms restriction.
2. Lift Pump (Low-Pressure Pump):
   • Symptom: Hard starting, no start condition, engine sputtering, or loss of power at higher RPMs.
   • Diagnosis: Failure to provide adequate pressure or volume to the HPFP. Measure fuel pressure directly after the secondary filter using a calibrated gauge. A faulty integral primer pump can also lead to air intrusion and difficulty starting.
3. High-Pressure Fuel Pump (HPFP):
   • Symptom: Engine derate, loss of power, rough running, excessive white smoke, or diagnostic trouble codes (DTCs) related to insufficient common rail pressure (e.g., P0087 – Fuel Rail/System Pressure – Too Low).
   • Diagnosis: Internal wear leads to reduced output pressure. Requires specialized common rail pressure sensor data monitoring via diagnostic software. OEM specs dictate minimum rail pressure at various RPMs. A low output test confirms failure.
4. Fuel Injectors:
   • Symptom: Rough idle, misfires, excessive black or white smoke, increased fuel consumption, cylinder knock, or poor acceleration.
   • Diagnosis: Clogging, wear, or electrical faults. Conduct an injector return flow test to check for excessive leak-off, indicating internal wear. Diagnostic software can identify misfiring cylinders or electrical circuit faults. Further information on injector diagnostics and common rail technology can be found in our resource on Diesel Injector Testing and Servicing.
5. Injection Pressure Regulator (IMV/MPROP/DRV):
   • Symptom: Erratic common rail pressure fluctuations, engine stalling (especially at idle), poor throttle response, or inability to maintain target rail pressure.
   • Diagnosis: Sticking or intermittent operation. Monitor common rail pressure sensor readings via scan tool for abnormal spikes or drops. Perform resistance checks on the solenoid, comparing to manufacturer specifications (e.g., 2.5-3.5 Ohms at 20°C).
6. Fuel Return Line / Fuel Cooler:
   • Symptom: Overheating fuel in the tank, reduced engine performance due to altered fuel density, or premature failure of fuel system components.
   • Diagnosis: A restricted fuel return line can cause elevated fuel temperatures. Inspect the line for kinks, damage, or blockages. Verify proper function of the fuel cooler if return fuel temperatures are consistently above OEM limits (e.g., >65°C).

REPAIR & REPLACEMENT STEPS: Primary Fuel Filter/Water Separator

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

One of the most frequent and critical maintenance tasks in any marine fuel system diagram is the replacement of the primary fuel filter/water separator. This procedure is paramount for preventing water and particulate contamination from reaching the sensitive high-pressure components downstream.

1. Safety First: Ensure the engine is cool. Disconnect the negative terminal of the vessel’s primary starting battery to prevent accidental engine start or electrical hazards.
2. Gather Tools & Parts: You will require a suitable fuel filter wrench, a new OEM-specified primary fuel filter/water separator element (e.g., Racor 900FH equivalent, Part No. R90T), a clean drain pan or container (at least 2 liters capacity), clean lint-free rags, and possibly a spare O-ring kit for the filter housing.
3. Isolate Fuel Supply: Locate and close the fuel shut-off valve at the fuel tank outlet. This prevents fuel from continuously flowing when the filter is removed.
4. Drain the Fuel Bowl: Place the drain pan directly under the filter assembly. Carefully open the drain valve located at the bottom of the transparent fuel bowl. Allow all fuel and collected water to drain completely into the pan. Observe the drained contents for signs of excessive water or sediment, which indicates a need for further fuel system inspection.
5. Remove the Old Filter Element: Using the appropriate filter wrench, loosen the filter element counter-clockwise. Once loose, carefully unscrew it by hand. Be prepared for a small amount of residual fuel spillage.
6. Inspect & Prepare: Thoroughly clean the filter housing and mounting surface, ensuring no debris remains. Inspect the clear fuel bowl for cracks or damage. If a new O-ring is provided with the filter or as part of a kit, remove the old O-rings from the housing and lubricate the new O-rings with a thin film of clean diesel fuel before installation.
7. Install the New Filter: Ensure the new filter element is filled with clean diesel fuel before installation – this aids in priming and reduces cranking time. Carefully screw on the new filter element by hand until the gasket makes firm contact with the housing. Then, using the filter wrench, tighten it an additional 1/2 to 3/4 turn, or precisely to the manufacturer’s specified torque.
🔧 Specification
According to OEM specifications for Racor 900FH series filters, the bowl should be torqued to 15-20 ft-lbs (20-27 Nm) and the filter element to 8-12 ft-lbs (11-16 Nm). Always refer to the specific filter and housing manufacturer’s guidelines for precise torque values.
8. Prime the Fuel System: Reopen the fuel shut-off valve at the tank. If your system has a manual primer pump (often on the lift pump housing), operate it repeatedly until you feel firm resistance, indicating the system is free of air and under pressure. For electric primer pumps, cycle the ignition key to the “ON” position for 30 seconds multiple times, or activate the pump via diagnostic software, listening for changes in pump sound. Check all connections for leaks.
9. Test Run: Reconnect the battery. Start the engine and allow it to idle. Carefully inspect the new filter and all fuel lines for any signs of leaks. Check the engine’s operation for smooth running, proper RPMs, and absence of air bubbles in transparent fuel lines. Understanding fuel delivery issues often requires advanced diagnostics, as detailed in our article on Troubleshooting Common Diesel Issues.

FAQ

What is the function of the fuel return line in a common rail system?

The fuel return line serves multiple critical functions in a common rail marine diesel system. Firstly, it routes unused fuel from the common rail, injectors (via leak-off or drain lines), and the high pressure fuel pump (HPFP) back to the fuel tank. This continuous circulation helps to cool the fuel, especially crucial in high-pressure systems where the HPFP and compression generate significant heat. Secondly, it helps maintain precise common rail pressure by allowing the injection pressure regulator to divert excess fuel when demand is lower, preventing over-pressurization.

How often should I inspect my fuel bowl?

Regular inspection of the clear fuel bowl on your primary fuel filter/water separator is a non-negotiable aspect of marine engine maintenance. Manufacturer specs often recommend daily inspection, or at least before each major voyage. Visible water or sediment in the bowl indicates compromised fuel quality or a failing filtration system. Prompt draining of water and investigation of its source is crucial to prevent injector and HPFP damage. Optimal fuel filtration is paramount; learn more about selecting the correct filters for your vessel in Choosing the Right Fuel Filters.

What are the symptoms of a failing HPFP?

A failing high pressure fuel pump (HPFP) can manifest in several ways, all indicating a severe problem with fuel delivery. Common symptoms include a significant loss of engine power (derate), rough running, engine hesitation under load, difficulty starting (especially cold), or the engine cutting out unexpectedly. You might also observe excessive white smoke from the exhaust due to incomplete combustion. On engines with electronic diagnostics, expect diagnostic trouble codes (DTCs) related to low fuel rail pressure (e.g., P0087). Early diagnosis is critical to avoid further damage to other fuel system components.

Can I run my marine diesel on alternative fuels like biodiesel?

While some modern marine diesel engines are rated for certain biodiesel blends (e.g., B5 or B20), it is imperative to consult your engine’s OEM manual for specific recommendations and limitations. Biodiesel has different solvent properties, which can loosen accumulated deposits in older tanks and fuel lines, leading to rapid filter clogging. It also has a shorter shelf life and can be more prone to microbial growth and water absorption. Running unapproved blends can void warranties and may necessitate more frequent filter changes, inspection of the fuel bowl, and specialized fuel system component compatibility checks (e.g., seals and hoses). Always prioritize OEM guidance.

What is the purpose of a fuel cooler on a marine engine?

A fuel cooler is integrated into modern marine diesel fuel systems to manage the significant heat generated during operation, particularly within the high pressure fuel pump (HPFP) and from the continuous circulation of fuel. High fuel temperatures can negatively impact fuel density, reducing lubricity and potentially damaging sensitive components over time. By cooling the fuel returning to the tank via the fuel return line, the cooler helps maintain optimal fuel density for efficient combustion, preserves the longevity of fuel system components, and prevents the fuel tank from reaching excessive temperatures that could accelerate fuel degradation.
