AquaPure Simple Well Water Filtration System Diagram: 2026 Setup

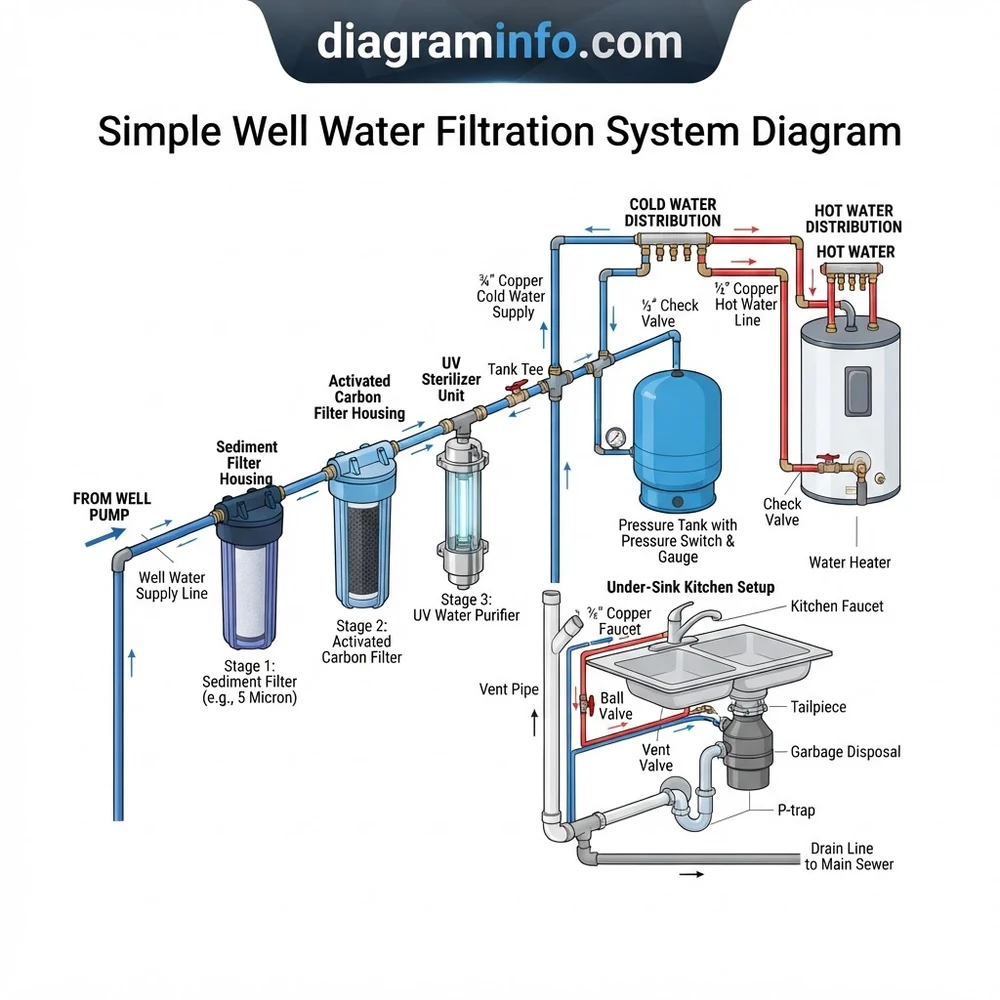

A residential well water filtration system routes untreated water from the pressure tank through a 50-micron sediment pre-filter, followed by a 5-micron activated carbon block and UV purifier. Clean water feeds household supply lines, while backwash lines bypass under-sink elements like the tailpiece, P-trap, and drain assembly directly to wastewater lines.
📌 Key Takeaways
- Sediment pre-filters should be rated at 50 to 5 microns and replaced every 3 to 6 months to prevent system clogs.
- Bypass valves and shut-off ball valves must be installed around each filter stage for safe servicing without shutting off main water supply.
- Maintain water operating pressure between 40 and 60 PSI to prevent filter housing rupture or insufficient output flow.
- Improper routing into household drainage near the sink tailpiece or P-trap can cause hazardous wastewater cross-contamination.
- DIY installation is suitable for standard inline stage additions, but whole-house electrical wiring and main line cuts require a licensed plumber.
Installing or servicing point-of-entry treatment systems requires a precise plumbing schematic to ensure optimal flow rate, maintain system pressure, and adhere to International Plumbing Code (IPC) standards. This guide references our simple well water filtration system diagram to walk you through pressure tank tie-ins, sediment pre-filtration, media vessels, and compliant waste discharge plumbing. Whether you are diagnosing head loss across filter housings, replacing media, or plumbing a multi-stage conditioning loop, understanding fluid vectors and system hydraulics prevents cavitation, media fouling, and back-siphonage.
Simple Well Water Filtration System Diagram: Component Breakdown
A high-performance well water filtration loop relies on a sequential arrangement of mechanical filtration, media conditioning, and sanitary drain isolation. According to OEM plumbing specifications, components must be plumbed in strict order from the pressure tank outlet to the main distribution manifold to protect downstream valves and maximize media longevity.
Recommended Best Deal Products
| Component Stage | Connection Type & Material | Operating Specification |
|---|---|---|
| Point-of-Entry Bypass Loop | 1-inch Schedule 40 PVC / Ball Valves | Full-port isolation, 125 PSI rating |
| Sediment Pre-Filter Housing | 1-inch NPT Threaded Tailpiece / Polypropylene | 5 to 20 Micron, Delta-P limit 15 PSI |
| Automatic Backwashing Media Vessel | Top-mount Control Valve / FRP Tank | 7–12 GPM regeneration flow, 50 PSI min |
| Regeneration Drain Assembly | 3/4-inch Rigid PVC Pipe / Air Gap Receptor | Indirect connection, 2-inch vertical air gap |
| Waste Receptor & Venting | 1.5-inch P-trap / AAV Valve or Vent Pipe | Self-cleaning hydraulic seal, IPC compliant |
Point-of-Entry Pre-Filtration and Isolating Valves
Water exits the pressure tank and enters the pre-filtration circuit via a Schedule 40 PVC main line. A 3-valve bypass manifold allows manual isolation of the filter array during element changeouts without terminating raw water supply to critical external fixtures. Upstream and downstream pressure gauges surrounding the 5-micron spun-polypropylene sediment housing provide continuous monitoring of differential pressure (Delta-P).
Media Vessels and Regeneration Control Valves
Downstream from the sediment housing, the main feed line threads into an automatic backwashing filter (such as catalytic carbon or iron-manganese media). The control head directs service water downward through the media bed during normal operation. During backwash mode, internal piston valves reverse flow vectors, expanding the media bed to lift particulate out through the dedicated backwash drain assembly port.
Sanitary Backwash Discharge and Waste Isolation
Because backwash discharge lines connect directly to the home drainage network, cross-contamination prevention is critical. The backwash discharge tube terminates above an open standpipe fitted with a standardized air gap fitting. This waste receptor ties into a 1.5-inch PVC P-trap. To maintain trap seal integrity without piercing structural top plates for a dedicated roof vent pipe, plumbing schematics frequently incorporate an Air Admittance Valve (AAV valve) directly above the standpipe assembly.
When installing a backwashing system, ensure the dedicated drain assembly line maintains a continuous downward slope of at least 1/4 inch per foot toward the waste receptor. Avoid connecting backwash discharge lines downstream of domestic fixtures like a garbage disposal or sink tailpiece without a mechanical air gap break.
Tracing Fluid Flow and Installing from the Filtration Diagram
Reading a simple well water filtration system diagram requires following raw water from source input to conditioned output while verifying structural support, pressure ratings, and pipe sizing across each sub-assembly.
Recommended Best Deal Products
Mainline Feed Size: 1-inch Schedule 40 or 80 PVC | Minimum Flow Rate: 9.5 GPM at 40 PSI | Maximum System Operating Pressure: 80 PSI | Backwash Air Gap Minimum Distance: Twice the effective diameter of the discharge pipe (1.0 inch absolute minimum).
1. Installing the Main Isolation and Pre-Filter Stage
As illustrated in the piping diagram, mount the primary 10-inch or 20-inch big blue filter housing directly to wall framing using heavy-duty steel brackets. Pipe the incoming line from the well pressure tank using solvent-welded PVC fittings. Thread a male brass or PVC tailpiece adapter into the inlet port using PTFE tape or non-hardening pipe dope. Install full-port ball valves on both the inlet line and outlet line, bridging them with a horizontal cross-over line to form the maintenance bypass assembly.
2. Setting Up the Media Vessel and Plumbing the Bypass
Position the iron filter or softener media vessel on a level concrete pad. Thread the digital control head onto the FRP tank neck, ensuring the distributor tube O-ring is properly lubricated with food-grade silicone. Connect the supply line from the sediment housing output to the control valve inlet using union fittings or a quick-connect bypass yoke. For additional installation guidance regarding electrical pump controls, refer to our detailed schematic on well pump pressure switch wiring.
3. Routing the Backwash Line to the Sanitary Drain Assembly
Construct the backwash waste receptor using a 1.5-inch Schedule 40 PVC pipe assembly. Glue a standard P-trap to the lower leg, connecting the upper riser to a vertical standpipe. Install an AAV valve at the top of the stack, at least 4 inches above the standpipe rim, to permit proper drainage venting during high-volume backwash cycles. Insert the 3/4-inch discharge line into a fixed air gap bracket suspended above the standpipe mouth. Ensure the discharge pipe does not cross or share drainage infrastructure with kitchen fixtures or a commercial garbage disposal drain line, as grease and waste solids can compromise backwash discharge paths.
4. Plumbing Downstream Polishers and Point-of-Use Outlets
From the outlet of the media vessel, route the Schedule 40 PVC main toward downstream post-filters, such as a UV disinfection chamber or activated carbon block canister. Use threaded slip joint union fittings at the inlet and outlet of canister housings to allow swift disconnects during housing replacement or seal lubrication. If you are integrating softening loops, cross-reference our guide on water softener bypass valve configuration to verify valve indexing.
Simple Well Water Filtration System Diagram Diagnostics and Repairs
When system performance degrades, comparing static pressure readings and backwash drainage behavior against baseline diagram values isolates physical blockages, pressure drops, or failing check valves.
Always depressurize the filtration array using the canister pressure-relief button and isolate the main well supply before loosening filter sumps, slip joint nuts, or control head connections. High residual hydraulic pressure can cause sudden component failure or severe water damage.
1. High Differential Pressure across Sediment Filter
If the downstream pressure gauge drops more than 15 PSI below the upstream gauge while water is running, the sediment element is blinded by fine particulate. Close the inlet and outlet isolation valves, depressurize via the red pressure-relief button, and unscrew the housing using a spanner wrench. Inspect the internal O-ring for squish distortion or cracking. Replace the cartridge, re-lubricate the nitrile seal, and slowly open the inlet ball valve to purge air from the housing bleed port.
2. Incomplete Regeneration Caused by Drain Line Backpressure
If the media vessel fails to clean itself during backwash cycles, iron or sediment will slip through into supply lines. Inspect the backwash discharge line for sagging, kinks, or dynamic restriction. Verify that the physical air gap above the waste receptor is completely clear of debris. If water backs up out of the drain assembly standpipe during regeneration, check the P-trap for sludge accumulation. If the trap is clear, inspect the spring seal on the AAV valve; a stuck-closed air admittance valve prevents air displacement, causing hydraulic lock and surging in the drain stack. For deeper media vessel diagnostics, consult our technical standard on iron filter backwash control valves.
3. Leakage at Slip Joint and Threaded Adapter Connections
Drips occurring at filter canister union connections or slip joint nut interfaces usually indicate thermal expansion strain or dry-rotted rubber gaskets. Isolate the segment, back off the slip joint nut, and inspect the bevel washer. Replace crushed rubber washers with EPDM replacements, reassemble hand-tight, and add a 1/4 turn with a strap wrench. Avoid over-tightening threaded PVC-to-metal tailpiece transitions, as tapered male threads can shear female PVC ports over time.
Well Filtration Layout and Backwash Drain Assembly FAQ
Why is a physical air gap required on the backwash drain assembly line?
A physical air gap creates a non-enclosed, atmospheric separation between the backwash discharge pipe and the sanitary waste receptor. This prevents cross-connection contamination, ensuring that raw sewage or waste from a backed-up P-trap cannot be siphoned back into the well water treatment vessel under negative system pressure conditions.
Can an AAV valve replace a traditional roof vent pipe for filter drain lines?
Yes. An Air Admittance Valve (AAV valve) is IPC-approved for venting dedicated water treatment waste receptors. It opens under negative pressure during backwash drainage to let room air enter the stack, breaking vacuum tension, and seals shut under positive pressure to prevent sewer gases from entering the mechanical space.
What size PVC piping should be used on a residential well filtration diagram?
Most residential well filtration schematics specify 1-inch nominal Schedule 40 or Schedule 80 PVC for the main service header to minimize friction loss and maintain a minimum flow rate of 10–12 GPM. The backwash drain assembly line should be plumbed using at least 3/4-inch rigid pipe feeding into a 1.5-inch or 2-inch P-trap waste stack.
How do slip joint fittings simplify well filter housing maintenance?
Slip joint union connections allow technicians to disconnect and remove rigid PVC pipe sections or large filter housings without cutting solvent-welded joints. Incorporating slip joint unions directly upstream and downstream of filtration banks significantly speeds up media re-bedding and manifold service.
Where should the backwash waste receptor be tied into local drainage?
The waste receptor must tie into a dedicated sanitary drain stack or sump pump pit designed for non-sewage wastewater. It should never share a branch line with a kitchen sink or garbage disposal, as particulate matter from food waste can obstruct the high-velocity discharge flow during filter backwashing.
Step-by-Step Guide to Understanding the Simple Well Water Filtration System Diagram
Identify – Locate the main water supply entering from the pressure tank and map the proposed filter layout.
Locate – Position the sediment filter, carbon block, bypass valves, and UV sanitizer along a solid mounting wall.
Reference – Consult the simple well water filtration system diagram to verify correct directional flow through every housing inlet.
Connect/Route – Plumb incoming lines through bypass ball valves, filter sumps, and out toward house lines, isolating away from sink tailpieces.
Verify – Pressurize the system gradually to 50 PSI, check housing sumps for leaks, and bleed air from filter vents.
Troubleshoot – Inspect O-rings, check pressure gauge drops across stages, and adjust bypass valves if flow rate decreases significantly.
