Vauxhall A/C Pressure Switch Wiring Diagram: 2026 Repair

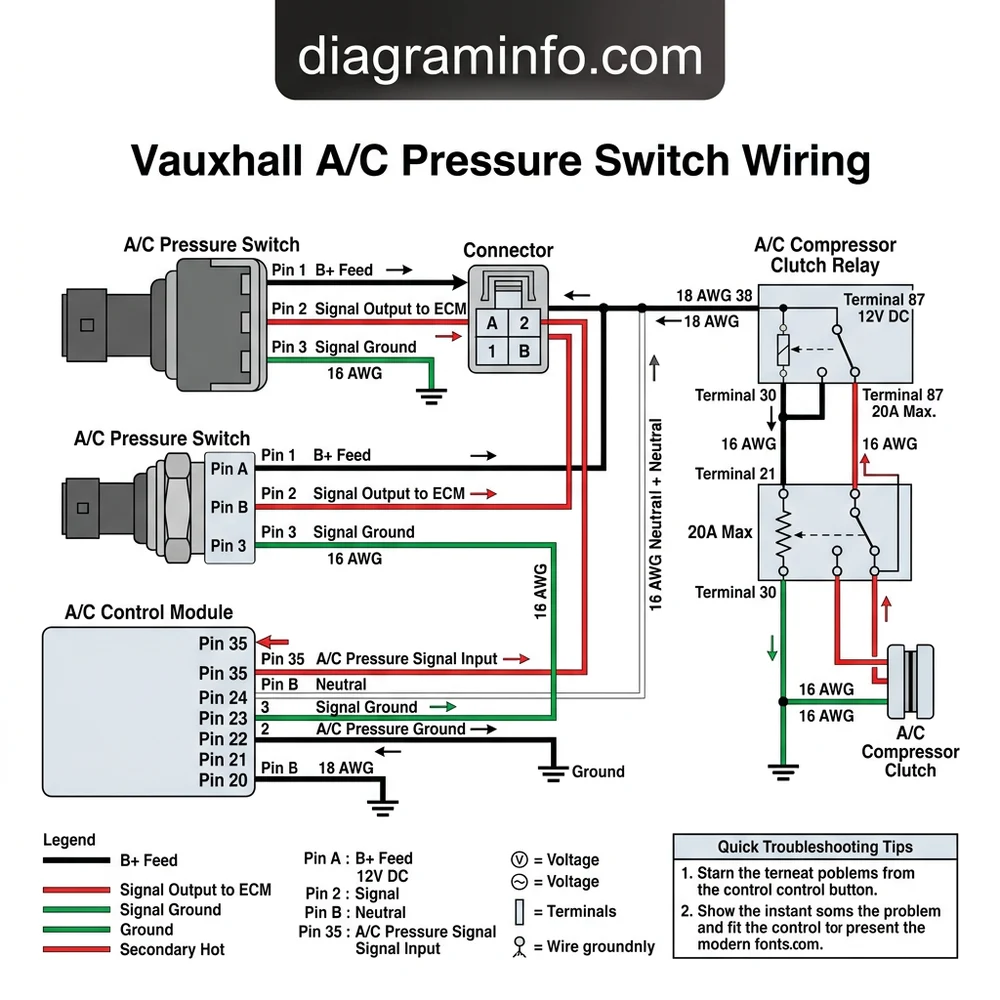

The Vauxhall A/C pressure switch wiring typically uses a 3-pin sensor harness located on the high-pressure refrigerant line near the condenser. Pin 1 (Brown) serves as the ground wire, Pin 2 (Black/Violet) provides a 5V hot wire reference signal from the ECU, and Pin 3 (Blue/Red) returns the pressure feedback signal.
📌 Key Takeaways
- Vauxhall 3-pin A/C pressure switches operate on a 5V DC reference signal from the Engine Control Unit (ECU).
- Pin 1 is solid Brown (Ground wire), Pin 2 is Black/Violet (5V Hot wire), and Pin 3 is Blue/Red (Signal output).
- Corrosion inside the harness plug is the leading cause of false high/low pressure ECU fault codes.
- Always depressurize the A/C system or check Schrader valve seating before replacing a hard-threaded switch.
- A digital multimeter reading below 0.5V or above 4.5V on the signal wire indicates circuit faults or extreme system pressure.
Properly diagnosing and restoring the air conditioning circuit on modern Vauxhall vehicles requires an accurate breakdown of the electrical harness and switch interface. Whether you are servicing a Corsa D/E, Astra H/J/K, Insignia A/B, or Zafira Tourer, understanding the underlying electrical architecture prevents ECM driver failure, false pressure DTCs (such as P0530, P0531, or P0532), and improper compressor clutch engagement. Modern Vauxhall models transition between 3-pin electronic pressure transducers operating on a 5-volt reference signal and legacy 4-pin trinary pressure switches switching 12-volt battery circuit power. This technical guide outlines exact wire color codes, terminal pin assignments, operating voltages, and troubleshooting steps required to perform reliable harness repairs and electrical verification.
Electrical Architecture and Vauxhall A/C Pressure Switch Circuit Overview
The electronic climate control and standard HVAC systems across the Vauxhall lineup utilize an A/C refrigerant pressure sensor (or switch) to monitor system high-side pressure. The Engine Control Module (ECM) or Body Control Module (BCM) monitors this input to protect the compressor from operating under dangerous over-pressure or low-refrigerant conditions, while simultaneously managing engine cooling fan speed request stages.
• Supply Reference Voltage: 4.8V DC to 5.2V DC (5V Reference Circuit)
• Sensor Signal Output Range: 0.5V DC (approx. 0 bar/0 psi) to 4.5V DC (approx. 30 bar/435 psi)
• Ground Wire Resistance: < 0.5 Ohms to engine chassis ground
• Harness Wire Gauge: 20 AWG (0.5 mm²) FLRY-B automotive low-tension cable
• Connector Terminal Type: Sealed Delphi/Aptiv Metri-Pack 150 Series or Bosch Compact 3-Way
On modern 3-pin systems, the pressure sensor acts as a linear pressure transducer. The sensor converts fluid pressure from the high-side liquid line into a variable analog voltage signal. Pin A (or Pin 1) receives a regulated 5-volt reference feed from the ECM. Pin B (or Pin 2) provides a dedicated low reference ground wire back to the control module to prevent signal bias caused by chassis ground potential shifts. Pin C (or Pin 3) transmits the analog voltage signal back to the ECM analog-to-digital converter.
On legacy 4-pin trinary switch systems (commonly found on pre-2008 Astra H, Vectra C, and Corsa C models), the switch directly interrupts or ground-switches 12V hot wire feeds to control the compressor clutch relay and dual-stage cooling fans. Understanding which generation of system you are servicing is critical prior to taking multi-meter resistance or voltage readings, as probing a 5V circuit with 12V test leads will permanently destroy the internal ECM driver logic.
For comprehensive electrical schematics involving the main engine bay harness, consult our detailed Vauxhall ECM Pinout Diagram Guide. If your pressure switch diagnostics point to fan engagement failures rather than sensor input errors, refer to the Cooling Fan Relay and Control Module Wiring Guide and the HVAC Compressor Clutch Relay Circuit Schematic.
Vauxhall A/C Pressure Switch Wire Color Code and Terminal Pinouts
Wire color coding on Vauxhall vehicles generally conforms to European DIN standard automotive conventions, but variations exist across model generations (e.g., GM Delta II vs. Global Epsilon platforms). Below are the standard pin assignment layouts for both 3-pin linear sensors and classic 4-pin trinary switches.
| Pin / Terminal ID | Function / Circuit Description | Standard Wire Color Code | Wire Gauge / Voltage |
|---|---|---|---|
| Pin 1 (A) | 5-Volt Reference Supply (Hot Wire) | Grey / Red (GY/RD) or Violet / Green (VT/GN) | 20 AWG (0.5 mm²) / 5.0V DC Reference |
| Pin 2 (B) | Low Reference / Ground Wire | Brown / Blue (BN/BU) or Pure Brown (BN) | 20 AWG (0.5 mm²) / 0.0V DC (Signal Ground) |
| Pin 3 (C) | A/C Pressure Sensor Signal Output | White / Black (WH/BK) or Yellow / Blue (YE/BU) | 20 AWG (0.5 mm²) / 0.5V – 4.5V Variable Signal |
| Pin 1 (4-Pin System) | 12V Fused Ignition Feed (Hot Wire) | Black / Yellow (BK/YE) | 18 AWG (0.75 mm²) / 12V Ignition (Fused) |
| Pin 2 (4-Pin System) | Compressor Clutch Cut-off Request Output | Black / Violet (BK/VT) | 18 AWG (0.75 mm²) / 12V Switched Load |
| Pin 3 (4-Pin System) | Radiator Fan Low-Speed Switch Loop | Brown / White (BN/WH) | 20 AWG (0.5 mm²) / Ground Switch Loop |
| Pin 4 (4-Pin System) | Radiator Fan High-Speed Switch Loop | Brown / Red (BN/RD) | 20 AWG (0.5 mm²) / Ground Switch Loop |
Always verify wire function using a Digital Multimeter (DMM) rather than relying solely on insulation color. Minor color shade variations occur between production plants (e.g., Luton vs. Rüsselsheim assemblies) and model year transitions.
Step-by-Step Vauxhall A/C Pressure Switch Wiring Connection Guide
When replacing a damaged pigtail harness connector or executing repairs on corroded terminal block connections near the front bumper skin, follow this standardized sequence to ensure OEM circuit integrity and weather-seal longevity.
Step 1: System Power Isolation and Access Preparation
Disconnect the negative battery terminal using a 10mm socket. Isolate the battery lead to eliminate accidental short circuits between the 5V reference feed and chassis ground. Locate the A/C pressure switch on the high-pressure refrigerant line, typically positioned on the right-hand side of the condenser or along the lower frame rail near the radiator assembly.
Step 2: Inspect and Release the Terminal Connector Lock
Slide the red or yellow Terminal Position Assurance (TPA) secondary lock tab backward on the sensor connector housing. Depress the primary locking lever and pull the connector body directly off the sensor. Avoid pulling directly on the individual wires, as this damages the micro-pin crimps inside the terminal cavities.
Step 3: Strip Cables and Match Pin Assignments
If replacing a degraded connector pigtail, cut back the wire harness past any green copper oxide corrosion. Strip 6 mm (1/4 inch) of outer insulation from each wire using precision wire strippers matched to 20 AWG cable gauge. Slide heat-shrinkable dual-wall weather sleeves over each wire before making physical connections. Match the original vehicle harness terminal function to the replacement pigtail terminal block as follows:
- Pin 1 / Cavity A: Connect the Grey/Red wire to the designated pigtail 5V reference lead.
- Pin 2 / Cavity B: Connect the Brown/Blue low reference ground wire to the ground lead.
- Pin 3 / Cavity C: Connect the White/Black signal lead to the sensor output wire.
Step 4: Execute Soldered or Parallel Crimp Splicing
Join the conductors using cross-wrapped solder joints with non-corrosive rosin-core solder, or utilize ratchet-crimped uninsulated parallel seamless butt connectors. Do not use standard unsealed automotive crimp connectors. Shrink the adhesive-lined shrink tubing using a heat gun until sealant oozes uniformly from both ends, forming an airtight barrier against moisture ingress.
Step 5: Operational Voltage and Signal Verification
Reconnect the negative battery terminal. Turn the ignition switch to Position II (Engine OFF, Ignition ON). Using a thin back-probe pin attached to your DMM, verify the static operational parameters:
- Measure DC voltage between Pin 1 (5V Ref) and Pin 2 (Ground): Voltage must read 4.90V DC – 5.15V DC.
- Measure DC voltage between Pin 2 (Ground) and battery negative terminal: Must read less than 0.05V DC (0.00 OHMs resistance).
- Back-probe Pin 3 (Signal) relative to Pin 2 (Ground) with the system fully charged (approx. 5 bar static pressure at 20°C): Signal voltage should measure between 1.1V DC and 1.4V DC.
Common Vauxhall A/C Pressure Switch Wiring Faults and Voltage Diagnosis
Intermittent A/C operation or complete compressor clutch shutoff on Vauxhall vehicles can frequently be traced directly to physical wiring faults rather than sensor hardware failures. Modern ECM algorithms monitor signal plausibility; if the voltage falls outside the valid range of 0.25V to 4.75V, the ECM flags a fault and disables the climate control loop.
Never bridge Pin 1 (5V Reference) directly to Pin 2 (Ground) or Pin 3 (Signal Wire) using a jumper wire to bypass the sensor. Shorting the 5V reference line directly to ground can permanently ruin internal voltage regulators inside the ECM or trigger total engine sensor shutdown (as TPS and MAP sensors often share the same internal 5V supply rail).
1. Broken Ground Wire (High-Resistance Fault)
A common failure point on Astra J and Insignia A models occurs within the main harness bundle near the lower radiator support bracket. The Brown/Blue ground wire suffers from internal strand fatigue due to engine torque movement. Symptom: Signal voltage reads floating high (near 5.0V), resulting in fault code P0533 (A/C Pressure Sensor Circuit High Input). Fix: Perform a continuity test under load; replace damaged harness section from the switch terminal back to the main chassis earth point or ECM ground pin.
2. Short to Voltage on Signal Line
Chafing against the cooling fan shroud or aluminum A/C lines can strip insulation from the White/Black signal line and short it against adjacent 12V hot wire feeds. Symptom: Diagnostic scan tools indicate unrealistically high high-side pressure readings (exceeding 32 bar), forcing the cooling fan to run continuously at 100% duty cycle while locking out the compressor. Fix: Inspect physical wire routing, repair stripped insulation, and re-anchor the harness using corrugated conduit and zip ties.
3. Terminal Corrosion and Pin Tension Loss
Because the A/C pressure switch is mounted low in the engine bay, water, road salt, and debris frequently penetrate unsealed connector housings. Symptom: The climate control system operates intermittently over bumps or fails only during damp conditions. DTC P0531 (Circuit Range/Performance Error) sets in memory. Fix: Disconnect the connector, inspect male/female terminals for green oxidation, apply electrical contact cleaner, and drag-test terminal female contacts using a spare pin to ensure tight mechanical retention.
Vauxhall A/C Pressure Switch Wiring Frequently Asked Questions
What voltage should I see on a 3-pin Vauxhall A/C pressure switch wiring harness?
On a 3-pin system with the ignition turned ON, Pin 1 (Supply Feed) should continuously measure 5.0 Volts DC relative to Pin 2 (Low Reference Ground). Pin 3 (Signal Output) will vary depending on refrigerant pressure, typically showing 0.5V DC when empty/empty of gas, 1.2V to 1.5V DC under normal static pressure, and rising up to 2.5V–3.5V DC while the compressor operates under high thermal load.
Can I test a Vauxhall A/C pressure sensor wire color code using a standard test light?
No, you should never use an incandescent test light on modern 3-pin pressure sensor circuits. Incandescent bulbs draw significant amperage (200mA–500mA), which can instantly blow out sensitive 5-volt reference drivers within the Vauxhall ECM. Always use a high-impedance Digital Multimeter (minimum 10 Megohm input impedance) or an LED-style logic probe when testing control wires.
Why does my radiator cooling fan run at high speed when the A/C pressure sensor is disconnected?
When you unplug the 3-pin pressure sensor connector, the ECM senses an open circuit (0.0V or infinite resistance). As a built-in safety fail-safe mechanism to prevent engine overheating and system over-pressurization, the ECM assumes a worst-case scenario and automatically commands the engine cooling fan module to operate at 100% maximum speed, while setting diagnostic trouble code P0530.
Is the neutral wire used in automotive A/C pressure switch circuits?
No, automotive DC electrical systems do not use a neutral wire, which is exclusive to AC mains power systems. Vauxhall A/C sensor circuits rely on a 5V DC reference line (hot wire), an analog signal return wire, and a dedicated low-reference ground wire connected to the ECM ground plane or chassis frame.
How do I identify which wire gauge to use when replacing the pressure switch terminal block?
Factory Vauxhall pressure switch harnesses utilize 20 AWG (0.5 mm²) thin-wall FLRY-B automotive copper wire for 3-pin sensor circuits. For older 4-pin 12-volt switching systems, use 18 AWG (0.75 mm²) wire for power and compressor clutch load circuits to handle higher current draw without experiencing voltage drop across the harness.
