American Standard Heat Pump Wiring Diagram: Troubleshooting 2026
American Standard heat pump wiring diagrams typically show Red (R) as 24V hot, Yellow (Y) for compressor, Green (G) for fan, White (W) for auxiliary heat, Blue (C) for common/neutral, and Orange (O/B) for the reversing valve. Ensure proper ground wire connection to prevent faults and ensure system safety.
📌 Key Takeaways
- Always confirm 24V AC control voltage between R (hot) and C (common/neutral) before any wiring changes.
- Proper identification of the reversing valve wire (typically Orange for ‘O’ or Blue for ‘B’ depending on model) is crucial for correct heating/cooling transition.
- Ensure all ground wires are securely connected to the designated ground terminals to prevent electrical shock and system damage.
- Incorrect thermostat wiring, especially confusing W (heat) and Y (compressor), is the most common mistake, leading to system malfunction.
- Consult a certified HVAC technician for any issues beyond basic wire identification or if the system fails to operate safely after following the diagram.
The proper interpretation and implementation of an American Standard heat pump wiring diagram are paramount for ensuring optimal system performance, efficiency, and longevity. This comprehensive guide is tailored for experienced technicians and equipment owners, providing precise instructions for connecting your American Standard heat pump. Understanding the intricate wire color codes, pin assignments, and proper terminal block connections detailed in the diagram is not merely a best practice; it is a critical safety and operational requirement, preventing costly damage, operational failures, and potential electrical hazards.

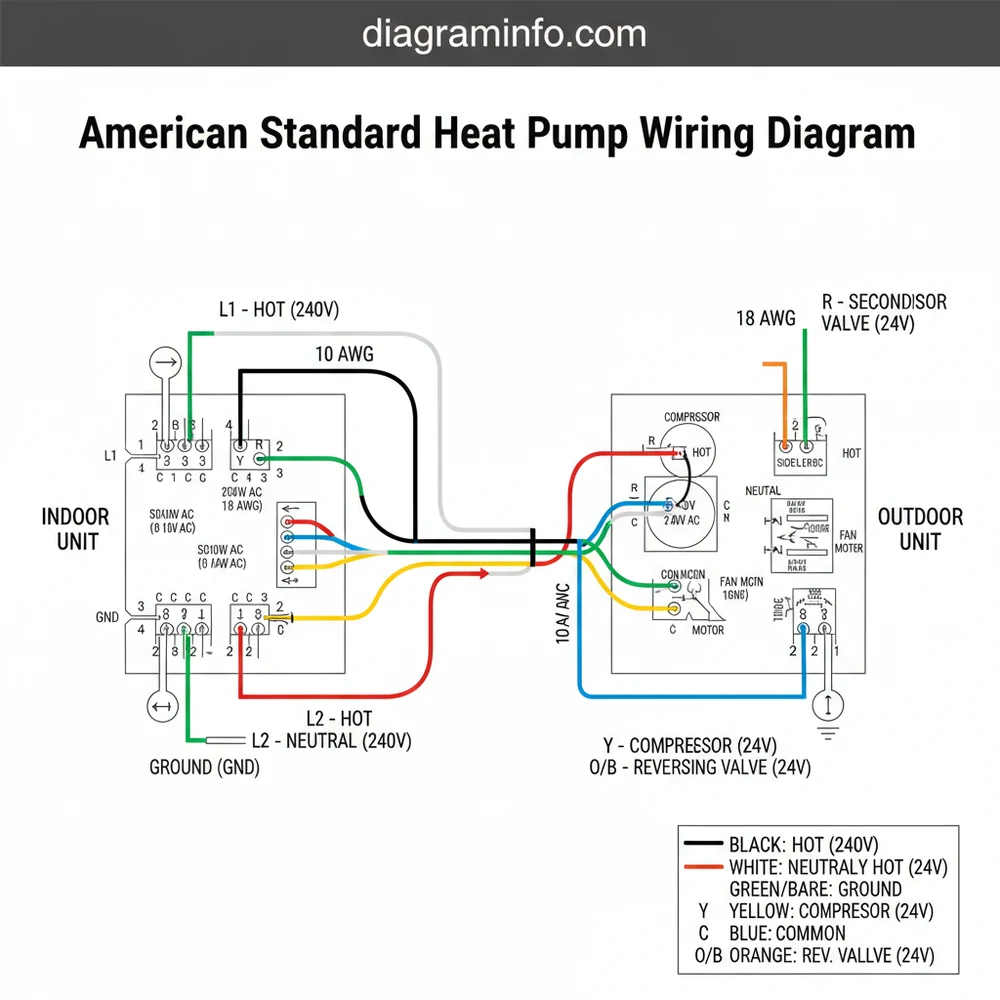

WIRE COLOR REFERENCE TABLE
| Wire Color | Function | Pin/Terminal | Notes |
|---|---|---|---|
| Red | 24VAC Hot Power | R (Rh/Rc) | Provides constant 24VAC power from the transformer. Rh and Rc are often jumped together on thermostats. |
| Blue / Black | 24VAC Common | C | Completes the 24VAC control circuit. Essential for powering smart thermostats and accessories. |
| Yellow | Compressor Contactor | Y (Y1/Y2) | Activates the outdoor unit’s compressor. Y1 for single-stage, Y2 for second-stage compressor (if applicable). |
| Green | Indoor Fan Relay | G | Energizes the indoor blower fan motor. |
| Orange | Reversing Valve | O/B | Energizes reversing valve for cooling mode (most American Standard). Check unit specs for B terminal behavior. |
| White | Auxiliary / Emergency Heat | W (W1/W2) | Activates auxiliary strip heaters or secondary heat source. W1 for first stage, W2 for second. |
| Brown / Black (often thinner) | System Fault / Monitor | L | Provides diagnostic signals to compatible thermostats or control boards. |
STEP-BY-STEP CONNECTION GUIDE
Properly connecting your American Standard heat pump demands meticulous attention to detail, leveraging the provided wiring diagram as your primary reference. This guide assumes familiarity with electrical safety protocols and 24VAC control circuits. Always de-energize the entire system at the main breaker before commencing any wiring.
Before performing any wiring, ensure all power to both the indoor and outdoor units, as well as the thermostat, is completely disconnected at the circuit breaker. Failure to do so can result in severe electrical shock, system damage, or fire.
1. Prepare the Control Wiring Cable: Identify the multi-conductor thermostat wire originating from your indoor unit. Standard American Standard heat pump systems typically utilize 18 AWG gauge thermostat wire with 5-8 conductors. If additional auxiliary heating stages or system monitoring features are present, a cable with more conductors may be required. Strip back the outer jacket approximately 6-8 inches, then carefully strip 1/2 inch of insulation from each individual conductor.
2. Connect the 24VAC Power (R & C Terminals):
Locate the red wire (R) from your thermostat cable. Connect this wire to the “R” terminal on the indoor unit’s low-voltage terminal block. This supplies the 24VAC hot power from the transformer.
Identify the common wire, typically blue or black (C). Connect this wire to the “C” terminal on the indoor unit’s low-voltage terminal block. This provides the 24VAC common return path, essential for completing control circuits and powering smart thermostats. Verify continuity between the indoor unit’s ‘C’ terminal and the outdoor unit’s ‘C’ terminal as per the American Standard wiring diagram.
3. Establish Compressor Control (Y Terminal):
The yellow wire (Y) from the thermostat cable is responsible for energizing the compressor. Connect this wire to the “Y” terminal on the indoor unit’s control board. Ensure that this connection extends to the corresponding “Y” terminal on the outdoor unit’s contactor circuit. For two-stage compressor systems, you will have a ‘Y1’ and ‘Y2’ terminal, often requiring a second yellow wire or specific sequencing from the control board.
4. Connect the Indoor Fan (G Terminal):
Route the green wire (G) from the thermostat cable to the “G” terminal on the indoor unit’s control board. This connection activates the indoor blower fan, circulating air through the system. Manufacturer specifications, particularly for variable-speed blowers, may detail specific fan operational sequences.
5. Wire the Reversing Valve (O/B Terminal):
The orange wire (O) is critical for heat pump operation, controlling the reversing valve. Connect the orange wire from the thermostat cable to the “O/B” terminal on the indoor unit’s control board. On most American Standard heat pumps, the reversing valve is energized in cooling mode. Always consult the specific unit’s wiring diagram, as some legacy systems or specific models may energize the valve in heating mode, using a ‘B’ terminal designation.
6. Integrate Auxiliary/Emergency Heat (W Terminals):
For systems with auxiliary or emergency heating, connect the white wire (W) from the thermostat cable to the “W1” terminal on the indoor unit’s control board. If your system incorporates a second stage of auxiliary heat, a separate wire (often brown or another white) will connect to “W2.” These circuits activate electric resistance heaters or other supplementary heat sources when the heat pump alone cannot meet the heating demand. For systems requiring advanced setup, refer to our comprehensive guide on “American Standard Thermostat Installation.”
7. Connect System Monitor/Fault (L Terminal – if applicable):
If your system and thermostat support fault diagnostics, connect the brown or black “L” wire from the thermostat cable to the “L” terminal on the indoor unit’s control board. This provides advanced diagnostic signals to compatible thermostats, indicating system malfunctions.
8. Complete Outdoor Unit Connections:
Extend all corresponding control wires (Y, O, C, L, and optionally W for outdoor auxiliary heating) from the indoor unit’s low-voltage terminal block to the matching terminals on the outdoor heat pump unit’s control board. Ensure secure, weather-resistant connections. Always use proper crimp connectors or screw terminals, as specified by American Standard.
9. Verify and Secure:
After all low-voltage connections are made, double-check every wire against the American Standard heat pump wiring diagram. Confirm wire colors match terminal designations exactly.
Secure all wiring within junction boxes or control panels, using appropriate strain relief.
Confirm line voltage connections (208/230V AC) to the outdoor unit’s contactor and the indoor unit’s air handler, ensuring proper sizing for the voltage and amperage draw. For detailed safety and high-voltage procedures, consult our “Advanced Heat Pump Troubleshooting” resources.
For 24VAC control wiring, use 18 AWG copper thermostat cable. For line voltage power to the outdoor unit (208/230V AC), wire gauge must be selected according to the unit’s Minimum Circuit Amperacity (MCA) and Maximum Overcurrent Protection (MOCP) specified on the data plate, typically ranging from 10 AWG to 6 AWG. All connections must be torqued to manufacturer specifications, often 20-25 in-lbs for control terminals.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Even experienced technicians can encounter nuanced issues during American Standard heat pump wiring. Misinterpreting a diagram or making a subtle error can lead to system malfunction or damage.
1.
Incorrect Reversing Valve (O/B) Wiring
Mistake: Connecting the orange wire to the wrong terminal, or reversing valve logic being set incorrectly (e.g., set for “B” instead of “O” at the thermostat or control board).
Consequence: The heat pump will operate in the wrong mode (e.g., blows hot air in cooling demand, or cold air in heating demand). The compressor will run, but the system will fail to heat or cool effectively.
Fix: Verify the thermostat’s reversing valve setting. Most American Standard units require the valve to be energized for cooling (“O”). Check the wiring diagram for the specific model to confirm if ‘O’ or ‘B’ logic applies. Ensure the orange wire is connected to the correct ‘O’ or ‘O/B’ terminal on both the indoor and outdoor units.
2.
Misidentified 24VAC Common Wire (C)
Mistake: Failing to connect the common wire, or connecting it to an energized terminal. This often occurs when replacing older thermostats that did not require a C-wire with modern smart thermostats.
Consequence: Smart thermostats will not power on or will attempt to “power steal,” leading to erratic system operation, thermostat battery drain, or control board damage. Without a common wire, the 24VAC control circuit for accessories or the thermostat itself cannot be properly completed.
Fix: Always ensure a dedicated blue or black common wire (C) is run from the indoor unit’s control board to the thermostat. Verify 24VAC between R and C at the thermostat sub-base. If a C-wire is missing, run new thermostat cable or utilize an external 24VAC transformer if permitted by the thermostat and unit specifications.
3.
Loose or Improperly Seated Connections
Mistake: Not fully inserting wires into terminal blocks, failing to tighten screw terminals adequately, or using incorrect crimp connectors.
Consequence: Intermittent system operation, electrical arcing, localized overheating, or complete circuit failure. A loose ground wire connection, for instance, can lead to safety hazards and control malfunctions.
Fix: Visually inspect all terminal block connections for secure seating. Gently tug on each wire to ensure it’s firmly held. Use a torque screwdriver to tighten screw terminals to the manufacturer’s specified inch-pounds, typically 20-25 in-lbs for control voltage. For critical connections, consider using dielectric grease to prevent corrosion, especially in outdoor environments.
4.
Using Incorrect Wire Gauge for Line Voltage
Mistake: Employing too small of a wire gauge for the main 208/230V AC power supply to the indoor air handler or outdoor heat pump unit. This is distinct from the low-voltage control wiring.
Consequence: Overheating of wires, increased energy consumption due to voltage drop, potential for fire, and circuit breaker tripping. The wire’s ampacity rating must match or exceed the unit’s electrical demand.
Fix: Always refer to the outdoor unit’s data plate for the “Minimum Circuit Ampacity (MCA)” and “Maximum Overcurrent Protection (MOCP).” Select a wire gauge that can safely carry the MCA. For example, a unit with an MCA of 25A might require 10 AWG wire, while a 40A unit might require 8 AWG. Ensure the corresponding circuit breaker matches the MOCP.
5.
Incorrectly Wiring Auxiliary Heat Stages (W1, W2)
Mistake: Swapping W1 and W2 connections, or connecting only W1 when a multi-stage auxiliary heater is present.
Consequence: Only a portion of the auxiliary heating elements will engage, leading to insufficient heating capacity during cold weather. Conversely, if only W2 is wired, the first stage of auxiliary heat may never activate.
Fix: Confirm the American Standard heat pump wiring diagram specifies the correct sequence for auxiliary heat. Ensure the thermostat is configured for multi-stage auxiliary heat and that W1 and W2 wires are connected to their respective terminals on the indoor unit’s control board. If troubleshooting, verify 24VAC across R and W1, and R and W2 when the thermostat calls for respective stages of auxiliary heat.
FAQ
What does the ‘O’ wire typically do on an American Standard heat pump?
The orange ‘O’ wire on an American Standard heat pump primarily controls the reversing valve. In most American Standard configurations, the reversing valve is energized (receives 24VAC) when the system is in cooling mode, diverting refrigerant flow to remove heat from the indoor air. In heating mode, this wire is typically de-energized, allowing the valve to operate in its default position. Always consult your specific unit’s wiring diagram, as some older or specialized models might utilize a ‘B’ terminal which energizes the reversing valve in heating mode.
Can I use any smart thermostat with an American Standard heat pump?
While many smart thermostats are designed to be universally compatible, proper integration with an American Standard heat pump requires a clear understanding of the wiring diagram. Key considerations include the availability of a ‘C’ (common) wire for continuous power to the smart thermostat, and the correct configuration for the reversing valve (O or B) as discussed above. Some advanced American Standard systems with proprietary communication protocols (e.g., AccuLink) may require specific communicating thermostats for full functionality, though standard 24VAC thermostats can often provide basic control. Always verify the thermostat’s compatibility with your specific heat pump model and ensure all necessary wires are present.
What wire gauge is appropriate for heat pump control circuits versus main power?
For the low-voltage 24VAC control circuits connecting the thermostat to the indoor and outdoor units, 18 AWG (American Wire Gauge) copper thermostat cable is the industry standard. This gauge is sufficient for carrying the minimal current required for control signals. However, for the high-voltage main power supply (208/230V AC) to both the indoor air handler and the outdoor heat pump unit, the wire gauge must be significantly larger. The exact gauge depends on the unit’s Minimum Circuit Ampacity (MCA) and Maximum Overcurrent Protection (MOCP) specified on the unit’s data plate, typically ranging from 10 AWG to 6 AWG. Using the correct gauge is critical to prevent overheating, voltage drop, and potential fire hazards.
How do I check for 24V AC at the terminal block?
To check for 24V AC, set your multimeter to the AC voltage setting (VAC). Place one probe on the ‘R’ (24VAC hot) terminal and the other probe on the ‘C’ (24VAC common) terminal. A correct reading should be approximately 24-28 VAC. You can also check for 24VAC across ‘R’ and any other energized control terminal (e.g., ‘Y’ when the compressor is called, ‘G’ when the fan is called, ‘O’ when the reversing valve is active in cooling). This confirms that the control voltage is present and circuits are completing correctly. Always exercise caution and ensure probes do not short circuit terminals during testing.
What role does a ground wire play in heat pump wiring, particularly for safety?
While the 24VAC control wiring typically does not feature a dedicated ground wire in the same manner as line voltage, proper grounding of the main electrical supply to both the indoor and outdoor units is absolutely critical for safety. The line voltage circuits for both the outdoor compressor unit and the indoor air handler must include an equipment ground wire (typically bare copper or green insulated) connected to the unit’s chassis and the main electrical panel. This ground wire provides a safe path for fault current in the event of an electrical short circuit, tripping the circuit breaker and preventing electrocution hazards. For the low-voltage control circuits, the ‘C’ (common) wire serves as the return path, not a safety ground.
Step-by-Step Guide to Understanding the American Standard Heat Pump Wiring Diagram: Troubleshooting 2026
Identify – Identify your specific American Standard heat pump model and locate its corresponding wiring diagram in the manual or on the unit itself.
Locate – Locate the thermostat terminal board on both the indoor air handler and the outdoor heat pump unit, noting the marked wire color code terminals (R, C, Y, G, W, O/B).
Reference – Reference the wiring diagram to match each wire’s color to its correct function and pin assignment, paying close attention to ground, hot, and neutral wires.
Connect/Route – Connect each low-voltage wire (e.g., Red for R, Yellow for Y, Blue for C) to its designated terminal on both ends, ensuring secure, tight connections and proper routing to prevent damage.
Verify – Verify all connections visually against the american standard heat pump wiring diagram. Use a multimeter to confirm 24V AC control voltage between R and C before applying full power to prevent faults.
Troubleshoot – Troubleshoot any issues by rechecking each connection point, ensuring no bare wires are touching, and that all pin assignments are correct. Refer to the ‘Common Wiring Mistakes’ section if system fails to operate.
Frequently Asked Questions
What wire color is common on american standard heat pump wiring diagram?
On an American Standard heat pump wiring diagram, the common wire is typically Blue (C). This wire provides the continuous 24V AC return path for the control circuit, ensuring power delivery to components like the fan relay and compressor contactor. Correctly identifying the common wire is vital for proper thermostat operation and system diagnostics.
What do the pin numbers mean on american standard heat pump wiring diagram?
Heat pump wiring diagrams often use letter designations (R, Y, G, W, C, O/B) instead of pin numbers, which correspond to specific control functions. For instance, ‘R’ is 24V hot, ‘Y’ activates the compressor, and ‘G’ controls the indoor fan. These ‘pin assignments’ are universal for thermostat connections to the heat pump control board.
How many wires does american standard heat pump wiring diagram have?
An American Standard heat pump wiring diagram typically shows 5-7 low-voltage control wires. Common connections include R (hot), C (common), Y (compressor), G (fan), W (aux heat), and O/B (reversing valve). The exact number depends on the system’s features, such as multi-stage heating or cooling, influencing the wire color code and complexity.
What are common wiring mistakes with american standard heat pump wiring diagram?
Common wiring mistakes include swapping the W (auxiliary heat) and Y (compressor) wires, misidentifying the O/B reversing valve wire, or failing to secure the ground wire. Incorrectly connecting the common (C) or hot (R) wire can lead to thermostat malfunction or system short circuits. Always double-check wire color code against the diagram.
Do I need a brake controller for american standard heat pump wiring diagram?
A brake controller is entirely irrelevant for an American Standard heat pump wiring diagram. Brake controllers are used in automotive applications for towing trailers, not for HVAC systems. Heat pumps require low-voltage thermostat wire connections and high-voltage power connections, which are distinct electrical systems unrelated to vehicle braking.
What gauge wire does american standard heat pump wiring diagram require?
For low-voltage control circuits in an American Standard heat pump wiring diagram, 18-gauge thermostat wire is typical. This connects the thermostat to the outdoor unit/indoor air handler. High-voltage power supply wiring gauge (e.g., 10-14 gauge) depends on the unit’s amperage and local electrical codes, as specified on the heat pump’s nameplate.
