6.7 Powerstroke Exhaust System Diagram: 2026 Layout Guide
The 6.7 Powerstroke exhaust system layout routes gases from the dual-boost turbocharger downpipe through the Diesel Oxidation Catalyst (DOC), Selective Catalytic Reduction (SCR) catalyst, and Diesel Particulate Filter (DPF). Four Exhaust Gas Temperature (EGT) sensors and dual NOx sensors monitor emissions control throughout the complete exhaust assembly.
📌 Key Takeaways
- EGT sensors must be torqued to 33 lb-ft (45 Nm) to prevent exhaust leaks and thread damage.
- System configuration includes four EGT sensors (EGT11 to EGT14) tracking temperatures across DOC, DPF, and SCR.
- Always allow the DPF and SCR system to cool fully before servicing to prevent severe burn hazards.
- EGT sensor failure and DEF injector crystallization represent over 60% of emissions fault codes.
- Sensor replacement is straightforward DIY, but recalibrating NOx sensors requires advanced diagnostic scanners.
Understanding the 6.7 Powerstroke exhaust system diagram is essential for performing accurate diagnostic routines, replacing emissions components, and maintaining optimal engine backpressure on 2011 to present Ford Super Duty trucks. The 6.7L Powerstroke diesel engine relies on a highly sophisticated Exhaust Aftertreatment System (EATS) designed to reduce nitrogen oxides ($NO_x$) and particulate matter. Interpreting this flow path requires a technical understanding of the mechanical layout, electrical sensor placement, and exhaust gas conditioning stages. This guide provides a detailed blueprint of the complete exhaust schematic, covering hardware components, sensor operating parameters, and precise troubleshooting workflows.
6.7 Powerstroke Exhaust System Diagram Component Breakdown
The downstream assembly on the Ford 6.7L Powerstroke consists of three primary catalytic housing modules coupled with multiple digital and analog sensors. According to OEM technical service manuals, the assembly operates as a unified emissions reduction pathway that modulates thermal conditions to complete passive and active DPF regenerations.
Recommended Best Deal Products
Turbocharger Downpipe and EGT Sensors
Exhaust gas exits the single-sequential turbocharger (or dual-boost GT3272VA on 2011–2014 models) into a stainless steel downpipe. Located directly within or immediately downstream of the turbo collector is Exhaust Gas Temperature (EGT) Sensor 11 (EGT11). This sensor registers primary turbine exit temperatures to ensure exhaust gas thermal energy is sufficient to initialize catalyst activity without exceeding turbine wheel thermal limits.
Diesel Oxidation Catalyst (DOC) and Selective Catalytic Reduction (SCR)
Directly past the downpipe flange, gases enter the Diesel Oxidation Catalyst (DOC). The DOC oxidizes unburned hydrocarbons (HC) and carbon monoxide (CO) into carbon dioxide ($CO_2$) and water ($H_2O$), while converting nitric oxide ($NO$) to nitrogen dioxide ($NO_2$). Immediately following the DOC sits EGT Sensor 12 (EGT12) and the Diesel Exhaust Fluid (DEF) reductant injector nozzle. The DEF injector sprays atomized aqueous urea into the stream ahead of the Selective Catalytic Reduction (SCR) catalyst. Inside the SCR, urea hydrolyzes into ammonia ($NH_3$), reacting with $NO_x$ over a copper-zeolite substrate to yield harmless nitrogen ($N_2$) gas.
Diesel Particulate Filter (DPF) and Differential Pressure Circuit
Positioned downstream of the SCR catalyst is the Diesel Particulate Filter (DPF). The DPF contains a wall-flow silicon carbide ceramic substrate that traps fine soot particulates. Surrounding the DPF substrate are EGT Sensor 13 (pre-DPF) and EGT Sensor 14 (post-DPF, on select model years), alongside the DPF Differential Pressure Sensor (DPFE). The DPFE measures pressure drop across the filter media via rigid stainless steel sampling tubes. High differential pressure signals soot saturation to the Powertrain Control Module (PCM), triggering active regeneration.
When servicing exhaust components on the 6.7L Powerstroke, strictly observe OEM fastner specs: Exhaust Gas Temperature (EGT) sensor bungs require 30 lb-ft (41 Nm); V-band coupling clamps require 106 lb-in (12 Nm); exhaust manifold to up-pipe bolts require 35 lb-ft (47 Nm); and DPF flange cross-bolts require 33 lb-ft (45 Nm).

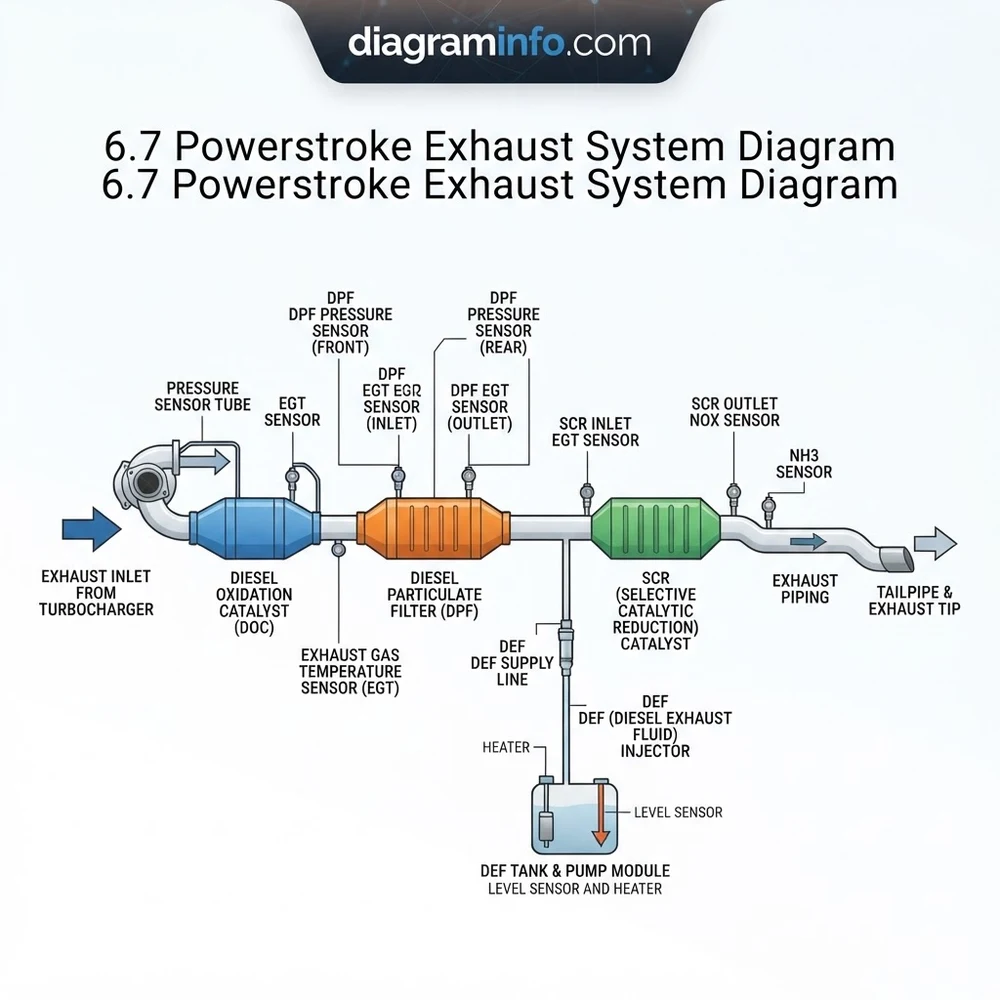

Analyzing the 6.7 Powerstroke Exhaust Schematic & Flow Blueprint
Tracing a 6.7 Powerstroke exhaust system diagram requires following both physical gas movement and electrical signal pathways back to the PCM. The system relies on precise physical spacing between components to establish distinct thermal zones required for chemical conversion.
Exhaust gas leaves the engine cylinders and passes through cast-iron exhaust manifolds into the up-pipes, driving the variable-geometry turbocharger. From the downpipe, gas velocity and thermal energy are mapped across four primary electronic control nodes:
- Thermal Zone 1 (Engine Exit / Pre-DOC): Monitored by EGT11 to regulate fuel injection quantity during active regeneration cycles. High-pressure exhaust gas thermal values must reach approximately 550°F (288°C) before the PCM initiates late-post fuel injection events.
- Chemical Reaction Zone (DEF Dosing & SCR): EGT12 tracks temperature entering the reductant zone. DEF dosing is suspended if temperatures fall below 392°F (200°C) to prevent solid crystallization within the exhaust piping.
- Filter Trapping Zone (DPF Input/Output): EGT13 tracks exhaust temperatures entering the particulate filter core. During active regeneration, this zone is managed between 1050°F (565°C) and 1200°F (650°C) to incinerate trapped carbon.
- Pressure Monitoring Loop: The differential pressure sensor reads pressure delta ($\Delta P$) across the filter substrate. High delta pressure indicates heavy soot accumulation, while zero or near-zero delta pressure under load suggests a cracked substrate or disconnected sampling lines. Diagnostics can be integrated alongside our 6.7 Powerstroke turbocharger diagnostic guide when evaluating engine mass airflow errors.
6.7 Powerstroke EGT sensors are Positive Temperature Coefficient (PTC) thermistors. Resistance increases as exhaust temperature rises. At 68°F (20°C), baseline resistance is approximately 200 ohms. At 1100°F (593°C), resistance rises to roughly 400–450 ohms. Reference voltage supplied by the PCM across the sensor circuit is 5.0 VDC.
Common 6.7 Powerstroke Exhaust System Diagram Faults
System failures on the 6.7 Powerstroke exhaust configuration typically manifest as generic Diagnostic Trouble Codes (DTCs), reduced engine power modes, or aborted DPF regeneration cycles. Utilizing the exhaust schematic simplifies tracing the root cause of electrical and mechanical faults.
EGT Sensor Failures and DTC Sets (P0544, P2031, P242A, P2470)
Each sensor position corresponds to specific fault codes. EGT11 sets P0544, EGT12 sets P2031, EGT13 sets P242A, and EGT14 sets P2470. An open circuit in any EGT sensor defaults signal voltage to 5.0V, driving reported temperature readings to extreme theoretical values (-40°F or 1832°F depending on software calibration). The PCM will trigger a wrench light and shut down active regeneration to prevent thermal runaways. Check sensor harness resistance with a Digital Multimeter (DMM) at the disconnect plug before condemnation.
DPF Soot Overloading and DPFE Sensor Blockage (P2452, P2463)
DTC P2463 indicates DPF Soot Accumulation, while DTC P2452 points to a DPF Pressure Sensor Circuit fault. Sampling lines running from the exhaust pipe to the differential pressure sensor are prone to moisture collection, soot clogging, and rubber hose deterioration. Inspect sampling lines for physical cracks, carbon plugs, or moisture freeze-ups in cold weather. Additionally, perform functional checks outlined in our Ford DPF active regeneration guide when troubleshooting stubborn regeneration interlocks.
SCR Catalyst Efficiency Low and DEF System Malfunctions (P20EE)
DTC P20EE indicates SCR $NO_x$ Catalyst Efficiency Below Threshold (Bank 1). This is frequently caused by a crystalline urea buildup on the reductant injector nozzle face, poor quality DEF fluid, or a degraded $NO_x$ sensor. Inspect the injector port visually after unbolting the single retaining collar. If white crystalline deposits cover the spray orifices, clean the nozzle using warm distilled water.
During stationary manual DPF regeneration (Service Regeneration via scan tool), tailpipe exit gas temperatures exceed 900°F (482°C). Ensure the vehicle is parked outdoors away from flammable materials, wooden structures, or overhead hazards. Do not touch exhaust piping, heat shields, or sensor bungs within two hours of engine operation.
Exhaust System Hardware Specifications and Reference Data
Component layouts and sensor positions vary slightly across model years. The following reference matrix outlines hardware locations, wire colors, and standard operating parameters for troubleshooting the Ford 6.7 Powerstroke exhaust configuration.
| Component ID | Physical Location on Layout | Wiring Pinout / Colors | Standard Operating Value |
|---|---|---|---|
| EGT Sensor 11 | Turbocharger Downpipe Inlet | Yellow / Violet-Green | 300°F–950°F (Operating) |
| EGT Sensor 12 | Post-DOC / Pre-DEF Injector | Blue-Orange / Green | 400°F–1100°F (Regen) |
| EGT Sensor 13 | Post-SCR / Pre-DPF Substrate | Gray-Blue / Violet | 500°F–1250°F (Regen) |
| EGT Sensor 14 | Post-DPF Tailpipe Outlet | White-Green / Brown | 400°F–1000°F (Regen) |
| DPF Pressure (DPFE) | Mounted on Transmission Crossmember | 5V VREF, Ground, Signal | 0.2–1.5 PSI ($\Delta P$ Clean to Full) |
| Upstream $NO_x$ Sensor | Pre-SCR Catalyst Housing | CAN Bus / Module Driven | 100–800 PPM $NO_x$ |
| Downstream $NO_x$ Sensor | Post-SCR Outlet Pipe | CAN Bus / Module Driven | 0–50 PPM $NO_x$ (Clean SCR) |
If you encounter concurrent electrical fault codes across multiple sensors simultaneously, trace ground returns back through the main engine harness. Cross-reference pinouts with our 6.7 Powerstroke glow plug wiring diagram to identify shared PCM reference ground splices near the firewall connector block.
6.7 Powerstroke Exhaust System Layout FAQ
What is the sequential order of sensors on a 6.7 Powerstroke exhaust schematic?
Starting from the turbocharger exit and working toward the rear bumper, the sensor sequence is: EGT Sensor 11 (turbo downpipe), Upstream $NO_x$ Sensor (pre-DOC/SCR), EGT Sensor 12 (post-DOC/pre-DEF injector), EGT Sensor 13 (post-SCR/pre-DPF), Differential Pressure Sensor sampling ports (bridging the DPF), Downstream $NO_x$ Sensor (post-SCR/DPF), and EGT Sensor 14 (post-DPF tailpipe output).
How do 2011–2014 and 2015+ 6.7 Powerstroke exhaust layouts differ?
2011–2014 models use a single-piece exhaust aftertreatment pipe structure with four press-fit EGT sensors and a GT3272VA dual-boost turbocharger setup. 2015 and newer models transitioned to a single-frame GT37 variable-geometry turbocharger, revised EGT sensor probe shapes with updated thread pitch specs, updated DEF dosing injector geometries, and recalibrated PCM diagnostic logic for $NO_x$ sensor response times.
What voltage readings should you expect when probing EGT sensors?
At ambient temperatures (~70°F/21°C) with key-on engine-off (KOEO), signal voltage across the EGT sensor signal wire should read approximately 0.8V to 1.2V DC. As the exhaust reaches normal operating temperatures (600°F–1000°F), sensor resistance increases, causing signal voltage to climb toward 2.2V–3.4V DC. A constant 5.0V reading indicates an open circuit or unplugged harness.
How does the differential pressure sensor trigger active DPF regeneration?
The DPF Differential Pressure Sensor measures exhaust backpressure upstream versus downstream of the particulate filter. As soot builds inside the filter channels, downstream pressure drops relative to upstream pressure. When the calculated pressure differential ($\Delta P$) reaches a preset threshold (typically around 1.2 to 1.5 PSI at maximum engine load), the PCM initiates active regeneration by commanding late-cycle post-injection fuel delivery.
What exhaust component failure causes DTC P20EE on the Powerstroke engine?
DTC P20EE is triggered when the post-SCR $NO_x$ sensor measures $NO_x$ levels that exceed expected efficiency limits. Common causes mapped on the exhaust diagram include a clogged DEF injector tip, degraded DEF fluid quality, a failing upstream/downstream $NO_x$ sensor, or physical catalytic contamination of the SCR filter core from engine oil or raw unburned diesel fuel.
Step-by-Step Guide to Understanding the 6.7 Powerstroke Exhaust System Diagram
Identify – Locate the specific exhaust system configuration matching your 6.7 Powerstroke model year and wheelbase length.
Locate – Position the target component, such as EGT sensor 12 or the DEF injector, using the diagram reference numbers.
Reference – Cross-check electrical harness routing and pipe clamp locations against the schematic structure before disassembly.
Connect/Route – Reinstall hardware and sensors along original factory paths, applying anti-seize compound to sensor threads.
Verify – Torque flange bolts to 30 lb-ft and EGT sensors to 33 lb-ft according to original factory specifications.
Troubleshoot – Perform a diagnostic scan to clear stored trouble codes and confirm real-time temperature sensor readouts.
