Delta Touch Faucet Parts Diagram: Component Breakdown 2026
A Delta Touch2O faucet parts diagram details the spout capacitive wire, battery housing (6V DC), solenoid valve module, supply hoses, and check valves. Below the sink, it illustrates connections to the faucet shank, sink tailpiece, P-trap, and drain assembly or garbage disposal port for quick leaks or sensor troubleshooting.
📌 Key Takeaways
- Solenoid valves operate on 6V DC power (6 AA or 4 C batteries) and regulate flow via capacitive touch logic.
- The spout sensing wire must maintain a 1-inch clearance from metal supply lines, garbage disposal housings, and sink walls.
- Incorrect tailpiece or P-trap alignment places strain on under-sink hoses, causing leaks at quick-connect points.
- Blue LED indicator flashes signal low battery voltage (<4.5V DC), while red flashes indicate a solenoid module fault.
- Hand-tighten mounting hardware and check valves to 10-15 in-lbs to prevent damaging rubber seals.
Navigating Delta Touch2O electronic hydration fixtures requires a firm grasp of low-voltage capacitive control circuits integrated with standard kitchen mechanical rough-in plumbing. Utilizing an official delta touch faucet parts diagram allows system technicians, commercial plumbers, and advanced mechanics to quickly isolate electronic solenoid logic modules from mechanical valve bodies during servicing. Proper installation beneath the sink deck requires isolating signal wires from adjacent metal piping while establishing leak-free, code-compliant connections across the tailpiece and lower trap assembly. The following technical breakdown details part numbers, wiring topologies, torque parameters, and physical clearance specs required for fault-free electronic operation.

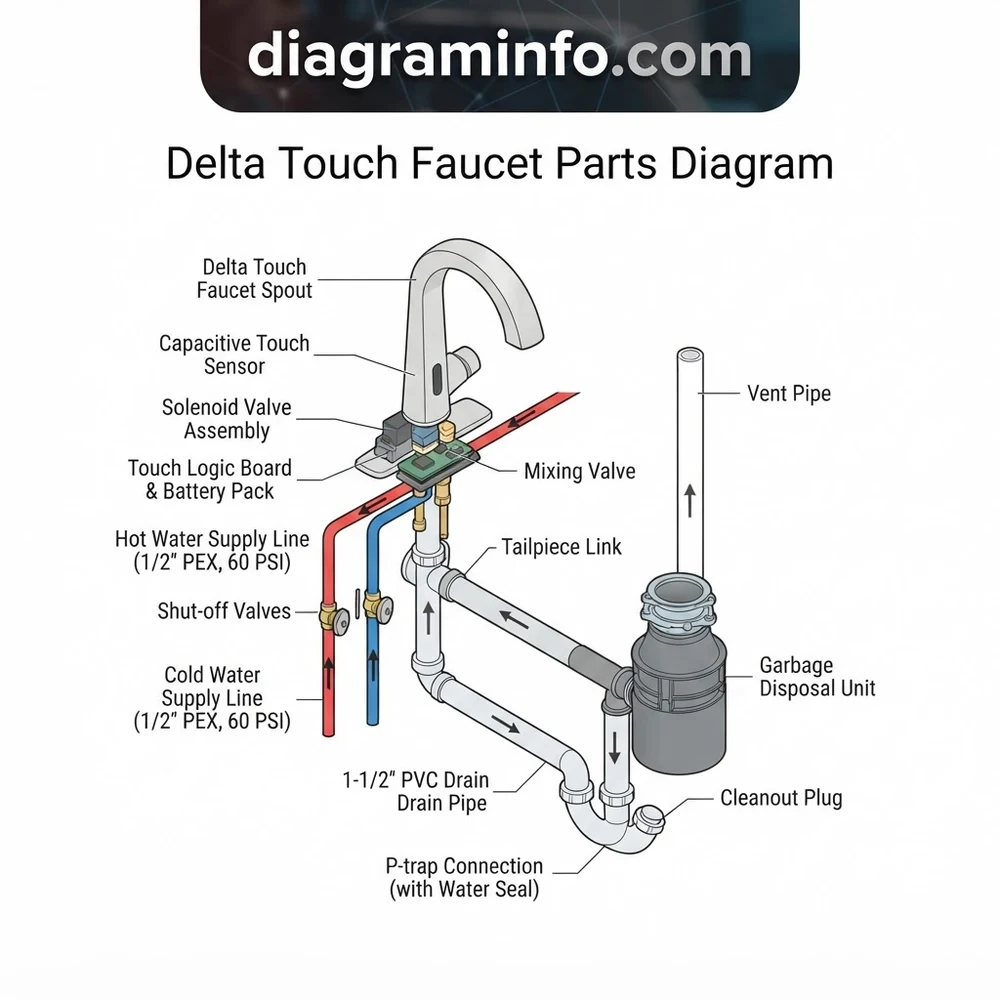

Delta Touch Faucet Parts Diagram: Exploded View and Component Identification
Analyzing a complete delta touch faucet parts diagram reveals two distinct operational subsystems: the upper mechanical spout assembly housing the capacitive sensor element, and the lower electro-hydraulic logic unit mounted below the sink deck. The touch signal travels through a dedicated LED and capacitive sensor wire running through the core of the brass spout shank, down to the control module.
Recommended Best Deal Products
The primary components identified in the lower schematic section include:
- Logic Module & Solenoid Valve Assembly (e.g., Delta EP73954 / EP92546): Manages water flow via an internal 6V DC pulse-latching solenoid actuated by touch-induced capacitance changes.
- Battery Enclosure / Power Supply: Holds 6 AA or 4 C-cell batteries supplying 6.0V DC nominal, or connects to an optional 120V AC transformer (Delta EP73954).
- Capacitive Grounding Clip: Secures directly to the hot/cold copper or PEX inlet shanks to establish a stable reference ground against ambient electromagnetic interference.
- Drain Assembly & Waste Line Hardware: The waste line transitions from the sink bowl via a brass or plastic tailpiece, through a threaded slip joint connection, into the lower sanitary P-trap.
When engineering secondary waste connections, refer to our commercial sink drain assembly guide for layout specifications. The waste line beneath the faucet requires standard 1-1/2 inch schedule 40 PVC piping connected directly to the trap arm, which may branch into a dual-basin setup or feed into an inline garbage disposal.
| Diagram Reference | OEM Part Name | Technical Specification | Function / Notes |
|---|---|---|---|
| RP50587 | Valve Cartridge | Diamond Seal Tech (DST) Ceramic | Manual temperature/volume mix control |
| EP73954 | Solenoid Valve Assembly | 6V DC Latching / Quick-Connect | Houses micro-logic board and actuation valve |
| RP53468 | Capacitive Wire Harness | Isolated Strand, LED LED Integrated | Carries touch signal from spout to logic box |
| RP40563 | Under-Sink Mounting Kit | Steel Nut w/ Non-Conductive Spacer | Isolates faucet base from metal sink decks |
Solenoid Electrical Parameters: Operating Voltage: 6.0V DC (4.5V DC cutoff threshold); Standby Current: < 30 µA; Actuation Pulse Width: 25 ms; Flow Coefficient: 1.8 GPM (6.8 L/min) max at 60 PSI hydrostatic line pressure.
Reading the Delta Touch Diagram for Installation and Drain Integration
Translating an exploded delta touch faucet parts diagram into an error-free physical installation requires managing both hydraulic flow and capacitive sensing lines. Electrical isolation is critical to prevent false triggering caused by nearby grounding paths or drain equipment.
Execute the installation following these precise technical steps:
- Position the Deck Isolation Gasket: Mount the non-conductive plastic spacer and rubber seal between the spout base and the sink deck. On stainless steel sinks, this non-conductive barrier stops capacitive signal bleeding into the basin.
- Route the Wire Harness Clear of Drain Pipes: Pass the wire harness down through the mounting hole. According to OEM instructions, maintain a minimum 2-inch clearance between the capacitive wire and high-mass metallic items, including cast iron or copper tailpiece pipes, flexible hot/cold supply hoses, and ungrounded PVC plumbing lines.
- Install the Solenoid Logic Box: Push the quick-connect solenoid body onto the copper outlet tube until the retaining clip snaps locked. Connect the capacitive lead wire into the dedicated module terminal.
- Set Up the Waste Drain & Trap Assembly: Connect the upper drain assembly flange to the sink basin using plumber’s putty or silicone. Thread the 1-1/2 inch tailpiece into the waste outlet, slipping a slip joint nut and bevel washer over the pipe end before inserting it into the wall-bound P-trap. Hand-tighten the nut, then apply a 1/4-turn wrench finish (approx. 10-15 ft-lbs torque).
- Configure Secondary Venting Options: If running a dual-basin sink with a dedicated garbage disposal, connect the side discharge elbow directly to the primary baffle tee. For island sink installations lacking a direct roof stack, route a vertical vent pipe stub out and thread an AAV valve (Air Admittance Valve) at least 4 inches above the horizontal trap arm to maintain atmospheric pressure equilibrium.
For detailed dimensional drawings of rough-in plumbing configurations, check our kitchen plumbing layout guide.
Battery pack placement is vital for signal stability. Mount the battery box flat on the cabinet floor at least 2 inches away from all metal supply lines, PVC waste lines, and household 120V AC wiring to prevent inductive signal crosstalk.
Troubleshooting Solenoid and P-Trap Interference from the Diagram
When performing field diagnostics on a Touch2O installation, technicians frequently encounter symptoms rooted in parasitic grounding, signal cross-coupling, or mechanical valve blockages rather than complete electronic failure. Referring back to the delta touch faucet parts diagram helps pinpoint where signal leakage or hydraulic restrictions occur.
Diagnostic steps for common failure modes include:
1. Phantom Activation and Erratic Touch Response:
If the faucet cycles on and off without contact, inspect the under-sink wire routing. Ground loops frequently occur when the blue capacitive wire sags and rests directly against the metal body of a garbage disposal, a copper supply riser, or an ungrounded P-trap. Re-route the wiring using non-conductive cable clips to re-establish a 2-inch air gap. Verify that the capacitive grounding clip is securely clamped to clean, unpainted metal on the brass shank or copper inlet tubes.
2. Solenoid Fails to Latch / Low Water Flow:
If the LED indicator flashes red (indicating low battery voltage below 4.5V DC), the solenoid logic board will lock the valve in the closed position as a safety precaution. Replace all batteries with high-drain alkaline cells (do not mix old and new cells). If voltage measures 6.0V DC at the terminal harness but flow remains restricted, isolate the quick-connect inlet on the solenoid module. Remove the internal 80-mesh stainless steel filter screen and flush out pipe scale or solder debris accumulated from the main supply lines.
For more advanced diagnostics on electronic mixing valves, review our electronic valve diagnostic guide.
Never use pipe dope or thread sealant pastes on plastic quick-connect fittings or solenoid module threads. Solvents inside thread compounds degrade synthetic polymer housings, leading to catastrophic high-pressure valve body fractures.
Delta Touch Faucet Parts Diagram Frequently Asked Questions
How does the capacitive ground wire integrate with PVC drain assemblies?
The capacitive ground clip on a Delta Touch2O system attaches to the faucet supply shanks to establish a stable local electrical reference plane. Because standard schedule 40 PVC drain pipes are non-conductive, they do not provide a path to ground. Technicians must ensure the ground clip contacts clean metal on the brass mounting shank or copper inlet tubes, avoiding direct contact with plastic drain components or non-conductive piping.
Can I install a Delta Touch faucet alongside an AAV valve vent pipe?
Yes. An Air Admittance Valve (AAV valve) operates strictly on mechanical pressure differentials to vent the waste system. To prevent static charge buildup from airflow through plastic piping from interfering with the faucet logic board, maintain a minimum distance of 4 to 6 inches between the vertical vent pipe riser, the AAV body, and the Touch2O electronic module wires.
What size slip joint nuts are used on the lower tailpiece connection?
Standard kitchen sink drain assembly setups use a 1-1/2 inch outer diameter (OD) tailpiece secured by a 1-1/2 inch slip joint nut with a polypropylene or rubber bevel washer. If connecting to a smaller 1-1/4 inch lavatory-style drain line, a reducing washer must be installed inside the slip joint nut before locking it to the P-trap inlet.
Why does my garbage disposal trigger the Touch2O activation light?
When a garbage disposal motor fires up, it generates an inductive electromagnetic field (EMF) and slight mechanical vibration. If the faucet’s capacitive wire or battery pack wire touches the metal disposal housing, the logic module interprets this sudden surge or frequency shift as a human touch input. Securing all low-voltage wires away from the disposal motor housing resolves the problem.
Where is the solenoid manual bypass feature on the diagram?
In modern Delta Touch2O models, manual bypass is accomplished electronically by disconnecting the battery pack harness or power transformer while the manual handle is in the open position, or by manually disengaging the quick-connect solenoid body and installing an optional manual bypass block (RP74269) directly between the spout supply line and the mixer valve outlet.
Step-by-Step Guide to Understanding the Delta Touch Faucet Parts Diagram
Identify – Map all components on the Delta touch faucet parts diagram, including solenoid box, touch wire, and battery pack.
Locate – Find the spout capacitive sensor wire, supply lines, sink tailpiece, and P-trap connection under the basin.
Reference – Consult the diagram to trace wiring from the touch logic module to the brass shank and battery housing.
Connect/Route – Route the quick-connect solenoid hose clear of the garbage disposal mount and sink drain assembly.
Verify – Power the system with 6V DC, tap the spout body to test valve actuation, and check P-trap joints for leaks.
Troubleshoot – Clean solenoid filter screens and reset the capacitive module if touch activation fails or water flow drops.
