CV Axle: Simple Line Diagrams of Constant Velocity Joints 2026
Simple line diagrams of constant velocity joints illustrate the internal ball-and-cage structure connecting drive axles to wheel hubs. These schematics map the outer race, inner race, spherical cage, and six ball bearings configured within a flexible rubber boot layout, detailing critical repack greasing points and 150–200 lb-ft axle nut torque specifications.
📌 Key Takeaways
- Rzeppa-style CV joints use 6 ball bearings retained by a cage angled up to 45 degrees.
- Critical identification rests on distinguishing fixed outer joints from sliding tripod inner joints.
- Axle retaining nuts require high torque settings ranging between 150 and 220 lb-ft depending on vehicle make.
- Torn rubber boots allowing grease escape and dirt entry cause over 80% of premature CV joint failures.
- Boot replacements are suitable for DIY; severe clicking, binding, or worn raceways require full shaft assembly replacement.
Constant velocity (CV) joints are critical components in modern automotive drivelines, designed to transfer smooth, continuous rotational torque from the transaxle to the drive wheels while accommodating suspension articulation and steering movement. Understanding simple line diagrams of constant velocity joints enables automotive technicians, mechanical designers, and service engineers to quickly analyze driveline layout, verify component alignment, and execute precise mechanical teardowns. These two-dimensional mechanical schematics simplify complex three-dimensional assemblies into standardized geometric lines and symbols. By mastering these diagrams, you can easily distinguish between fixed outboard joints and plunging inboard configurations, trace mechanical load paths, and verify critical clearances across front-wheel drive, all-wheel drive, and independent rear suspension systems.
Understanding CV Joint Structure via Simple Line Diagrams
Mechanical blueprints and line schematics break down a CV joint into its fundamental mechanical parts. In a standard drive axle blueprint, the joint assembly is depicted along a central longitudinal axis, illustrating how rotational motion is maintained without velocity fluctuations during shaft angle deflection. According to OEM technical specifications, reading these simplified representations requires recognizing the primary internal and external components of both Rzeppa (ball-type) and tripod (three-roller type) designs.
Recommended Best Deal Products

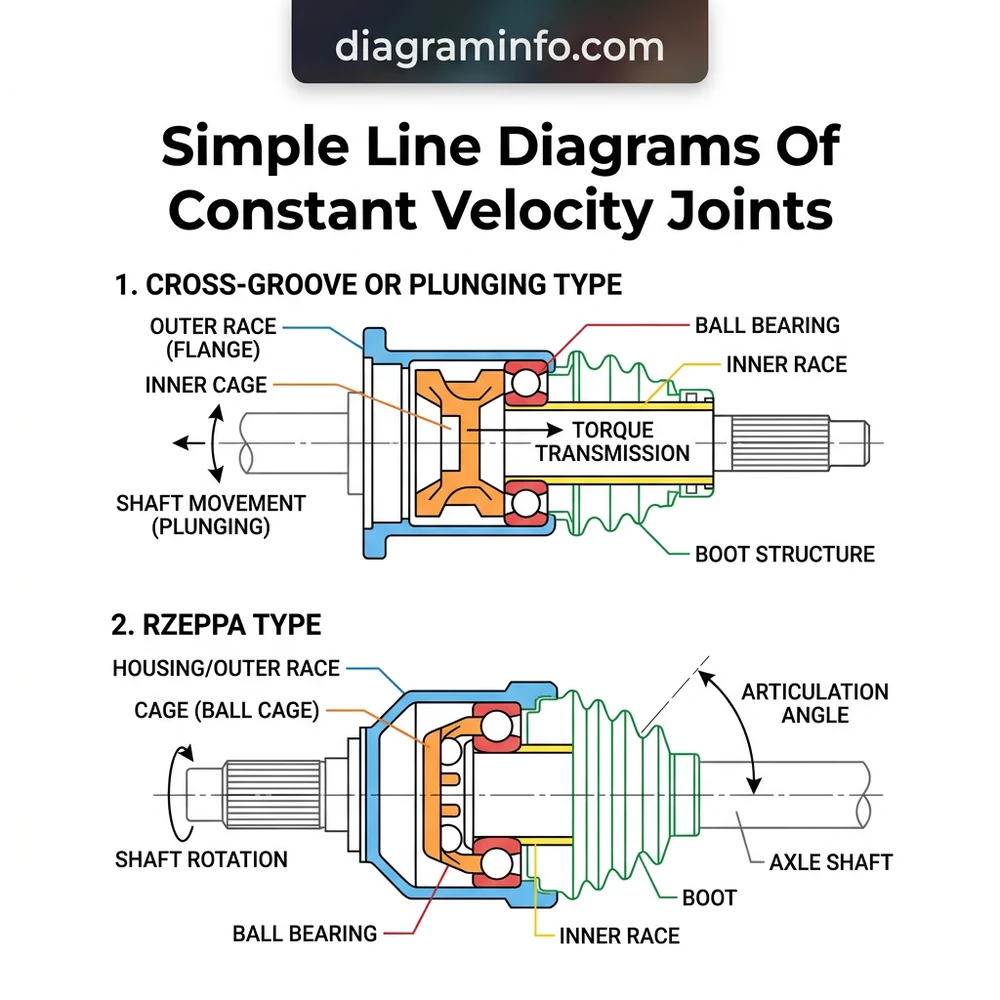

In a typical schematic layout, six core structural elements are depicted:
- Outer Race (Housing): Represented as the outermost boundary profile, featuring curved internal raceways that contain the spherical elements.
- Inner Race (Hub): Displayed centered inside the outer race, featuring an internal spline bore keyed directly to the main axle shaft.
- Ball Cage (Retainer): Drawn as a thin intermediate ring containing rectangular windows that maintain precise 1:1 angular alignment of the steel ball bearings.
- Steel Balls or Tripod Rollers: Rendered as solid circles or cylindrical rollers that transmit torque across intersecting shafts.
- Plunging Housing (Tulip): Shown in inboard joint diagrams as a three-lobed cylinder that allows axial linear movement along the drive axis.
- Sealing Boot and Clamps: Illustrated as a flexible accordion-style zigzag line snapped into designated retaining grooves on the outer housing and shaft.
| CV Joint Component | Diagram Symbol / Line Type | OEM Specification Standard |
|---|---|---|
| Outer Stub Shaft / Housing | Solid thick perimeter outline | Forged induction-hardened carbon steel |
| Inner Race Splines | Parallel dashed line pattern | 24 to 36 tooth involute pitch profiles |
| Retaining Circlip Groove | Recessed square notch geometry | Hardened spring steel snap rings |
| Plunging Travel Limits | Dimensioned linear double arrow | 45mm to 55mm total axial plunge range |
When servicing CV joints based on line schematics, ensure you use high-pressure molybdenum disulfite (moly) grease specifying a 3% to 5% MoS2 content. Conventional lithium grease lacks the extreme pressure (EP) additives required to prevent micro-pitting along the internal race ball tracks under high articulation angles.
How to Read Simple Line Diagrams of Constant Velocity Joints
Interpreting simple line diagrams of constant velocity joints requires a structured approach to translate 2D lines into physical axle configurations. Line diagrams follow standard engineering orthographic rules, where solid lines denote visible contours, centerlines indicate rotational axes, and hidden dashed lines reveal internal oil channels, circlip seats, and spline interfaces.
Follow these technical steps to read and apply CV joint schematic blueprints correctly:
Step 1: Identify the Driveline Centerline and Articulation Angle
Locate the long dash-dot centerline extending through the axle shaft. The intersection angle between the transaxle output axis and the wheel hub axis represents the joint operating angle. Outboard fixed joints (such as Rzeppa units) are schematized to handle working steering angles up to 45 degrees, whereas inboard plunging joints (tripod or double-offset) are designed for operational angles up to 22 degrees alongside axial suspension plunge.
Step 2: Differentiate Fixed Outboard from Plunging Inboard Joints
Examine the internal pocket lines in the diagram layout. A fixed outer joint displays elliptical tracks that lock the steel balls in a fixed planar arc relative to the hub shaft. In contrast, an inboard plunging joint schematic displays straight linear tracks or a smooth inner housing wall, allowing the tripod trunnion to slide horizontally to compensate for changes in distance during suspension compression.
Step 3: Map Spline Interfaces and Retaining Elements
Trace the axle shaft insertion point on the blueprint. Check whether the internal locking ring is positioned on an external shaft groove or inside the inner race bore. When aligning parts against differential side-gear spline matching guides, verify spline count, pitch diameter, and circlip orientation indicated by the technical callout notes.
Manufacturer service manuals require outer axle nut torque specs between 175 lb-ft and 230 lb-ft (237 Nm to 312 Nm) depending on the vehicle platform. Always replace torque-to-yield axle nuts and verify clamp seat clearances as noted on the driveline assembly schematic.
Diagnosing CV Joint System Failures Using Schematic Blueprints
Using simple line diagrams of constant velocity joints as diagnostic maps enables technicians to systematically trace mechanical wear, noise, and vibration symptoms back to specific internal component failures. When physical symptoms arise, cross-referencing the failure mode against the joint configuration speeds up root-cause diagnosis during teardown.
Mechanical failure modes map directly to diagrammed components as follows:
Rhythmic Clicking or Popping During Sharp Turns:
This classic symptom isolates failure to the outboard fixed joint. On the schematic layout, check the curved ball tracks of the outer race and ball cage. Wear grooves, galling, or cage fractures disrupt the smooth orbital path of the steel balls as they articulate through high steering angles, creating audible metallic clicks.
In-Cabin Shudder or Vibration During Acceleration:
Driveline vibration under torque load points to the inboard plunging joint. Cross-referencing the tripod layout on the schematic reveals where needle bearings or spherical rollers ride in the tulip channels. Grooving on the flat load-bearing surfaces of the tulip housing causes the tripod rollers to bind during suspension plunge, transferring engine torque pulsations directly into the vehicle subframe.
Grease Slinging and Contamination Degradation:
Locate the flexible boot sealing perimeter on the diagram layout. Boot tears occur along the flex bellows or at the stainless steel clamp retention grooves. Loss of lubricant combined with dirt intrusion accelerates abrasive wear across all internal races within 100 to 500 miles of operating exposure.
Never reuse OEM boot ear-clamps or expansion snap rings during rebuilds. Reusing deformed retention clips reduces clamping force, leading to grease leakage or shaft disengagement from the transaxle differential under heavy load conditions.
Frequently Asked Questions About CV Joint Schematics
What do solid lines and dashed lines represent in simple line diagrams of constant velocity joints?
Solid lines indicate visible outer boundaries, structural housings, and primary drive shafts. Dashed lines represent hidden internal geometry, such as inner race spline engagement teeth, internal circlip grooves, grease passages, and hidden bearing races located inside the sealed joint boot assembly.
How do fixed Rzeppa and plunging tripod joint layouts differ in technical schematics?
A fixed Rzeppa joint schematic shows spherical steel balls held in a curved track housing designed for high-angle steering pivot without linear movement. A plunging tripod joint schematic features a three-lobed housing (tulip) containing needle-bearing rollers that slide linearly inside parallel channels to absorb suspension travel.
What key dimensions on a CV joint line diagram are critical during replacement?
The most critical schematic dimensions include overall collapsed axle length, outer stub shaft spline count, inner differential spline count, ABS tone ring tooth count (if integrated), and seal shoulder diameter. Cross-referencing these dimensions prevents interference issues with the wheel hub assembly specs and transaxle seals.
How do schematic diagrams help in identifying correct boot clamp placement?
Diagram blueprints clearly mark machined retaining shoulder grooves on both the outer housing and drive shaft. These grooves dictate exact sealing coordinates where the stainless steel boot clamps must be installed and crimped to achieve proper seal tension without compressing the rubber bellows, matching overall drivetrain layout options and clearance requirements.
Step-by-Step Guide to Understanding the Simple Line Diagrams Of Constant Velocity Joints
Identify – Locate the inner tripod and outer Rzeppa joint configurations on the axle assembly layout.
Locate – Position the retaining snap ring, boot clamp placement points, and high-pressure grease channels in the schematic.
Reference – Match torque specifications (150–200 lb-ft) and grease volume requirements noted in the diagram notes.
Connect/Route – Align the inner race splines with the axle shaft and secure the rubber boot using low-profile clamp bands.
Verify – Rotate the joint through its full angular range to check for binding, smooth ball tracking, and sealed boot movement.
Troubleshoot – Inspect for grease leakage around clamp seams or popping sounds, adjusting clip tension or repack grease volume as needed.
