The Troy-Bilt 2800 PSI pressure washer parts diagram details the assembly of the engine crankcase, axial cam high-pressure pump, unloader valve, chemical siphon injector, spray wand layout, and thermal relief valve. It provides exploded structural layouts to pinpoint part numbers, seal kit orientations, and fastener torque specifications.
📌 Key Takeaways
- Axial cam pumps operate at 2800 PSI with standard 7/8-inch vertical engine keyway shafts.
- Unloader valves maintain continuous system bypass flow when the spray gun trigger is released.
- High-pressure seal replacement requires lubricated silicone O-rings torqued to manufacturer specs.
- Thermal relief valves automatically open if pump recirculating water temperature exceeds 140°F.
- Always relieve remaining pressure before disconnecting high-pressure fittings or pump housing bolts.
Analyzing the structural layout of a pressure washer requires a precise understanding of both mechanical drive systems and high-pressure fluid dynamics. Utilizing an official troy-bilt 2800 psi pressure washer parts diagram enables mechanics and equipment owners to accurately isolate worn components, verify OEM part numbers, and perform targeted pump or engine overhauls. Common configurations—including model series 020641, 020682, and 020711—integrate small-engine drive assemblies with direct-drive axial cam pumps. This technical overview breaks down the system structure, schematic callouts, hydraulic routing, and service torque specifications needed to maintain maximum operational output.
Troy-Bilt 2800 PSI Pressure Washer Parts Diagram Component Breakdown
The troy-bilt 2800 psi pressure washer parts diagram is organized into four main functional subsystems: the internal combustion engine assembly, the axial cam hydraulic pump, the structural frame layout, and the high-pressure discharge plumbing. Understanding how these assemblies interface is critical for accurate fault diagnosis and component replacement.
The drive system typically relies on a 190cc Briggs & Stratton 725exi Series engine or a Honda GC190 overhead cam engine. The engine crankshaft extends vertically into the pump body through a standard 7/16-inch keyway configuration. The axial cam pump converts rotary engine power into reciprocating linear motion using an angled wobble plate (swashplate), driving three stainless steel plungers against high-pressure water seals.
| System Component | OEM Specification / Ref Part | Functional Description |
|---|---|---|
| Axial Cam Pump Assembly | 7108318 / 198347GS | Generates up to 2800 PSI at 2.3 GPM using triple reciprocating plungers. |
| Unloader Valve Kit | 190591GS / 190627GS | Diverts fluid flow into low-pressure bypass when spray trigger is released. |
| Thermal Relief Valve | 208673GS (1/4″ NPT) | Vents superheated water when system stays in bypass mode exceeding 140°F (60°C). |
| Chemical Injector Siphon | 192125GS | Uses Venturi effect to draw detergent into fluid stream during low-pressure operation. |
| Water Inlet Fitting & Screen | 201497GS / 194033GS | 3/4″ garden hose adapter with fine mesh filter to prevent pump chamber contamination. |
The pump manifold houses six spring-loaded check valves (three inlet valves and three outlet valves). These check valves control fluid direction, preventing backflow during plunger return strokes. For broader maintenance procedures, refer to our comprehensive carburetor rebuild guide when performing general small-engine tune-ups.
Navigating the Axial Pump Layout and Engine Drive Blueprint

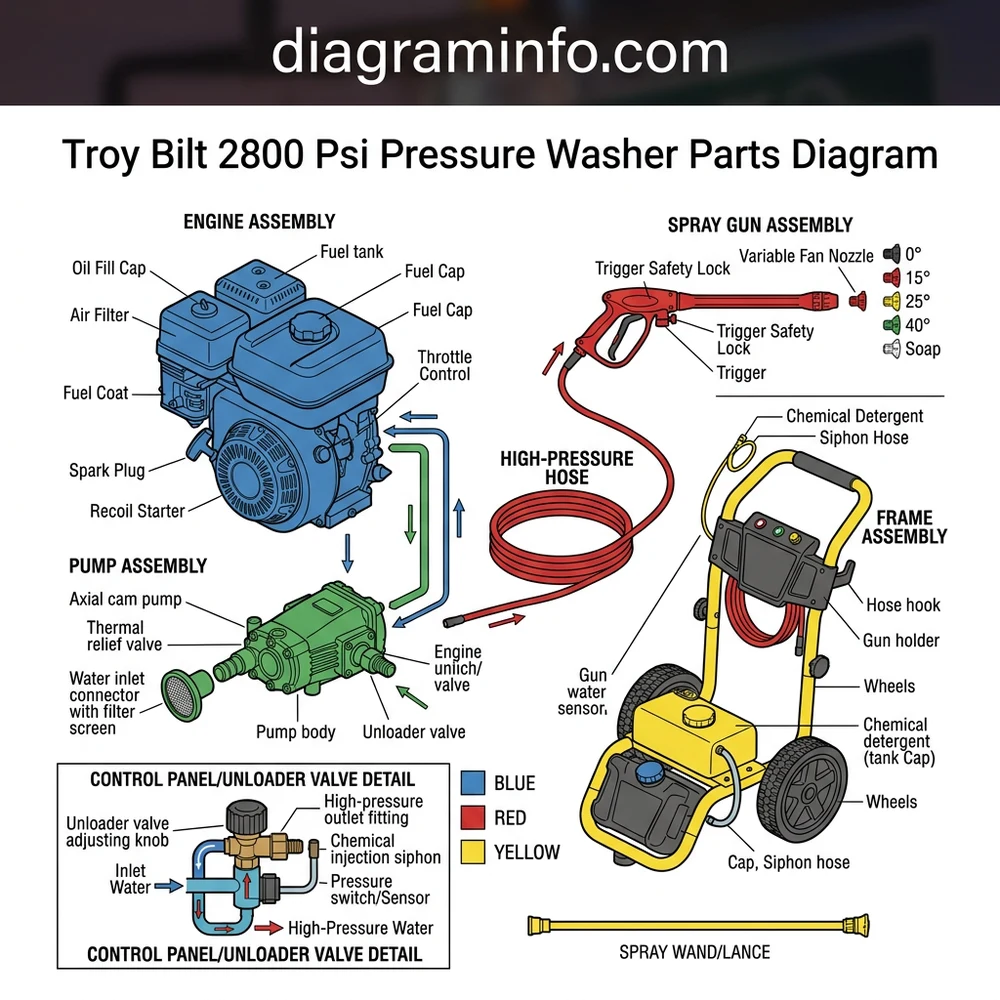

Interpreting a technical pressure washer layout requires reading exploded schematic views to trace mechanical fasteners and fluid connections. On a troy-bilt 2800 psi pressure washer parts diagram, individual service parts are designated by item reference numbers mapped to an OEM bill of materials.
When tracing fluid pathways through the schematic, water enters through the garden hose swivel fitting (3/4-inch NH thread) into the low-pressure suction manifold. As the engine rotates at 3300 to 3600 RPM, the pump wobble plate forces the spring-loaded plungers into alternating suction and compression cycles. The high-pressure fluid exits through the outlet manifold into the M22 threaded pressure hose connection.
When replacing high-pressure packing seals, ensure the V-sleeves and rubber O-rings are lubricated with silicone grease before pressing them into the pump casing. Staggering ring orientation according to the pump schematic prevents immediate pressure blow-by upon initial engine start.
Identifying internal bypass circuits on the blueprint is critical for diagnosing pressure drops. The unloader valve sits inline between the high-pressure manifold outlet and the pump suction side. Releasing the spray gun trigger builds trapped line pressure, forcing the unloader piston to unseat and re-route pressurized water internally. Always consult a dedicated axial cam pump repair schematic when disassembling internal valve stacks to avoid losing internal check springs and ball bearings.
Pump Manifold Mounting Bolt Torque: 140–150 in-lbs (15.8–16.9 Nm)
Engine-to-Pump Frame Bolts: 180–200 in-lbs (20.3–22.5 Nm)
Unloader Valve Body Retainer Plug: 115 in-lbs (13 Nm)
Troubleshooting Failures Using the Troy-Bilt 2800 PSI Parts Diagram
Diagnosing system faults becomes straightforward when pairing structural symptoms with part location callouts on the troy-bilt 2800 psi pressure washer parts diagram. Common operational failures generally originate within either the high-pressure hydraulic circuit or the engine drive coupling.
Never inspect high-pressure fluid leaks or check pump connections while the engine is running. Fluid injection injuries can occur at pressures as low as 100 PSI. Always depressurize the spray wand before servicing internal pump parts.
The primary operational symptoms and their corresponding hardware root causes include:
- Low System Working Pressure: Caused by pitted or stuck check valves (Ref item 190591GS/check valve kit), worn high-pressure plunger seals, or a debris-clogged unloader seat. Inspect the unloader cone O-ring for mechanical tearing.
- Water Leaking from Under Pump Casing: Indicates failed high-pressure and low-pressure water seals or cracked ceramic-coated plungers due to thermal shock or freeze damage.
- Engine Stalls When Spray Trigger Is Released: Caused by a stuck unloader valve piston that fails to divert fluid into bypass mode, creating hydraulic lock against the engine flywheel.
- Water Dripping from Thermal Relief Port: Indicates the unit was left idling in bypass mode without triggering the gun for over 2 minutes, causing pump temperature to exceed 140°F and opening the single-use thermal valve.
- Pulsating Spray Hose: Caused by a single stuck check valve in the pump manifold or air entry through a cracked inlet fitting washer. Check line compatibility with our high-pressure hose selection chart.
Troy-Bilt 2800 PSI Pressure Washer Parts Diagram System FAQ
Which axial pump assembly models are installed on Troy-Bilt 2800 PSI units?
Troy-Bilt 2800 PSI pressure washers typically use direct-drive Annovi Reverberi (AR) or Briggs & Stratton axial cam pumps, such as model numbers RMW2.2G24, 198347GS, or 7108318. These units feature a 7/8-inch vertical shaft, a standard 3-bolt flange configuration, and deliver 2.3 GPM at 2800 PSI.
How do I locate specific part numbers on the axial cam pump schematic?
Locate the main frame data tag on the lower chassis or pump flange to confirm your washer’s model number (e.g., 020641-00). Open the manufacturer parts blueprint for that specific revision number. Match the numeric callout flag on the exploded diagram to the corresponding index list to retrieve the exact OEM part number.
What torque specifications must be applied to pump manifold bolts during a rebuild?
The three main metric socket-head manifold bolts securing the brass or aluminum head to the crankcase must be tightened in an alternating cross-pattern to 140–150 in-lbs (15.8–16.9 Nm). Over-torquing can warp the internal seal housings, causing premature pressure bypass.
Can I replace the unloader valve without replacing the complete pump manifold?
Yes. The unloader valve on most Troy-Bilt 2800 PSI axial pumps is an external screw-in cartridge design (part number 190591GS or 190627GS). Unthread the outer retention nut, remove the internal spring and piston kit, clean the bypass port bore, and install the new replacement kit with fresh O-rings.
Where is the thermal relief valve positioned on the pressure washer layout?
The thermal relief valve is threaded into a 1/4-inch NPT port located on the low-pressure side of the pump manifold, adjacent to the garden hose water inlet. The diagram depicts it as a small hex-head brass fitting equipped with a plastic drain tube outlet.
Step-by-Step Guide to Understanding the Troy-Bilt 2800 Psi Pressure Washer Parts Diagram
Identify – Find your exact model and frame serial number on the unit label.
Locate – Find the specific sub-assembly within the schematic layout index.
Reference – Match the keyed index numbers to specific replacement part OEM codes.
Connect/Route – Follow structural alignment lines to seat O-rings, check valves, and fittings.
Verify – Torque manifold bolts in a cross pattern to factory foot-pound specifications.
Troubleshoot – Test system pressure and check for fluid leaks at connections under load.
