Sub Zero Ice Maker Parts Diagram: Component Breakdown (2026)
The Sub Zero ice maker parts diagram details the module layout, including the fill tube heater (115V), modular ice mold assembly, dual water inlet valve, shut-off arm, and optic control board. Located in the upper freezer compartment, components connect via a 4-pin wiring harness supplying power, ground, thermostat signals, and solenoid activation.
📌 Key Takeaways
- Operating voltage across the modular control head terminal L-N requires a standard 115 VAC source.
- The dual water inlet valve coil resistance should measure between 200 and 500 ohms.
- Always disconnect main power to the refrigerator before servicing electrical wire harness connections.
- The fill tube heater and optical sensor board are the primary failure points causing ice production stops.
- Mechanical ejector arm replacement is DIY-friendly, but sealed system or R-600a refrigerant faults require certified service.
Navigating the mechanical and electrical architecture of a Sub-Zero built-in refrigeration system requires precise technical documentation and an understanding of electromechanical timing cycles. The automatic ice generation assembly across classic Sub-Zero platforms—such as the 500, 600, and 700 series, as well as modern BI integrated units—utilizes an automated harvest system coupled to a dedicated water solenoid interface. Whether servicing a unit equipped with a modular ice head or an electronic optic-controlled assembly, analyzing a sub zero ice maker parts diagram allows field technicians to quickly isolate hardware failures, trace line voltage drops across microswitches, and verify fluid delivery paths. This guide breaks down the complete system blueprint, offering technical specifications, pinout schematics, and field diagnostic procedures for professional repair.

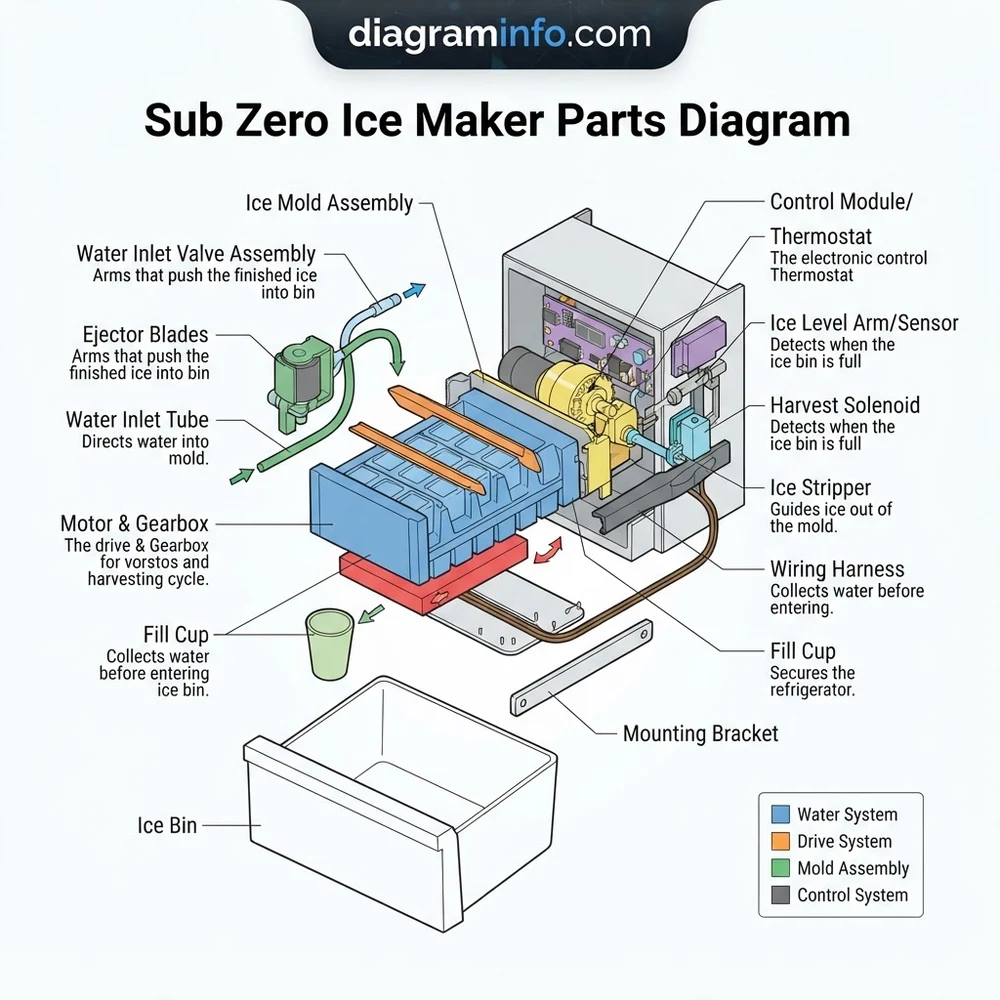

Sub Zero Ice Maker Parts Diagram: Complete Mechanical Component Layout
According to OEM factory specifications, Sub-Zero refrigeration units primarily utilize either modular electromechanical ice makers or electronic optic-sensor configurations. The modular system relies on a mechanical cam shaft driven by a synchronous motor to cycle the ejection arm, actuate microswitches, and energize the mold heater. A complete component layout reveals how individual mechanical and electrical assemblies interact within the freezer compartment environment.
Modular Ice Mold Assembly and Mold Heater Schematic
The ice mold body forms the core of the assembly, manufactured from die-cast aluminum with a non-stick coating. Embedded directly beneath the mold channels is a high-wattage calrod heating element. During the harvest phase, this heater energizes to break the thermal bond between the frozen ice cubes and the aluminum cavity walls. As detailed in the standard sub zero ice maker parts diagram, a bimetal thermostat snaps onto the front of the mold. This thermostat acts as a thermal gate switch, closing only when the mold temperature drops to approximately 15°F (-9.4°C), thereby allowing the harvest cycle to initiate once water is fully frozen.
Water Valve Solenoid and Internal Fill Tube Structure
Water delivery is regulated by a single or dual-solenoid water valve located near the unit compressor tray or behind the lower kickplate. The fill tube extends through the rear cabinet wall of the freezer compartment, incorporating a low-wattage fill tube heater wrapped around the elbow. This resistance heater prevents residual water from freezing inside the line and creating a structural blockage. The water line routes from the home supply through a dedicated water filter manifold assembly directly into the rear fill cup of the ice mold.
Electromechanical Drive Motor and Microswitch System
Behind the front control module cover lies the main drive assembly. This includes a 115V AC timing motor, a plastic drive gear, a holding switch, and a water fill switch. The shut-off arm (bail arm) connects directly to the gear linkage; as ice accumulates in the storage bin, the arm is pushed upward, holding the internal shut-off switch open and halting future production cycles until ice levels drop.
| Component Name | OEM Part Number Ref. | Electrical Specification | System Function |
|---|---|---|---|
| Modular Ice Maker Assembly | 4200520 / 7014631 | 115V AC, 60 Hz, 1.5A | Primary ice generation and mechanical ejection head. |
| Mold Stripper / Ejection Arm | 4200880 | N/A (Mechanical) | Sweeps loosened ice cubes out of mold cavities into bin. |
| Single/Dual Water Inlet Valve | 7004240 / 4201440 | 115V AC, 10-15W Solenoid | Controls pressurized water flow to the fill tube assembly. |
| Inline Fill Tube Heater | 3220160 | 115V AC, 5-7W Continuous | Prevents ice accumulation inside the water supply tube. |
| Bimetal Harvest Thermostat | 4200170 | 115V AC, SPST (15°F Close / 45°F Open) | Senses ice temperature to permit drive motor energization. |
Standard modular ice maker mold heaters operate at 185 Watts (+/- 10%) with a nominal resistance reading of 72 Ohms across the element terminals. The timing motor draws approximately 1.5 Watts at 115V AC, operating at 1 RPM during the harvest sequence.
Reading the Sub Zero Ice Maker Wire Schematic and Structural Blueprint
Understanding a electrical schematic diagram requires systematic tracing from the incoming line voltage through the control module to the load components. On classic Sub-Zero models, line voltage (115V AC) passes from the main unit wiring harness into the ice maker wire plug. Modern BI models route power through an electronic control board that monitors temperature thermistors rather than relying solely on mechanical bimetals.
Tracing Electrical Line Voltage Across Microswitch Circuits
To analyze the electrical layout, identify the incoming wire leads: Black (Line 1), White (Neutral), Green (Ground), and Brown/Red (Valve Return Signal). When the mold bimetal thermostat drops below 15°F, it closes the circuit between the incoming L1 lead and the drive motor module. As the motor turns the main timing gear, a raised plastic ridge on the backside of the cam depresses the internal holding switch. This maintains continuous line power to the motor even after the mold heater warms up and opens the bimetal thermostat.
Interpreting Mechanical Assembly Sequences in the Blueprint
The mechanical blueprint illustrates a 360-degree rotation cycle broken down into distinct mechanical phases:
- 0° to 100° Rotation: The ejection arms push against the ice. Concurrently, the mold heater energizes via the closed bimetal thermostat to release the frozen cubes.
- 100° to 280° Rotation: The ejection fingers lift the ice cubes out over the stripper arm. The bail arm swings upward to verify bin capacity, then drops back down.
- 280° to 340° Rotation: The cam depresses the water valve microswitch, sending a 115V AC signal along the brown wire to the fill valve solenoid for 7 to 10 seconds (filling approximately 120cc to 140cc of water).
- 360° Rotation: The holding switch drops back into the neutral cam recess, breaking power to the drive motor and ending the cycle.
Testing Diagnostic Jumpers and Cycle Initiation Terminals
Service technicians can perform manual diagnostic testing using the test points labeled on the module faceplate. Terminals on modular heads are standard across industry configurations:
- Terminal L and N: Line voltage supply (115V AC nominal).
- Terminal T and H: Thermostat bypass. Inserting an insulated jumper wire between T and H manually bypasses the bimetal switch to initiate a harvest cycle.
- Terminal L and M: Motor test points. Measures voltage directly applied to the drive motor.
- Terminal N and V: Water valve circuit. Inserting a jumper between L and V manually energizes the water solenoid valve.
High voltage (115V AC) is present across module faceplate terminals L, N, T, H, M, and V during manual diagnostic testing. Always use an insulated jumper wire with a 10-amp inline fuse. Never jumper terminal L to N, or terminal T to N, as this will short out the internal module contact traces and permanently damage the assembly.
Diagnosing Sub Zero Ice Maker Parts Diagram Failures and Faults
Logical fault isolation relies on systematically checking electrical integrity against the operational schematic. When diagnosing an ice maker that fails to produce ice, technician workflows should divide the system into two distinct operational subsystems: electrical drive control and fluid supply layout.
Harvest Cycle Stoppage and Bimetal Thermostat Diagnostics
If the freezer maintains zero-degree ambient air temperatures (verifiable via the main cabinet display or digital thermometer) but the ice maker fails to cycle, the bimetal thermostat is often the root cause. Disconnect power to the unit, remove the ice maker assembly, and measure resistance across the bimetal leads:
- At room temperature (above 45°F), resistance must read Open Circuit (Infinite Ohms).
- When chilled below 15°F using a cold spray or freezer immersion, resistance must read 0.1 to 0.5 Ohms (Closed Circuit).
If the bimetal fails to close at low temperatures, power will never reach the drive motor, halting ice production indefinitely. On advanced electronic models, review the Sub-Zero dual evaporator diagnostic guide to ensure evaporator coil temperature thermistors are sending correct resistance values back to the control board.
Water Valve Resistance and Overflow Troubleshooting
Hollow or small ice cubes indicate restricted water flow, whereas ice mold overfilling indicates a failing solenoid valve diaphragm or excessive fill timing. Isolate the inlet solenoid valve and test electrical resistance across the terminal pins using a digital multimeter:
- Standard Sub-Zero water valve solenoids should measure between 180 Ohms and 350 Ohms.
- An infinite reading indicates an open coil, requiring complete valve replacement.
- If 115V AC is supplied to the valve during the 280°-340° rotational phase but no water enters the mold, check for ice blockages inside the fill tube caused by a burned-out fill tube heater.
Ejector Arm Binding and Drive Gear Alignment
If the motor hums but ejection arms fail to rotate, inspect the structural gear arrangement shown in the module overview. Stripped plastic teeth on the primary drive gear or mechanical ice bridging will stall the motor. Ensure the stripper plate fingers are intact; bent or missing fingers cause ejected cubes to fall back into the mold, jamming the ejection shaft.
On classic Sub-Zero 500 and 600 series models, if ice maker operation triggers intermittent freezer cooling issues, check for relay chatter on the main control board or verify compressor circuit stability using the Sub-Zero condenser fan motor repair diagram schematic.
Frequently Asked Sub Zero Ice Maker Parts Diagram Technical Questions
Where is the modular ice maker wiring harness connector located in classic Sub-Zero units?
In 500, 600, and 700 series models, the 4-pin or 6-pin electrical wiring harness plug is located inside the upper rear corner of the freezer compartment behind a plastic cover plate. The harness unclips via a locking tab, allowing easy removal of the entire ice maker assembly for bench troubleshooting.
What voltage should be measured across the Sub-Zero water fill valve terminals?
The water fill valve operating voltage is 115V AC. Voltage should only be present for 7 to 10 seconds at the end of the mechanical harvest cycle when the internal module microswitch closes. Continuous voltage indicates a stuck microswitch or shorted board output.
How do you manually cycle a Sub-Zero ice maker using schematic test points?
Remove the plastic front cover to reveal the module faceplate. Using a 14-gauge insulated wire jumper with stripped ends, insert one end into test point T and the other into test point H. Keep the jumper in place for 3 to 5 seconds until the drive gear begins rotating, then remove it. The module will complete a full manual cycle automatically.
Why does the ice ejection arm freeze mid-cycle on older Sub-Zero configurations?
The ejection arm typically freezes mid-cycle due to a failed internal mold heater or a degraded bimetal thermostat. If the mold heater fails to warm the aluminum tray to loosen the ice cubes, the ejector fingers drive into solid ice and stall the timing motor midway through rotation.
How do modern Sub-Zero BI series ice makers differ from classic modular diagrams?
Modern BI integrated series ice makers replace the mechanical shut-off bail arm with an electronic optic-sensor system mounted on the freezer sidewall. Additionally, cycle initiation is regulated directly by the main microprocessor control board reading dedicated evaporator thermistors, eliminating the traditional mechanical bimetal thermostat on the mold.
Step-by-Step Guide to Understanding the Sub Zero Ice Maker Parts Diagram
Identify – Unplug power to the Sub Zero unit and isolate the ice maker sub-assembly components.
Locate – Find the modular ice maker housing in the upper left or right section of the freezer structure.
Reference – Match the component callout numbers on the Sub Zero ice maker parts diagram to the physical module structure.
Connect/Route – Route the 4-pin wiring harness and seat the water supply fill tube tightly into the inlet cup.
Verify – Measure coil resistance (200-500 ohms) across the dual water valve to verify component electrical integrity.
Troubleshoot – Check optical sensors and cycle the ejector arm manually if ice fails to harvest after installation.
