Nibco OS&Y Valve Diagram: Component Breakdown 2026
An OS&Y valve diagram illustrates the component layout of an Outside Screw and Yoke gate valve used in fire protection systems. It details the threaded valve stem, handwheel, yoke, bonnet, wedge, and packing gland. Visible stem threads indicate an open valve, while a fully retracted stem signals a closed system.
📌 Key Takeaways
- Visual stem inspection indicates valve status: extended stem means 100% open, whereas concealed threads signal fully closed.
- The yoke nut and rising stem arrangement prevents critical internal thread exposure to corrosive water flows.
- Tighten packing gland nuts evenly to 15-20 ft-lbs to stop stem leakage without binding handwheel rotation.
- Failed stem packing and dried valve seat debris are the primary causes of operation failure and localized leaks.
- Replace stem packing under pressure only if trained; full valve replacement requires draining system mains.
An Outside Screw and Yoke (OS&Y) gate valve serves as an essential isolation device across commercial fire protection, municipal water distribution, and industrial fluid processing systems. Unlike non-rising stem (NRS) valves, an OS&Y valve features an external threaded stem that raises or lowers as the handwheel turns. This design provides immediate visual verification of whether the valve is open or closed, which is critical for safety-critical installations. Understanding an OS&Y valve diagram enables mechanical contractors, system designers, and facility engineers to accurately interpret physical configurations, perform precise maintenance, and ensure compliance with NFPA 13 and ANSI standards.

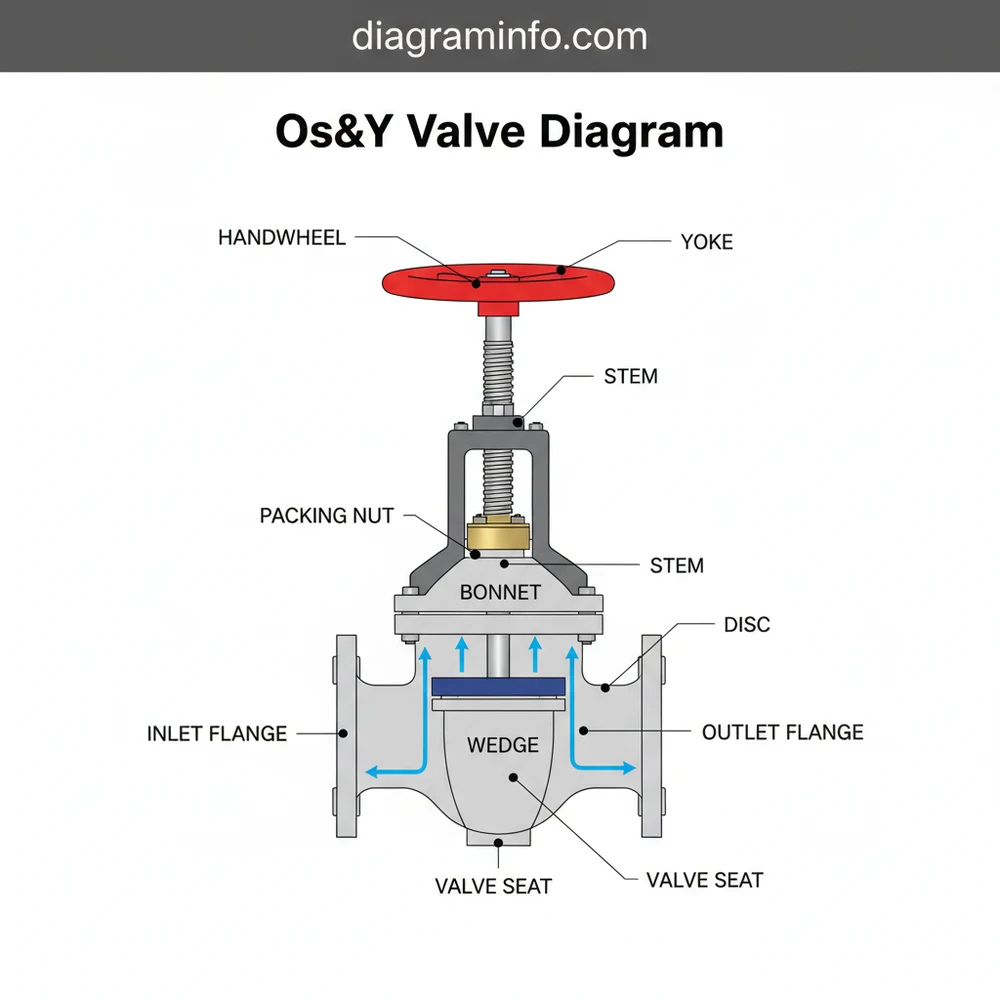

OS&Y Valve Diagram Component Breakdown and Structure
An OS&Y gate valve relies on precise mechanical interaction between its external stem, internal wedge, and structural yoke assembly. Understanding each labeled section on an OS&Y valve diagram is necessary for proper teardown, component replacement, and field assembly.
According to OEM technical documentation, the main mechanical assembly consists of the following primary parts:
- Valve Body: Cast iron, ductile iron, or cast steel housing that connects to adjacent piping via flanged, grooved, or threaded ends. It houses the internal flow chamber and wedge seating surfaces.
- Wedge/Gate: The internal flow-control disk, often resilient-seated or solid bronze-faced, which lowers into the flow path to isolate fluid or raises into the bonnet to allow full bore passage.
- Bonnet: The pressure-retaining top cover bolted to the valve body. It provides the fluid seal and supports the external yoke structure.
- Threaded Stem: The external, precision-machined shaft constructed of brass or stainless steel. The stem attaches directly to the wedge at its lower end and travels vertically through the handwheel nut.
- Yoke: The external structural frame extending from the bonnet that supports the operating nut and holds the exposed stem threads above the packing gland.
- Handwheel and Yoke Nut (Operating Nut): A bronze or brass bushing held at the top of the yoke. Rotating the handwheel turns this nut, driving the non-rotating stem vertically.
- Packing Gland & Packing Nut: The mechanical seal assembly located at the top of the bonnet. Compression packing rings wrapped around the smooth lower portion of the stem prevent fluid leakage along the shaft.
Standard operating pressure ratings for Class 125/150 OS&Y valves range from 175 PSI to 300 PSI CWP (Cold Working Pressure). Yoke nuts are typically constructed from ASTM B584 Manganese Bronze to prevent galling against stainless steel or brass stems under high operational torque.
| Valve Size (NPS) | Flange Standard | Packing Gland Bolt Torque | Operating Pressure (CWP) |
|---|---|---|---|
| 2.5″ – 4″ | ANSI B16.1 Class 125 / AWWA C515 | 18 – 25 ft-lbs | 300 PSI |
| 6″ – 8″ | ANSI B16.1 Class 125 / AWWA C515 | 30 – 40 ft-lbs | 300 PSI |
| 10″ – 12″ | ANSI B16.1 Class 125 / AWWA C515 | 45 – 60 ft-lbs | 250 PSI |
How to Read an OS&Y Valve Diagram Blueprint
Interpreting an OS&Y valve diagram correctly requires understanding standard engineering symbols, stem position cues, and physical interface points. Field technicians and system designers rely on these schematics when integrating valves into a broader commercial fire sprinkler system piping schematic or heavy industrial fluid network.
Identifying Open vs. Closed Stem Position
The defining technical feature on an OS&Y schematic layout is the exposed stem extension. When the handwheel rotates counterclockwise (open direction), the internal bronze yoke nut drives the stem upward. In a fully open schematic representation, the top of the stem extends above the handwheel by a distance roughly equal to the nominal pipe diameter. Conversely, in a closed state diagram, the stem is driven downward into the bonnet, leaving only the stem tip exposed above the operating nut.
Reading Tamper Switch and Supervisory Device Integration
In life safety applications, NFPA 72 requires OS&Y control valves to feature electrical supervisory tamper switches. On a detailed wiring and mechanical blueprint, the supervisory switch mounts directly to the yoke frame. A mechanical actuator rod rests inside a groove machined into the valve stem. As shown in the schematic layout below, when the stem travels two full revolutions from the open position, the actuator trips a microswitch contact (Form C relay), transmitting a trouble signal to the fire alarm panel.
Tamper switch installations utilize single-pole double-throw (SPDT) or double-pole double-throw (DPDT) switches. Standard wire pinouts use Red/Black for Normally Closed (NC) supervisory circuits and Yellow/Blue for Normally Open (NO) alarm indication circuits. Cross-reference your layout with the specific system wiring configuration before terminating connections.
Evaluating Flange Layout and System Connections
Engineering schematics detail end connections using standardized dimensions. When reading an OS&Y valve footprint in a piping drawing, cross-reference face-to-face dimensions (ANSI B16.10) to ensure proper clearance during installation. Valve assemblies installed alongside a double check detector backflow preventer layout require strict spacing clearances to allow stem travel and tamper switch servicing without interference from neighboring structural elements.
System Diagnostics: Troubleshooting Based on OS&Y Valve Schematics
When an OS&Y valve demonstrates mechanical binding, gland leakage, or electrical supervisory failure, field technicians can use the schematic section layout to isolate the root cause and execute target repairs.
Diagnosing Stem Packing Gland Leaks
Fluid leaking along the stem above the bonnet indicates worn or loose graphite/PTFE packing rings. To fix this condition:
- Inspect the packing gland studs and nuts indicated on your component blueprint.
- Tighten the gland nuts evenly in 1/4-turn increments using a cross-pattern to prevent cocking the gland follower.
- Manufacturer specs indicate that if packing nuts reach full thread engagement without stopping the leak, depressurize the system and repack the gland chamber with fresh braided packing rings.
Overtightening the gland packing nuts increases stem friction, causing binding or excessive handwheel operating torque. Always verify smooth handwheel rotation after making packing adjustments. Never use a pipe wrench or cheater bar on an OS&Y handwheel.
Resolving Valve Binding and Failure to Fully Close
If the stem binds halfway through its travel or fails to achieve a complete bubble-tight shutoff against system pressure:
- Debris Accumulation: Sediment trapped in the bottom wedge pocket prevents full gate seating. Open and flush the valve under pressure to sweep out debris.
- Corroded Stem Threads: Exposed stem threads left unlubricated accumulate corrosion. Clean the threads using a wire brush and apply food-grade NLGI Grade 2 lithium grease or marine-grade anti-seize lubricant.
- Wedge Pin Shear: If the stem rotates without vertical displacement, the internal pin connecting the stem to the wedge has sheared. This requires bonnet removal and internal component replacement according to the manufacturer exploded view layout. Compare your valve design against a standard post indicator valve (PIV) configuration when selecting replacement stem components, as internal pin designs vary significantly.
OS&Y Valve Diagram Frequently Asked Questions
How do you immediately identify an open vs. closed valve on an OS&Y valve schematic?
An open OS&Y valve is identified by the stem position extending significantly out of the yoke and handwheel assembly. On an engineering diagram, if the threaded stem is drawn projecting high above the top operating handwheel, the valve is in the open position. If the stem is drawn flush or recessed near the yoke bridge, the valve is fully closed.
What are the primary structural differences between an OS&Y valve diagram and an NRS valve diagram?
An OS&Y (Outside Screw and Yoke) valve has external stem threads supported by an outer yoke, meaning the stem raises visibly as the valve opens. An NRS (Non-Rising Stem) valve keeps its threaded stem enclosed inside the valve body; the stem rotates inside the wedge without moving up or down outside the bonnet casing. NRS schematics do not include an external stem collar or elevated yoke frame.
What NFPA standards govern OS&Y valve placement in fire protection system layouts?
NFPA 13 (Standard for the Installation of Sprinkler Systems) and NFPA 24 (Standard for Private Fire Service Mains) strictly regulate OS&Y valve placement. These standards mandate that all control valves controlling water supplies to automatic fire sprinkler systems must be listed visual-indicating valves, with OS&Y gate valves being the primary industry standard.
How is a supervisory tamper switch wired into an OS&Y valve configuration?
A supervisory switch mounts directly to the OS&Y yoke leg, with its mechanical plunger riding inside a grooved channel on the stem. The electrical leads connect to a fire alarm control panel (FACP) initiating device circuit (IDC). When the stem moves away from the fully open position, the plunger actuates the switch contacts (typically wired with an end-of-line resistor), signaling a supervisory trouble condition at the control panel.
What stem lubrication standard is required for OS&Y valves in commercial applications?
OEM manufacturer specs indicate that exposed OS&Y stem threads should be lubricated annually using water-resistant, non-corrosive grease such as NLGI Grade 2 silicone or lithium-based grease. Food-safe, non-toxic lubricants are required on valves installed in potable water applications to prevent contamination during stem retraction into the fluid channel.
Step-by-Step Guide to Understanding the Os&Y Valve Diagram
Identify – Locate the OS&Y valve on the main fire riser line or backflow assembly.
Locate – Position the stem, yoke structure, gland flange, and handwheel on the physical valve.
Reference – Match physical components against the OS&Y valve diagram configuration to verify assembly.
Connect/Route – Verify supervisory tamper switch installation along the rising stem housing structure.
Verify – Rotate handwheel counterclockwise until threads are visible to ensure full open system position.
Troubleshoot – Inspect the stem packing nut for fluid weepage if stem movement feels stiff or leaks.
