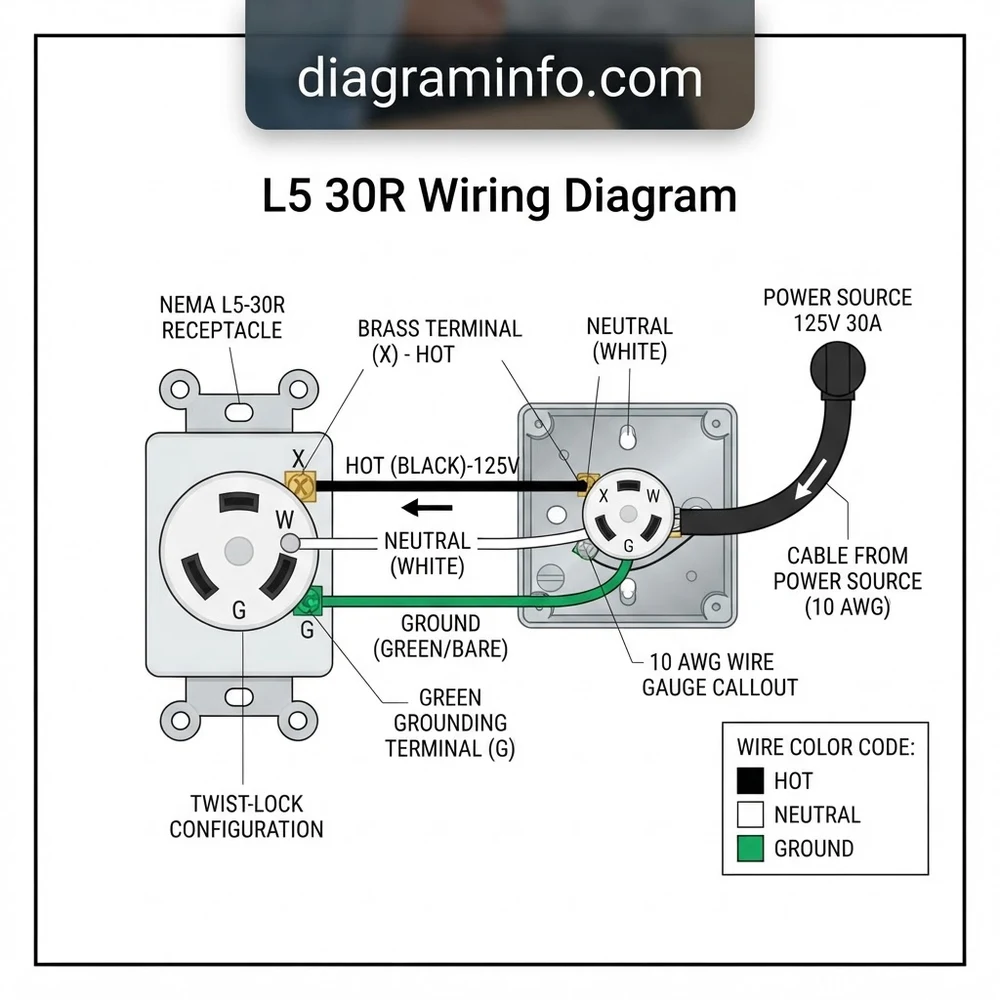

An L5-30R wiring diagram details connections for a 125V, 30-amp locking outlet. Connect the black hot wire to the brass terminal, the white neutral wire to the silver terminal (marked W), and the green or bare copper ground wire to the green terminal (marked G). Requires 10 AWG copper conductor wire.
📌 Key Takeaways
- Requires 10 AWG copper wire protected by a 30-amp single-pole circuit breaker at 120/125 volts.
- Terminal pin assignment: ‘G’ green screw for ground wire, ‘W’ silver screw for neutral wire, brass screw for hot wire.
- Torque terminal screws to manufacturer specs (typically 14–20 in-lbs) to prevent loose arc connections.
- Swapping hot and neutral wires creates a dangerous reverse polarity condition on connected equipment.
- If feeder panel capacity or voltage drop calculations over 100 feet are required, consult a licensed electrician.
Installing or servicing a NEMA L5-30R twist-lock receptacle requires exact adherence to terminal configurations, conductor sizing, and electrical safety standards. Designed for 125-volt, 30-amp single-phase circuits, the L5-30R is a heavy-duty receptacle commonly found in marine shore power installations, commercial RV inlets, industrial machinery, and backup generator transfer switch systems. Utilizing a proper L5-30R wiring diagram guarantees code compliance under the National Electrical Code (NEC), prevents dangerous phase-to-ground short circuits, minimizes line voltage drop, and protects connected sensitive equipment from phase reversal or thermal overload.
Understanding NEMA L5-30R Wiring Diagram Specifications and Pin Assignments
The NEMA L5-30R configuration is a 2-pole, 3-wire grounding locking receptacle rated for a maximum of 30 amperes at 125 volts AC nominal. According to NEMA WD-6 standard specifications, the designation breaks down systematically: “L” signifies a locking device designed to prevent accidental disconnects from vibration or strain; “5” designates the 125-volt rating class; “30” defines the 30-amp continuous current rating; and “R” indicates a receptacle (female connector).
Unlike standard straight-blade electrical outlets (such as NEMA 5-30), the L5-30R features curved blades and a mechanical locking interface. To establish a secure connection, the mating plug (L5-30P) is inserted and rotated clockwise, locking the pins into curved terminal slots. The structural design relies on three distinct conductor blades arranged in a circular housing:
- Ground Blade (G): Features an inward-turned curved tab keyways to enforce correct insertion orientation. It acts as the primary safety grounding connection.
- Neutral Blade (W): Located counter-clockwise from the ground terminal, designated as the grounded circuit conductor (125V return path).
- Hot Line Blade (X): Located clockwise from the ground terminal, designated as the ungrounded phase conductor (125V energized path).
NEMA L5-30R Electrical Specifications: Nominal Voltage: 125 VAC | Max Current: 30 Amps | Poles/Wires: 2-Pole, 3-Wire Grounding | Recommended Circuit Breaker: 30A Single-Pole | Recommended Minimum Wire Gauge: 10 AWG Copper (THHN/THWN) | Screw Terminal Torque Spec: 14–18 in-lbs (Hubbell/Leviton specs).
L5-30R Wire Color Code and Terminal Block Mapping
Accurate pin assignment on the rear terminal block of an L5-30R receptacle requires identifying the standard wire color code alongside physical hardware indicators on the receptacle chassis. Manufacturers utilize color-coded terminal screws and stamped terminal letters on the body molding to prevent cross-wiring during installation.
| Wire Function | Standard Wire Color Code | Terminal ID & Designator | Hardware Screw Finish | Technical Description |
|---|---|---|---|---|
| Hot Wire (Line 1) | Black (or Red) | “X” or “L” Terminal | Brass / Gold Screw | Energized 125V conductor coming from the single-pole 30A circuit breaker. |
| Neutral Wire | White (or Light Gray) | “W” Terminal | Silver / Nickel Screw | Grounded return conductor connected directly to the panel neutral bus bar. |
| Ground Wire | Green or Bare Copper | “G” or Ground Symbol | Green Hex Head Screw | Equipment grounding conductor bonded to the electrical system ground bus. |
When installing an L5-30R receptacle in metallic electrical boxes, NEC Article 250 requires a grounding pigtail bonding the green ground terminal to both the metal box chassis and the incoming equipment grounding conductor. Never rely on the receptacle mounting Yoke/Flange alone to ground the enclosure.
How to Follow the L5-30R Wiring Diagram Step-by-Step
Completing the physical wiring of an L5-30R outlet requires precise wire stripping, correct conductor placement, and strict mechanical torquing. Follow these step-by-step instructions to ensure a compliant and durable installation.
Step 1: System Isolation and Lockout/Tagout (LOTO)
Before handling any electrical conductors, switch off the single-pole 30-amp breaker at the main distribution panel. Apply a lock and hazard tag to the breaker handle. Verify the absence of AC voltage across all phase lines and neutral conductors using a calibrated digital multimeter rated for CAT III/CAT IV environments.
Step 2: Cable Preparation and Outer Jacket Stripping
Route 10/2 AWG with ground cable (such as Romex NM-B, UF-B, or THHN in EMT conduit) into the junction box using an approved metallic or non-metallic strain relief connector. Strip approximately 4 to 5 inches of the outer cable jacket to expose individual insulated conductors. Ensure the inner conductor insulation is completely free from cuts, nicks, or gouges.
Step 3: Stripping Conductor Ends
Using precision wire strippers set to 10 AWG, strip precisely 0.50 inches (13 mm) to 0.625 inches (16 mm) of insulation from the black, white, and green bare conductors. Inspect the bare copper strands. If using stranded wire (e.g., Type SOOW for portable generator inlet drops), avoid twisting strands loosely; ensure the copper bundle remains tight and cylindrical.
Step 4: Terminating the Equipment Ground Wire
Locate the green hex terminal screw labeled with the ground symbol or letter “G”. Insert the bare copper or green insulated 10 AWG ground wire into the wire clamp pocket underneath the terminal washer. Tighten the green screw securely to 16 in-lbs of torque. Verify that no loose strands protrude past the insulator housing.
Step 5: Terminating the Neutral Conductor
Identify the silver-colored screw terminal labeled “W” (White/Neutral). Insert the stripped end of the 10 AWG white neutral wire into the terminal pressure plate. Ensure the wire insulation abuts the edge of the terminal block without entering the clamping chamber. Tighten the silver terminal screw to 16 in-lbs.
Step 6: Terminating the Hot Phase Wire
Locate the brass or gold-colored terminal screw marked “X” or “L”. Insert the 10 AWG black hot wire directly into the terminal clamping chamber. Securely tighten the brass screw to 16 in-lbs using a hand screwdriver or torque driver to avoid stripping thread pitch.
Step 7: Final Mechanical Inspection and Box Mounting
Inspect the connection points carefully to verify zero bridging between adjacent terminals. Fold the excess 10 AWG wire neatly into the rear of the deep junction box in an “S” curve pattern to minimize mechanical strain on the screw terminals. Fasten the L5-30R receptacle yoke to the flush box or surface mount enclosure using #6-32 or #8-32 mounting screws. Attach the wall plate or weatherproof cover assembly.
Conductor Gauge, Voltage Drop, and Circuit Breaker Requirements
An accurate L5-30R wiring diagram installation relies heavily on proper upstream conductor sizing and overcurrent protection devices (OCPD). NEC Table 310.16 mandates that a 30-amp rated branch circuit must use conductors with an ampacity rating equal to or exceeding 30 amperes after applying temperature and conduit fill correction factors.
Wire Gauge Selection (10 AWG vs. 8 AWG)
For standard branch circuits up to 100 feet in length from the panel, 10 AWG solid or stranded copper wire (rated 75°C or 90°C, such as THHN/THWN-2) is required. Aluminum or copper-clad aluminum conductors require specific sizing adjustments (8 AWG minimum) and AL/CU dual-rated pressure terminals; however, solid copper is strongly recommended for high-vibration applications such as generator transfer switch wiring or RV power pedestals.
When run lengths exceed 100 feet, line resistance causes an intolerable voltage drop that degrades motor performance and generates excess heat in power supplies. The standard NEC formula for calculating single-phase voltage drop ($V_d$) is:
$$V_d = \frac{2 \times K \times I \times L}{CM}$$
Where:
- K: Specific resistance of copper (~12.9 ohms per mil-foot at 75°C)
- I: Circuit load current (30 Amps)
- L: One-way length of conductor in feet
- CM: Circular mil area of conductor (10 AWG = 10,380 CM; 8 AWG = 16,510 CM)
If the calculated voltage drop exceeds 3% (3.75 volts on a 125V nominal circuit), step up the wire gauge from 10 AWG to 8 AWG. Increasing conductor size mitigates voltage drops during peak motor startup currents on large tools or marine air conditioning units.
Breaker Sizing and Panel Terminations
The branch circuit supplying an L5-30R receptacle must originate at a single-pole 30-amp circuit breaker mounted in a 120/240V distribution panel board. The black hot wire connects directly to the 30A breaker lug, while the white neutral connects to the panel neutral bus bar. If the L5-30R is powered from an isolated subpanel or transfer panel, the neutral bus and ground bus must remain completely unbonded (separated) per NEC Article 250.24.
If the L5-30R outlet is deployed in outdoor locations, construction sites, marine docks, or residential RV hookups, NEC Article 210.8 mandates ground-fault circuit-interrupter (GFCI) protection. Use a single-pole 30A GFCI circuit breaker in the panel or an inline GFCI module.
Troubleshooting L5-30R Wiring Diagram Errors and Misconfigurations
Wiring errors on an L5-30R receptacle create serious hazards, including shock risk, equipment shorting, and electrical fires. Inspecting connections with diagnostic tools helps identify common installation faults.
Cross-wiring the hot and neutral conductors (reverse polarity) or placing line voltage onto the green ground blade energizes the metallic frame of connected machinery or RV chassis. Always perform a dead-circuit resistance test and a live voltage check before placing equipment into operation.
1. Transposed Hot and Neutral Terminals (Reverse Polarity)
Swapping the hot wire (Black) to the “W” terminal and the neutral wire (White) to the “X” terminal results in reverse polarity. While 125V AC loads may still operate, internal switching components and fuses on connected equipment remain continuously energized even when switched off, presenting a severe electrocution hazard.
- Diagnostic Test: Measure voltage between the narrow blade slot (X) and ground slot (G). It must read 120-125V AC. If 120V is measured between the wide blade slot (W) and ground slot (G), polarity is reversed.
- Correction: Power down the breaker, isolate the outlet, and swap the black conductor to the brass terminal and white conductor to the silver terminal.
2. Insufficient Mechanical Torque on Wire Clamp Terminals
Under-torquing terminal screws on 10 AWG solid wire leaves air gaps that create localized high-resistance connections. Under a continuous 30-amp load, high resistance generates intense thermal buildup, melting the thermoplastic receptacle face plate and scorching the wire insulation.
- Diagnostic Test: Perform an infrared thermal scan under load or physically tug each wire after installation. If wire movement occurs inside the terminal block, torque is inadequate.
- Correction: Tighten all terminal screws to the manufacturer-specified torque rating (typically 14 to 18 inch-pounds) using a calibrated torque screwdriver.
3. Lost Ground Path (Floating Ground Condition)
A loose, unattached, or broken ground conductor leaves connected equipment ungrounded. If an internal short circuit occurs in a connected machine, the metal frame becomes energized without tripping the 30A circuit breaker.
- Diagnostic Test: Measure resistance between the ground terminal blade (G) and a known building earth ground using a digital ohmmeter. Resistance must read under 1.0 Ohm. Alternatively, check AC voltage between Hot (X) and Ground (G); it must read 120-125V AC. A reading of 0V indicates an open ground path.
- Correction: Re-terminate the green ground wire firmly to the hex screw terminal and ensure continuity back to the main service panel ground bus.
L5-30R Wiring Diagram Frequently Asked Questions
Can I convert an L5-30R outlet to supply 240 volts to a machine?
No. An L5-30R is strictly rated for 125 volts single-phase AC (Hot, Neutral, Ground). It lacks the second hot phase conductor required for 240-volt loads. Attempting to feed 240V through an L5-30R outlet violates NEC codes and creates a fire safety hazard. For 240V single-phase 30-amp equipment, install a NEMA L6-30R outlet (Hot 1, Hot 2, Ground) using a 2-pole 30A circuit breaker and proper red/black wire labeling.
What is the difference between an L5-30R and an L5-30P?
The “R” suffix stands for Receptacle, which is the female socket connector mounted in a wall, generator panel, or equipment enclosure. The “P” suffix stands for Plug, which is the male cord-end connector with protruding locking blades. A male L5-30P plug inserts into a female L5-30R receptacle to complete the circuit.
Is a neutral wire required for an L5-30R locking receptacle?
Yes. The NEMA L5-30R device is explicitly designed as a 3-wire 125V system, requiring a dedicated neutral conductor (White) connected to the “W” terminal. The neutral conductor provides the return path for the 125V line voltage. Never substitute the equipment ground wire for the neutral wire.
Can I wire an L5-30R receptacle with 12 AWG wire if my run is short?
No. Standard building code (NEC Article 210.24) prohibits using 12 AWG wire on a circuit protected by a 30-amp breaker. The ampacity of 12 AWG copper wire is limited to 20 amps. Utilizing 12 AWG wire on a 30A breaker creates a fire hazard because the wire could overheat and melt before the circuit breaker trips. You must use a minimum of 10 AWG copper wire for all 30-amp branch circuits.
How do I wire an L5-30R receptacle as a generator power inlet?
You should not use an L5-30R receptacle as a generator inlet box. A receptacle has exposed female contacts and receives power from a source. A generator inlet box requires a male connector flange (such as an L5-30 Flanged Inlet) so that the female end of a generator extension cord connects safely into it. Wiring a female L5-30R receptacle to receive power from a generator cord would force you to use a dangerous male-to-male cord (often called a “suicide cord”), exposing energized metal pins.
