120V/240V Step-Up Transformer Diagram: Component Breakdown 2026

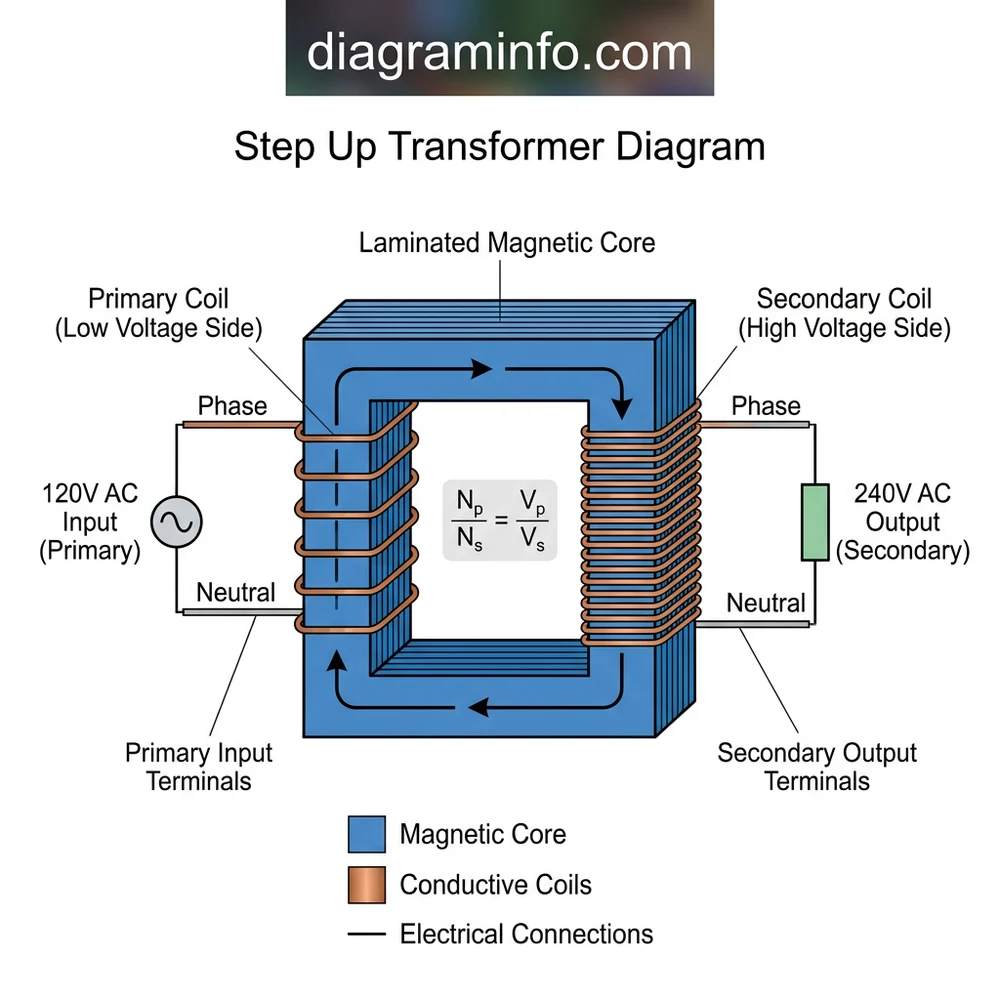

A step-up transformer diagram illustrates a low-voltage primary winding (e.g., 120V) paired with a high-voltage secondary winding (e.g., 240V) wrapped around a ferromagnetic core configuration. Primary terminals connect input AC power across fewer turns, while the secondary side contains more wire turns to output elevated voltage safely across connected system loads.
📌 Key Takeaways
- Primary winding has fewer turns of thicker wire compared to higher turn counts on the secondary winding
- Turns ratio (N2/N1) directly dictates output voltage amplification according to Faraday’s law
- Always verify chassis ground bonding and insulation resistance (minimum 2 MΩ) before energizing
- Open thermal fuses or melted secondary insulation are the primary failure points under overload conditions
- High-voltage secondary outputs above 50V AC require strict safety precautions and professional rating checks
Step-up transformers are essential electromagnetic components designed to increase alternating current (AC) voltage from a lower primary level to a higher secondary level while inversely decreasing current. In industrial equipment, automotive power electronics, ignition circuits, and high-voltage booster networks, interpreting a detailed step-up transformer diagram is critical for system installation, bench testing, and fault isolation. According to OEM electrical standards and IEEE guidelines, reading these schematics requires a precise understanding of mutual inductance, turns ratios, core construction symbols, and winding configurations. This guide breaks down the complete structural layout, schematic symbols, and diagnostic procedures used by electrical engineers and senior technicians.
Comprehensive Step-Up Transformer Blueprint and Component Architecture
Every step-up transformer relies on electromagnetic induction governed by Faraday’s Law ($e = -N \frac{d\Phi}{dt}$). The physical structure and its schematic representation on a technical blueprint are defined by four core internal assemblies. Understanding how these elements are rendered on a step-up transformer diagram allows technicians to trace power flow, verify line isolation, and measure resistance accurately across terminal nodes.
Recommended Best Deal Products
The fundamental relationship between primary and secondary parameters is expressed as: V_s / V_p = N_s / N_p = I_p / I_s. Where V represents voltage, N represents the number of wire turns, and I represents current in amperes. In a step-up configuration, N_s is strictly greater than N_p.
Primary Winding Circuitry
The primary winding acts as the electrical input side of the step-up transformer system. On a wiring schematic, it is depicted as a series of inductor loops with fewer turns than the secondary side. Because the primary side handles higher current levels at lower voltages, manufacturer specifications dictate the use of thicker wire (typically 12 to 16 AWG heavy enamel magnet wire or flat copper foil in high-power applications). In electronic drive circuits, such as boost converters and inverter systems, the primary coil connects directly to switching transistors (IGBTs or MOSFETs) or AC supply lines across terminals typically labeled H1 and H2 or P1 and P2.
Secondary High-Voltage Winding Circuitry
The secondary winding produces the stepped-up output voltage. On a blueprint or schematic diagram, this coil is illustrated with significantly more inductor loops to visually denote a higher turns count ($N_s > N_p$). Because current is reduced proportionally to the voltage increase, secondary windings utilize finer magnet wire (typically 24 to 36 AWG) wrapped with high-temperature Class H or Class R enamel insulation (rated up to 180°C–220°C). Secondary outputs are typically designated as X1/X2, S1/S2, or connected to high-voltage output bushings in industrial step-up transformers.
Laminated Core and Magnetic Flux Paths
Positioned between the primary and secondary winding symbols on a schematic layout are vertical parallel lines representing the magnetic core. The style of these lines specifies the core construction material:
- Solid Parallel Lines: Indicate a grain-oriented silicon steel laminated core designed for low-frequency power applications (50Hz/60Hz).
- Dashed Parallel Lines: Indicate a powdered iron or ferrite core designed for high-frequency switching operations (10kHz to 500kHz+).
- No Lines (Empty Space): Represents an air-core transformer configuration, typically found in high-frequency RF matching systems.
The core routes the alternating magnetic flux ($\Phi$) generated by the primary coil directly through the secondary coil, maximizing mutual inductance while minimizing hysteresis loss and eddy current losses.
Terminal Pinouts, Taps, and Thermal Protection Elements
Industrial step-up transformer diagrams include auxiliary connection nodes such as center taps, variable voltage taps, internal electrostatic shields (Faraday shields), and embedded thermal protection devices. Center-tapped secondary windings allow dual-voltage output or balanced split-phase configurations. Thermal cutoff switches (normally closed bi-metallic switches or PTC thermistors) are often drawn wired in series with the primary supply circuit or tied to external monitoring terminal blocks to prevent thermal runaway under heavy continuous loads.
| Transformer Component | Schematic Diagram Symbol | Typical Wire Gauge / Material | Electrical Parameter Range |
|---|---|---|---|
| Primary Winding ($N_p$) | Short coil loop sequence (few turns) | 10 – 16 AWG Enamel Copper Wire | Low DCR (0.1 Ω – 5.0 Ω), High Current |
| Secondary Winding ($N_s$) | Long coil loop sequence (many turns) | 24 – 36 AWG Heavy Magnet Wire | High DCR (50 Ω – 5,000+ Ω), Low Current |
| Laminated Steel Core | Two or three solid vertical lines | Cold-rolled grain-oriented steel | Permeability ($\mu_r$) > 3,000 at 60 Hz |
| Faraday Electrostatic Shield | Dashed line with ground symbol between coils | Copper tape / Aluminum sheet layer | Shunts high-frequency noise to earth ground |
| Thermal Cutout (TCO) | NC switch symbol labelled with temperature threshold | Bimetallic contact / Thermistor | Trips at 105°C – 130°C internal winding temp |
How to Read a Step-Up Transformer Schematic Layout Step by Step
Interpreting a step-up transformer diagram requires a systematic approach to identify signal polarity, input/output boundary lines, and protective earthing points. Whether working on three-phase equipment or single-phase step-up units, follow this standard engineering protocol to read the schematic correctly.
In a step-up transformer diagram, instant phase relationships are designated by solid black dots placed at one end of each winding symbol. When instantaneous current flows into the dotted primary terminal, the induced instantaneous current flows out of the dotted secondary terminal. Reversing these connections shifts the output voltage phase by 180 degrees.
Step 1: Locate Primary Supply Lines and Ground Boundaries
Start on the left or top section of the electrical blueprint where the incoming AC or pulsed DC excitation source enters the transformer. Locate primary terminals marked P1/P2, Line/Neutral, or H1/H2. Verify whether the primary input circuit includes series protection components like fuses, metal-oxide varistors (MOVs) for surge suppression, or snubber networks designed to absorb inductive kickback voltage spikes. Note the system chassis ground symbol attached to the metallic frame or core shield.
Step 2: Calculate the Voltage Step-Up Ratio from Turn Designations
Examine the schematic labels to determine the turns ratio ($N_p : N_s$). For example, a schematic marked 1:5 Turns Ratio indicates that for every 1 turn on the primary coil, the secondary coil contains 5 turns. If an input of 120 VAC RMS is applied across the primary terminals, the stepped-up secondary output will be 600 VAC RMS (assuming ideal coupling efficiency without loading losses). For complex installations, such as three-phase delta-wye transformer wiring, check whether phase-to-phase or phase-to-neutral voltages are specified, as the $\sqrt{3}$ multiplier must be factored into Delta-Wye output calculations.
Step 3: Trace High-Voltage Secondary Circuits and Rectification Nodes
Follow the secondary output traces extending from terminals X1, X2, or high-voltage leads. Because step-up transformers frequently feed high-voltage direct current (HVDC) power supplies or high-intensity equipment circuits, trace downstream from the secondary coil to identify bridge rectifiers, smoothing capacitor banks, voltage multipliers, or isolation relays. Ensure high-voltage creepage and clearance distances specified in the diagram key are maintained during physical assembly or routing.
Step 4: Identify Shielding, Taps, and Earth Ground Systems
Check the schematic for auxiliary line connections. An electrostatic Faraday shield placed between the primary and secondary coils will be shown as a dashed line connected to a dedicated ground lug. If the secondary coil features multiple output taps (e.g., 0V, 120V, 240V, 480V step-up positions), identify selector switch logic or terminal bridge jump configurations on the diagram to select the correct transformation tap for your equipment load requirement.
Step-Up Transformer Diagram Diagnostics and System Troubleshooting
When a step-up transformer fails, symptoms range from zero output voltage and high primary line current to insulation breakdown, high-voltage arcing, and thermal tripping. Using the step-up transformer diagram as a diagnostic roadmap allows technicians to isolate faults systematically using standard digital multimeters (DMM), megohmmeters (Hi-Pot/Megger testers), and inductance meters.
Step-up transformers produce lethal secondary voltages that easily exceed insulation ratings of standard diagnostic tools. Always disconnect primary power, lock out/tag out (LOTO) the system, and discharge high-voltage filtering capacitors using an insulated discharge resistor before touching transformer terminals or performing resistance tests.
1. Open-Circuit Winding Resistance Tests
Using the resistance (Ohms) setting on a multimeter, measure the DC resistance (DCR) across the primary terminals (P1 to P2) and secondary terminals (S1 to S2) after completely isolating the transformer from the circuit board or power grid:
- Primary Winding Failure: An infinite resistance ($\infty\ \Omega$) reading indicates an open primary coil (typically caused by overcurrent burning or an open thermal fuse). Because primary windings use heavy gauge wire, normal reading should be low (0.1 $\Omega$ to 10 $\Omega$).
- Secondary Winding Failure: High-density secondary windings naturally display higher resistance (50 $\Omega$ to 5,000+ $\Omega$). An open circuit reading indicates a broken fine-gauge wire inside the bobbin. Compare measured values against manufacturer specification tables. Reference procedures such as primary ignition coil resistance testing to evaluate auto-transformer style step-up circuits.
2. Shorted Turn Detection and Inductance Verification
A short circuit between adjacent turns in a secondary coil reduces total output voltage dramatically while causing rapid overheating due to circulating eddy currents within the shorted loop. A standard DC resistance test may not reveal a few shorted turns because resistance changes only marginally. Measure winding inductance ($L$) using an LCR meter:
- Calculate expected primary/secondary inductance ratios based on $L \propto N^2$. A dramatic drop in secondary inductance compared to schematic values confirms shorted turns within the winding layer.
3. Insulation Breakdown and Megohmmeter (Megger) Testing
High voltage causes carbon tracking and dielectric degradation over time. Perform insulation resistance testing using a Megohmmeter applying 500V DC or 1000V DC across non-connected nodes:
- Primary-to-Secondary Breakdown: Test between P1 and S1. Resistance must exceed 100 M$\Omega$. Values below 10 M$\Omega$ indicate breakdown of inter-winding insulation.
- Winding-to-Core Breakdown: Test between P1 and the iron core ground lug, then S1 and the core ground lug. Readings below 50 M$\Omega$ confirm an insulation failure shorting to chassis ground.
| Symptom | Probable Root Cause | Diagram Reference Area | Corrective Diagnostic Action |
|---|---|---|---|
| Zero Secondary Output / High Primary Current | Short-circuited secondary turns or shorted bridge rectifier | Secondary Winding (X1/X2) & Rectifier Output | Disconnect load trace; retest secondary voltage; perform LCR inductance test. |
| Zero Primary Current / Open Circuit | Blown thermal fuse (TCO) or open primary coil wire | Primary Circuit / Thermal Protection Node | Test continuity across TCO terminals; verify primary DCR against OEM specs. |
| Output Voltage Lower Than Blueprint Specs | Incorrect primary voltage tap selected; partial coil short | Primary Voltage Taps (H1–H4 Jumpers) | Verify terminal jumpers match incoming supply voltage on system schematic. |
| Excessive Transformer Hum / Core Vibration | Loose laminated steel core bolts or excessive DC bias current | Core Assembly & DC Blocking Input Capacitors | Check mounting hardware torque; check primary driver for DC offset using oscilloscope. |
Technical Step-Up Transformer Diagram Frequently Asked Questions
How does symbol layout in a step-up transformer diagram differentiate from a step-down schematic?
In a step-up transformer diagram, the symbol on the secondary side contains noticeably more loop coils (windings) than the primary side, visually reflecting the higher turns ratio ($N_s > N_p$). Conversely, a step-down transformer diagram displays more coils on the primary input side and fewer on the secondary output side. Technical schematics also explicitly state the voltage transformation ratings (e.g., 120V to 480V) and terminal labeling conventions (H1/H2 primary vs X1/X2 secondary).
What do dot notations indicate on a step-up transformer blueprint?
Dot notations represent instant polarity and phase relationship between primary and secondary windings. A dot placed on primary terminal H1 and secondary terminal X1 indicates that when the primary AC wave goes positive at H1, the induced voltage at secondary terminal X1 simultaneously goes positive relative to X2. This is critical when wiring step-up transformers in parallel, connecting push-pull drive circuits, or integrating inverter power electronics schematics where phase cancellation must be prevented.
Why does a step-up transformer diagram show different core line styles?
Line styles drawn between winding coils indicate core physical construction material. Solid parallel lines denote a laminated ferromagnetic core (silicon steel) optimized for mains frequencies (50Hz/60Hz). Dashed parallel lines represent a ferrite or powdered iron core designed for high-frequency pulse operations, such as switch-mode power supplies (SMPS) or electronic ballasts. No lines indicate an air-core configuration used in high-frequency RF systems where magnetic core losses would be prohibitive.
What does a center tap on a step-up secondary winding schematic mean?
A center tap is a terminal connection attached exactly at the electrical midpoint of the secondary winding coil. On a step-up transformer diagram, it is drawn as a line extending from the middle of the secondary coil sequence (often labeled CT or X3). This allows the transformer to provide two equal stepped-up AC voltage outputs that are 180 degrees out of phase with each other relative to the center connection, enabling full-wave center-tapped rectification using only two diodes instead of four.
How do you identify thermal cutoff switches on a step-up transformer schematic?
Thermal cutoff switches (TCOs) or thermal protectors are drawn as normally closed (NC) switch symbols positioned directly adjacent to or inside the primary winding block on the diagram. They are marked with an activation temperature rating (e.g., 130°C Thermal Protection). In automated equipment schematics, the thermal switch leads may extend to dedicated external control terminal blocks to open the main input contactor coil circuit if internal transformer temperatures exceed safe operating limits.
Step-by-Step Guide to Understanding the Step-Up Transformer Diagram
Identify – Identify the primary input and secondary output terminals on the step-up transformer diagram.
Locate – Locate the main power supply connections and verify the primary winding coil turns ratio.
Reference – Reference the terminal connection scheme to map phase, neutral, and ground wiring configuration.
Connect – Connect input AC power conductors to primary terminals and load conductors to high-voltage secondary output pins.
Verify – Verify winding resistance with a multimeter and check ground lug continuity across the enclosure layout.
Troubleshoot – Troubleshoot abnormal output voltage levels by inspecting thermal fuses and terminal tap selections.
