3 Way Switch Wiring Diagram Power at Light: Easy Setup Guide
A 3 way switch wiring diagram power at light illustrates the source power entering the light box first. The hot wire connects to the light, then carries power to the switches via a traveler wire and common terminal setup. The neutral wire stays at the light, while a ground wire ensures safety throughout the circuit.
📌 Key Takeaways
- Illustrates power routing starting at the light fixture rather than the switch
- Identifying the common terminal on each switch is critical for a functional circuit
- Always turn off the circuit breaker before handling any electrical wires
- Use color-coded or labeled traveler wires to avoid cross-wiring errors
- Use this diagram when the power source enters the ceiling box directly
Understanding a 3 way switch wiring diagram power at light is essential for anyone looking to control a single lighting fixture from two different locations when the source of electricity enters the system at the ceiling box first. This specific configuration, often referred to as “power to the light,” is common in older homes or specific architectural layouts where the circuit originates from a central overhead junction rather than a wall switch. Having an accurate diagram ensures safety, prevents short circuits, and ensures the toggle positions function correctly. In this guide, you will learn how to identify terminals, manage traveler wires, and complete a successful installation safely while mastering the flow of electricity through your home.
In a power-at-light setup, the neutral wire from the source connects directly to the light fixture, while the hot wire is sent down into the switch loop to be toggled by the three-way switches.
Detailed Breakdown of the Wiring Diagram Components

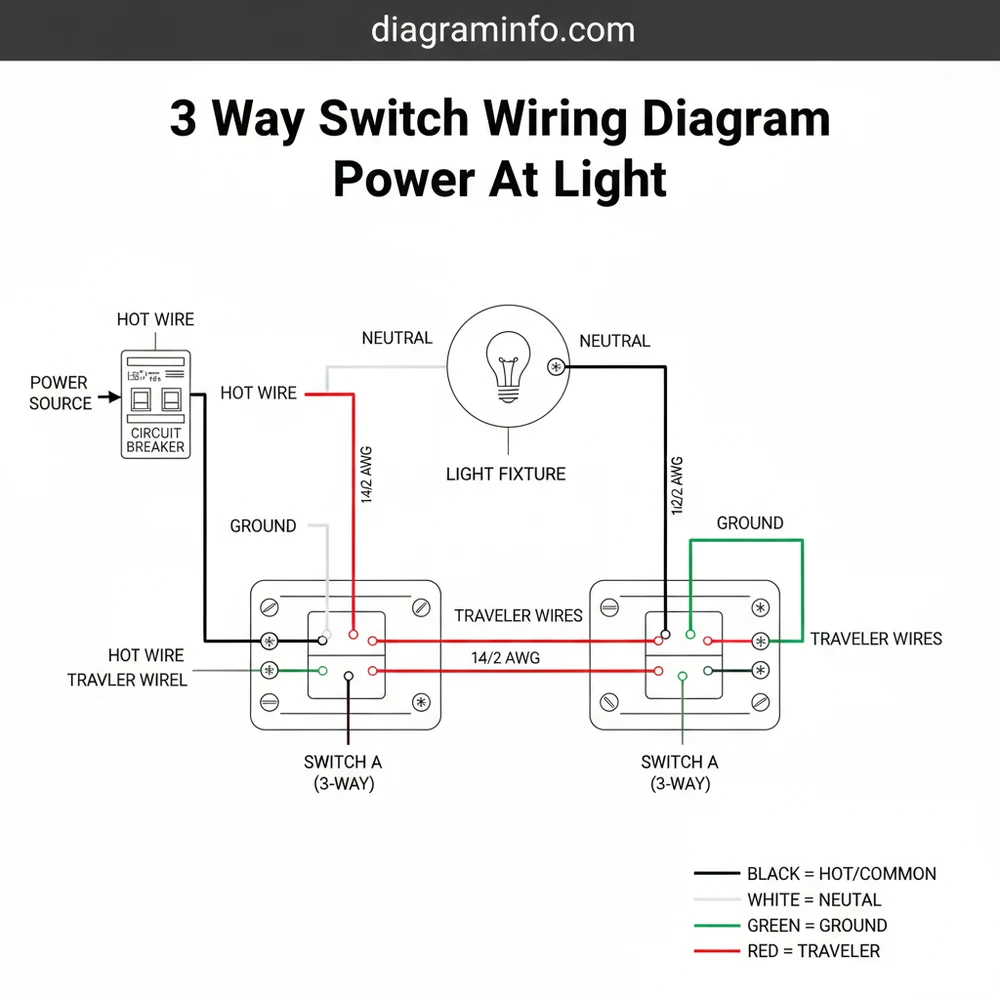

When viewing a 3 way switch wiring diagram power at light, the most important element to recognize is the path of the current. Unlike a standard switch setup where power enters a wall box, this configuration starts at the light fixture’s junction box. You will typically see three main components: the light fixture, Switch A (the first three-way switch), and Switch B (the second three-way switch).
The wiring involves two types of non-metallic (NM) cable: 14/2 and 14/3. The 14/2 cable consists of a hot wire (black), a neutral wire (white), and a bare copper ground wire. This cable usually brings the source voltage from the breaker panel into the light’s junction box. The 14/3 cable is utilized between the switches and the light because it contains an extra conductor—the red wire—which serves as a secondary traveler wire.
In this diagram, the terminals on the switches are color-coded for identification. Every three-way switch has one common terminal, which is usually a dark-colored screw (black or charcoal), and two traveler terminals, which are typically brass-colored. The common terminal is the “gatekeeper” of the circuit; it either receives the constant hot wire from the source or sends the switched power back to the light fixture. The traveler wires, usually the red and black wires within the 14/3 cable, connect the brass screws of Switch A to the brass screws of Switch B, allowing the circuit to be opened or closed from either location.
Color coding is vital here. In a power-at-light scenario, you may encounter a white wire being used as a hot conductor. According to the National Electrical Code (NEC), if a white wire is used as a hot wire in a switch loop, it must be “re-identified”—usually by wrapping a piece of black or red electrical tape around the insulation near the connection point. This signals to future electricians that the wire is carrying voltage and is not a neutral.
Step-by-Step Installation and Interpretation Guide
Reading a 3 way switch wiring diagram power at light can be intimidating, but following a logical sequence makes the process manageable. Before beginning, ensure you have the necessary tools: a voltage tester, wire strippers, screwdrivers, and electrical tape. Always use the correct gauge of wire; for most residential lighting circuits on a 15-amp breaker, 14-gauge wire is standard.
Always turn off the circuit breaker providing power to the light fixture before opening any junction boxes. Use a non-contact voltage tester to verify that no electricity is present in the wires.
- ✓ Step 1: Identify the Source Power – Open the ceiling junction box. Locate the 14/2 cable coming from the breaker panel. You should see a black hot wire and a white neutral wire.
- ✓ Step 2: Connect the Neutral to the Fixture – Take the white neutral wire from the source 14/2 cable and connect it directly to the silver terminal (or white lead) of the light fixture. In this configuration, the neutral wire does not go down to the switches.
- ✓ Step 3: Send Power to the Switches – Connect the black hot wire from the source to the white wire of the 14/3 cable that runs to the first switch box. Wrap this white wire with black tape to indicate it is now a hot wire. This wire will connect to the common terminal (dark screw) of Switch A.
- ✓ Step 4: Hook up the Traveler Wires – In the cable running between Switch A and Switch B, connect the black and red wires to the two brass traveler terminals on each switch. It does not matter which traveler wire goes to which brass screw, as long as they are both connected to travelers.
- ✓ Step 5: Return Power to the Light – The common terminal (dark screw) of Switch B will now have a black wire connected to it. This wire runs back up to the ceiling box and connects to the gold terminal (or black lead) of the light fixture. This is the “switched hot” that turns the bulb on and off.
- ✓ Step 6: Finalize the Grounding – Every box must be properly grounded. Connect all bare copper ground wire leads together in each box and attach them to the green ground screw on each switch and the grounding point in the ceiling fixture.
When stripping your wires, remove only about 3/4 of an inch of insulation. Make a “U” shaped loop with your pliers and hook it clockwise around the screw terminal. This ensures the wire tightens as you turn the screw.
Common Issues and Troubleshooting
Even with a high-quality 3 way switch wiring diagram power at light, mistakes can happen. The most frequent issue is “cross-wiring” the common terminal and the traveler terminals. If you accidentally connect a traveler wire to the dark common screw, the switches will behave erratically; for example, one switch might only work if the other switch is in a specific position.
Another common problem is the failure to properly re-identify the white wire. In a power-at-light setup, the white wire is frequently used to carry voltage down to the switches. If this isn’t marked with tape, a future DIYer might assume it is a neutral and cause a short circuit. If the light fixture stays on regardless of switch position, or if it trips the breaker immediately, you likely have a hot wire touching a ground or a neutral wire incorrectly placed in the switch loop.
If you find that the light flickers, check the terminal screws. Many modern switches allow for “back-stabbing” wires into holes, but this often leads to loose connections over time. Using the side screw terminals is much more reliable for maintaining constant voltage. If you cannot identify which wire is the common wire in an existing wall box, use a multimeter to check for continuity between the different wires while toggling the switches.
Tips and Best Practices for a Professional Finish
To ensure your installation lasts for decades, focus on the quality of your components and the neatness of your work. Always use high-quality, spec-grade three-way switches. These are slightly more expensive than residential-grade switches but offer sturdier terminals and a more positive “click” when toggled.
When it comes to wire management, avoid stuffing the junction boxes. If the boxes are crowded, it increases the risk of wires touching and causing a short. Fold the wires neatly into an “accordion” shape before pushing them into the box. If you are working in a ceiling box with limited space, consider using push-in wire connectors instead of traditional twist-on wire nuts to save room.
Check your switch connections every few years, especially if you live in an area with high humidity or temperature fluctuations, as these can cause copper wires to expand and contract, potentially loosening the screws.
Finally, always double-check the gauge of your wire. Using 14-gauge wire on a 20-amp circuit is a fire hazard. If your breaker is 20 amps, you must use 12-gauge wire throughout the entire circuit. Following these best practices, along with a clear 3 way switch wiring diagram power at light, will result in a safe, functional, and professional-grade electrical project. If at any point the wiring in your ceiling box does not match the standard colors or looks modified by a previous owner, it is best to consult a licensed professional to avoid any safety risks.
In summary, mastering the 3 way switch wiring diagram power at light involves understanding that the light fixture serves as the primary hub for the electrical source. By carefully identifying the common terminal, properly labeling traveler wires, and ensuring all connections are tight and grounded, you can effectively install a dual-switch system that provides convenience and safety for your home. Always prioritize safety by turning off the voltage at the source and verifying your connections with a tester before finalizing the job.
Frequently Asked Questions
Where is the common terminal located?
On a 3-way switch, the common terminal is usually the darkest screw, often colored black or bronze. It is functionally distinct from the lighter-colored traveler terminals. In this specific power-at-light configuration, it serves as the crucial connection point for either the hot wire source or the return leg to the light.
What does this wiring diagram show?
This diagram illustrates a circuit where the 120V power supply enters the light fixture box rather than the switch box. It details how to use a 3-wire cable to carry the hot wire and traveler wire connections down to the switches, allowing two different locations to control a single light fixture.
How many wires does a 3-way switch have?
A standard 3-way switch features four connection points: one common terminal, two traveler terminals, and one green ground terminal. When wiring with power at the light, you will typically use a black hot wire, two traveler wires (often red and white re-marked), and a bare copper ground wire for safety.
What are the symptoms of a bad 3-way switch?
If a 3-way switch fails, you might notice that the light only works when the other switch is in a specific position. Other signs include a toggle that feels loose, audible popping sounds, or the light flickering when you touch the switch. This usually indicates a worn internal contact or loose traveler wire.
Can I install this 3-way circuit myself?
Yes, a DIYer can install this circuit if they understand basic electrical principles and local codes. It requires careful identification of the common terminal and proper handling of the traveler wire pair. However, if you are uncomfortable working with a hot wire or neutral wire, always consult a licensed electrician.
What tools do I need for this task?
To complete this wiring project, you will need a non-contact voltage tester to ensure power is off, wire strippers for removing insulation, and a screwdriver set. Pliers are helpful for twisting wires together, and electrical tape or wire nuts are necessary to secure connections between the hot and neutral wires.
