Universal Single Kitchen Sink Drain Plumbing Diagram: 2026 Guide
A standard single kitchen sink drain plumbing diagram features a 1.5-inch strainer assembly connected to a vertical tailpiece, an optional garbage disposal branch, a water-sealing P-trap maintaining a 2 to 4-inch water seal, and a waste line sloped at 1/4 inch per foot toward the vented stack.
📌 Key Takeaways
- Uses standard 1.5-inch DWV PVC, ABS, or polypropylene piping with slip-joint washers.
- The P-trap must maintain a 2-inch to 4-inch water trap depth to prevent sewer gas entry.
- Drain slope must maintain a strict minimum gradient of 1/4-inch fall per horizontal foot.
- Overtightening plastic slip nuts is the primary cause of cracked fittings and slow leaks.
- Consult a licensed plumber if adding a vent pipe modification or re-routing main stack lines.
Understanding a single kitchen sink drain plumbing diagram requires a precise grasp of drain-waste-vent (DWV) engineering standards, fluid dynamics, and municipal plumbing codes such as the Uniform Plumbing Code (UPC) and International Plumbing Code (IPC). A single-basin sink drain routing system relies on gravity-assisted flow, positive trap seals, and dedicated atmospheric venting to safely evacuate greywater while preventing hazardous sewer gases—such as methane and hydrogen sulfide—from backsiphoning into the living environment. As detailed in the single kitchen sink drain plumbing diagram, maintaining the correct pipe pitch, component alignment, and hydraulic seal depth is critical for long-term system reliability, leak prevention, and regulatory code compliance.
Single Kitchen Sink Drain Plumbing Diagram: Component Specification and Layout

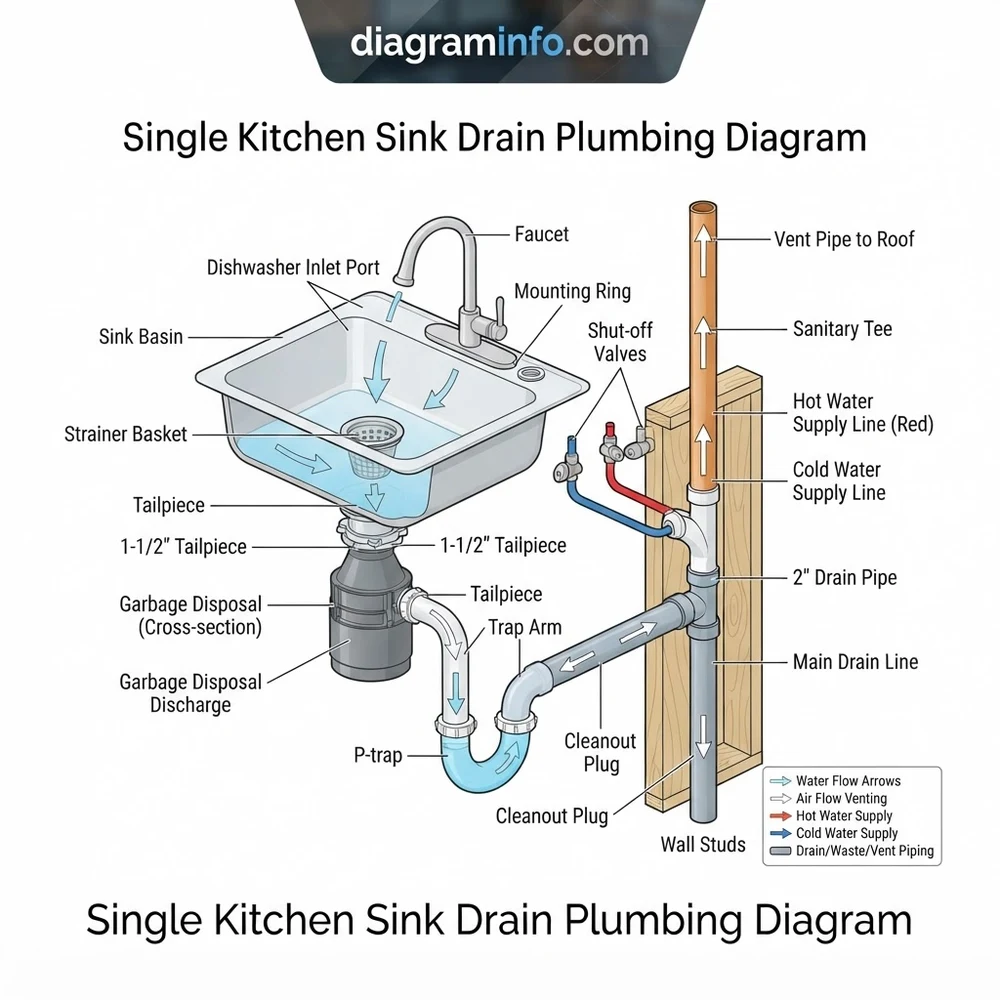

A standard single kitchen sink drain plumbing diagram illustrates a linear, gravity-fed assembly that channels wastewater from the sink basin flange into the main branch drain line. Every individual component within this system serves a mechanical or hydraulic purpose designed to maintain flow velocity and gas containment.
Recommended Best Deal Products
The primary assembly begins at the basin penetration with the basket strainer or drain assembly. Securely sealed against the sink basin using a elastomeric washer or plumber’s putty, the strainer connects directly to a vertical sink tailpiece. Tailpieces are available in unthreaded flanged configurations or double-ended threaded styles, typically manufactured from 20-gauge brass or Schedule 40 PVC/ABS plastic. If a food waste disposer is present, the tailpiece is replaced by the disposer’s internal grinding chamber, which outputs greywater horizontally via a dedicated 1-1/2-inch directional discharge elbow.
Directly below the tailpiece sits the P-trap assembly, which consists of a removable U-bend (trap dip) and a horizontal trap arm. Per IPC Section 1002.4, the P-trap maintains a liquid barrier between 2 and 4 inches of standing water. This hydraulic seal isolates sewer gas from the room interior. The trap arm extends horizontally from the U-bend to the sanitary tee in the wall line, maintaining a strict slope toward the vertical drain stack.
Venting is provided either through a continuous vertical vent pipe penetrating the roof membrane or an Air Admittance Valve (AAV) mounted downstream of the trap arm. The vent pipe balances ambient atmospheric pressure within the drain system, preventing negative pressure spikes from siphoning the water seal out of the P-trap during high-volume discharge events. Slip joint connections—comprising threaded locknuts and beveled poly/rubber slip washers—join these components together to facilitate thermal expansion and maintenance access.
| Component Name | Standard Dimensions | Material Options | Connection Type |
|---|---|---|---|
| Sink Basket Strainer | 3-1/2″ Top Flange, 1-1/2″ NPS Outlet | 304 Stainless Steel / Chrome Brass | Threaded Locknut / Retaining Ring |
| Sink Tailpiece | 1-1/2″ OD x 6″ to 12″ Length | Schedule 40 PVC / ABS / 20-Ga Brass | Flanged Slip Joint / Threaded Coupling |
| Garbage Disposal Outlet | 1-1/2″ OD Discharge Pipe | High-Impact Polypropylene | Flange Clamp with Rubber Gasket |
| P-Trap Assembly | 1-1/2″ ID (2″ to 4″ Water Seal) | Schedule 40 PVC / ABS / Polypropylene | Slip Joint Nut or Solvent Weld Union |
| Air Admittance Valve (AAV) | 1-1/2″ or 2″ DFU Rated (ASSE 1051) | ABS / PVC Valve Body, EPDM Seal | Female NPT or Solvent Weld Adapter |
| Sanitary Tee (San-Tee) | 1-1/2″ x 1-1/2″ x 1-1/2″ Hub | Schedule 40 PVC / ABS | Solvent Weld (ASTM D2564 / D2235) |
Installing a Single Kitchen Sink Drain System with P-Trap and Venting
Executing a installation derived from a single kitchen sink drain plumbing diagram requires accurate layout measurements, appropriate slope calculations, and correct torque specifications for compression fittings. For multi-basin configurations, review our comprehensive guide on dual-basin sink drain configurations.
Measuring and Dry-Fitting the Tailpiece and P-Trap Assembly
Begin by securing the basket strainer assembly into the sink basin cut-out. Apply a continuous 3/8-inch bead of non-setting plumber’s putty or neutral-cure 100% silicone beneath the top flange. Insert the strainer body through the basin opening, slide the rubber friction washer and cardboard friction ring over the bottom threads, and torque the brass locknut to approximately 25-30 ft-lbs using a spud wrench. Wipe away excess sealant squeezing out from the top flange.
Thread the flanged tailpiece nut onto the basket strainer outlet, ensuring the flanged washer sits flat inside the top coupling. Measure the vertical drop from the tailpiece to the rough-in center of the horizontal wall drain pipe. The vertical distance between the sink outlet and the P-trap water weir must not exceed 24 inches per UPC Section 1001.4 to prevent excessive hydraulic impact from siphonage of the trap seal.
Recommended Best Deal Products
Setting Slope Parameters and Trap Arm Rough-In Heights
Position the P-trap U-bend beneath the tailpiece and align the horizontal trap arm with the branch sanitary tee in the wall. The wall rough-in height for a standard single sink should sit between 16 and 18 inches above the finished floor, though garbage disposal setups require a lower rough-in (14 to 16 inches) to accommodate the disposer outlet drop.
Ensure the horizontal trap arm maintains a downward pitch toward the sanitary tee of exactly 1/4 inch per linear foot (a 2% grade). Never configure the trap arm with a negative slope or an excessively steep pitch exceeding 1/2 inch per foot, as excessive slope creates a momentum-driven siphon that empties the trap weir. For broader piping layout guidelines, reference our DWV pipe sizing guidelines.
Standard Drain Slope: 1/4 inch fall per 12 inches of run (2% slope).
Max Vertical Drop (Basin to Trap Weir): 24 inches max.
Trap Seal Depth: Minimum 2 inches, Maximum 4 inches.
Slip Joint Torque: Hand-tight plus 1/4 to 1/2 turn with channel-lock pliers (do not exceed 10 ft-lbs on plastic nuts).
Integrating the AAV Valve or Atmospheric Vent Stack
If the wall drain line does not connect directly to a continuous vent stack extending through the roof, install an Air Admittance Valve (AAV) conforming to ASSE 1051 standards. Position the AAV on a vertical riser branch located downstream of the P-trap arm, at least 4 inches above the top horizontal weir of the trap arm. The valve must remain accessible for mechanical inspection and replacement, placed in an unsealed cabinet space with adequate airflow.
When connecting PVC or ABS hard lines, prepare pipe ends using a deburring tool and apply purple primer conforming to ASTM F656, followed by medium-bodied PVC solvent cement complying with ASTM D2564. Join components with a quarter-turn twist and hold under compression for 30 seconds to lock the chemical weld.
Troubleshooting Single Kitchen Sink Drain Plumbing Diagram Layouts
Deviations from the single kitchen sink drain plumbing diagram frequently cause structural leaks, standing wastewater, or persistent sewer gas odors. The diagnostic protocols below cover the primary hydraulic and mechanical failure modes encountered in single-sink plumbing installations.
Corrosive chemical drain openers can compromise polyethylene slip joint washers, degrade PVC solvent welds, and burn skin during disassembly. Always mechanically clear obstructions using an auger or disassemble the P-trap manually before attempting chemical treatments.
If wastewater drains slowly despite an unblocked strainer, check the vertical distance between the trap weir and the wall penetration. A “S-trap” configuration—created when a trap arm drops vertically into the floor instead of running horizontally into a vented wall tee—causes high-velocity water columns to siphon the P-trap dry. Reconfigure the pipe routing to a code-compliant P-trap layout with a dedicated horizontal arm and atmospheric vent access.
Sewer gas odors inside the cabinet indicate a compromised water seal or a failed Air Admittance Valve. If the trap water seal dries out quickly, verify that the vent stack is free of debris (bird nests, ice damming). An obstructed vent forces air down through the P-trap during upstream fixture discharge, pulling water out of the trap dip. If an AAV is present, inspect the rubber internal diaphragm; mechanical wear or debris under the seal seat will allow sewer gas to leak under positive pressure. Replace the AAV module if gas leaks persist.
Persistent leaks at slip joint connections are commonly caused by overtightening plastic locknuts, which deforms the inner poly bevel washer. Inspect washers for flat spots or localized tearing. Replace deformed washers with flexible EPDM rubber slip washers for higher seal resiliency against thermal expansion cycles.
When installing secondary appliances, ensure food waste disposer connections follow strict routing rules. If adding commercial apparatus, refer to our technical specs on commercial grease interceptor installation.
Single Kitchen Sink Drain Plumbing Diagram Frequently Asked Questions
What is the standard height for a single kitchen sink drain rough-in?
The standard rough-in height for a single kitchen sink drain outlet center is 16 to 18 inches above the finished floor level. However, if you plan to install a deep basin (9 inches or deeper) alongside an under-mount garbage disposal unit, you should lower the rough-in center to 14 to 15 inches above the finished floor. This additional clearance ensures that the disposer outlet sits higher than the wall drain entry point, maintaining the mandatory minimum 1/4-inch per foot downward slope along the trap arm.
How does an Air Admittance Valve (AAV) replace a traditional vent pipe?
An Air Admittance Valve (AAV) is a one-way mechanical valve engineered to open under negative pressure created during wastewater discharge. Opening allows fresh room air to enter the DWV system, equalizing hydraulic pressure and preventing the P-trap water seal from siphoning away. Once discharge completes and pressure normalizes, gravity seats the internal rubber membrane shut, sealing off sewer gases. AAVs substitute for continuous roof vents under IPC and UPC rules, provided they are rated to ASSE 1051 or 1050 and mounted at least 4 inches above the horizontal trap arm.
What size PVC pipe and slip joint fittings are required for sink drainage?
Residential kitchen sink drainage systems require 1-1/2-inch nominal pipe size (NPS) components for the direct drop tailpiece, P-trap, and trap arm. The vertical waste line behind the wall standardly scales up to 2-inch Schedule 40 PVC or ABS pipe to handle multi-fixture hydraulic loading capacities. Polypropylene slip joint tubing (1-1/2-inch outer diameter) is standard for under-sink modular connections, using 1-1/2-inch threaded slip nuts paired with matched conical compression washers.
How do you properly plumb a garbage disposal into a single drain assembly?
To plumb a garbage disposal into a single sink drain setup, direct the 1-1/2-inch high-impact polypropylene discharge elbow downward from the disposer housing into the inlet of the P-trap. If a dishwasher is integrated into the system, knock out the internal 5/8-inch plastic plug inside the disposer’s upper inlet nipple using a punch and hammer before securing the dishwasher drain hose with a stainless steel worm-drive hose clamp. Route the dishwasher hose up to an air gap device or secure a high-loop bypass under the counter rim to prevent backflow.
Why does a P-trap lose its water seal, and how do you prevent self-siphoning?
A P-trap loses its protective water seal through momentum siphoning, aspirational siphoning, or simple evaporation during extended idle periods. Momentum siphoning occurs when water flows too fast down an unvented or excessively steep trap arm (slope greater than 1/2-inch per foot), creating a full-bore water plug that pulls the trap water along behind it. Prevent self-siphoning by maintaining a 1/4-inch per foot slope on the trap arm, installing an AAV or roof vent within the maximum allowable unvented length (no more than 4 feet for 1-1/2-inch pipe under UPC), and keeping vertical drops under 24 inches.
Step-by-Step Guide to Understanding the Single Kitchen Sink Drain Plumbing Diagram
Identify – Inspect all diagram components including the strainer, tailpiece, garbage disposal branch, P-trap, and wall outlet.
Locate – Position the 1.5-inch vertical tailpiece beneath the sink basin strainer assembly.
Reference – Consult the diagram to align the P-trap U-bend with the tailpiece and horizontal waste arm.
Connect/Route – Attach slip nuts and bevel washers, maintaining a downward pitch of 1/4 inch per foot toward the wall connection.
Verify – Hand-tighten all connections, fill the sink basin completely, and release water to check for leak points.
Troubleshoot – Adjust skewed slip washers or clear trapped debris if minor leaks or slow drainage occur.
