Peterbilt 379 Clutch Linkage Diagram: 2026 Guide
The Peterbilt 379 clutch linkage diagram details the mechanical connection between the pedal pivot, firewall shaft, vertical control rod, bellcrank, and transmission clutch fork. Proper system layout requires 1.5 to 2.0 inches of clutch pedal free-play, adjusted by rotating the lower threaded clevis rod on the clutch release arm shaft.
📌 Key Takeaways
- Standard clutch pedal free-play specification is 1.5 to 2.0 inches measured at the pedal pad.
- The mechanical layout relies on greaseable zerk fittings at firewall pivot points requiring regular chassis grease.
- Maintain a minimum 1/2-inch clearance between the clutch release bearing and clutch brake pad when disengaged.
- Elongated clevis pin holes and worn nylon bushings are the main drivers of erratic free-play and gear clash.
- Proper mechanical rod adjustment must be performed prior to any internal clutch pressure plate adjustment.
The mechanical clutch system on the Peterbilt 379 relies on a precise arrangement of rods, levers, bellcranks, and pivots to transfer driver foot pressure from the cab pedal to the heavy-duty Eaton Fuller pull-type clutch inside the bellhousing. Unlike modern hydraulic setups, the classic mechanical linkage on the 379 provides direct tactile feedback, but it requires systematic inspection, precise manual adjustment, and consistent lubrication to maintain proper clutch squeeze, avoid gear grinding, and prevent premature wear on the clutch brake. Understanding the mechanical layout and physical geometry of this assembly is essential for heavy-duty technicians and fleet mechanics working to maintain peak driveline performance.

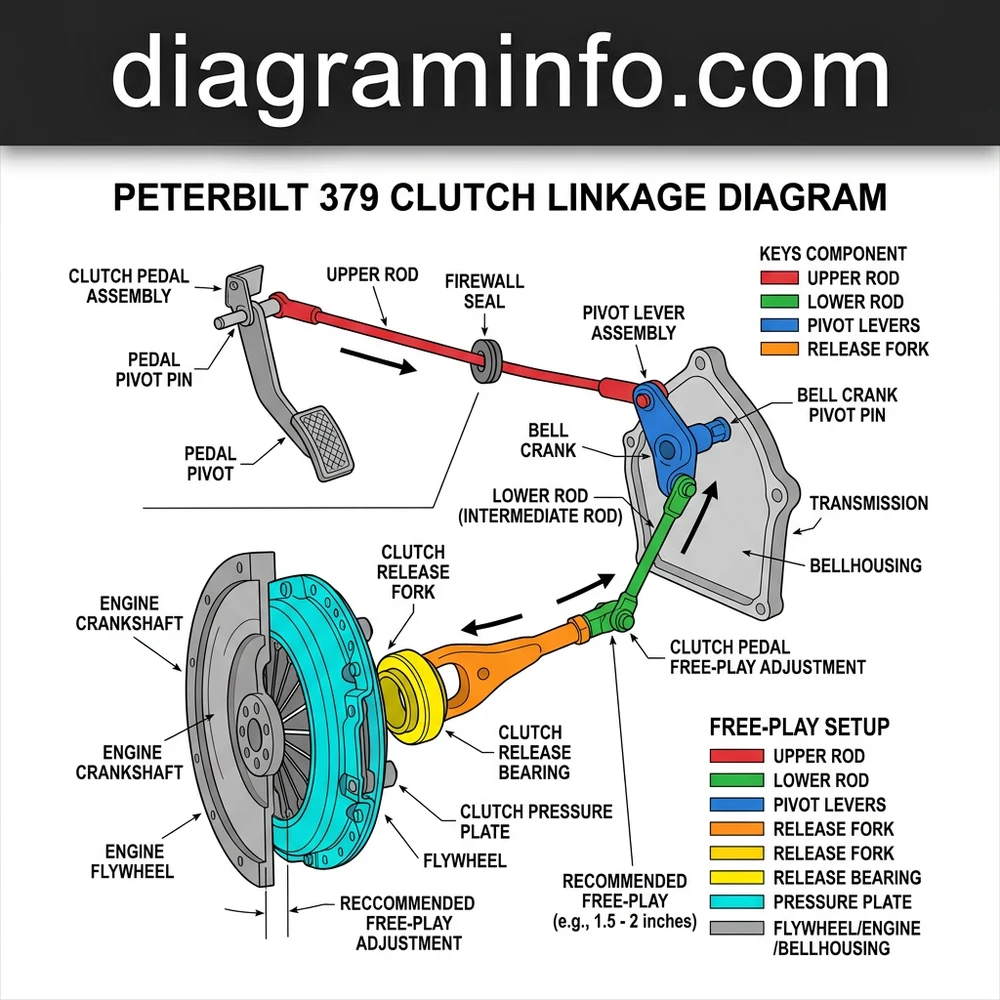

Peterbilt 379 Clutch Linkage Diagram: Component & Layout Blueprint
The mechanical clutch linkage on a Peterbilt 379 translates pedal stroke into linear movement across the firewall, down the driver-side frame rail, and into the transmission clutch housing. Because the Peterbilt 379 was manufactured across multiple decades with both standard and Unibilt cab configurations, understanding the spatial orientation and part identification of each sub-assembly prevents diagnostic errors.
The linkage sequence begins inside the cab at the suspended pedal arm and pivot shaft. When depressed, the pedal pushes an upper linkage rod through a sealed firewall boot to actuate the primary bellcrank assembly mounted on the exterior firewall or cab bracket. This primary bellcrank converts horizontal force into vertical mechanical leverage, rotating a drop lever that connects to the main longitudinal control rod. This long, adjustable rod extends down along the left frame rail toward the transmission.
At the rear of the linkage system, the longitudinal control rod attaches to the outer lever of the lower cross-shaft (also known as the clutch release shaft). The cross-shaft passes through the bellhousing via bronze or nylon bushings, supporting the internal release fork (yoke). As the cross-shaft rotates, the release fork moves the release bearing assembly backward away from the flywheel, disengaging the clutch pressure plate and compressing the clutch brake against the transmission bearing retainer cap.
| Component Name | OEM / Reference Part # | Torque / Clearance Spec | Primary Mechanical Function |
|---|---|---|---|
| Clutch Pedal Shaft & Bushings | OEM 02-01854 / Automann M17411 | 35-40 lb-ft (Pivot Bolt) | Provides low-friction fulcrum for the foot pedal inside the cab pedal box. |
| Firewall Bellcrank Pivot Assembly | OEM 02-02110 / Mid-America CP-102 | 45-55 lb-ft (Mounting Bolts) | Changes vector direction from push-rod stroke to down-and-rear pull stroke. |
| Longitudinal Control Rod & Clevis | OEM 02-03341 / Rod Thread 1/2″-20 | 25-30 lb-ft (Jam Nuts) | Adjustable rod setting external linkage length and basic pedal free-play position. |
| Lower Cross-Shaft Bronze Bushings | Eaton Fuller 12845 / Peterbilt 02-01122 | Grease until purge (10,000 mi) | Supports transmission cross-shaft rotation without binding under heavy loads. |
| Clutch Release Yoke & Fork Pins | Eaton Fuller 10547 / 12815 | 80-90 lb-ft (Fork Pinch Bolts) | Directly contacts release bearing housing to pull clutch assembly open. |
On Peterbilt 379 models equipped with Unibilt cab sleeper suspension systems, cab movement relative to the chassis frame can alter linkage rod geometry during high-articulation maneuvers. Always check mechanical linkage clearance with cab air bags inflated to standard ride height (typically 1.5 inches from frame to cab base rail).
Navigating the Mechanical Clutch Linkage System Schematic
Interpreting a Peterbilt 379 clutch mechanical blueprint requires analyzing force translation across multiple pivot points. The mechanical advantage of this system is designed around a 6:1 to 7:1 total leverage ratio. When the operator applies 50 pounds of force to the clutch pedal pad, the linkage converts this input into over 300 pounds of linear pull at the release bearing yoke. This multiplication of force is necessary to overcome the heavy internal diaphragm or coil springs of a 15.5-inch dual-plate Eaton Fuller heavy-duty clutch.
When reading the system layout, notice that every pivot pin hole in the bellcrank and clevis joints represents a potential site for mechanical slack. Over time, constant cyclic loading causes round pin holes to turn oval. A wear variance as small as 1/16 inch at the firewall bellcrank pin translates to more than 1/2 inch of lost pedal travel at the footpad inside the cab. For broader driveline service and clutch specification matching, consult our Eaton Fuller transmission service manual overview.
Furthermore, cab air-ride suspension movement creates dynamic displacement between the cab-mounted upper linkage components and the frame-mounted lower cross-shaft. Peterbilt engineers resolved this movement by angling the bellcrank leverage arms so that vertical cab movement tracks along an arc that minimizes unwanted pedal self-actuation. If the cab air ride height is incorrectly set, or if cab mount bushings are collapsed, the linkage rod will bind, leading to incomplete clutch disengagement or false pedal free-play readings. If cab sag or frame-to-cab misalignment is evident during inspection, review our guide on Peterbilt cab mount bushings replacement before attempting mechanical linkage calibration.
Standard Factory Adjustment Specifications for Peterbilt 379:
• Pedal Free-Play: 1.5 inches to 2.0 inches (measured at pedal pad)
• Release Bearing-to-Clutch Brake Clearance: 0.500 inch (1/2 inch nominal)
• Clutch Brake Squeeze Clearance: 0.010 inch to 0.015 inch feeler gauge fit between release bearing and clutch brake disc when pedal is fully floor-boarded
• Cross-Shaft Finger-to-Wear-Pad Clearance: 0.125 inch (1/8 inch equalizer gap)
Step-by-Step Adjustment Using the Peterbilt 379 Clutch Linkage Diagram
Adjusting the clutch system on a Peterbilt 379 requires a strict two-stage process. Technicians must never attempt to correct clutch wear by simply lengthening or shortening the external linkage rods. External linkage adjustments only set pedal free-play and clutch brake squeeze; internal clutch wear must always be compensated for at the clutch pressure plate adjustment ring first.
Adjusting the external linkage turnbuckle to compensate for internal clutch disc wear will destroy the clutch brake assembly, cause aggressive gear clash when selecting 1st or Reverse, and rapidly burn out the clutch release bearing. Refer to our detailed heavy-duty clutch brake adjustment guide for internal collar settings prior to performing external rod adjustments.
Stage 1: Internal Clutch Collar Calibration
Begin by securing the vehicle on flat ground with wheel chocks applied and air pressure fully built to ensure proper cab height. Remove the lower inspection cover plate from the clutch housing under the transmission using a 1/2-inch socket. Rotate the flywheel until the internal Kwik-Adjust lock bolt or spring-loaded adjustment collar is visible at the bottom inspection window.
If equipped with a Kwik-Adjust mechanism, use a 5/8-inch socket to push the lock bolt inward, disengaging its locking teeth from the internal ring gear. Rotate the adjusting ring clockwise (when viewed from the rear of the engine) to move the release bearing assembly forward toward the flywheel. Continue turning the ring until the distance between the rear face of the release bearing housing and the front face of the clutch brake ring measures exactly 0.500 inch (1/2 inch), verified using a precision step-gauge or 1/2-inch square stock.
Stage 2: External Linkage & Free-Play Setup
Once the internal 0.500-inch release bearing gap is set, verify the pedal free-play inside the cab. Measure the distance the pedal moves freely before encountering heavy resistance from the clutch pressure plate springs. If free-play is outside the 1.5-inch to 2.0-inch range, proceed to the external linkage rod on the left frame rail as illustrated in the schematic.
Loosen the top and bottom 1/2-inch-20 jam nuts on the longitudinal turnbuckle or adjustable clevis end. Remove the cotter pin and 3/8-inch clevis pin from the lower bellcrank arm. Rotate the threaded clevis joint in or out to lengthen or shorten the control rod until the clevis pin slides smoothly into the hole without pulling or pushing against the cross-shaft arm when the pedal is resting at its upper stop. Once aligned, reinsert the clevis pin, install a new cotter pin, and tighten both jam nuts to 25-30 lb-ft. Depress the clutch pedal completely to the floor carpet and measure the clutch brake squeeze clearance using a 0.012-inch feeler gauge inserted between the release bearing and the clutch brake washer. The gauge should slide with light drag.
Troubleshooting Common Peterbilt 379 Clutch Linkage Assembly Failures
Mechanical clutch linkages endure intense vibration, extreme chassis twist, and heavy spring pressure. Diagnosing mechanical faults systematically prevents unnecessary component replacement and reduces fleet downtime.
Excessive Free-Play and Loose Pedal Feel
When pedal free-play exceeds 2.5 inches and turning the internal Kwik-Adjust collar does not bring free-play back within spec, inspect every mechanical pivot point along the linkage schematic. Check the firewall bellcrank mounting bracket for flexing or cracks. Remove the clevis pins at the upper pushrod and lower cross-shaft levers to check for egg-shaped wear on the clevis holes. Inspect the bronze bellcrank pivot bushings; if play exceeds 0.030 inch, replace the bushing sleeve (OEM part 02-01854). Replacing worn clevis pins with hardened grade-8 pins restores precise pedal control.
Hard Pedal Operation and Shaft Binding
If pedal depression requires excessive force or feels notch-like, inspect the cross-shaft grease zerk fittings. Lack of regular lubrication causes the bronze bushings in the bellhousing pass-through holes to run dry, creating galling between the steel shaft and the housing. Additionally, inspect the firewall pass-through boot. A torn boot allows road salt, grime, and debris to enter the upper linkage pivot pin assembly, causing severe corrosion and binding. Clean all pivot joints with solvent, replace damaged boots, and flush grease channels with fresh NLGI Grade 2 lithium grease.
Clutch Drag and Hard Gear Engagement
If the transmission grinds into gear when stationary despite having 1.5 inches of pedal free-play, the clutch brake is likely torn apart or not fully squeezing. Have an assistant depress the clutch pedal entirely to the floorboards while observing the release bearing through the inspection port. The bearing must press firmly against the two-piece clutch brake washer, stopping input shaft rotation within 3 seconds. If the release bearing fails to reach the clutch brake, the external linkage rod length is improper, or the clutch brake disc friction material has sheared off due to improper driver usage (e.g., engaging the clutch brake while the vehicle is still moving forward).
Peterbilt 379 Clutch Linkage Diagram FAQ
What is the exact pedal free-play specification for a Peterbilt 379 mechanical clutch linkage?
The standard OEM specification for clutch pedal free-play on a Peterbilt 379 is 1.5 inches to 2.0 inches, measured at the center of the footpad inside the cab. Free-play represents the unresisted pedal travel before the internal release fork makes contact with the release bearing wear pads. Operating with less than 1.0 inch of free-play risks slipping the clutch under load, while excessive free-play over 2.5 inches prevents full clutch disengagement and destroys the clutch brake during shifting.
Why does my Peterbilt 379 grind when shifting into Reverse even with correct pedal free-play?
Grinding into Reverse or 1st gear while stationary indicates that the transmission input shaft is still spinning. This occurs when the clutch brake is either severely worn, broken, or not being fully compressed by the release bearing. Verify that the distance between the release bearing and the clutch brake measures between 0.010 inch and 0.015 inch when the clutch pedal is pressed completely against the floorboard carpet. If the gap is larger than 0.020 inch at full pedal depression, lengthen the external linkage rod or check for floor mat interference beneath the pedal pad.
Should I adjust the external linkage rod or the internal Eaton Fuller clutch ring first?
Always adjust the internal clutch pressure plate ring gear first to establish the critical 0.500-inch gap between the release bearing and the clutch brake. The external linkage turnbuckle should only be adjusted after the internal dimension is verified. Adjusting the external linkage first alters pedal height and leverage angles without setting proper internal clutch component clearance, leading to premature component failure.
How often should grease zerk fittings on the Peterbilt 379 clutch linkage be lubricated?
All grease zerks on the Peterbilt 379 clutch linkage system—including the cab firewall bellcrank pivot, the clutch pedal pivot shaft, and the left/right transmission cross-shaft bushings—should be greased every 10,000 to 15,000 miles or at every scheduled preventive maintenance (PM) oil change interval. Use a high-quality NLGI Grade 2 heavy-duty lithium complex grease, pumping until fresh grease purges past the shaft seals.
How does a worn Unibilt cab air ride bushing affect clutch linkage adjustment?
The Peterbilt Unibilt cab floats on rear air bags and rubber forward bushings. When cab bushings collapse or cab air bags leak, the cab settles lower on the chassis frame. Because the upper bellcrank is attached to the firewall and the cross-shaft is mounted to the frame-mounted transmission, cab sag alters the distance between these two points. This geometry shift reduces pedal free-play and can cause the clutch to slip under heavy engine torque even if the internal clutch clearances were set correctly on the bench.
