Residential System: How Does a Septic Tank Work Diagram 2026
A residential septic system layout separates household wastewater into three distinct layers: floating scum (fats/oils) on top, heavy solids (sludge) at the bottom, and clarified effluent in the middle. Wastewater enters via an inlet baffle, settles over 24-48 hours, and clarified effluent exits through an outlet baffle into the drainfield.
📌 Key Takeaways
- Anaerobic bacteria break down solid waste, requiring a 24 to 48-hour fluid retention time inside the primary tank compartment.
- The inlet and outlet T-baffles prevent surface scum and bottom sludge layers from clogging the downstream drainfield soil.
- Pumping cycles must occur every 3 to 5 years depending on tank capacity (typically 1,000–1,500 gallons) and household size.
- Baffle erosion and effluent filter clogging represent the two most common mechanical failure points in modern configurations.
- Seek licensed professional pumping services when sludge accumulation exceeds 33% of total liquid depth or during severe backups.
An onsite wastewater treatment system relies on physical liquid-solid separation, gravity settling, flotation, and anaerobic microbial digestion to clarify raw domestic sewage before discharge into a subsurface soil absorption field. Understanding a how does a septic tank work diagram is vital for system design, diagnostic troubleshooting, and routine maintenance protocols. This technical schematic illustrates the hydraulic flow path, multi-zone settling mechanics, biological decomposition phases, and critical structural components required to maintain hydraulic equilibrium. By analyzing the structural configuration, technicians and utility managers can systematically evaluate operating performance, isolate hydraulic short-circuiting, prevent biosolids carryover, and extend the functional lifespan of downstream disposal field components.
How Does A Septic Tank Work Diagram: Detailed Component Overview
A standard residential or commercial septic tank functions as a primary settling chamber engineered to maintain quiescent hydraulic conditions. According to OEM engineering standards and local health department code specifications, the structural enclosure must be watertight and chemically resistant to hydrogen sulfide oxidation. As depicted in the how does a septic tank work diagram overview, raw wastewater enters through the main building sewer pipe into the primary chamber, where physical separation divides the effluent into three distinct operational layers: an upper scum blanket, a clarified middle liquid zone, and a bottom sludge layer.
Recommended Best Deal Products
Minimum Liquid Detention Time: 24 to 48 hours at peak daily design flow rate. Inlet-to-outlet invert drop: 2 inches to 3 inches. Nominal baffle penetration depth: Inlet submerged 12 to 16 inches below liquid level; Outlet submerged 40% into total liquid depth. Tank material: 4,000 PSI reinforced precast concrete or high-density polyethylene (HDPE).
The internal structural layout of a standard two-compartment tank is partitioned by a mid-span baffle wall. This wall features an orifice or submerged pass-through slot positioned in the clear zone depth (typically located between 30% and 60% of the total liquid height). This configuration prevents physical crossover of floating fats, oils, and grease (FOG) or settled heavy solids into the second compartment. The smaller secondary chamber provides secondary clarification, allowing finer total suspended solids (TSS) to drop out before the treated wastewater passes through the outlet baffle assembly and effluent filter to reach the absorption trench network.

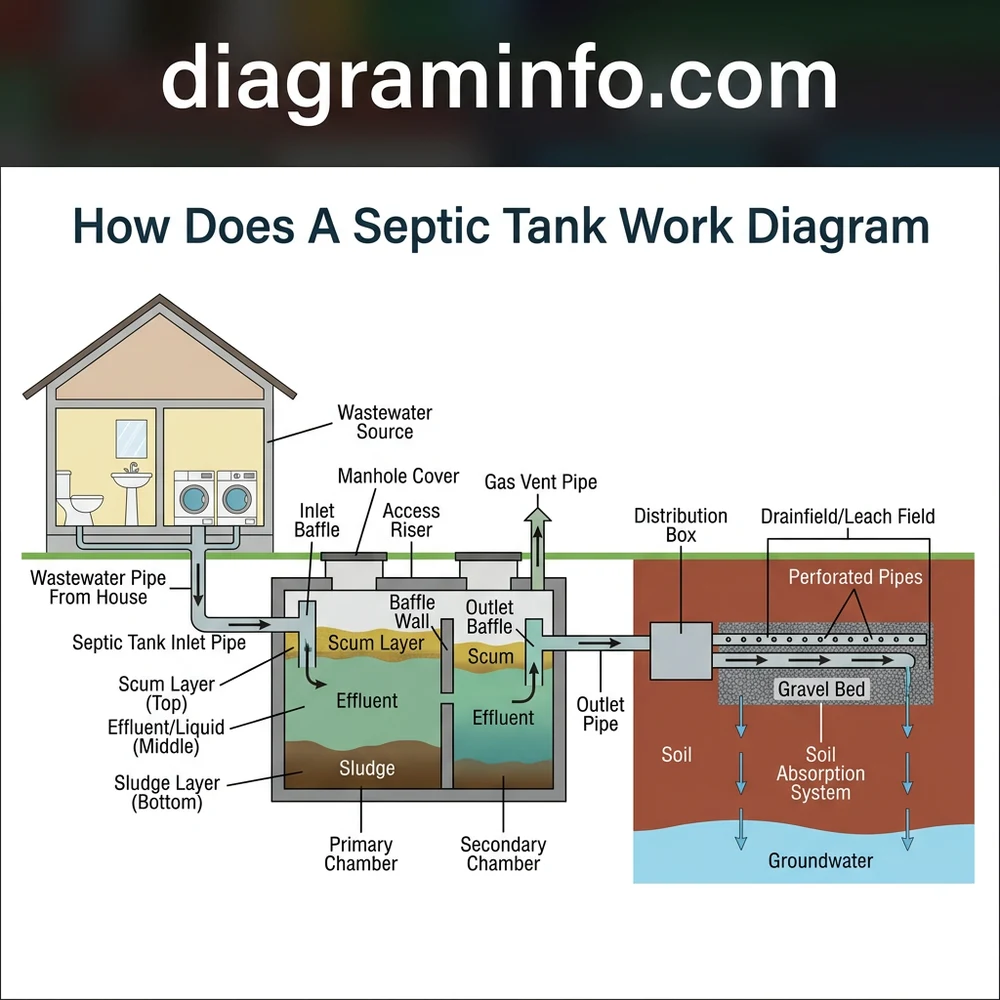

| Component Reference | Technical Function | Material & Specification | Diagram Location |
|---|---|---|---|
| Inlet Baffle / Sanitary Tee | Directs incoming flow downward below scum surface; dissipates inlet hydraulic energy. | 4-inch Schedule 40 PVC or integrated precast concrete baffle. | Upper Left / Primary Wall Penetration |
| Scum Blanket Zone | Traps low-density materials (FOG, soaps, floating debris) via buoyancy differentiation. | Buoyant solid matter layer (varies 2 to 12 inches thick). | Top Layer / Liquid Air Interface |
| Clarified Effluent Zone | Contains partially treated water free of large suspended solids; anaerobic digestion site. | Liquid phase containing dissolved organic carbon and organics. | Middle Zone (60-70% total fluid depth) |
| Sludge Layer Zone | Accumulates high-density biological waste and inert inorganic material; facultative anaerobic zone. | Dense organic/inorganic bio-solids slurry. | Tank Floor / Vault Bottom |
| Compartment Partition Wall | Divides tank into 2:1 or 1:1 volume ratios; minimizes surge turbulence pass-through. | Monolithic concrete wall with submerged transfer port. | Center / Two-Thirds Tank Distance |
| Outlet Baffle & Effluent Filter | Blocks floating scum and heavy sludge exit; screens fine suspended solids down to 1/16-inch. | Polylok/Tuf-Tite slotted polymer cylinder inside 4-inch PVC tee. | Upper Right / Discharge Penetration |
Proper function relies heavily on maintaining structural integrity at both inspection risers. These surface-accessible access points allow technicians to inspect the interior without excavating soil. If you are comparing primary septic layout schematics with higher-level treatment technologies, you can consult our detailed aerobic treatment units structural overview to evaluate secondary mechanical aeration options.
How to Inspect Your System Using the How Does A Septic Tank Work Diagram Blueprint
Executing a diagnostic inspection using the how does a septic tank work diagram blueprint requires systematic verification of liquid levels, baffle integrity, and accumulation thickness. Following a structured procedure prevents erroneous field diagnoses and hazardous site exposure.
Estimated Time: 1.5 to 2.0 hours
Skill Level: Advanced Technician / Experienced DIYer
Recommended Best Deal Products
Required Equipment and Tools:
- Core Sampler Tool (Sludge Judge / Clear Acrylic Measuring Tube)
- Scum Sludge Collar Gauge (1/2-inch PVC rod with hinged indicator bar)
- Heavy-duty Access Lid Pry Bar / Socket Set (1/2-inch drive)
- Multi-gas atmospheric monitor ($H_2S$, $CH_4$, $O_2$, $CO$)
- Personal Protective Equipment (Nitrile gloves, safety goggles, N95/respirator)
- High-pressure garden hose with washdown nozzle
Septic tanks generate lethal concentrations of hydrogen sulfide ($H_2S$), methane ($CH_4$), and carbon monoxide ($CO$), while creating oxygen-deficient environments. NEVER place your head inside a access opening or enter a septic tank. Toxic gases can cause sudden loss of consciousness or death within seconds. Ensure continuous gas monitoring around open risers and keep all open flames or spark sources away from exposed tank ports.
Step 1: Uncover and Secure Access Risers Based on Blueprint Coordinates
Locate the primary and secondary access risers using the site layout drawing. Utilizing an appropriate socket set or pry bar, remove the tamper-resistant fasteners and remove the riser covers. Position gas monitoring equipment over the open ports to verify atmospheric safety around the perimeter. Allow air turnover for 5 minutes prior to placing optical or mechanical testing tools inside the vault openings.
Step 2: Perform Visual Analysis of Invert Heights and Liquid Surface Levels
Observe the static liquid height relative to the inlet and outlet pipe invert elevations. The normal operating liquid level must sit precisely at the invert (bottom flow line) of the outlet pipe. If the water level sits above the outlet pipe invert, a downstream restriction exists within the drainfield soil absorption field schematic network or the effluent filter is fully clogged. Conversely, if the liquid level sits lower than the outlet pipe invert, the tank shell, seal joints, or pipe grommets are compromised, resulting in untreated effluent exfiltration into surrounding soils.
Step 3: Measure Scum Blanket Thickness
Lower a scum-measuring stick fitted with a hinged bottom flap through the primary access opening until you feel the top surface of the scum blanket. Push gently through the scum layer until resistance drops, signifying entry into the liquid zone. Rotate the tool 90 degrees to lock the flap horizontally, pull upward until it hits the bottom surface of the scum layer, and mark the rod at lid level. Calculate total scum thickness by measuring the distance between your two reference points on the rod.
Step 4: Measure Sludge Layer Accumulation
Lower a clear acrylic core sampler (Sludge Judge) straight down through the access riser, passing through the scum layer and clarified zone until it contacts the concrete floor of the primary chamber. Raise the sampler slowly to engage the check valve at the bottom. Read the clear visual graduation lines on the sampler body to record exact liquid layer depth versus concentrated bio-solid sludge depth. Manufacturer specifications state that if sludge depth occupies more than 33% of total liquid depth, or if total combined sludge plus scum thickness exceeds 50% of total liquid depth, immediate mechanical pump-out is required.
Step 5: Inspect and Clean the Effluent Filter Assembly
Locate the outlet sanitary tee and remove the removable effluent filter cartridge installed inside the secondary chamber discharge pipe. Direct a high-pressure water spray away from yourself back into the primary chamber to rinse off trapped bio-solids, biological film, and hair accumulation. Check filter seal ring gaskets for chemical decay or cracking. Re-seat the cleaned effluent filter fully into the discharge tee housing to preserve proper hydraulic filtration performance.
Troubleshooting Septic Tank Configuration and Hydraulic Flow Problems
When an onsite system exhibits operational issues—such as localized backups, surface ponding, or sewer odor generation—technicians must trace structural mechanics back to the how does a septic tank work diagram to pinpoint component failures. The table below outlines common physical symptoms, underlying systemic causes, diagram cross-references, and field correction procedures.
| Symptom | Root Cause Analysis | Diagram Reference Point | Corrective Action Protocol |
|---|---|---|---|
| Fixtures gurgling; sluggish building drain lines. | Inlet sanitary tee clogged with grease or paper accumulation; high water level submerging inlet invert. | Inlet Baffle / Building Sewer Penetration | Clear inlet tee mechanically; pump tank liquid level down to check for downstream restrictions. |
| Grease and solid debris detected in distribution box. | Missing, damaged, or corroded outlet baffle tee; missing effluent filter insert. | Outlet Baffle Assembly / Filter Housing | Install new Schedule 40 PVC sanitary tee with structural effluent filter insert. Hydro-jet distribution lines. |
| Liquid level continuously drops below outlet invert. | Structural cracking in precast concrete floor/walls; leaking mid-seam mastic seal; degraded rubber pipe boot. | Monolithic Shell Base / Mid-Seam Joint | Perform internal hydrostatic testing; seal structural cracks using hydraulic cement or elastomeric epoxy sealants. |
| Effluent surfacing directly over the drainfield trenches. | Biomat accumulation blinding soil infiltration interface; high total suspended solids (TSS) carryover. | Discharge Line / Drainfield Soil Absorption Interface | Pump septic tank; perform soil shock recovery treatments; evaluate adding an effluent pressure distribution system or a downstream lift station pump wiring diagram for dosed application. |
A primary failure mode in older gravity systems is hydraulic short-circuiting caused by structural baffle erosion. Precast concrete baffles are highly susceptible to acidic decay above the liquid line due to biogenic sulfuric acid formation. When the inlet or outlet baffle collapses, incoming high-velocity surges displace floating scum layers directly into the discharge piping. This sends untreated organic solids into downstream distribution pipes, causing soil pore clogging and system failure.
Hydraulic short-circuiting reduces total retention time from a nominal 48 hours down to under 2 hours during peak flow periods. Maintaining intact PVC sanitary tees with downward extended drop-pipes ensures incoming wastewater enters below the scum interface, maintaining low velocity and quiescent laminar flow essential for gravity separation.
Frequently Asked Questions About How Does A Septic Tank Work Diagrams
How Do Two-Compartment Septic Tank Configurations Differ from Single-Compartment Designs?
A two-compartment septic tank layout incorporates a physical dividing baffle located at roughly two-thirds of the total tank length from the inlet wall. The primary compartment receives raw wastewater, capturing roughly 70% to 80% of total heavy solids and floating scum. The secondary compartment acts as a secondary clarifier, capturing smaller suspended particles before discharge. Single-compartment tanks lack this multi-stage settling setup, making them significantly more vulnerable to solid carryover during peak household water usage surges.
What Invert Elevation Specs Should Be Reflected on a System Blueprint?
Standard engineering blueprints require an invert drop of 2 to 3 inches between the inlet pipe invert elevation and the outlet pipe invert elevation. This pitch differential creates a drop that prevents incoming wastewater from backing up into the main sewer line while accommodating fluid surface expansion during surge flows. The bottom of the inlet tee should submerge 12 to 16 inches below the static water line, while the outlet baffle must submerge into the lower 40% of liquid depth to draw exclusively from the clarified fluid layer.
Why Does the Outlet Baffle Position Matter in an Effluent Separation Schematic?
The outlet baffle position dictates where treated effluent is drawn from inside the tank fluid volume. Because buoyant solids float in the top scum layer and heavy particulate matter settles to the bottom sludge layer, the cleanest water resides within the middle third of the total liquid volume. Positioning the outlet baffle intake inside this intermediate clear zone prevents fat, grease, and heavy particulate carryover from exiting into the disposal field.
How Can You Identify Biomat Clogging vs. Hydraulic Overload on a Layout Diagram?
A schematic layout review combined with fluid measurements helps distinguish hydraulic overloading from soil biomat blinding. Hydraulic overloading occurs when total daily discharge volume exceeds the hydraulic detention rating of the tank volume, causing uniform elevated water levels through all components simultaneously. Biomat clogging shows up as persistent high water levels localized downstream of the outlet baffle and distribution box, while tank retention time remains normal. This indicates that the surrounding soil absorption rate has degraded due to biological slime build-up.
What Is the Minimum Recommended Liquid Retention Time in Standard Tanks?
According to onsite wastewater engineering guidelines, the absolute minimum hydraulic detention time required for adequate solid-liquid separation and anaerobic digestion is 24 hours under maximum peak daily flow conditions. However, optimal operational efficiency is achieved with a design retention window of 36 to 48 hours. Lower retention times result in elevated Total Suspended Solids (TSS) and high Biochemical Oxygen Demand (BOD) concentrations entering downstream receiving soils, accelerating system failure rates.
Step-by-Step Guide to Understanding the How Does A Septic Tank Work Diagram
Identify – Locate the main sewer line exit point on the house foundation wall to trace the supply pipe route.
Locate – Find the tank access lids and risers using soil probes or matching structural layout reference points.
Reference – Consult the diagram to identify the inlet baffle, central partition wall, and outlet assembly locations.
Connect/Route – Verify wastewater flows freely through main inlet pipes into the primary settling compartment.
Verify – Check liquid levels to ensure effluent sits at the bottom edge of the outlet pipe inversion point.
Troubleshoot – Inspect the effluent filter and outlet T-baffle for biological debris or physical blockage if drainage slows.
