Commercial Grade Roll Up Door Parts Diagram: 2026 Repair
The roll up door parts diagram maps the complete structural layout, including the barrel assembly, curtain slats, bottom bar, guide tracks, and tension spring system. Reference this architectural configuration to identify mechanical components, trace operational pathways, and isolate hardware failures during maintenance or replacement.
📌 Key Takeaways
- Torsion springs operate under extreme tension and require precise winding torque specifications during installation.
- The curtain assembly comprises interlocking galvanized steel slats secured by endlocks to prevent lateral shifting.
- Always relieve spring tension completely before servicing the barrel assembly or internal drums.
- Misaligned guide tracks are the primary root cause of binding, friction, and premature curtain wear.
- Professional technician intervention is strictly required for spring replacement and high-voltage motor adjustments.
Mastering the mechanical layout of commercial and industrial overhead barriers requires a precise understanding of every assembly within a roll up door parts diagram. Whether you are servicing a heavy-duty transport trailer, a municipal garage, or a logistics warehouse bay, interpreting a technical schematic, blueprint, or structural layout is essential for accurate diagnostics. Understanding how each component interacts within the complete system prevents costly downtime, ensures OSHA compliance, and optimizes long-term equipment performance across various year models.
Always cross-reference the specific serial number of your installation with the manufacturer’s master schematic, as spring wire sizes and drum configurations vary widely between standard-lift and high-lift designs.

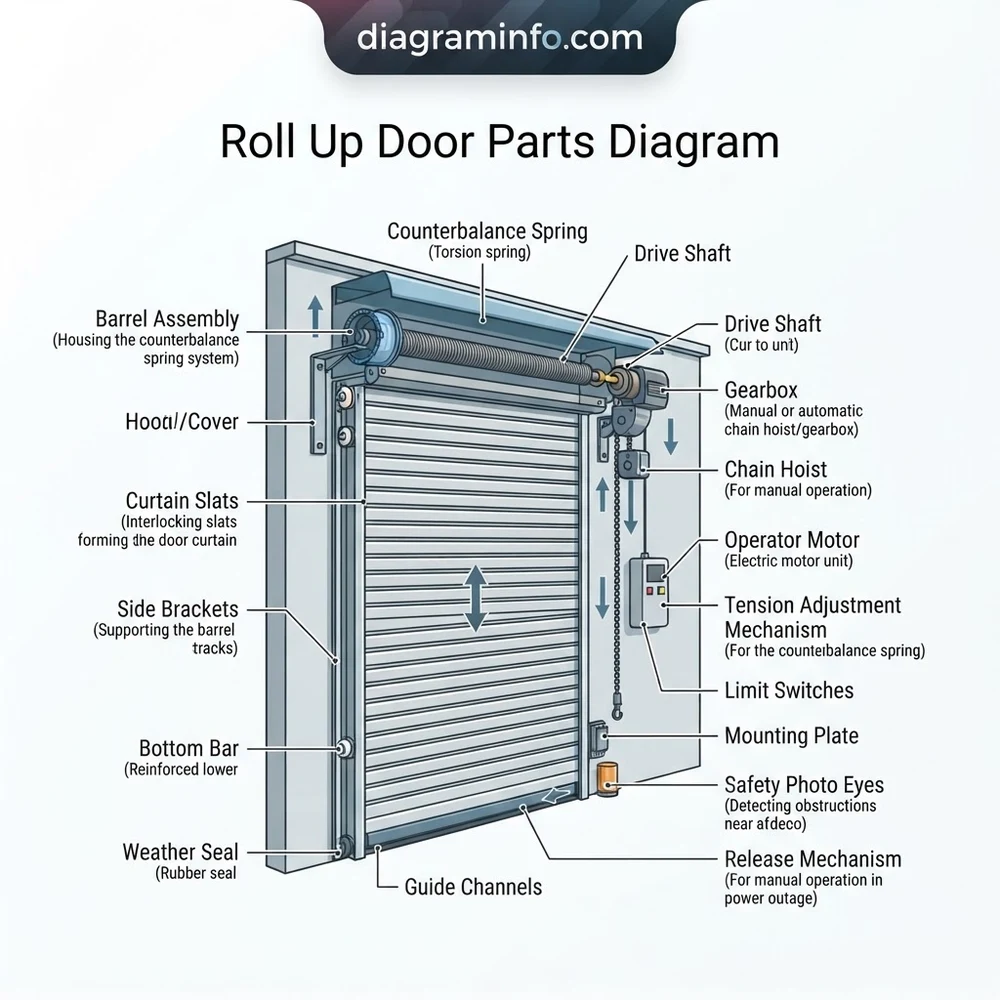

[DIAGRAM_PLACEHOLDER: Comprehensive engineering schematic illustrating the complete roll up door parts diagram, highlighting the barrel assembly, torsion springs, curtain slats, bottom bar, and vertical guide tracks.]
Component Breakdown
Analyzing the architectural overview of your rolling steel or aluminum barrier demands familiarity with specific hardware classifications. As illustrated in the standard schematic above, the assembly relies on synchronized mechanical tension and precise physical alignment to function safely under high cycling loads.
The curtain assembly forms the primary surface area, consisting of interlocking slats, endlocks, and windlocks designed to withstand lateral wind loads. According to OEM engineering standards, these slats wrap tightly around the barrel or drum assembly, which is housed on a structural steel shaft. Power is supplied or counterbalanced via a torsion spring system mounted internally on the barrel or externally on brackets, which neutralizes the dead weight of the curtain.
Guide tracks (or angles) anchor the curtain to the jamb, utilizing brush seals or vinyl weatherstripping to prevent particulate intrusion. At the base of the unit, the bottom bar assembly—frequently equipped with a pneumatic safety edge, electronic reversing sensors, and a heavy-duty astragal—provides structural rigidity and impact absorption. For motorized units, the drive operator connects to the main shaft via a roller chain and sprocket configuration, often regulated by an electromagnetic brake and emergency hand chain hoist.
| Part Classification | OEM Material Spec | Standard Torque / Fastener |
|---|---|---|
| Torsion Spring Cone Set Screws | Hardened Alloy Steel (Grade 8) | 15-20 ft-lbs (Do not over-torque) |
| Curtain Endlocks | Malleable Iron / Zinc Plated | Riveted or 1/4″-20 Self-Tapping |
| Wall Mounting Jamb Angles | Structural Steel ASTM A36 | 3/8″-16 Expansion Anchors (35 ft-lbs) |
| Drive Shaft & Couplings | Cold-Rolled Steel 1045 | Grade 5 Keyway Set Screws |
For more detailed information on related automated barrier components, review our specialized guides on commercial overhead operator wiring schematics, loading dock leveler hydraulic layouts, and industrial security gate maintenance procedures.
Step-by-Step Guide
:max_bytes(150000):strip_icc()/Simply-Recipes-California-Roll-LEAD-05-3c3a2fb4a9034e5c8cb34d6a24d9731e.jpg)
Interpreting the technical configuration and executing physical inspection or replacement requires a systematic approach. Follow this step-by-step procedure to inspect, service, or overhaul your rolling steel barrier system safely and efficiently.
Step 1: Isolate power sources. If your assembly features an electric operator, lock out and tag out (LOTO) the primary breaker supplying 115V, 230V, or 460V AC power. For manual units, secure the curtain in the fully closed position or clamp the guides tightly to prevent unexpected drop down.
Step 2: Inspect the structural mountings and brackets. Reference the blueprint to verify that all wall-attachment bolts, structural steel tube frames, and header plates remain torqued to manufacturer specifications. Check for hairline fractures in the bearing plates where the main drive shaft transfers dynamic load.
Step 3: Evaluate the curtain and guide alignment. Examine the endlocks on every alternating slat as indicated in the diagram. If endlocks have drifted or worn down, lateral movement will cause binding within the guide tracks. Ensure that clearances between the curtain edge and the inside of the guide groove do not exceed 3/16 inch on either side.
Step 4: Check spring tension and counterbalance mechanics. With the door locked in the open position (relieving stored energy), inspect the torsion springs for gaps, corrosion, or elongation. If you must adjust spring tension, utilize solid steel winding bars matching the exact diameter of the winding cone socket—never use screwdrivers or makeshift rods.
Torsion springs store lethal amounts of kinetic energy. Never attempt to wind, unwind, or repair tension systems without specialized winding bars, heavy leather work gloves, and eye protection.
Troubleshooting
When operational failures occur, tracing the symptoms back to specific elements on the diagram allows for rapid root-cause analysis. The following diagnostic matrix outlines frequent mechanical and electrical failures encountered in heavy-duty commercial environments.
If the curtain binds halfway through its travel cycle, inspect the vertical guides for accumulation of debris, paint buildup, or structural impact damage causing the channel to pinch the slats. Misaligned guide angles will force the curtain off-square, leading to immediate binding at the throat of the barrel.
Should the door feel exceptionally heavy during manual operation or trip the operator’s thermal overload protection, the torsion spring counterbalance has likely lost tension or suffered a fatigue failure. Inspect the barrel assembly for a split pipe or a sheared drive keyway that prevents the shaft from transferring torque evenly.
If an electrically operated unit reverses spontaneously during the closing cycle, inspect the bottom bar pneumatic safety switch, coiled cord (soho hose), and optical sensors. Check the wiring harness inside the junction box for pinched insulation or voltage drops across the control circuit transformer.
Lubricate guide tracks exclusively with dry silicone or powdered graphite sprays. Petroleum-based greases attract industrial dust and grit, turning into an abrasive compound that accelerates slat wear.
FAQ
How do I identify the exact replacement part number for my rolling door?
Locate the manufacturer’s metal specification data plate, typically riveted to the bottom bar, drive-side bracket, or operator cover. This plate provides the serial number, production year, size, and spring calculation code required to pull the correct factory blueprint.
What causes roll up door slats to walk sideways out of the guides?
Slats walk laterally when intermediate endlocks break, wear down, or go missing. Endlocks act as spacers that keep the curtain centered on the barrel. Inspect the diagram’s endlock placement and replace any missing or sheared locking rivets immediately.
Can I adjust the tension on a roll up door without professional assistance?
While minor adjustments to exterior limit switches on motorized operators are routine, adjusting internal torsion springs or barrel assemblies carries severe safety hazards. Only certified technicians equipped with proper winding bars and containment tools should adjust mechanical counterbalance tension.
How often should moving components shown on the schematic be lubricated?
Manufacturer maintenance protocols dictate a complete lubrication and inspection cycle every 6 months or 5,000 operational cycles, whichever occurs first. Apply lightweight machine oil to chain drives, sealed bearings, and pivot points, keeping curtain slats dry.
Frequently Asked Questions
What does the roll up door parts diagram show?
The diagram illustrates the structural layout and mechanical configuration of the entire assembly, highlighting key elements like the barrel, guides, tension springs, and bottom bar for precise identification.
How do I read the roll up door parts diagram?
Start by locating the main curtain and tracing the mechanical system upward to the barrel and spring assembly, then cross-reference side guide tracks and mounting brackets for accurate alignment.
What are the main components in roll up door parts diagram?
Primary components include the corrugated steel curtain, barrel assembly, torsion springs, guide tracks, bottom bar, weather stripping, and manual chain hoist or operator motor.
What are common problems with roll up door parts diagram?
Frequent system issues involve spring fatigue, track misalignment, damaged curtain slats, worn endlocks, and binding within the side guide channels.
Can I use roll up door parts diagram for DIY repair?
You can utilize the diagram for minor adjustments like replacing weather stripping or lubricating guides, but high-tension spring tasks demand professional assistance.
What tools do I need for roll up door parts diagram?
Essential tools include winding bars for tension springs, a socket set, a rubber mallet, a spirit level, and heavy-duty safety gear for structural handling.
