Universal Sliding Glass Door Parts Diagram: 2026 Repair Guide
A standard patio sliding glass door system layout consists of an active sliding panel and stationary panel housed inside a perimeter frame. Primary structural components include tandem steel or nylon bottom rollers with height-adjuster screws, head and sill tracks, interlocking stiles, dual-fin weatherstripping, and a mortise latch assembly with matching keeper.
📌 Key Takeaways
- Tandem roller adjustment screws (#2 Phillips) adjust door panel height up to 3/8 inch to correct dragging.
- Mortise lock assemblies insert into the active panel stile to engage the fixed jamb keeper plate.
- Interlocking stiles with dual-fin pile weatherstripping seal the center seam when panels fully close.
- Debris accumulation in the extruded aluminum sill track is the primary cause of early roller bearing failure.
- Single roller replacements are DIY-friendly, but insulated tempered glass unit failures require professional service.
Understanding a comprehensive sliding glass door parts diagram is essential for mechanical contractors, glazing technicians, and facility maintenance professionals performing structural repairs or hardware retrofits. Whether servicing heavy-duty commercial architectural systems or high-traffic residential patio doors, interpreting the architectural blueprint and schematic layout enables precise component identification. Standard sliding door assemblies rely on interconnected mechanical, structural, and sealing subsystems designed to maintain thermal efficiency while providing smooth operation across track profiles. Analyzing these components allows technicians to execute targeted troubleshooting, replace worn roller assemblies, align complex locking mechanisms, and maintain system integrity over extended duty cycles.

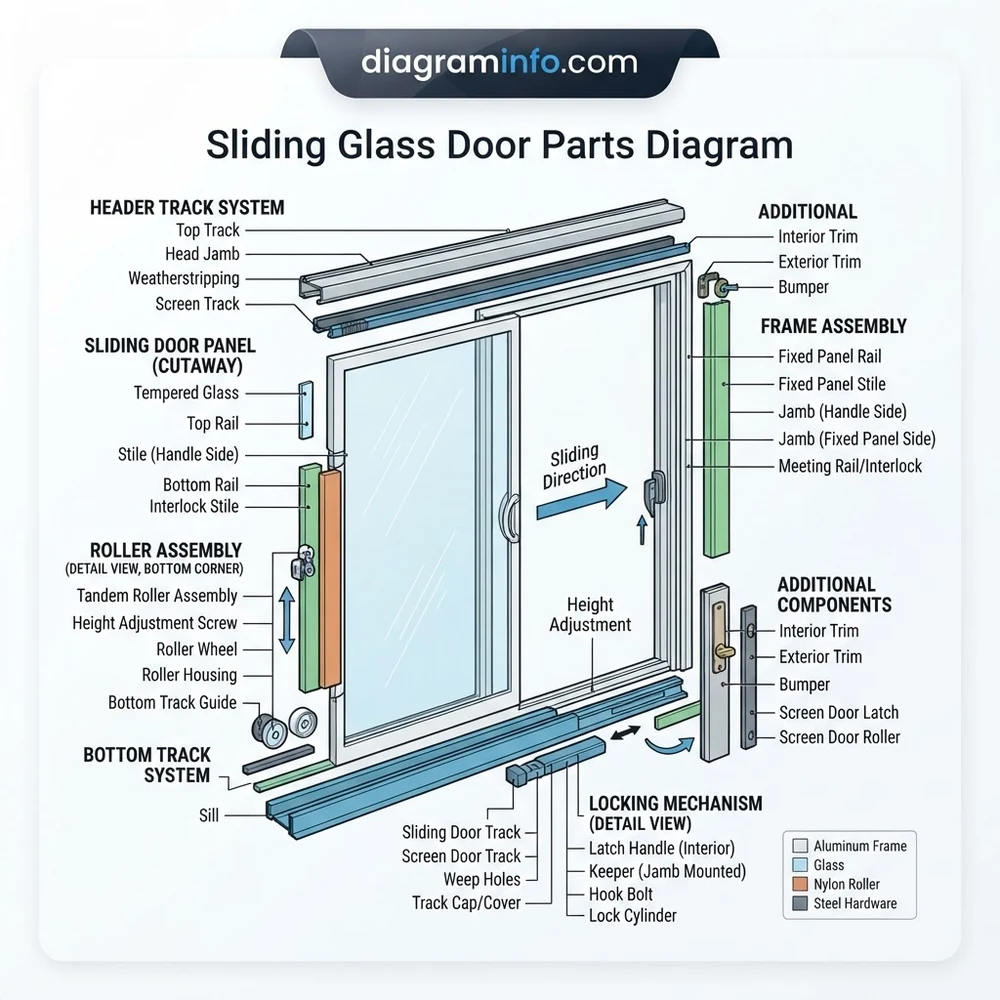

Sliding Glass Door Parts Diagram: Complete Mechanical Component Overview
A standard sliding glass door system relies on structural extruded aluminum, fiberglass, or vinyl framing paired with heavy-duty mechanical hardware. The master frame consists of the head jamb at the top, side jambs, and the sill track at the base, which integrates stainless steel or extruded aluminum runner rails. Embedded within the bottom rail of the moving active panel, tandem roller assemblies bear the panel weight and control track clearance.
| Component Reference | Material / Grade Spec | Primary Function & Tolerance |
|---|---|---|
| Tandem Roller Carriage | 304 Stainless Steel / Nylon Wheels | Supports panel load (up to 400 lbs); +/- 0.375 in height adjustment |
| Mortise Lock Body | Yellow Zinc Plated Steel / Brass | Secures active panel to jamb keeper; dual hook engagement |
| Sill Track Rail Cover | Extruded 316 Stainless Steel | Provides corrosion-resistant bearing surface for roller wheels |
| Interlock Stile Seal | Poly-pile with Fin Seal Insert | Prevents air infiltration at panel overlap; ASTM E283 compliant |
| Thermal Barrier Strip | Polyamide Struts (6063-T6 Extrusions) | Isolates exterior and interior frame extrusions to reduce U-factor |
The perimeter sealing configuration utilizes fin-seal pile weatherstripping along the stiles and EPDM bulb seals along the top rail and sill. High-performance sliding door configurations feature thermal breaks within 6063-T6 aluminum extrusions to prevent thermal conduction. The locking subsystem comprises a mortise lock body, actuating thumbturn, keyed cylinder, and adjustable strike plate/keeper anchored directly into the structural jamb profile.
Heavy-duty architectural sliding glass door assemblies specify minimum 1.5-inch diameter roller wheels rated for continuous load ratings of 250 to 500 lbs per tandem unit. Always verify carriage housing dimensions (typically 1.12 in width x 1.57 in height x 3.10 in length) prior to replacing hardware on vintage commercial extrusions.
How to Read a Sliding Glass Door System Blueprint and Schematic Layout
Deciphering a technical schematic layout requires systematic evaluation from structural frame boundaries inward to mechanical sub-assemblies. Follow this methodology to interpret dimensions, component callouts, and interface clearances accurately.
Identifying Frame Datum Lines and Track Rail Geometry
Begin by inspecting the main frame perimeter on the blueprint. Locate the sill profile cross-section to identify the raised stainless steel track rail, drainage weep channels, and thermal barrier placement. Check frame tolerances against rough opening dimensions, accounting for shim clearances during installation or structural realignment.
Interpreting Tandem Roller Adjustment and Mechanical Tolerances
Navigate to the bottom rail exploded view within the sliding glass door parts diagram. Locate the tandem roller housing, identifying the height adjustment screw access port at the bottom edge of the stile. Note the orientation of the tension spring and internal rocker arm. Manufacturer specs indicate maintaining a 0.25-inch (6.35 mm) baseline clearance between the bottom edge of the aluminum rail and the apex of the sill track rail to prevent frame dragging. For detailed frame alignment steps, consult our door frame alignment guide.
Mapping Multi-Point Latching Mechanisms and Strike Alignments
Examine the active stile cutaway on the schematic. Trace the linkage from the interior handle assembly down to the mortise lock hook latches. Identify the keeper adjustment screws on the jamb frame. Verify lock engagement depth—typically requiring a minimum 0.50-inch (12.7 mm) hook projection into the keeper to satisfy structural wind-load and forced-entry performance standards.
When reviewing exploded schematics, hardware items marked with letter suffixes (e.g., Part 12A vs. 12B) indicate hand orientation (Left-Hand vs. Right-Hand opening). Ensure mortise latch bevels and handle offset angles align with the operational direction of the active door panel.
Diagnosing Failures in Sliding Glass Door Configuration Hardware
Hardware failures in sliding glass door systems manifest through operational resistance, lock binding, or environmental breaches. Using the schematic blueprint, mechanics can isolate root causes efficiently.
Roller Bearing Degradation and Track Pit Corrosion
When door movement exhibits severe chatter or binding, inspect the tandem roller wheels for flattened nylon profiles or seized sealed steel bearings. According to OEM technical bulletins, dynamic loads over 250 lbs accelerate race breakdown if debris accumulates on the stainless steel runner rail. Clean track debris and replace worn carriage assemblies using high-load sealed ball-bearing units.
Latch Misalignment from Structural Frame Sag or Track Deflection
Inability to engage the mortise hook lock often stems from header deflection or frame racking rather than internal lock failure. Check diagonal frame measurements to verify squareness. Adjust tandem roller height screws to re-square the panel within the opening. Adjust the jamb keeper vertically up to +/- 0.1875 inches (4.76 mm) using the slotted mounting screws until the lock latch engages smoothly. Review our weatherization sealing protocol if draft issues persist after physical panel realignment.
Acoustic and Thermal Seal Breaches at the Interlock Stiles
Drafts or water infiltration at the center seam indicate compromised interlock weatherstripping. Check the vertical interlocking stiles on both fixed and sliding panels. Ensure high-density poly-pile weatherseals are intact and fully seated in their extruded T-slots. Replace compressed or torn seals to restore calculated ASTM E283 air infiltration ratings. Reference our structural glass glazing guide for insulating glass unit (IGU) seal integrity checks.
Tempered architectural glass panels are under high internal tension. Never hit the aluminum stile edges with metallic hammers during roller alignment or panel removal. Impact on the glass edge will cause instant catastrophic shattering of the tempered panel.
Sliding Glass Door Structural Parts Diagram FAQ
How do tandem roller height adjustment screws function on heavy-duty sliding panels?
Tandem roller adjustment screws alter the angle of an internal rocker arm or ramp mechanism within the roller housing. Turning the screw clockwise depresses the wheel carriage, raising the panel height off the sill track, while counterclockwise rotation lowers the panel to correct frame squareness.
What is the structural role of the interlock stile on a multi-panel sliding door layout?
The interlock stile features opposing hooked extrusions on the trailing edge of the active panel and leading edge of the fixed panel. When fully closed, these hooks engage mechanically to resist wind-load blow-in, enhance forced-entry protection, and compress weather seals to form an air- and water-tight vertical joint.
How can you differentiate between steel, stainless steel, and nylon rollers on a schematic?
Technical schematics specify roller material via part callouts and hatching standards. Stainless steel rollers (typically 304 or 316 grade) are specified for coastal/corrosive environments or panels exceeding 300 lbs. Nylon rollers are designated for lighter residential panels under 150 lbs to minimize track wear and lower rolling acoustic signatures.
What torque specifications apply to installing mortise lock keepers into extrusions?
Standard 8-32 machine screws securing mortise keepers into aluminum framing extrusions should be torqued to 25–35 in-lbs (2.8–4.0 Nm). Over-torquing risks stripping the extruded wall threads, while under-torquing allows the keeper to shift under operational slam loads.
Step-by-Step Guide to Understanding the Sliding Glass Door Parts Diagram
Identify – Locate the active panel, roller adjustment hole access plugs, and latch assembly on your sliding door system.
Locate – Reference the diagram to find lower roller adjustment screws located at the bottom inner edge of the panel stiles.
Reference – Consult the layout drawing to match your door’s specific mortise lock mechanism and keeper alignment profile.
Adjust – Turn the lower Phillips roller screws clockwise to raise the door frame off the bottom track cap.
Verify – Slide the active door panel along the length of the track to check for smooth clearance and proper latching alignment.
Troubleshoot – Inspect the diagram configuration for worn pile weather seals or debris if binding occurs after roller adjustment.
