The Doorlec CL-10L AC magnetic controller wiring diagram routes line power to terminals L1 (hot wire) and L2/N (neutral wire), with ground attached to the chassis ground terminal. Control circuit connections link coil terminals A1 and A2 to external control stations using 14-AWG copper wire for reliable 120V or 240V coil operation.
📌 Key Takeaways
- Line input uses L1 for hot wire, L2 for neutral wire or second line phase at 120/240V AC.
- Ground wire must connect directly to the green cabinet grounding lug, torqued to 20 in-lbs.
- Coil terminals A1 and A2 control magnetic actuation and require 14 AWG copper wire.
- Incorrect pin assignment on auxiliary contacts will cause continuous cycling or coil burnout.
- Disconnect primary breaker before adjusting terminal screws or inspecting contact tips.
Servicing commercial overhead door operators and industrial hoist mechanisms equipped with the Doorlec CL-10L AC magnetic controller requires accurate field execution and circuit identification. Navigating a complete doorlec cl-10l ac magnetic controler wiring diagram ensures proper reversing contactor sequencing, accurate limit switch cutout integration, and uninterrupted power distribution across heavy-duty equipment. Incorrect wire terminal placement can lead to shorted control transformer secondaries, contactor coil chatter, burnt motor windings, or unsafe door over-travel. This comprehensive guide outlines the exact wire color codes, terminal block assignments, line voltage configurations, and step-by-step connection procedures required for OEM-compliant installations.
The Doorlec CL-10L AC magnetic reversing starter is rated for single-phase (115V/230V AC) and three-phase (208V/230V/460V AC) line configurations up to 2 HP. Control circuit transformers standardly step down primary line voltage to a 24V AC or 115V AC control bus powering the forward/reverse magnetic coils.

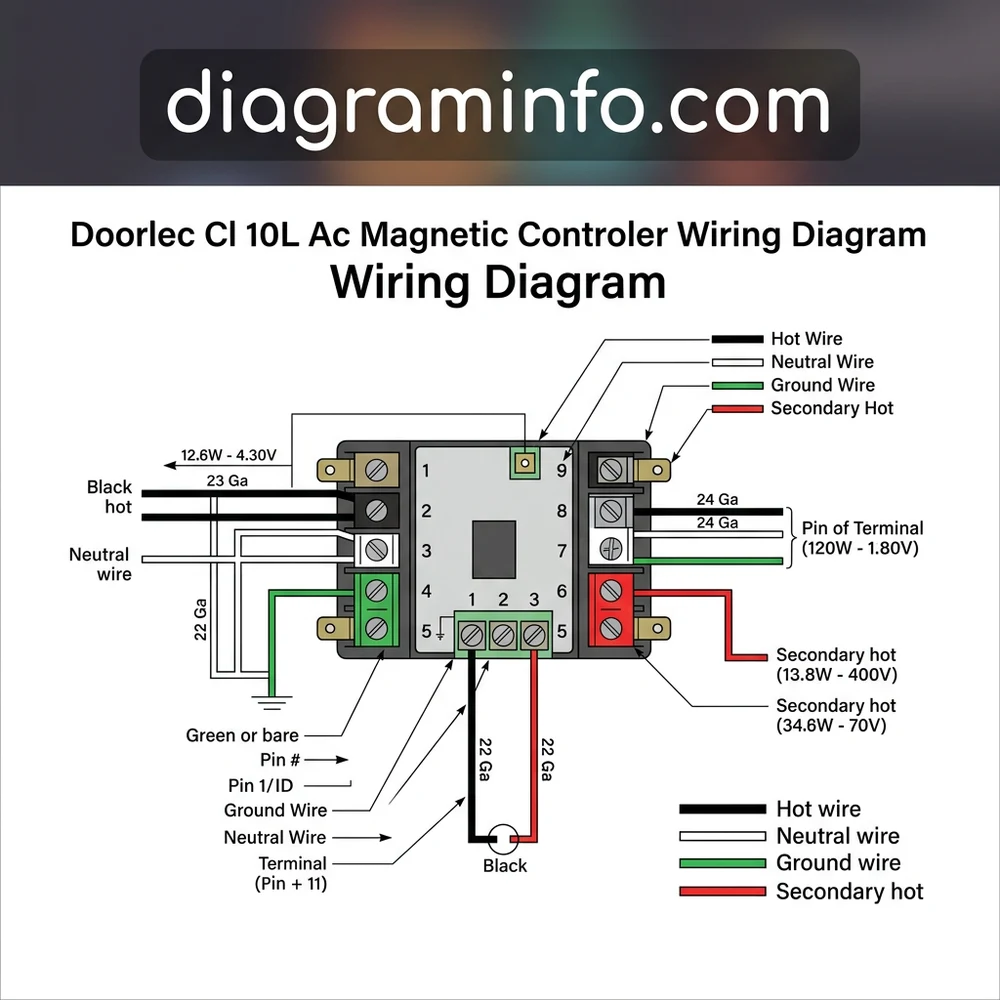

Doorlec CL-10L AC Magnetic Controller Wiring Diagram Color Code and Pin Assignment
When connecting high-voltage feeders and low-voltage field accessories to the Doorlec CL-10L reversing starter, adhering to established conductor color conventions simplifies installation and troubleshooting. According to OEM technical specifications, terminal connections on the main printed circuit board and magnetic contactor body are grouped by supply voltage, auxiliary interlocks, and push-button command loops.
| Wire Color Code | Circuit Function | Pin / Terminal Assignment | Terminal Block & Gauge Notes |
|---|---|---|---|
| Black | Hot Wire (Line Input L1) | Contactor L1 Terminal | Primary power supply feed; minimum 12 AWG copper wire. |
| White | Neutral Wire (Line Input L2) | Contactor L2 Terminal | Single-phase neutral wire or line 2 feed; minimum 12 AWG. |
| Red | Line Input L3 (3-Phase Only) | Contactor L3 Terminal | Hot wire phase 3 for three-phase motor applications; 12 AWG. |
| Green / Bare | Ground Wire | Chassis Ground Lug | Mandatory safety ground wire bonded to enclosure earth lug; 12 AWG. |
| Red (Low Voltage) | 24V AC Hot Wire Feed | Terminal Block Pin 1 | Transformer secondary hot voltage output; 18 AWG solid/stranded. |
| White (Low Voltage) | Common / Control Neutral Wire | Terminal Block Pin 2 | Common returns for control switches and coils; 18 AWG. |
| Orange | Open Command Input | Terminal Block Pin 3 | Normally Open (N.O.) contact from 3-button station; 18 AWG. |
| Yellow | Close Command Input | Terminal Block Pin 4 | Normally Open (N.O.) contact from 3-button station; 18 AWG. |
| Blue | Stop Button Circuit | Terminal Block Pin 5 | Normally Closed (N.C.) safety loop circuit line; 18 AWG. |
| Brown | Limit Switch Feedback | Terminal Block Pin 6 & Pin 7 | Series loop through Open/Close rotary limit switches; 18 AWG. |
Always disconnect and lock out all high-voltage power sources before removing the enclosure cover or altering pin assignment connections on the terminal block. AC magnetic contactors carry lethal voltages on incoming terminals L1, L2, and L3.
Terminal Block Layout, Wire Gauge, and Voltage Requirements for CL-10L Controllers
Proper conductor sizing and terminal seating prevent drop-out conditions caused by resistance heating or voltage sags during motor turn-on. Manufacturer specs indicate that line voltage feeders supplying the contactor points must be sized to handle the full-load amperage (FLA) rating of the motor. Refer to our detailed guide on 3-phase magnetic reversing contactor wiring for comprehensive load-side torque standards.
For standard single-phase 115V AC installations powering 0.5 HP to 1 HP commercial door motors, supply conductors must be copper rated for 60°C/75°C and sized at a minimum of 12 AWG THHN. When operating three-phase 208/230/460V AC motors, consult the motor nameplate current draw. If line runs exceed 100 feet from the distribution panel to the operator panel, increase supply wire gauge to 10 AWG to compensate for line voltage drop.
The low-voltage control sub-assembly operates off an internal step-down transformer supplying 24V AC secondary power across the control terminal block. Control wiring connecting 3-button push stations (Open-Close-Stop), key switches, and sensing edges requires multi-conductor stranded copper wire rated between 18 AWG and 16 AWG. Never run low-voltage 24V AC control cables in the same conduit wireway as 115V/230V AC high-voltage supply lines to prevent electrical noise interference and induced voltages from triggering false door cycles.
Torque incoming line voltage screw terminals on the contactor body (L1-L3, T1-T3) to 14 to 16 in-lbs (1.6 to 1.8 Nm). Low-voltage control terminal block screws should be torqued to 7 to 9 in-lbs (0.8 to 1.0 Nm) to avoid stripping the PCB header or crushing thin gauge copper conductors.
How to Wire the Doorlec CL-10L AC Magnetic Controller Step-by-Step
Following a precise, systematic connection sequence guarantees proper mechanical interlock engagement and eliminates short circuits between reversing contactor coils. Refer directly to the doorlec cl-10l ac magnetic controler wiring diagram layout while executing the six steps outlined below.
Step 1: Mount the Controller and Connect Earth Ground
Secure the Doorlec CL-10L metal enclosure to a stable wall surface near the door operator. Strip 3/4-inch of insulation from your solid or stranded green ground wire and insert it directly into the primary chassis earth grounding lug inside the cabinet. Torque the set screw securely to 18 in-lbs to establish a low-resistance earth ground path.
Step 2: Connect Main High-Voltage Line Input (L1, L2, L3)
Route the dedicated line power conduit into the top electrical knockout. Connect the incoming black hot wire to Contactor Terminal L1, and connect the incoming white neutral wire (or line 2 hot wire in 230V single-phase systems) to Contactor Terminal L2. If installing a three-phase system, attach the third red hot wire to Contactor Terminal L3. Ensure no stray wire strands bridge adjacent terminal poles on the line side block.
Step 3: Connect Load-Side Motor Leads (T1, T2, T3)
Connect the motor power cable conductors to the thermal overload relay outputs labeled T1, T2, and T3 on the bottom of the contactor assembly. On single-phase capacitor-start motors, ensure the run winding and start winding conductors match the specific terminal assignments shown on the internal motor schematic. On three-phase motors, initial phase sequence determines rotational direction; if the door travels downward when the Open button is pressed, interchange motor leads T1 and T2 at the terminal block.
Step 4: Wire the Control Transformer Primary Taps
Verify that the primary voltage taps on the internal control transformer match your incoming utility voltage (115V, 208V, 230V, or 460V AC). If your feed voltage is 230V AC, move the primary jumper lead from the 115V terminal tap to the 230V terminal tap on the transformer core. Operating a 115V tap on a 230V input will burn out the secondary winding instantly.
Step 5: Connect Remote Push Button Control Stations
Run an 18/5 shielded control cable from the external 3-button station (Open-Close-Stop) to the low-voltage control terminal block. As shown in the diagram:
- Connect the continuous 24V AC hot wire feed from Terminal 1 to the normally closed (N.C.) Stop button input.
- Install a jumper from the output side of the Stop button to the common side of both normally open (N.O.) Open and Close switches.
- Connect the return line from the Stop switch to Terminal 5 on the terminal block.
- Attach the Open button return line wire to Terminal 3.
- Attach the Close button return line wire to Terminal 4.
For further diagnostic steps on control command circuits, see our commercial overhead door troubleshooting guide.
Step 6: Wire the Rotary Limit Switches and Safety Interlocks
Integrate the mechanical door limit switch contacts in series with the contactor coil holding circuits. Connect the Open Limit Switch contacts across Terminal 3 and Terminal 6. Connect the Close Limit Switch contacts across Terminal 4 and Terminal 7. Verify that opening the limit contacts terminates voltage to the respective forward or reverse coil before the door panel reaches physical mechanical stops.
Doorlec CL-10L AC Magnetic Controller Wiring Diagram Troubleshooting and Common Faults
System failures on commercial operator starters frequently stem from simple miswiring errors, loose terminal block clamps, or improper limit switch integration. Review these common wiring errors, their technical consequences, and how to fix them:
1. Reversing the Stop Button Circuit Wiring
- Symptom: The contactor momentarily energizes when holding the Open or Close button down but immediately drops out when the button is released.
- Cause: The normally closed (N.C.) Stop button is wired in parallel rather than in series with Terminal 1 and Terminal 5, breaking the holding contact circuit.
- Fix: Rewire the Stop button contact in series. Ensure the auxiliary holding contacts (latching circuits) on the contactor body bridged across Terminal 2 and Terminal 5 receive continuous control voltage through the N.C. stop loop.
2. Swapping Limit Switch Command Terminals
- Symptom: The motor continues running and crushes the door panel into the floor or over-travels into the motor hoist assembly at full speed.
- Cause: Open limit switch wires (Terminal 6) and Close limit switch wires (Terminal 7) are inverted on the terminal block.
- Fix: Disconnect power and trace field leads. Reassign the Open Limit Switch wire specifically to the forward contactor coil interlock circuit (Terminal 6) and the Close Limit Switch to the reverse contactor coil circuit (Terminal 7).
3. Floating Control Ground / Unbonded Transformer Secondary
- Symptom: Intermittent control operation, contactor chatter, or false safety edge trips during system operation.
- Cause: The 24V AC control transformer secondary neutral wire is ungrounded, permitting floating static voltage potential to build on field cables.
- Fix: Install a grounding jumper from transformer secondary common terminal (Terminal 2) directly to chassis ground. Before doing so, check transformer ratings to ensure full ground-isolation is not required. You can learn more about verifying baseline transformer potentials in our tutorial on testing control transformers with a multimeter.
4. Loose Line Voltage Terminal Block Connections
- Symptom: Contactor body overheating, burnt insulation near terminals L1 or L2, or single-phasing motor failures on 3-phase units.
- Cause: Under-torqued screw terminals on the contactor line side leading to high-resistance electrical connections.
- Fix: Strip back damaged wire ends, clean soot off the terminal block contacts using contact cleaner, and torque all high-voltage terminal screws to 15 in-lbs using a calibrated torque screwdriver.
Doorlec CL-10L AC Magnetic Controller Wiring Diagram Frequently Asked Questions
What wire gauge is required for the low-voltage control terminal block on the Doorlec CL-10L?
The low-voltage control terminal block on the Doorlec CL-10L handles 24V AC signal current and should be wired using multi-conductor copper wire between 18 AWG and 16 AWG. Using wire larger than 14 AWG can strain the terminal block pins, while wire smaller than 20 AWG may experience voltage drops over long wire runs to remote push-button stations.
How do you reverse motor rotation on a 3-phase Doorlec CL-10L controller installation?
To reverse motor rotation on a three-phase system, disconnect main power and swap any two of the three load-side power wires connected to Contactor Terminals T1, T2, or T3. Swapping T1 and T2 alters the magnetic phase sequence delivered to the motor stator windings, instantly reversing shaft rotation during both forward and reverse coil energization.
Why does the contactor coil chatter or hum loudly when pressing the Open or Close button?
Contactor coil chatter is typically caused by low line voltage supply, an overloaded control transformer, or loose low-voltage wire connections on Terminal 1 or Terminal 2. Measure the voltage across the contactor coil terminals while under load; if the reading drops below 85% of rated coil voltage (e.g., below 20.4V AC on a 24V AC coil), correct line drop, tighten terminal screws, or upgrade the control wire gauge.
Can a 2-wire photo-eye safety sensor be wired directly into the Doorlec CL-10L terminal block?
Yes, standard 2-wire or 4-wire safety photo-eyes can be integrated into the CL-10L control loop. Connect the sensor’s normally closed (N.C.) output contacts in series with the Close control loop circuit across Terminal 4 and Terminal 5. When the light beam is obstructed, the sensor contacts break the circuit to the reverse contactor coil, immediately halting downward door movement.
Where should the jumper wire be installed if no 3-button station is connected?
If you are testing the door operator without a 3-button push station connected, you must install a solid jumper wire between Terminal 1 and Terminal 5 on the control terminal block. Terminal 1 and Terminal 5 form the normally closed (N.C.) Stop button loop; leaving these terminals open creates a broken circuit, preventing both the forward and reverse contactor coils from energizing.
