Schlage Door Knob Latch Assembly Diagram: 2026 Guide

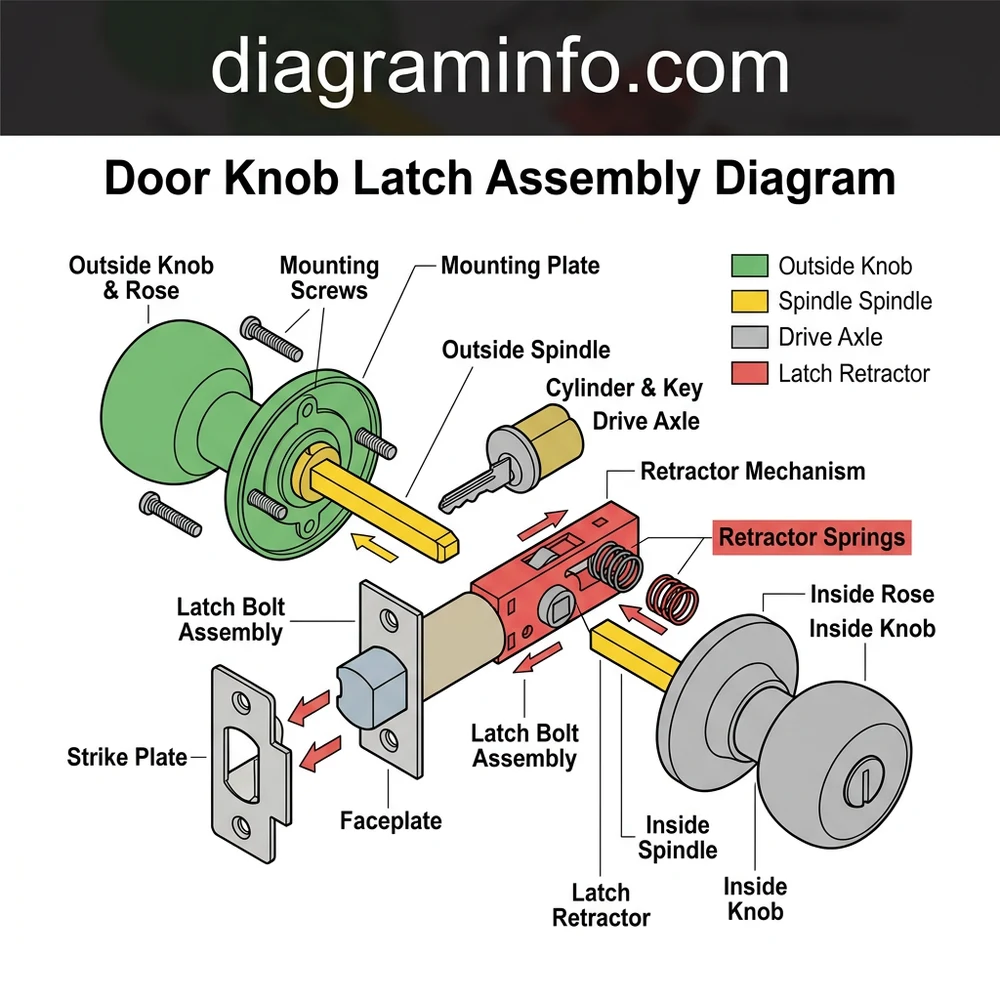

A door knob latch assembly diagram illustrates the mechanical structure connecting the exterior knob, interior rose, spindle, latch bolt, and deadlatch mechanism. The spindle passes directly through the square hub of the latch mechanism, engaging the retractor mechanism to retract the bevel bolt when rotated against spring tension.
📌 Key Takeaways
- Standard backset measurements are strictly 2-3/8 inches (60mm) or 2-3/4 inches (70mm) from door edge to center pin hub.
- The bevel of the latch bolt must always face the door frame strike plate in the closing direction.
- Mounting chassis screws should be hand-tightened to 15-20 in-lbs to prevent binding the internal retractor spring.
- Broken or fatigue-worn torsion return springs account for over 80% of unlatching mechanism structural failures.
- Disassemble and realign DIY; replace the entire tubular cartridge if internal spring hubs show hair cracks.
A precision door knob latch assembly schematic serves as an essential mechanical blueprint for facility maintenance personnel, lock technicians, and architectural hardware installers. Modern commercial and residential cylindrical locksets rely on synchronized mechanical linkages where rotational force converts to linear translation. Understanding this mechanical architecture allows technicians to execute accurate installation, perform tolerance adjustments, and troubleshoot mechanical failures effectively. According to ANSI/BHMA Grade 1 and Grade 2 operational standards, precise alignment between the retractor hub, spindle axis, and latch casing is mandatory to prevent premature mechanical wear, latch binding, and hardware structural failure.
Door Knob Latch Assembly Diagram Component Breakdown
Deconstructing the internal architecture revealed in a standard cylindrical locksets schematic reveals several core components operating under tight mechanical tolerances. The assembly transfers rotary torque from the exterior or interior knob through a square or cross-shaped spindle into a cam-driven retractor mechanism. This retractor draws the latch bolt inside the door body against the counter-tension of an internal compression spring.
Recommended Best Deal Products
| Component Name | Material & Construction Spec | Primary Mechanical Function |
|---|---|---|
| Latch Bolt | Solid Brass or Stainless Steel (1/2″ to 3/4″ throw) | Extends into the frame strike plate to mechanically secure the door leaf. |
| Deadlocking Plunger | Hardened Steel alloy, anti-shim profile | Prevents direct physical manipulation (shimming) of the latch bolt when depressed. |
| Retractor Hub Assembly | Cold-rolled steel with zinc dichromate plating | Converts rotational torque from the drive spindle into linear retractor movement. |
| Drive Spindle | Square or slotted heat-treated steel rod | Transmits rotational force directly from the door knob/lever trim to the retractor. |
| Chassis Housing | Heavy-gauge stamped steel, corrosion-resistant | Encloses the internal linkage, maintaining structural alignment under shear loads. |
Within the internal mechanical layout, the return springs push the retractor hub back to its home position immediately upon handle release. In high-traffic commercial applications using an standard commercial door hardware layout, these springs must maintain a minimum resistance profile across tens of thousands of cycles without suffering material fatigue or loss of kinetic memory.
Commercial Grade 1 latch assemblies require a minimum 3/4-inch latch bolt throw, an operational lifespan exceeding 1,000,000 cycles, and a minimum chassis mounting torque tolerance of 45 to 50 in-lbs (5.1 to 5.6 N·m) on thru-bolts.
How to Read the Door Knob Latch Assembly Blueprint and System Layout
Reading a technical door knob latch assembly diagram requires identifying the dimensional relationships between mechanical centerline axes, fastener points, and door cutouts. Standard manufacturer blueprints utilize an exploded-view configuration, detailing every fastener, spring clip, washer, and housing plate in sequential alignment along a single longitudinal installation vector.
1. Identifying Backset Centerlines and Frame Intersections
When analyzing a tubular latch mechanism structure layout, locate the primary backset line first. Hardware schematics specify either a 2-3/8 inch (60mm) or 2-3/4 inch (70mm) backset dimension measured from the edge of the door leaf to the center rotational axis of the knob spindle hole. The diagram indicates how the latch casing slides into the 1-inch cross-bore hole to mate orthogonally with the main 2-1/8 inch chassis bore.
2. Verifying Spindle and Retractor Hub Engagement
The blueprint indicates exact mechanical engagement zones between the drive spindle prongs and the retractor arms. Trace the linear torque transfer path: as the knob turns, the spindle rotates, causing its cam profile to push against the upper or lower retractor arms. This movement pulls the latch bolt rearward into the housing bore against the main compression spring.
Recommended Best Deal Products
Ensure the drive spindle is centered within the retractor hub during installation. Off-center axial placement by as little as 1/16th of an inch (1.5mm) induces severe rotational binding, resulting in sluggish lever return and premature tooth wear on the retractor mechanism.
3. Positioning the Deadlocking Auxiliary Latch
Refer to the edge-view schematic section to confirm correct auxiliary deadlocking plunger alignment. The deadlocking plunger must ride smoothly against the flat surface of the strike plate without entering the main strike cutout. When the main latch bolt extends fully into the strike pocket, the auxiliary plunger remains depressed against the strike plate face, mechanically locking the main latch bolt against external force or shimming attempts.
Troubleshooting Hardware System Failures via the Latch Diagram
Diagnosing functional failures in a lockset mechanism requires comparing defective physical behavior against designed blueprint operational tolerances. System malfunctions generally stem from mechanical misalignment, broken internal springs, or excessive wear caused by improper installation torque.
Never apply graphite lubricants to assemblies lubricated with synthetic lithium grease. Combining incompatible lubricants causes severe chemical sludging inside the chassis retractor cavity, leading to complete mechanical lockup under low-temperature conditions.
Binding or Sluggish Latch Bolt Retraction
If the latch bolt hesitates or fails to retract completely when rotating the handle, check for structural cross-bore binding. Refer to the diagram’s mounting plate specifications. Over-tightening the rose plate mounting screws deforms the cylindrical chassis housing, squeezing the internal retractor cavity and restricting retractor movement. Torque these screws evenly to a maximum of 30 to 35 in-lbs using a calibrated hand driver.
Latch Bolt Fails to Extend fully (Binding in Frame)
When the latch bolt stays partially retracted inside the door bevel faceplate, cross-reference the strike plate alignment relative to frame settling. Mechanical failure symptoms and structural remedies include:
- Plunger dropping into strike pocket: If the frame alignment shifts, the deadlocking plunger may slip into the main latch pocket instead of resting flat on the plate, disabling the anti-shim safety lock. Adjust the strike plate position or install a offset strike spacer.
- Worn or fractured compression springs: Disassemble the retractor housing according to the blueprint explosion view and inspect for fractured coil springs. Replace damaged spring cartridges to restore full extension force.
- Misaligned drive spindle: A bent or twisted square spindle causes asymmetric force application on the retractor cam legs, creating heavy friction along the side wall of the chassis.
Door Knob Latch Assembly Diagram Frequently Asked Questions
What is the function of the auxiliary deadlocking plunger shown in mechanical schematics?
The deadlocking plunger is a safety mechanism located parallel to the primary latch bolt. When the door is closed, the plunger contacts the flat face of the strike plate and remains depressed inside the latch casing. This mechanical state engages an internal stop block inside the latch housing, preventing unauthorized personnel from pushing the latch back manually using shims, wire tools, or credit cards.
How do I determine if my latch assembly configuration requires a 2-3/8″ or 2-3/4″ backset?
Measure the distance from the leading edge of the door leaf (including bevel faceplate slope) to the center of the large 2-1/8 inch lockset bore hole. Residential wooden doors typically utilize a 2-3/8 inch (60mm) backset configuration, whereas heavy commercial steel or hollow-metal architectural doors standardly specify a 2-3/4 inch (70mm) backset layout.
Why does the latch handle sag or fail to return horizontally after turning?
Lever or knob sag is caused by broken or fatigued heavy-duty lever return springs housed within the outer rose chassis, or a damaged torsion spring inside the main retractor block. Consulting the assembly diagram allows you to identify whether the return springs are located inside the trim rose assemblies or integrated directly within the internal central chassis retractor hub for replacement.
What structural differences exist between tubular and cylindrical latch blueprints?
Tubular latch designs feature an integrated retractor housed entirely within the narrow 1-inch edge tube, making them suitable for light-duty interior residential doors. Cylindrical lockset schematics detail a separate, heavy-gauge central chassis housing that mounts inside a large 2-1/8 inch cross-bore hole, providing significantly higher structural resistance against physical force, torque bypass, and heavy daily usage cycles.
Step-by-Step Guide to Understanding the Door Knob Latch Assembly Diagram
Identify – Examine the door knob latch assembly diagram to confirm tubular or mortise lock system configuration.
Locate – Find the central spindle square hub and latch bolt housing within the structural diagram layout.
Reference – Cross-check the backset length (2-3/8 or 2-3/4 inch) against physical door prep specifications.
Connect/Route – Insert the drive spindle directly through the spring-loaded latch retractor mechanism hub.
Verify – Test knob rotation to confirm immediate smooth bolt retraction and complete spring return action.
Troubleshoot – Adjust chassis screw tension if binding occurs or flip latch bolt bevel if installed backwards.
