Sectional Garage Door Pulley System Diagram: Repair 2026
A standard extension spring garage door pulley system diagram routes the lift cable from the bottom fixture, over the stationary pulley attached to the track header, around the moveable sheave pulley secured to the extension spring, and anchors to the track support bracket with a S-hook and cable stop clip.
📌 Key Takeaways
- Standard residential pulleys feature 3-inch or 4-inch heavy-duty steel sheaves rated for 100-200 lb spring tension.
- The stationary pulley mounts directly to the front track header, while the moveable pulley connects to the extension spring end clevis.
- Always secure safety cables through extension springs before replacing or adjusting any pulley configuration.
- Worn ball bearings cause cable misalignment, fraying, and uneven door lift along track channels.
- High-tension spring components require locking vice grips on tracks and spring disengagement before attempting DIY pulley repair.
Garage door counter-balance mechanisms rely on precise mechanical advantage provided by cable-and-sheave assemblies. Whether configured with extension springs running parallel to upper horizontal tracks or rear-mounted counter-weight setups, understanding the garage door pulley system diagram is essential for precise mechanical installation, tension balancing, and safe service procedures. This technical manual details the mechanical schematics, component load ratings, cable routing configurations, and diagnostic procedures required to maintain residential and commercial overhead door pulley assemblies according to OEM specifications and ANSI/DASMA 102 standards.
Garage Door Pulley System Diagram: Primary Component Breakdown
Analyzing a standard garage door pulley system blueprint requires mapping mechanical force vectors across multiple hardware interfaces. The assembly operates as a block-and-tackle derivative designed to double mechanical advantage, reduce motor draw, and equalize manual lifting resistance across the door width.
| Component Name | Standard Specifications / Material | Function in System Layout |
|---|---|---|
| Stationary Front Pulley Sheave | 3″ or 4″ Heavy-Duty Galvanized Steel; 10-Ball Bearing Hub | Redirects lift cable travel 90 degrees from vertical door panel to horizontal track. |
| Movable Spring Pulley Sheave | 3″ or 4″ Stamped Steel with Clevis Fork Attachment | Connects to extension spring end; transfers spring contraction force to lifting cable. |
| Lifting Aircraft Cable | 1/8″ to 3/16″ 7×19 Flexible Galvanized Carbon Steel | Carries physical weight load of door panels to pulley sheaves; minimum 2,000 lbs break strength. |
| Safety Retaining Cable | 1/8″ 7×7 Braided Galvanized Steel Wire | Passes internally through extension spring to prevent spring projectile hazard upon breakage. |
| Bottom Corner Bracket | 13-Gauge Cold-Rolled Galvanized Steel | Anchors lower cable stop/loop to bottom door section to initiate panel lift. |
When replacing sheaves in heavy double-car assemblies, always specify cast iron or heavy 12-gauge pressed steel pulleys equipped with factory-sealed 6203-2RS ball bearings. Standard residential 14-gauge stamped pulleys exhibit flex under sustained loads exceeding 220 lbs, leading to accelerated cable flange wear.
Stationary vs. Movable Sheave Dynamics
In a standard extension spring layout, the stationary front sheave remains anchored rigid to the front track header angle via a 3/8-inch grade-5 bolt or heavy clevis pin. The movable sheave floats along the horizontal plane attached to the extension spring clevis fork. As the spring extends when the door closes, the movable sheave pulls distance away from the front header, storing mechanical kinetic energy within the steel coils.
Cable Construction Specifications
Never substitute standard single-strand hardware wire for aircraft-grade 7×19 braided wire rope. A 7×19 construction consists of seven individual strands, each composed of nineteen wires wound helically. This specific weave grants the tight bend radius required to continuously wrap around 3-inch sheave grooves without suffering work-hardening embrittlement or strand fatigue.
How to Read and Rig the Garage Door Pulley System Layout
Correct interpretation of the garage door pulley system schematic is mandatory before performing mechanical adjustment, cable replacement, or spring balancing. Follow this step-by-step procedure to re-string and align the system correctly.
Step 1: Lockout System and Relieve Tension
Disconnect the automatic operator drive arm. Raise the overhead door to the fully open position until tension on the extension springs is completely relieved. Secure track clamps (C-clamps) immediately below the bottom roller assembly on both vertical tracks to prevent accidental panel drop.
Step 2: Install Safety Cable Loop
Thread the 1/8-inch braided safety wire directly through the central core of the open extension spring. Secure the rear end to the back track hanger frame using a 3-hole clip or grade-5 fastener. Anchor the front loop securely to the front wall jamb bracket. Ensure zero binding between the spring body and internal cable throughout full extension.
Step 3: Route Main Lifting Cable
Attach the swaged copper/aluminum button end of the 7×19 lift cable into the keyhole slot on the bottom corner bracket. Run the cable upwards parallel to the vertical track casing, passing over the top groove of the stationary header pulley sheave. Draw the cable rearward toward the back hanger frame, threading it from back-to-front around the groove of the movable spring sheave attached to the extension spring clevis fork.
Step 4: Secure Cable to Track Rear Support
Pull the free end of the lift cable taut toward the rear horizontal track hanger. Pass the wire rope through the three-hole adjustment cable plate. Adjust spring stretch length until the spring hangs suspended with slight initial tension (approx. 1 to 2 inches of pretension when open). Fasten wire rope clips securely with a minimum nut torque of 4.5 ft-lbs (54 in-lbs).
Extension Spring Stretch Calculation: Standard stretch length for a 7-foot high door is 25 inches (635mm). For an 8-foot high door, stretch length is 28 inches (711mm). Ensure equal stretch measurements on left and right spring assemblies to maintain horizontal panel balance within 1/8-inch tolerance across the opening.
Diagnosing Mechanical Failures in the Garage Door Pulley System Configuration
When performing field service, comparing physical component degradation against proper schematic specs helps isolate premature wear vectors. Mechanical failure within a garage door pulley configuration usually manifests through distinct mechanical symptoms.
High Energy Tension Hazard: Extension springs and cables are under extreme tension when the door is in the closed position. Never attempt to remove pulley bolts, cut cables, or unfasten bottom corner brackets without locking the door fully open and verifying that all spring force is completely dissipated.
Diagnosing Bearing Failure and Lateral Play
Rumbling, squeaking, or binding during panel travel indicates ball bearing raceway degradation inside the sheave hub. Inspect the pulley by shaking it manually on its axle pin. If lateral free-play (wobble) exceeds 0.030 inches (0.76mm), or if internal steel balls exhibit flat spots, replace the sheave assembly immediately. Unchecked bearing failure will seize the pulley, causing the lift cable to drag over a fixed steel surface and saw through the sheave rim.
Identifying Cable Fraying and Sheave Misalignment
If lift cables develop localized “bird-caging” (strand separation) or outer wire fraying, check the fleet angle between the pulley groove and the incoming cable path. The total fleet angle must not exceed 1.5 degrees off center. Misaligned track angle mounting brackets force the cable to ride against the pulley flange wall, causing severe friction shearing. For detailed guidance on converting damaged extension systems to heavy-duty overhead torsion setups, consult our technical torsion spring conversion guide, review complete overhead door track alignment specifications, or follow our garage door opener force adjustment protocols.
Garage Door Pulley System Blueprint Technical FAQ
How do I select the correct pulley diameter based on the garage door pulley system diagram?
Pulley diameter selection is dictated by cable gauge and clearance space. Standard residential extension systems utilize 3-inch pulleys for standard radius track setups. Heavy doors, high-cycle installations, or systems running 3/16-inch wire rope require 4-inch heavy-duty sheaves. The larger 4-inch pitch diameter increases mechanical advantage slightly and significantly reduces cable bending fatigue stresses, extending cable operating life by up to 40 percent.
What is the load rating difference between cast iron and stamped steel pulleys?
Stamped steel pulleys (typically 14-gauge or 16-gauge steel halves riveted together) carry dynamic load ratings between 75 lbs and 125 lbs per pulley, making them suitable for standard residential door panels up to 200 lbs overall door weight. Heavy-duty cast iron or machined steel pulleys feature integrated solid raceways and carry static/dynamic ratings exceeding 375 lbs to 500 lbs, ideal for commercial sectional doors or heavily insulated carriage-house doors.
Why does the garage door pulley system configuration require both lift cables and safety cables?
Lift cables serve strictly operational duties, carrying door weight to counter-balance extension springs during normal panel motion. Safety cables perform a critical fail-safe function: because oil-tempered extension springs store immense energy and can snap catastrophically due to metal fatigue, the internal safety cable confines broken spring coils to the guide axis, preventing destructive spring trajectories through garage walls, vehicles, or nearby personnel.
How often should pulley ball bearings and cables undergo maintenance according to OEM standards?
According to DASMA maintenance guidelines, inspect cables, pulley sheaves, and attachment brackets every 6 months or 1,000 cycles. Apply non-tacky silicone-based or PTFE spray lubricant directly to ball bearing races annually. Never apply thick grease inside sheave cable grooves, as attracted dirt and grit turn grease into an abrasive lapping compound that erodes cable strands and pulley tracks.
Step-by-Step Guide to Understanding the Garage Door Pulley System Diagram
Identify – Determine your system structure by identifying whether you have extension springs with stationary and moveable pulleys or torsion springs.
Locate – Find the header-mounted stationary pulleys above the track horizontal curve and the moveable sheave pulleys attached to spring clevis ends.

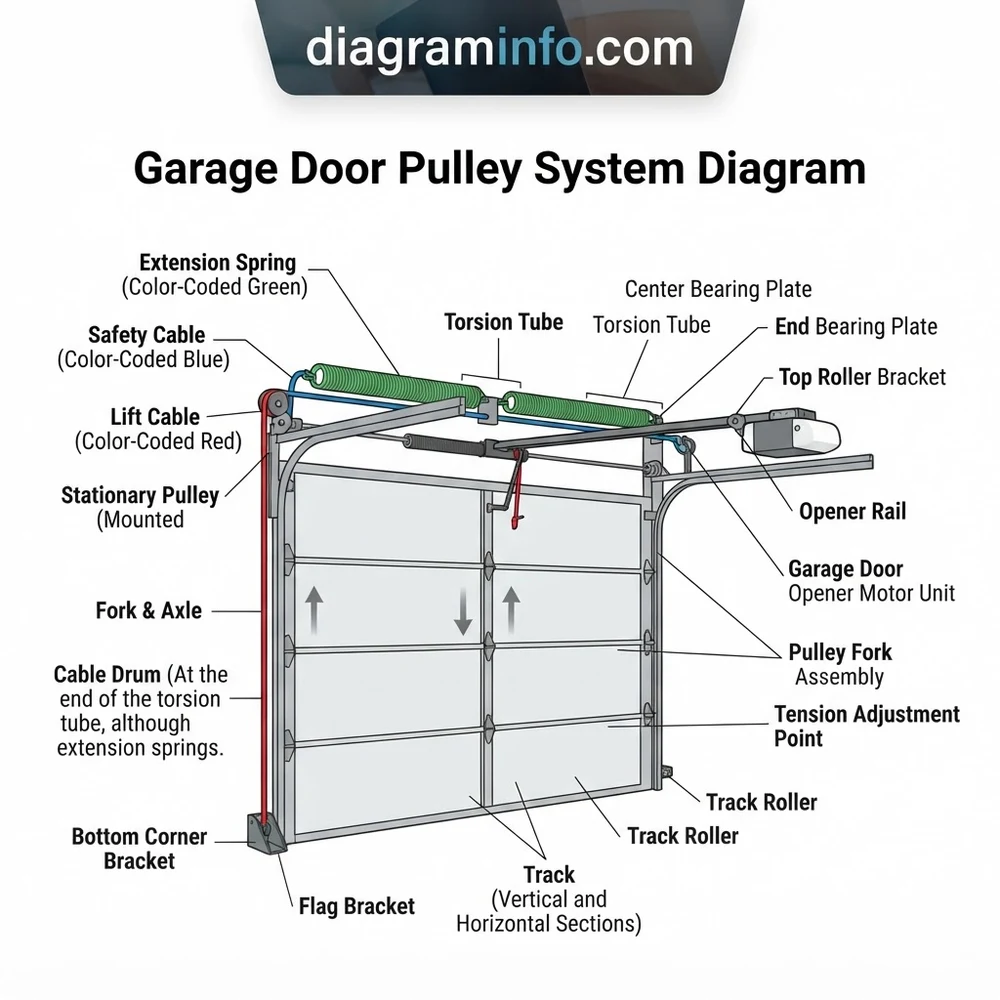

Reference – Review the configuration diagram to trace the primary lift cable path from the bottom track bracket to the rear support anchor.
Connect/Route – Thread the galvanized cable over the stationary pulley, around the moveable spring sheave, and secure the end loop with an S-hook.
Verify – Inspect pulley rotation, check that cables seat centered inside sheave grooves, and verify safety wire runs inside extension spring coils.
Troubleshoot – Test door balance manually; adjust cable length at the rear track hanger frame if door cocks or binds during travel.
