2026 Ford Crank Position Sensor Tooth Diagram Guide
A crank position sensor tooth diagram maps the reluctor wheel’s physical profile—typically a 36-1 or 58x pattern—relative to the Hall-effect sensor tip at TDC. It identifies missing teeth used by the ECU to calculate engine RPM and timing, requiring a strict air gap of 0.5mm to 1.5mm.
📌 Key Takeaways
- Reluctor wheels feature precise patterns like 36-1 or 58x teeth to signal Top Dead Center (TDC) to the ECU.
- Sensor tip to reluctor tooth air gap must typically measure between 0.5mm and 1.5mm for clean square-wave signal generation.
- A typical mounting bolt torque spec ranges from 7 to 10 lb-ft (8-12 Nm) to prevent sensor displacement.
- Damaged, bent, or clogged reluctor teeth trigger a check engine light and diagnostic code P0335 or P0336.
- Oscilloscope waveform verification is required when visual inspection of the tooth pattern shows no obvious physical damage.
Locating and interpreting the engine’s reluctor wheel assembly requires an exact understanding of the crank position sensor tooth diagram. Mounted along the lower engine block, rear bellhousing, or internal crankshaft counterweight, the crankshaft position sensor (CKP) monitors rotational velocity and crankshaft position by reading precision-machined teeth or notches. When inspecting ignition timing discrepancies or sync errors between the crankshaft and timing chain, mechanics rely on reference diagrams to identify sensor alignment, gap distances, and pinouts. Correctly locating this sensor relative to surrounding components like the oil pan and coolant flow channels ensures precise diagnostic procedures and prevents costly component damage.
Understanding the Crank Position Sensor Tooth Diagram and Engine Location
To successfully locate and service the crankshaft position sensor, you must understand both its visual placement on the engine structure and its relationship to the reluctor wheel shown in the crank position sensor tooth diagram. Depending on vehicle year, make, and engine architecture (V6, Inline-4, or V8), manufacturers position the CKP sensor in one of three primary locations:
- Lower Engine Block (Exhaust/Rear Side): Positioned approximately 2 to 3 inches above the oil pan mating flange, often located directly behind the starter motor housing or adjacent to the oil pressure sensor assembly.
- Front Timing Cover Assembly: Mounted on the lower face of the timing chain cover, reading a reluctor ring integrated into the back of the crankshaft harmonic balancer or primary timing gear.
- Transmission Bellhousing / Rear Main Seal Housing: Bolted into the rear flange of the cylinder block, reading a target wheel attached to the flexplate (automatic) or flywheel (manual), situated near lower coolant flow bypass ports.

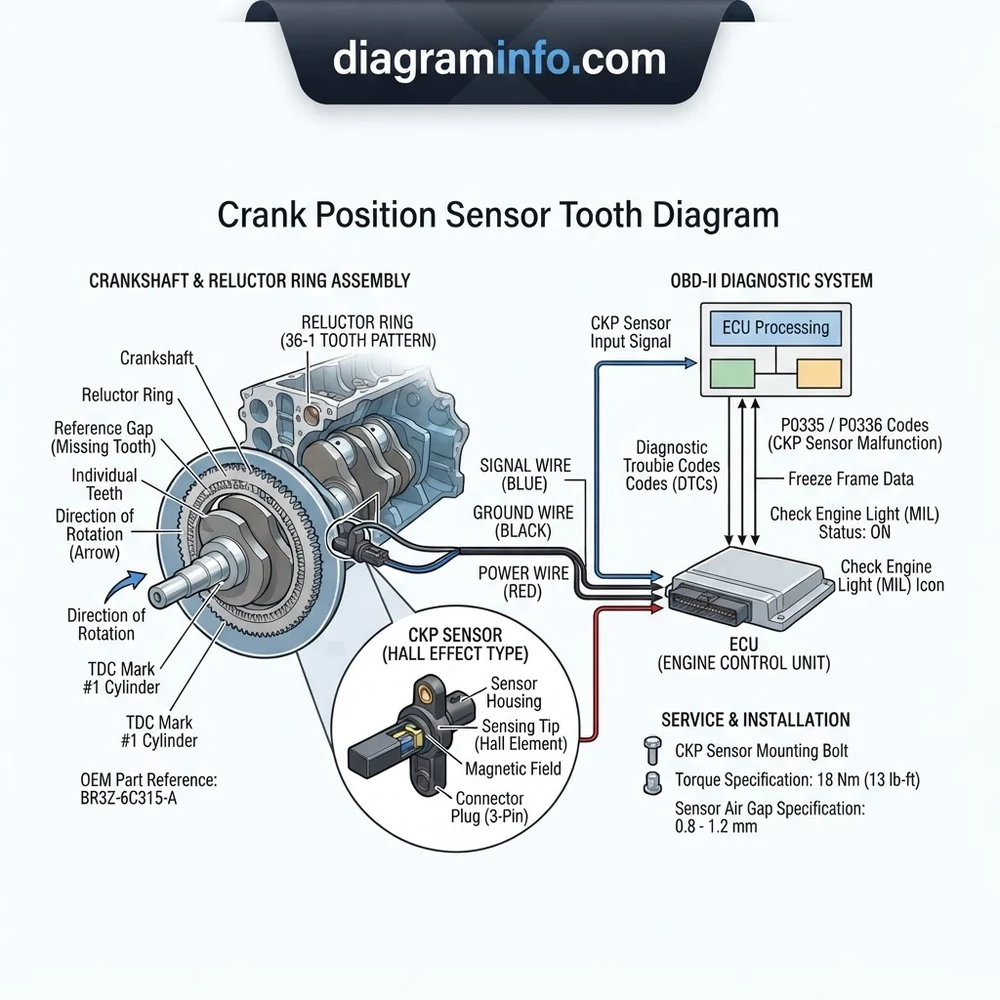

As illustrated in standard tooth diagrams, the reluctor wheel typically features a 36-1 or 60-2 tooth pattern. The missing teeth create a distinct visual gap that serves as the index point for Top Dead Center (TDC) on Cylinder 1. The sensor probe tip maintains a critical air gap range (typically 0.5 mm to 1.5 mm) relative to the outer edge of these rotating teeth.
According to OEM specifications across late-model engines, Hall-effect CKP sensors require a steady 5.0V or 12.0V reference supply, producing a 0V to 5V digital square wave output. Variable Reluctance (VR) sensors
| Pin Number | Circuit Function | Standard Wire Spec / Voltage |
|---|---|---|
| Pin 1 | Power Supply Reference | +5.0V DC (Hall Effect) / N/A (VR) |
| Pin 2 | Sensor Low Reference / Ground | 0.0V DC (Ground to ECU) |
| Pin 3 | CKP Signal Output | 0-5V Square Wave or AC Frequency |
When performing maintenance on related systems, refer to our comprehensive camshaft position sensor location guide and reluctor ring replacement specifications to ensure total rotational sync across all engine banks. Understanding these physical landmarks prevents mistaking the CKP sensor for nearby components like knock sensors or crankcase pressure transducers.
Check Engine Light Triggers and Crankshaft Reluctor Tooth Failures
When the engine control unit (ECU) detects an irregular signal from the crankshaft position sensor, it illuminates the check engine light and logs a specific diagnostic code. Signal degradation often traces back to physical damage or environmental contamination along the reluctor wheel teeth or sensor tip.
Common failure modes identified through diagnostic scan tools include:
- Missing or Damaged Teeth: Debris, improper installation tools, or internal engine component failure can break or bend reluctor teeth, corrupting the wave pattern.
- Oil Pan / Rear Main Seal Leaks: Engine oil pressure leaks coat the magnetic sensor tip with metallic sludge, damping the magnetic field strength.
- Timing Chain Stretch: Excessive slack in the timing chain causes mechanical phase shifts between the crankshaft and camshaft signals, leading the ECU to flag synchronization faults.
- Coolant Flow Contamination: A leaking lower hose or thermostat housing bypass can spray corrosive engine coolant over the sensor wiring harness, degrading electrical connectivity.
Never attempt to pry against the reluctor ring teeth with a screwdriver or prybar during flywheel or harmonic balancer removal. Deforming a single tooth by even 0.25 mm will cause consistent misfire codes (P0300-P0308) or prevent the ECU from achieving engine sync during cranking.
Standard OBD-II trouble codes linked to CKP tooth pattern discrepancies include:
- P0335: Crankshaft Position Sensor ‘A’ Circuit Malfunction (complete loss of signal to the ECU).
- P0336: Crankshaft Position Sensor ‘A’ Circuit Range/Performance (irregular tooth pulse timing or missing tooth counting errors).
- P0016: Crankshaft Position – Camshaft Position Correlation (Bank 1 Sensor A), frequently triggered by worn timing chain tensioners or jumped timing teeth.
When any of these codes register, the engine may suffer from extended cranking times, severe engine hesitations, sudden stalls during acceleration, or complete hard-no-start conditions. If the ECU loses the CKP signal completely while running, modern fail-safe software will shut down fuel injector pulses immediately to protect internal engine components.
How to Troubleshoot Using the Crank Position Sensor Tooth Diagram
Systematic troubleshooting of the crankshaft position sensor circuit requires basic electrical testing tools, an digital storage oscilloscope (DSO), and a clear understanding of the sensor’s physical placement. Follow these steps to diagnose issues precisely without replacing functional parts unnecessarily:
- Locate and Inspect the Physical Sensor: Locate the sensor along the lower rear of the engine block near the oil pan or at the front timing chain cover. Check for loose mounting bolts, oil contamination, or damaged harness locks.
- Verify Harness Voltages: Disconnect the sensor harness connector. Turn the ignition key to the ON (Engine OFF) position. Using a digital multimeter, check for 5.0V DC (or 12.0V DC depending on vehicle spec) between the power reference pin and chassis ground. Verify ground continuity on the return line.
- Check Reluctor Tooth Integrity: Remove the sensor from its mounting bore. Rotate the engine manually 360 degrees using a breaker bar on the harmonic balancer bolt. Look through the mounting hole with a borescope to inspect each reluctor tooth for chips, corrosion, or excessive runout.
- Perform Oscilloscope Waveform Analysis: Reconnect the sensor and back-probe the signal wire with an oscilloscope channel probe. Crank the engine and observe the resulting pulse wave. Compare the voltage amplitude, pulse width, and missing-tooth sync pulse against the baseline pattern shown in your vehicle’s technical manual.
- Reinstall to Precise Torque Spec: Clean the mounting surface thoroughly. Replace the elastomeric O-ring seal to prevent engine oil pressure leakage. Tighten the sensor mounting bolt to the exact manufacturer specification.
When reviewing the waveform on an oscilloscope, ensure that the peak-to-peak voltage remains uniform across all teeth. A drop in signal height on a single pulse indicates a bent or recessed reluctor tooth. For further waveform examples, review our oscilloscope engine diagnostics guide.
Following this precise methodology prevents misdiagnosing ECU hardware faults when the underlying issue is simply a minor mechanical air gap variance or a contaminated sensor face.
Crank Position Sensor Tooth Diagram and Component Location FAQs
Where is the crankshaft position sensor located relative to the oil pressure switch and coolant flow passages?
On most rear-wheel-drive V8 and transverse four-cylinder engines, the crankshaft position sensor is located on the lower engine block, approximately 2 inches above the oil pan gasket rail. It is typically positioned behind the starter motor on the exhaust side, situated within 4 to 6 inches of the engine oil pressure switch. In some engine families, it resides directly below the lower coolant flow thermostat housing on the front lower block or lower timing chain cover.
How does a missing reluctor wheel tooth affect the ECU signal?
The missing tooth (or pair of missing teeth, such as in a 60-2 reluctor pattern) creates an intentionally longer electrical pulse width or zero-crossing delay in the sensor signal. The ECU interprets this extended delay as the primary index marker for Top Dead Center (TDC) of Cylinder 1. The ECU calculates engine RPM and timing advance based on the frequency of the standard teeth relative to this reference gap.
What torque spec is required for reinstalling the crank sensor mounting bolt?
The standard torque spec for securing a crank position sensor mounting bolt into an aluminum engine block or timing cover ranges from 8.5 Nm to 10 Nm (75 to 88 inch-pounds). Over-tightening can crack the sensor’s plastic mounting flange or strip the aluminum block threads, while under-tightening allows engine vibration to back the bolt out, altering the critical sensor air gap.
Why does a check engine light trigger OBD-II code P0335 after timing chain maintenance?
Code P0335 frequently occurs post-maintenance if the timing chain tensioner was improperly set, causing timing chain slack, or if the sensor connector was left loose. Additionally, mechanics may inadvertently bend or contaminate the reluctor wheel teeth while holding the crankshaft in place during timing chain alignment procedures.
How do coolant flow leaks interfere with crank position sensor operation?
If coolant flow leaks from an overhead water pump gasket or lower radiator hose connection, fluid can seep into the unsealed electrical harness connector of the CKP sensor. Engine coolant contains ethylene glycol and water, which acts as a conductor, bridging the 5V reference supply pin to the signal ground pin and corrupting signal transmission to the ECU.
Step-by-Step Guide to Understanding the Crank Position Sensor Tooth Diagram
Identify – Locate the reluctor wheel and crankshaft position sensor on the timing cover or block diagram.
Locate – Find the index point on the diagram showing the missing tooth gap relative to engine Top Dead Center.
Reference – Compare the physical reluctor ring tooth count and spacing on your vehicle directly to the diagram specs.
Connect/Route – Verify 3-pin harness wire routing (5V reference, signal ground, output signal) matching ECM connector pinouts.
Verify – Measure the physical air gap between the sensor nose and tooth peak, securing the bolt to exact torque spec.
Troubleshoot – Clear any OBD-II diagnostic code using a scanner and perform a crank angle relearn procedure if required.
