A diagram of hollow core door reveals an internal cardboard honeycomb structure bounded by 1-1/8 inch softwood stiles and rails, covered by 1/8 inch hardboard or wood veneer facings. A solid wood lock block (typically 3×10 inches) is positioned 36 inches from the bottom edge along one stile for door handle mounting.
📌 Key Takeaways
- Solid lock block measures approx. 3×10 inches, typically set 36 inches from bottom rail
- Peripheral frame structure consists of 1-1/8 inch vertical stiles and horizontal top/bottom rails
- Interior cellular matrix uses expanded cardboard layout providing lightweight support
- Core system failure typically results from over-drilling outside designated lock block zones
- Replace entire door unit if structural perimeter stile or honeycomb core collapses completely
An understanding of a diagram of hollow core door assemblies is essential for contractors, finish carpenters, and facility maintenance technicians performing precise field modifications, door trimmings, or hardware retrofits. While these door assemblies appear solid from the exterior, their internal framework relies on an engineered, lightweight skeletal system covered by thin structural skins. Reviewing an architectural schematic or cross-sectional schematic reveals exact structural boundaries, interior clearance tolerances, and lock block placements, preventing costly structural failures during field machining.

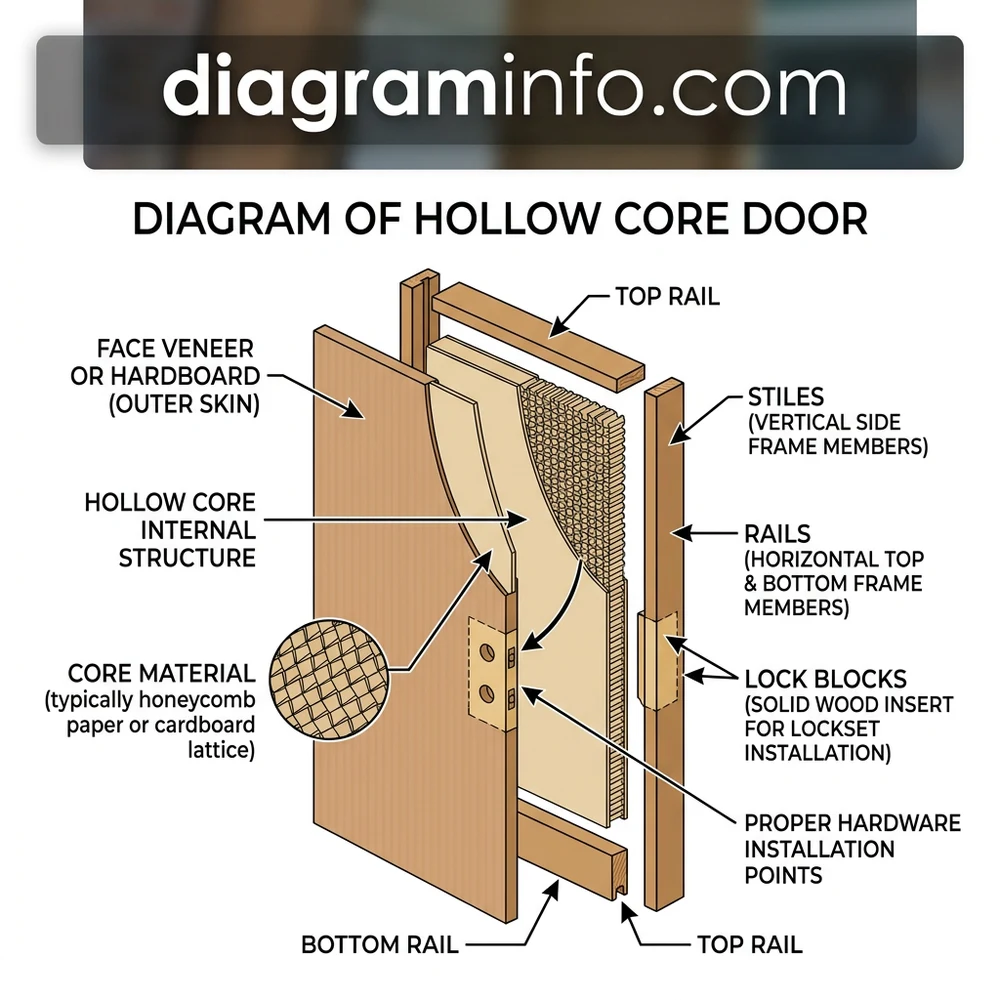

Cross-sectional engineering view illustrating top rail, bottom rail, side stiles, internal paper honeycomb core matrix, skin thickness, and embedded lock block placement.
Hollow Core Door Structure: Structural Component Breakdown
Analyzing a internal structural configuration reveals how light materials are optimized for rigid, dimensional stability. According to OEM manufacturing specifications, standard hollow core door units consist of five principal structural components designed to withstand torsional shear while maintaining minimal total mass.
Most commercial and residential hollow core doors utilize thermo-set PVA adhesives to bind the fiberboard skins to the internal framing. Disruption of this adhesive bond through excessive moisture exposure or structural overheating severely compromises the unit’s shear resistance.
An overview of these core internal parts highlights the critical balance between structural framing and hollow space matrix:
- Outer Door Skins (Facing): Typically constructed from 1/8-inch (3mm) high-density hardboard, MDF, or molded composite wood fiber. These skins provide surface rigidity and transfer lateral impact loads across the perimeter frame.
- Vertical Stiles: Longitudinal structural members situated along the left and right edges. Standard stiles are manufactured from nominal 1-1/8 inch finger-jointed softwood or engineered composite lumber to receive hinge screws and latch faceplates.
- Horizontal Rails: The top and bottom structural headers. The top rail provides lateral stabilization, while the bottom rail allows limited field trimming during installation.
- Cellular Honeycomb Core Matrix: A expanded corrugated paper matrix or resin-impregnated fiber mesh running through the interior void. This system prevents skin flexing and dampens acoustic vibration without adding excessive dead weight.
- Embedded Lock Block: A solid wood or high-density composite reinforcement block positioned adjacent to one or both stiles at standard latch height (36 inches from bottom edge to center). It provides anchor material for standard cylindrical locksets.
| Component | Material Specification | Typical Dimensions | Structural Function |
|---|---|---|---|
| Perimeter Stiles | Finger-jointed Pine / LVL | 1-1/8″ W x 1-3/8″ D | Hinge anchoring & edge sealing |
| Top/Bottom Rails | Kiln-dried Softwood / MDF | 1-1/8″ H to 2″ H | Torsional stability & trim tolerance |
| Lock Block | Solid Pine / Particleboard | 3″ W x 10″ to 12″ L | Bore support for cylindrical locksets |
| Core Matrix | Resin-treated corrugated kraft paper | 3″ x 3″ cell pitch grid | Anti-deflection skin support |
How to Interpret a Diagram of Hollow Core Door Blueprints for Modifications
When modifying interior doors on site, reading a diagram of hollow core door schematics prevents damaging structural perimeter members. Cross-referencing field measurements with standard manufacturer engineering drawings guarantees proper machining without exposing internal voids.
Standard manufacturer specifications allow a maximum trim threshold of 1/4 inch per side and 1/2 inch off the bottom rail. Trimming beyond these parameters removes structural framing and requires custom re-blocking.
Step 1: Locate Lock Block Indicator Marks
Consult the door edge schematic. Manufacturer blueprints indicate lock block placement via a bevel mark or edge stamp on top of the door stiles. Verify whether the door incorporates dual lock blocks or a single-side lock block before boring holes for locksets.
Step 2: Calculate Maximum Rail Trim Cutoffs
Cross-check the bottom rail height shown on your blueprint (typically 1.5 to 2.0 inches) against your required undercut. Use a scribe line to mark the cut. If undershooting room threshold clearance requires removing more than 1/2 inch of total material, plan to re-block the bottom cavity after cutting.
Step 3: Determine Hardware Anchoring Depths
Refer to the layout drawing to evaluate fastener engagement for surface-mounted hardware (e.g., door closers, kickplates). Standard skin thickness (1/8″) cannot support threaded screws without anchor penetration extending directly into the solid top rail or stile framing. Contrast this layout against specialized solid core door schematics when heavy commercial hardware anchors are required.
Step 4: Verify Lockset Backset Alignment
When boring a 2-1/8 inch latch hole, confirm that your target backset centerline (2-3/8 inch or 2-3/4 inch) aligns fully within the lock block area shown on the structural schematic. Bore holes outside this zone result in empty core alignment, leading to lock assembly failure.
Troubleshooting Structural Failures in Hollow Core Door Systems
Physical damage to hollow core doors often stems from exceeding component tolerances or improper field modifications. Understanding internal mechanics allows technicians to apply appropriate structural repairs.
Do not attempt to secure heavy panic hardware, overhead concealed closers, or commercial pull handles into a hollow core door matrix without internal solid blocking reinforcement. Hardware tear-out will occur under cycling loads.
Structural Cavity Exposure from Over-Trimming
Symptom: The bottom edge of the door shows open cellular paper matrix after height adjustment.
Cause: Excess material was removed, entirely cutting away the solid bottom rail timber.
Correction: Clean out 1-1/2 inches of internal honeycomb matrix using a wood chisel. Cut a custom softwood block to match the internal void profile, coat with polyurethane or PVA adhesive, insert it into the void, and clamp until cured.
Skin Delamination and Puncture Defects
Symptom: Soft spots on facing panels or outer hardboard separating from stiles.
Cause: Impact damage crushing the underlying paper matrix, or moisture degrading adhesive lines along stiles.
Correction: Inject expanding polyurethane structural foam or epoxy into small internal punctures to recreate structural core mass. For major delamination, integrate stiffener plates or evaluate door replacement based on original commercial door frame installation specifications.
Lockset Instability or Latch Sag
Symptom: Cylindrical locksets twist in the bore hole or pull through faceplates.
Cause: Latch bore was drilled outside the lock block bounds, or screws stripped out of thin 1/8″ facing skins.
* Correction: Install a heavy-duty wrap-around repair plate (reinforcement sleeve) that grips the exterior stiles, distributing clamping force across external structural surfaces.
Diagram of Hollow Core Door Frequently Asked Questions
How do you identify which side contains the internal lock block on an unmarked door?
Technicians can use a small strong magnet to locate internal metal staples often used during manufacturing to secure the block, or tap lightly along the stiles with a soft mallet. A solid dull thud indicates the dense lock block section, whereas a hollow echoing tone indicates the open honeycomb cell void.
What is the typical lock block size shown in standard architectural schematics?
Standard residential and light commercial door schematics specify lock blocks measuring 3 inches wide by 10 to 12 inches long. This offers sufficient clearance for standard 2-3/8 inch and 2-3/4 inch backset locksets drilled within 2 inches of the vertical latch edge center.
Can a hollow core door frame be modified to accept heavy door closers?
No, standard hollow core top rails (1-1/8 inch depth) do not provide adequate structural thread engagement for surface-mounted closers. Unless specified with a custom top rail closer block from the manufacturer, install through-bolts with exterior sex-nuts (sleeve nuts) to distribute mounting forces across both skins.
Why do manufacturers use paper honeycomb instead of solid foam in the core diagram?
Resin-impregnated paper honeycomb offers higher strength-to-weight ratios and shear stability per square inch than non-structural foams. The geometric vertical walls of the honeycomb grid effectively transfer compressive loads between facing skins while keeping material costs and total weight minimal.
Step-by-Step Guide to Understanding the Diagram Of Hollow Core Door
Identify – Determine door orientation and inspect hinge layout before drilling or cutting.
Locate – Find the solid lock block indicator stamp or use a stud finder on the stile structure.
Reference – Consult the diagram of hollow core door configuration to map internal frame boundaries.
Connect/Route – Align hardware, deadbolts, or handle assemblies strictly within the solid lock block zone.
Verify – Measure distance (36 inches standard height) to ensure screw fasteners anchor into solid wood.
Troubleshoot – Inject expandable polyurethane foam core filler if skin punctures or hollow voids are damaged.
