LG Front Load Washer Parts Diagram: Component Breakdown 2026

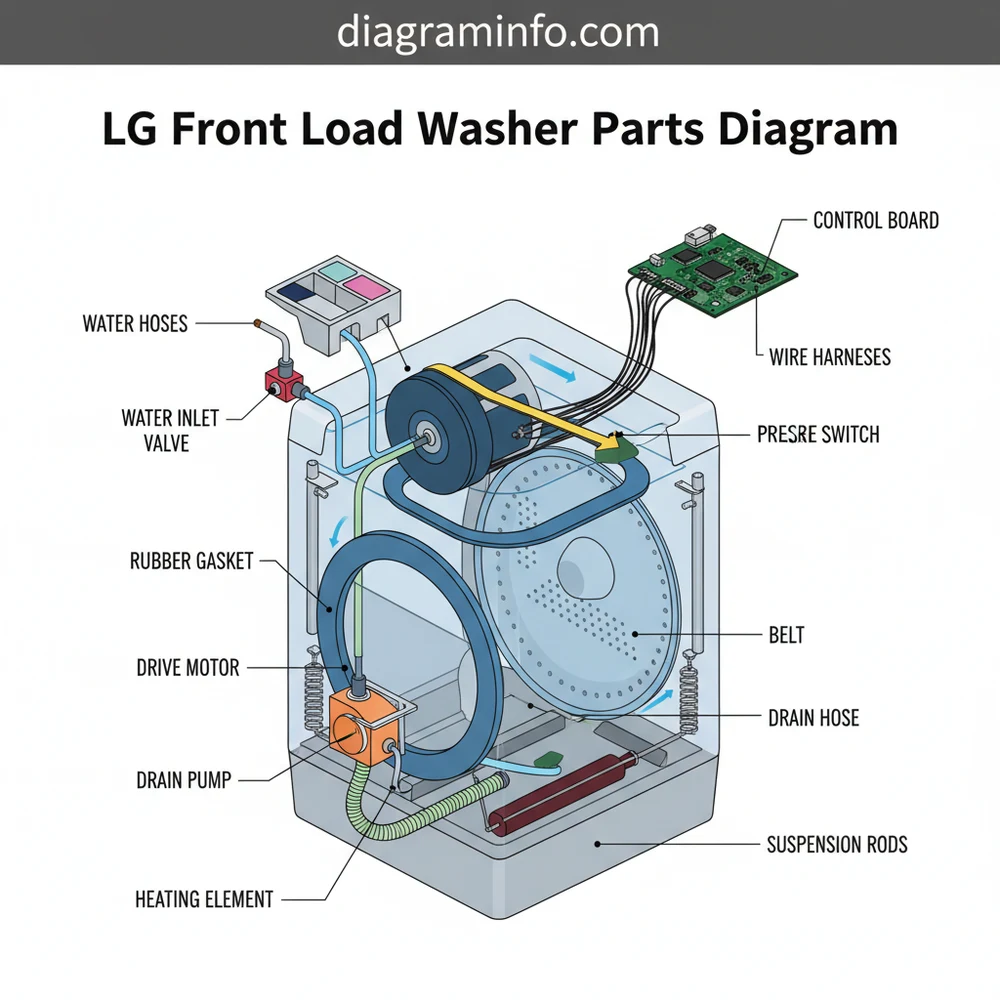

An LG front load washer parts diagram outlines the mechanical and electrical system structure. Key components include the direct-drive inverter motor mounted to the rear drum assembly, drain pump at the bottom right, door boot gasket assembly, dual water inlet valve, and suspension shocks supporting the outer tub configuration.
📌 Key Takeaways
- Direct-drive motors operate on 120V AC variable frequency from the main PCB to control spin speeds up to 1,300 RPM.
- The door boot seal and tub suspension springs maintain structural balance and liquid containment during high-speed agitation.
- Always disconnect 120V power and shut off water supply lines before inspecting internal electrical or hydraulic components.
- Drain pump impellers and door latch assemblies represent the highest-frequency mechanical failure points in front-load systems.
- Simple filter cleanouts and door boot replacements are DIY-friendly, while inner tub bearing press-fits require professional service.
Modern LG front-load washing machines rely on sophisticated electro-mechanical systems managed by inverter Direct Drive technology and microcomputer control boards. Interpreting an lg front load washer parts diagram is essential for field service technicians and advanced repair specialists conducting precise component diagnostics. These schematics outline structural sub-assemblies, high-voltage electrical paths, low-voltage sensor lines, and fluid dynamics networks across various model generations, such as the WM2010 through WM4000 series. Mastering this technical documentation reduces diagnostic downtime, ensures exact OEM replacement part selection, and prevents damage to sensitive printed circuit board (PCB) assemblies during shop overhauls.
LG Front Load Washer Parts Diagram Component Breakdown
Understanding the physical architecture within an lg front load washer parts diagram requires categorizing components into four core operational networks: the drive assembly, tub suspension, fluid dynamics system, and electronic controls.
The Direct Drive motor structure replaces legacy belt-and-pulley designs by mounting the motor assembly directly to the inner drum shaft. The stator assembly features 36 copper-wound coils arranged in a 3-phase star (Y) configuration, monitored by a dual-channel Hall effect position sensor. The outer rotor contains permanent neodymium magnets keyed to the tub spider shaft, secured by a high-tensile center mounting bolt.
The suspension subsystem absorbs significant kinetic force during extraction speeds reaching 1,300 RPM. This configuration utilizes high-tension suspension springs on the upper outer tub frame and heavy-duty friction dampers attached to the base frame. High-density concrete counterweights are bolted to the top and bottom front faces of the tub assembly to stabilize off-center dynamic loads.
| System Component | OEM Part Reference | Operating Specifications |
|---|---|---|
| Stator Assembly | 4417EA1002W / 4417FA1994E | 3-Phase BLDC, 5–15 Ω per phase winding |
| Rotor Position Sensor (Hall) | 6501KW2002A / 6501KW2001A | 5V DC supply, 10–15k Ω signal logic output |
| Drain Pump Motor | 4681EA2001T / AHA75693402 | 120V AC, 60Hz, 85–95 Ω coil resistance |
| Water Inlet Valve (Cold/Hot) | 5221ER1003C / 5220FR2008E | 120V AC coil, 1.0–1.5k Ω resistance |
| Water Pressure Switch | EBF61315801 / 6601ER1006E | 5V DC input, frequency output (21–26 kHz) |
When servicing the mechanical drive system, always check the tub spider arm (flange assembly) for galvanic corrosion or structural hairline fractures. Corrosion here often causes drum wobble misdiagnosed as bearing failure. For further background on component testing standards, review our appliance wiring schematic symbols guide.
How to Read an LG Front Load Washer System Schematic and Layout
Analyzing an lg front load washer parts diagram requires combining the physical exploded assembly view with the electrical wiring schematic. The physical layout assigns reference callouts to individual mechanical parts, linking them directly to OEM factory part numbers in the manual index.
On electrical blueprints and wiring harness schematics, trace line styles indicate distinct electrical domains:
- Solid Black Lines: Standard 120V AC power distribution (line to neutral) powering high-draw loads such as the water heater element and drain pump.
- Double/Parallel Lines: High-voltage DC inverted bus rails (approximately 310V DC) running from the main PCB rectifier to the IPM (Intelligent Power Module) that drives the stator windings.
- Dashed / Colored Lines: Low-voltage DC communication logic lines (typically 5V DC or 12V DC) routing sensor feedback from the thermistor, door lock switch, and Hall sensor.
Wire harness connectors on LG control boards use alphanumeric coding that specifies wire color and pin location. Connector prefixes denote primary harness colors: RD (Red), BL (Blue), YL (Yellow), WH (White), and BK (Black). For example, harness trace labeled “CN3-RD (Pins 1-3)” routes directly to the red 3-pin connector housing for the water level pressure transducer.
Main Rotor Center Bolt Torque Spec: 13.0 to 17.0 ft-lbs (17.6 to 23.0 Nm). Always apply a thread-locking compound (medium strength blue) to prevent back-out caused by rotational vibration during high-extract spin modes.
Troubleshooting Common Issues with LG Front Load Washer Parts Diagrams
Field diagnostics can be streamlined by mapping observed fault codes directly to components on the lg front load washer parts diagram. Isolating electrical faults before disassembling cabinet panels saves time and protects sensitive electronics.
LE Error Code (Locked Rotor Fault): Reference the drive system sub-assembly diagram. Disconnect main power, isolate the stator wire harness, and test resistance across phase terminals U-V, V-W, and W-U using a digital multimeter. Resistance across all three phases must be equal (5Ω to 15Ω). If phase resistance is balanced, check the Hall sensor harness connector. Test logic feedback pins; an asymmetrical resistance reading between sensor ground and signal channels indicates a failed Hall sensor (#6501KW2002A) requiring immediate replacement. For step-by-step disassembly, consult our direct drive motor replacement procedures.
OE Error Code (Water Outlet Drain Fault): Locate the drain network schematic. Verify if 120V AC is supplied to the drain pump terminals during the drain phase. If voltage is confirmed but the motor fails to energize, measure coil resistance across the pump terminals. An open circuit or a reading outside 85Ω to 95Ω confirms internal coil failure in the pump assembly (#4681EA2001T).
IE Error Code (Water Inlet Timeout Fault): Cross-reference the water inlet circuit layout. Measure static resistance across both the cold and hot inlet valve solenoid terminals. Functional solenoids measure 1.0kΩ to 1.5kΩ at 70°F (21°C). Infinite resistance indicates a blown solenoid winding. Additional diagnostic paths are covered in our LG washer error code diagnostic guide.
Disconnect all AC power connections before performing continuity or resistance checks. Main inverter PCBs maintain high-voltage DC charge across filter capacitors for up to 5 minutes after power disconnection. Always verify zero bus voltage before servicing electrical components.
Frequently Asked Questions About LG Front Load Washer Configuration
How do I locate exact OEM part numbers on an LG front load washer parts diagram?
Refer to the exploded physical view schematics provided in the service manual for your specific model number. Match the numeric callout flag on the diagram to the corresponding index table. This index cross-references the schematic key to the 10-digit LG factory OEM part number (e.g., 4417EA1002W for a stator assembly).
What resistance values should I expect when testing Direct Drive stator coils?
According to manufacturer specifications, a functional 3-phase Direct Drive stator winding exhibits equal resistance between any two phase terminals (U-V, V-W, W-U), typically measuring between 5Ω and 15Ω at ambient room temperature. An unbalance exceeding 1.0Ω between phases indicates internal shorting or open copper windings.
How does the frequency pressure sensor operate in the LG washer electrical schematic?
Unlike electromechanical contact-style pressure switches, LG uses an electronic pressure transducer powered by a 5V DC source from the main PCB. As water levels rise in the tub, air pressure moves a diaphragm inside the sensor, altering the inductance of an internal coil. This produces an output frequency shifting from ~26.5 kHz (empty tub) down to ~21.0 kHz (full tub).
What causes the LE error code, and how does the schematic help diagnose it?
The LE error signifies a motor lock or communication loss between the inverter PCB and rotor assembly. The electrical schematic maps the circuit path through the 6-pin motor connector to the Hall position sensor. By tracing this circuit, technicians can systematically check supply voltage (5V DC), ground continuity, and dual-channel pulse signals to isolate whether the failure stems from the sensor, wiring harness, or main PCB driver board.
Why do older and newer LG front-load models differ in their door lock configurations?
Older LG models utilize PTC thermal delay door lock switch assemblies operating exclusively on 120V AC line power, requiring a 1 to 2 minute cooling delay before unlocking. Newer designs incorporate instant-release solenoid door lock assemblies managed by low-voltage DC signals sent from the main PCB logic control system, allowing immediate unlocking once drum rotation and water levels are safely validated.
Step-by-Step Guide to Understanding the Lg Front Load Washer Parts Diagram
Identify – Isolate the affected washer component using the main system layout diagram.
Locate – Find the specific sub-assembly inside the cabinet structure or rear access panel.
Reference – Cross-reference schematic part numbers with OEM technical service manuals.
Connect/Route – Disconnect power and trace wiring harness routing to the control board or motor leads.
Verify – Perform resistance checks across motor windings or pump coils using a digital multimeter.
Troubleshoot – Test cycle execution and clear error codes like OE or LE after component reassembly.
