Main Water Line to House Diagram: Complete Plumbing Guide
A main water line to house diagram illustrates the path from the municipal meter or well to your home’s internal shut-off valve. It highlights the transition from exterior piping to interior fixtures, ensuring you can locate critical valves during emergencies or when installing a new drain assembly or garbage disposal.
📌 Key Takeaways
- Visualizes the water supply flow from the street to interior faucets
- Helps identify the main shut-off valve for emergency situations
- Prevents accidental damage to supply lines during landscaping or digging
- Provides a roadmap for connecting new fixtures to existing plumbing
- Essential for troubleshooting pressure drops or line leaks
Understanding the path that water takes as it enters your home is essential for any homeowner looking to perform repairs, upgrades, or emergency shutdowns. When you search for a main water line to house diagram, you are likely looking for more than just a simple line drawing; you need to understand the relationship between the high-pressure supply coming from the municipality and the complex drainage network that carries it away. This guide provides a comprehensive breakdown of the entire cycle, from the moment water passes through your meter to the point it exits through the drain assembly and vent pipe. By the end of this article, you will be able to identify every critical component, understand the physics of your plumbing system, and troubleshoot common issues like a professional.
Anatomy of the Water Line and Drain Assembly

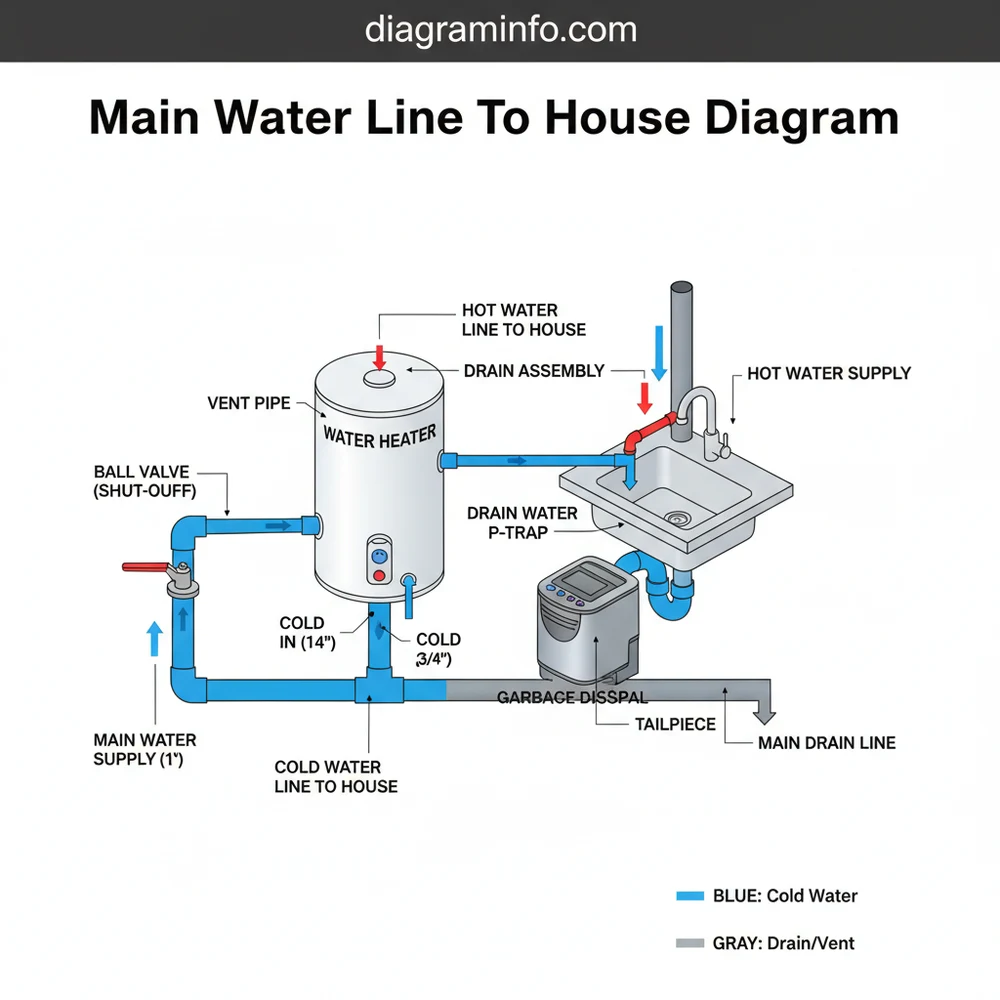

A comprehensive main water line to house diagram typically illustrates two distinct yet interconnected systems: the supply side and the waste side. On the supply side, the journey begins at the municipal water main, usually located under the street or near the property line. From there, a service line runs to a curb stop valve and then through a water meter. Once the line enters your home—typically through the basement floor or a crawlspace—it passes through a main shutoff valve. This is the most critical point for any homeowner to identify, as it allows you to stop the flow of water to the entire house in the event of a burst pipe.
Once inside, the water is distributed to various fixtures. While the supply lines are usually made of copper or PEX, the disposal side relies heavily on PVC and gravity. This is where the diagram becomes more intricate. Every sink in your home is part of a drain assembly that must be properly configured to prevent sewer gases from entering your living space. This assembly includes the tailpiece, which connects the sink strainer to the P-trap. The P-trap is a U-shaped pipe that holds a small amount of water, creating a liquid seal.
In modern installations, you may also see an AAV valve (Air Admittance Valve) in the diagram. This component allows air into the drainage system to balance pressure without requiring a dedicated vent pipe that goes through the roof. Understanding how these pieces—the slip joint, the tailpiece, and the garbage disposal—interact is vital for maintaining a functional and sanitary home.
Most residential water lines maintain a pressure between 40 and 60 PSI. If your main water line to house diagram includes a Pressure Reducing Valve (PRV), it is there to protect your appliances and PVC joints from excessive municipal pressure that could cause leaks.
How to Read and Interpret Your Plumbing Diagram
Reading a plumbing diagram can feel like deciphering a map of a hidden city. To interpret it correctly, you must follow the flow of water systematically. Follow these steps to master the layout of your home’s water system:
- ✓ Identify the Entry Point: Look for the thickest line on the diagram, usually marked as the “Service Main.” Trace it from the exterior of the house to the first valve inside the foundation.
- ✓ Distinguish Between Cold and Hot: In most professional diagrams, blue lines represent cold water supply, while red lines represent the heated water coming from the water heater.
- ✓ Locate the Fixture Connections: Trace the lines as they branch off to the kitchen and bathrooms. Note where the supply line connects to the faucet and where the waste enters the drain assembly.
- ✓ Analyze the Waste System: Look for the P-trap symbol (a distinctive U-shape). Ensure you see a clear path from the P-trap to the larger vertical line, which is the vent pipe.
- ✓ Check for Venting: A proper diagram will show how air enters the system. This is either through a vent pipe exiting the roof or an AAV valve located under the sink or in the wall.
When you are looking at the kitchen section of the diagram, pay close attention to the garbage disposal integration. The disposal typically connects to the sink via a mounting flange and then discharges into the side of the P-trap via a discharge tube. If the diagram shows a dishwasher, you will see a small hose connecting to the garbage disposal as well; this is the drain line for the appliance, which usually requires a “high loop” or an air gap to prevent backflow.
The materials used are also typically noted on a high-quality diagram. Supply lines might be labeled as Copper or PEX, whereas the drainage components are almost universally labeled as PVC or ABS in modern homes. Knowing the difference is important because the joining methods—such as a slip joint with a rubber washer versus a solvent-welded PVC joint—require different tools and techniques for repair.
Never attempt to modify the main water line before the shutoff valve. This section of the plumbing is under constant high pressure and is often the legal responsibility of the utility company. Damaging this line can lead to massive flooding and significant fines.
The Science of the Drainage Side: P-traps and Vents
While the main water line brings the water in, the drainage assembly is responsible for the health and safety of the home. The most critical component in this secondary diagram is the P-trap. Without this simple U-bend, sewer gases (including methane and hydrogen sulfide) would drift freely into your home. The water trapped in the bend acts as a barrier.
However, for the P-trap to work, the system needs air. This is why the vent pipe is so important. When a large volume of water rushes down the drain, it creates a vacuum. Without a vent, that vacuum would suck the water out of the P-trap (a process called siphoning), leaving the trap dry and the house vulnerable to odors. In many modern renovations where it is difficult to run a pipe through the roof, plumbers use an AAV valve. This “Studor vent” or mechanical vent allows air to enter the pipe when negative pressure is detected but remains sealed when the water is still, preventing gas from escaping.
Connecting these components involves the tailpiece and various slip joints. The tailpiece is the vertical pipe descending from the sink drain. It connects to the P-trap using a slip joint, which consists of a threaded nut and a tapered plastic or rubber washer. This design allows for slight adjustments in height and angle, making it easier to align the plumbing during installation.
Troubleshooting Common Plumbing Issues
Even with a perfect main water line to house diagram, problems can arise. Understanding the diagram helps you isolate where the failure is occurring. If you have low water pressure throughout the entire house, the issue is likely near the beginning of the diagram—either at the municipal meter, the main shutoff valve, or a clogged Pressure Reducing Valve (PRV). If the low pressure is only at one faucet, the problem is localized, such as a clogged aerator or a kinked supply line.
On the drainage side, common issues often involve clogs in the P-trap or the garbage disposal. If your sink is draining slowly, the first place to check is the P-trap. Because of its shape, it naturally collects heavy debris like hair, wedding rings, or food particles that have escaped the garbage disposal.
If you smell a “rotten egg” odor under your sink, your AAV valve may have failed. These valves have a rubber diaphragm that can dry out or get stuck over time. Replacing an AAV valve is a simple DIY task that involves unscrewing the old unit and threading on a new one with some Teflon tape.
Leaking at a slip joint is another frequent complaint. This usually happens because the plastic washer inside the nut has become brittle or was installed backwards. The tapered end of the washer should always point toward the joint you are trying to seal. If you find a leak near the garbage disposal, check the mounting bolts or the connection where the dishwasher hose meets the disposal inlet.
Best Practices for Main Line Maintenance
To ensure the longevity of your home’s plumbing, you should follow several industry best practices. First, always know the location of your main shutoff valve. It is a good idea to “exercise” this valve once or twice a year by turning it off and on to ensure it hasn’t seized up due to mineral deposits.
When it comes to the materials shown in your main water line to house diagram, quality matters. PVC is the standard for drainage because it is resistant to corrosion and easy to work with. However, ensure you are using the correct solvent cement for the specific type of plastic (PVC vs. ABS). Mixing these materials without a specialized transition glue can lead to joint failure.
For the supply side, if you live in a cold climate, insulation is your best friend. Any portion of the main water line that passes through an unconditioned space, like a crawlspace or an exterior wall, should be wrapped in foam pipe insulation. This prevents the water from freezing, which would cause the pipe to expand and burst, leading to a catastrophic plumbing emergency.
- ✓ Use Brass Valves: When replacing a main shutoff or a supply stop, opt for high-quality brass ball valves rather than cheaper gate valves. Ball valves are more reliable and provide a more secure seal.
- ✓ Avoid Chemical Cleaners: To keep your drain assembly healthy, avoid harsh chemical drain cleaners. These can damage PVC pipes and corrode the metal components of your garbage disposal. Use a drain snake or an enzyme-based cleaner instead.
- ✓ Check Your PRV: If your home is older, your Pressure Reducing Valve may be failing. Use a simple pressure gauge (available at most hardware stores) to check the pressure at an outside hose bib. If it is over 75 PSI, your PRV needs adjustment or replacement.
Component Deep Dive: The Air Admittance Valve (AAV)
One of the most misunderstood parts of the modern main water line to house diagram is the AAV valve. In the past, every single fixture required a vent pipe that extended all the way to the roof. This “vent stack” ensured that as water moved through the pipes, air could follow it, preventing the “glugging” sound and slow drainage associated with airlocks.
The AAV valve revolutionized this by providing a local venting solution. It contains a spring-loaded or gravity-held diaphragm. When you run the water, the falling liquid creates a vacuum that pulls the diaphragm open, allowing fresh air into the drain assembly. As soon as the water stops, the diaphragm closes, sealing the pipe so that sewer gas cannot escape. If your diagram shows an AAV, remember that it must be installed at least 4 inches above the horizontal drain line and must be located in a space with adequate air circulation—not sealed inside a completely airtight wall.
Summary and Final Thoughts
Understanding your main water line to house diagram is the first step toward becoming a more capable and confident homeowner. By tracing the water from its entry at the main service line to its complex exit through the P-trap, tailpiece, and vent pipe, you gain the “X-ray vision” needed to spot problems before they become expensive disasters.
Whether you are dealing with a faulty garbage disposal, a leaking slip joint in your PVC drainage, or simply trying to locate your main shutoff for a weekend renovation, this knowledge is invaluable. Always remember to prioritize safety, use the correct materials for the job, and when in doubt, consult a professional plumber to ensure your system meets local building codes. A well-maintained water line and drain assembly are the silent heroes of a comfortable home, and with this guide, you are now equipped to keep them running perfectly for years to come.
