Universal 2 Valve Air Ride Diagram: 2026 Setup Guide
A 2 valve air ride diagram illustrates the pneumatic and electrical layout connecting a single-manifold dual-solenoid setup to front or rear air springs. It details 1/4-inch DOT air line routing from the compressor check valve through a 145–175 PSI pressure switch to the fill/dump valves, grounded with 10-gauge wire.
📌 Key Takeaways
- Uses 1/4-inch or 3/8-inch DOT-approved pneumatic tubing rated up to 200 PSI.
- Requires a 12V 40A relay circuit triggered by an ignition-switched fuse source.
- System configuration controls two air bags simultaneously per valve circuit.
- Leaking PTC (push-to-connect) fittings represent over 70% of system air drops.
- Seek professional calibration if automatic levelling sensors fail to respond.
A 2 valve air ride diagram outlines the essential pneumatic lines, electrical connections, and control components required to operate a simplified pneumatic suspension setup. Commonly deployed in helper spring applications, front/rear motorcycle air rides, or rear-axle leveling systems, a 2-valve configuration manages air inflation and deflation across one or two pneumatic circuits using a pair of electromechanical solenoid valves or manual paddle switches. Understanding the structural layout and electrical wiring of this layout ensures correct installation, balanced line pressures, and efficient troubleshooting when diagnosing system leaks or electrical dropouts.
2 Valve Air Ride Diagram Component Layout and Mechanical Breakdown
To accurately interpret a 2 valve air ride diagram, you must first understand the structural role and technical specifications of each component in the pneumatic and electrical circuit. Unlike complex 8-valve or 4-corner independent air management systems, a 2-valve setup groups air springs into a shared or dual-path control arrangement, relying on a streamlined set of primary hardware.
Recommended Best Deal Products
| Component Name | Technical Specification | Port / Wire Rating | Function in System Layout |
|---|---|---|---|
| 12V DC Compressor | 100% Duty Cycle @ 100 PSI (e.g., Viair 444C) | 3/8″ NPT Leader Hose, 10 AWG Lead | Generates pressurized air supply for storage tank |
| Air Reservoir Tank | 2 to 5 Gallon, 200 PSI Working Pressure | (4) 1/4″ NPT & (2) 3/8″ NPT Ports | Stores reserve volume to rapidly inflate air bags |
| 2-Way Solenoid Valves | 12V DC, Normally Closed (NC), 2-Position | 1/4″ NPT Ports, 18 AWG Wire Coils | Controls air feed (fill) and exhaust (dump) paths |
| Pressure Tank Switch | 110 PSI On / 145 PSI Off (or 165/200 PSI) | 1/8″ or 1/4″ NPT Thread, 16 AWG Wire | Automates compressor cycling via relay coil trigger |
| Air Line Plumbing | DOT Nylon Tubing (SAE J844) | 1/4″ or 3/8″ Outer Diameter (OD) | Transfers air between tank, solenoids, and bags |
| Air Springs (Bags) | Double Bellows or Sleeve Style (Max 150 PSI) | 1/4″ NPT Air Inlet Port | Supports vehicle dynamic payload and ride height |
According to manufacturer specs, all threaded NPT fittings in a 2 valve air ride blueprint must be sealed using thread sealant tape (applied 2 threads back from the tip) or liquid PTFE pipe sealant (e.g., Loctite 565). Never use PTFE tape on push-to-connect (PTC) collets, as loose shreds can enter the 2-way solenoid seats, causing permanent pressure weeping.
Primary Solenoid Assembly
In a standard 2 valve pneumatic system, one solenoid valve acts as the Fill Valve (Inflation) while the second solenoid acts as the Dump Valve (Exhaust). Both solenoids are 2-way, normally closed (NC) directional control valves. When 12V DC power is applied to the fill solenoid coil, the internal valve plunger lifts off its seat, allowing high-pressure air from the tank to enter the air springs. Conversely, energizing the dump valve coil opens an exhaust port, discharging pressurized air from the suspension air bags into the atmosphere to lower vehicle height.
Air Compressor and Pressure Control Relay Circuit
The air compressor is wired through a standard 40-amp 4-pin Single Pole Single Throw (SPST) automotive relay. High amperage (30A–40A) flows directly from the main battery terminal through a MAXI fuse (10 AWG wire) to Relay Pin 30. Pin 87 routes high-current power directly to the positive lead of the compressor. The tank pressure switch is mounted directly into one of the receiver tank’s secondary ports. It operates as an inline ground or positive trigger on Pin 86, energizing the relay coil (Pin 85/86 circuit) only when reservoir tank pressure drops below the low threshold (e.g., 110 PSI or 165 PSI).

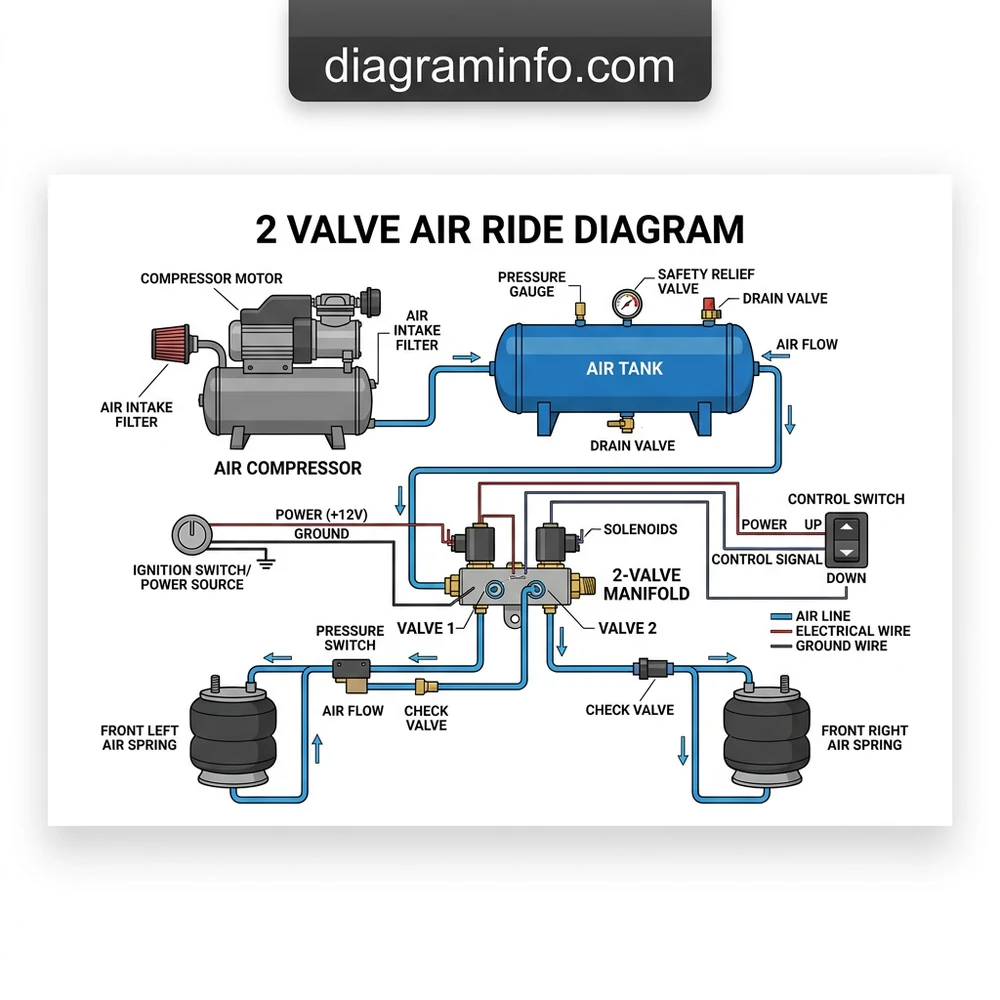

How to Read and Map a 2 Valve Air Ride Schematic
Tracing a 2 valve air ride diagram requires systematically following two separate networks: the high-pressure pneumatic routing path and the low-current 12V DC electrical control schematic. Understanding how air and electricity flow simultaneously ensures that installed systems operate safely under dynamic structural loads.
Tracing High-Pressure Air Line Connections from Tank to Bag
Follow the pneumatic flow from the primary pressure source down to the mechanical work components:
- Compressor Output: Air exits the compressor head via a stainless-steel braided leader hose. This line incorporates an inline male 1/4″ NPT check valve to prevent backflow into the pump head.
- Tank Inlet: The check valve threads into Port 1 of the air receiver tank.
- Supply Line to Solenoids: DOT-approved 3/8″ or 1/4″ nylon air line runs from a regulated outlet port on the tank directly to the Inlet Port (P) of the Fill Solenoid Valve.
- Common Junction Tee: The Outlet Port (A) of the Fill Solenoid connects to a brass street tee. One side of the tee routes air to the air spring(s), while the opposing side connects to the Inlet Port (P) of the Exhaust/Dump Solenoid Valve.
- Air Bag Feed: Air tubing exits the junction tee and splits into the left and right air bags (or single axle line), supplying equalized pressure to the suspension.
Mapping the 12V Control Circuit and Solenoid Wiring
The electrical control circuit determines how the solenoids switch positions based on user input. As shown in the diagram layout, direct 12V positive switch signals trigger individual valve coils.
Always wire the master switch source through a key-on switched ignition ignition feed (Terminal 15) using a 5-amp inline fuse. Wiring the switch box directly to constant battery power (Terminal 30) risks draining the battery if a switch is accidentally nudged or if a solenoid coil develops a minor parasitic draw.
To control the air bags, a 3-position momentary switch (ON-OFF-ON toggle or rocker) is commonly integrated into the driver cabin:
- Center Position (OFF): Un-energized state. Both fill and dump solenoid valves remain closed, holding static pressure inside the air springs.
- Up Position (INFLATE): Directs 12V DC power (via 18 AWG wire) exclusively to the Fill Solenoid coil. The coil pulls the plunger open, introducing tank pressure into the air line network.
- Down Position (DEFLATE): Directs 12V DC power exclusively to the Dump Solenoid coil. Air dumps out through the exhaust port, dropping vehicle height.
System Configuration and Wiring Blueprint for 2 Valve Setups
When engineering a 2 valve air ride schematic, you must choose between a single-path pneumatic layout or a dual-path pneumatic layout. Each configuration impacts vehicle dynamic stability, body roll, and plumbing design.
Single-Path vs. Dual-Path 2 Valve Configurations
In a single-path 2 valve layout, both air springs on an axle share a single air line downstream of the valve manifold, split with a brass union tee. While this setup requires minimal plumbing, cross-flow occurs during cornering: compressed air inside the outer bag pushes through the tee line into the inner bag, causing body roll. For enhanced vehicle stability, reference the pneumatic push-to-connect fitting maintenance guidelines to split the circuit into a dual-path setup or integrate inline check valves to prevent cross-axle air transfers.
When routing DOT nylon air tubing under the vehicle chassis, maintain a minimum safety distance of 6 inches from exhaust manifolds, hot tailpipes, and moving suspension links. Radiant heat exceeding 200°F (93°C) rapidly softens nylon tubing, causing sudden sidewall blowouts under normal operating pressures.
Air Line Installation Best Practices
To achieve clean air distribution without pressure drop, adhere to these precise structural rules during assembly:
- Cut DOT air tubing cleanly using a dedicated tube cutter or sharp razor blade at a right angle (90 degrees). Avoid using diagonal wire cutters, which crush and deform the line end, guaranteeing leaks at the push-to-connect (PTC) o-rings.
- Ensure the minimum bend radius of 1/4″ OD tubing is at least 1.0 inch, and 1.5 inches for 3/8″ OD tubing to prevent kinking under chassis articulation.
- Install rubber pass-through grommets whenever nylon tubing pierces metal frame rails or body sheets to prevent structural chafing over time.
- For advanced vehicle leveling control, compare this blueprint with full 4-way manifold valve schematics if independent 4-corner management is ultimately required.
Troubleshooting Common 2 Valve Air Ride Diagram Electrical and Air Leaks
System failures in a 2-valve setup generally manifest as slow pressure drops overnight, compressor continuous cycling, or incomplete air bag inflation/deflation. Use this systematic troubleshooting guide to isolate mechanical, electrical, and pneumatic issues.
Diagnosing Pneumatic Pressure Leaks
If the air tank or air bags lose pressure without a valve activation command, perform a soap bubble test across all structural plumbing points mapped in the blueprint:
- Continuous Tank Pressure Loss: Mix dish soap and water (1:5 ratio) and spray all tank fittings, the drain cock, and the compressor leader hose check valve. If bubbles expand at the check valve inlet when the compressor is off, internal check valve debris is allowing air to bleed back through the pump head. Clean or replace the check valve assembly.
- Air Bag Deflation at Rest: Spray the PTC fittings on the solenoid output block and the air spring inlet ports. If fittings are leak-free, spray the dump solenoid exhaust port. A continuous bubble formation at the dump port indicates internal coil seat contamination (grit or metal shavings preventing the valve plunger from fully sealing).
Isolating Solenoid and Electrical Faults
When a solenoid fails to actuate upon receiving a switch signal, check for electrical dropouts using a digital multimeter (DMM) as described below.
| Symptom | Probable Structural Cause | Diagnostic Procedure | Corrective Action |
|---|---|---|---|
| Compressor Won’t Run | Blown 40A fuse, failed relay, or open pressure switch | Measure voltage across Relay Pin 30 and Pin 86 with key ON | Replace blown MAXI fuse; replace relay if coil resistance is infinite (open circuit) |
| Fill Valve Clicks, No Inflation | Zero tank pressure, blocked line, or burnt valve coil | Check tank pressure gauge; measure resistance across valve coil wires | Coil resistance must read 2.5–4.5 Ohms. If 0 (short) or ∞ (open), replace solenoid coil |
| Dump Valve Fails to Vent | Loss of switch ground, blown switch fuse, or stuck plunger | Probe dump valve 12V input wire while depressing exhaust switch | If 12V is present, disassemble solenoid housing and clean mechanical valve plunger seat |
| Compressor Runs Continuously | Major line rupture or stuck-open pressure switch contacts | Check tank gauge; test continuity across pressure switch terminals above cut-out limit | If tank reaches 145/200 PSI and switch stays closed, replace stuck pressure switch immediately |
For additional details on integrated height sensor logic and automatic load levelling, refer to our comprehensive guide on vehicle ride height control systems.
Frequently Asked Questions About 2 Valve Air Ride Diagrams
What is the structural difference between a 2-valve and a 4-valve air ride system layout?
A 2-valve air ride system utilizes two total valve coils (one shared fill and one shared dump valve) to inflate and deflate connected air bags simultaneously over a single axle or shared circuit. A 4-valve setup uses four total valve coils, enabling separate fill and dump operations for the left and right air bags independently. This eliminates cross-axle air transfers during hard cornering and improves dynamic stability.
Can a single 2-valve manifold control both front and rear air suspension independently?
No. A single 2-valve arrangement only offers one fill path and one dump path, giving you a single zone of control. If you plumb both front and rear axles into a single 2-valve schematic, all four air springs will inflate and deflate together at identical line pressures, eliminating independent control between the front engine weight and the rear payload load.
Why does my air tank drop pressure overnight when the vehicle is powered off?
Pressure loss overnight typically stems from either a microscopic leak at a push-to-connect (PTC) line fitting, an unsealed NPT thread junction, or a faulty compressor leader hose check valve bleeding air backward into the pump cylinder. It can also occur if the fill valve seat has microscopic debris holding it slightly open, allowing tank air to leak through to the air bags or exhaust port.
What wire gauge and fuse size are required for the compressor and solenoid circuits?
The primary high-current air compressor feed wire requires 10 AWG (or 8 AWG for runs longer than 15 feet) protected by a 30A or 40A inline MAXI fuse. Low-current switch box circuits, relay triggers, and solenoid valve coils draw minimal power and should be wired using 16 AWG or 18 AWG copper wire protected by a 3A to 5A inline ATO/ATC fuse wired to an ignition-switched source.
How is a dual-needle pneumatic pressure gauge plumbed into a 2-valve diagram?
A dual-needle mechanical pneumatic gauge features two independent 1/8″ NPT air ports on the back of the gauge housing. To read pressures correctly in a 2-valve system, run a dedicated 1/4″ air line from Port 1 directly to the left air bag supply line (downstream of the fill/dump junction tee), and run a line from Port 2 directly to the right air bag line (or run Port 1 to the air tank and Port 2 to the air bag circuit).
Step-by-Step Guide to Understanding the 2 Valve Air Ride Diagram
Identify – Unpack all manifold valves, relays, switches, and check overall schematic alignment.
Locate – Place the valve block and compressor near the storage tank away from direct heat sources.
Reference – Use the 2 valve air ride diagram to verify inflation and exhaust solenoid port locations.
Connect/Route – Route 1/4-inch DOT air tubing cleanly from the valve ports to each air spring.
Verify – Apply 12V power to test valve opening, checking all fittings with soapy water for leaks.
Troubleshoot – If air pressure drops, isolate individual lines and test relay continuity using a multimeter.
