Bad Boy ZT Elite Parts Diagram: Component Breakdown 2026
The Bad Boy ZT Elite parts diagram illustrates the mower’s chassis, Hydro-Gear ZT-3100 transaxle system, deck drive layout, and engine configuration. It details assembly exploded views, OEM part numbers for 48-, 54-, and 60-inch decks, belt routing paths, and critical torque specifications like spindle blade bolts at 75 ft-lbs.
📌 Key Takeaways
- Exploded schematics clearly define the Hydro-Gear ZT-3100 transaxle and deck drive system structure.
- Spindle assembly blade bolts require exact torque settings of 75 ft-lbs to prevent loose blades.
- Cross-reference mower deck size (48, 54, or 60 inches) and serial number to ensure correct OEM part numbers.
- Incorrect belt routing path is the leading cause of premature drive belt wear and pulley vibration.
- Professional servicing is advised for internal transaxle repairs, whereas deck spindles and belts are ideal for DIY maintenance.
The Bad Boy ZT Elite zero-turn mower relies on a heavy-duty 11-gauge fabricated steel chassis, Hydro-Gear transaxles, and high-output V-twin engine configurations. Understanding its complete mechanical and electrical structure requires a detailed schematic breakdown. This technical guide examines the Bad Boy ZT Elite parts diagram, detailing how primary sub-assemblies interconnect—from the cutting deck drive geometry to the dual hydrostatic propulsion lines. Technicians and experienced equipment owners can use this breakdown to decode callout index numbers, locate OEM part identifiers, execute precision alignment, and perform systematic overhauls across 48-inch, 54-inch, and 60-inch deck builds.

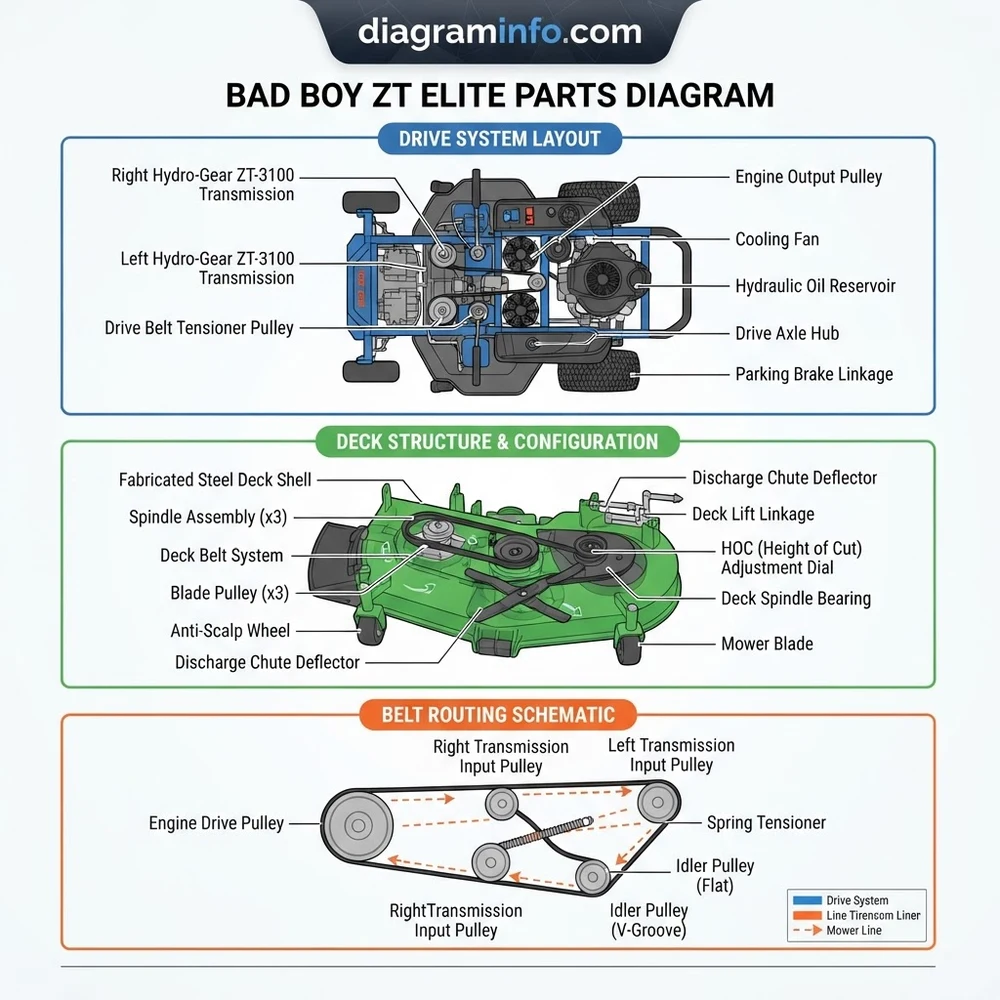

Bad Boy ZT Elite Parts Diagram: Component Layout and System Structure
The overall structure of the Bad Boy ZT Elite incorporates three main mechanical systems: the deck cutter assembly, the hydrostatic drive powertrain, and the engine-to-clutch power takeoff module. Each system is detailed in exploded factory blueprints using sequential callout numbers linked to original equipment manufacturer (OEM) part numbers and physical dimensions.
Recommended Best Deal Products
Cutting Deck Assembly and Spindle Architecture
The cutting deck blueprint illustrates an 11-gauge steel shell suspended by four adjustable lift links. The primary component within this system is the cast-iron blade spindle assembly (OEM part number 037-6015-00). Each spindle utilizes dual sealed deep-groove ball bearings separated by an internal precision spacer sleeve, mounted onto a ground steel shaft. Blade attachment requires a hardened 5/8-11 x 1-1/2 inch hex cap screw torqued to 75 ft-lbs, holding the high-lift cutting blade against a splined drive flange.
Deck belt tensioning relies on a spring-loaded idler arm pivoting on a brass bushing. The main deck drive belt passes through a series of fixed flat idlers and V-groove pulleys. For proper pulley alignment, technicians must cross-reference the Bad Boy Deck Belt Routing Layout to ensure correct belt retention and eliminate premature edge wear caused by pulley misalignment.
Spindle Mounting Bolts (3/8″-16 Grade 8): 35 ft-lbs | Blade Shaft Bolt (5/8″-11 Grade 8): 75 ft-lbs | Deck Belt Tension Spring Free Length: 6.75 inches | Belt Pitch/Width: 5/8-inch B-Section V-Belt.
Hydro-Gear ZT-3100 Drive System Configuration
The propulsion system uses independent dual hydrostatic transaxles—a Hydro-Gear ZT-3100 left unit (OEM part number 050-3000-00) and right unit (OEM part number 050-3001-00). The diagram highlights the mechanical link between the engine crank pulley and the input shafts of both transaxles via an 82-inch hydro drive belt (OEM part number 041-6400-00). Each transaxle incorporates an internal variable displacement axial piston pump and a fixed displacement bent-axis piston motor.
External drive components in the schematic include the control linkage arms, return-to-neutral dampers, and mechanical park brake arms. Hydraulic expansion tanks mounted to the upper frame rail maintain oil volume during thermal expansion. You can reference the Hydro-Gear ZT-3100 Service Schematic to isolate charge pump pressures, fluid bypass valves, and brake return springs.
Engine Control and PTO Clutch Module
Positioned over the rear axle plate, the engine configuration includes the crankshaft-mounted Warner electric PTO clutch (OEM part number 070-1000-00). The electric clutch provides 125 lb-ft of static torque to engage the deck drive pulley. An anti-rotation bracket bolted to the frame prevents torque spin of the clutch housing. Power delivery from the engine shaft uses a 1/4 x 1/4 x 2-inch square keyway to transfer rotational force directly to the clutch rotor and lower hydro drive pulley.
| System Component | OEM Part Identifier | Technical Specification | Functional Notes |
|---|---|---|---|
| Spindle Assembly Complete | 037-6015-00 | Cast Iron, 6000-series bearings | Includes shaft, housing, bearings, and spacer |
| 54″ Deck Drive Belt | 041-1650-00 | 5/8″ x 165″ Aramid Cord | High tensile strength, heat resistant cover |
| Electric PTO Clutch | 070-1000-00 | 12V DC, 125 lb-ft Torque | Includes field coil, rotor, and armature |
| Hydro Transaxle (Left) | 050-3000-00 | Hydro-Gear ZT-3100 (1″ Axle) | Includes integrated filter and bypass valve |
Interpreting the Bad Boy ZT Elite Parts Schematic Step by Step
Standard schematic layouts use precise engineering conventions. Understanding how callout index lines, item numbers, part descriptions, and hardware specifications interact allows you to efficiently source components and execute mechanical assemblies without installation errors.
Decoding Callout Index Numbers and Hardware Notation
Exploded schematics map every individual nut, bolt, washer, and structural weldment using numbered callout bubbles. Callout 1 generally indicates the primary structural component (such as the main deck shell or main frame), while higher secondary numbers map out hardware, spacers, and sub-assemblies.
When reviewing the parts list table alongside the diagram, match the index number to the column headers. Standard fastener callouts follow specified mechanical conventions: thread diameter, pitch, bolt length, and steel grade. For example, a entry designated as “018-6012-00 – Hex Bolt 3/8″-16 x 1-1/2″ GR5 Zinc” defines the exact thread standard required during replacement to prevent structural yield failures under load.
Fastener callouts on Bad Boy diagrams use standard shorthand: “NY” indicates a Nylon Lock Nut, “FW” stands for Flat Washer, “LW” denotes Split Lock Washer, and “BHCS” identifies a Button Head Cap Screw. Always replace lock nuts with equal or higher property class hardware.
Tracing Pulley Profiles and Belt Paths
Belt routing schematics display pulleys in top-down orthogonal views with vector lines illustrating belt path directions. Dashed lines indicate belts passing beneath chassis plates, while solid lines denote top-side routing. To reassemble a deck or hydro drive path accurately:
- Identify Drive Pulleys: Identify the engine crankshaft pulley as the primary rotational input source.
- Map Idler Orientations: Distinguish between flat idlers (which press against the smooth back of the belt) and V-groove idlers (which seat inside the belt’s V-profile).
- Locate Tension Vectors: Locate the dynamic tensioner arm, identifying its pivot mounting bolt, bronze bushing inserts, and linear extension spring anchoring point on the deck frame.
Mapping Electrical Harness Components and Connectors
The electrical schematic displays component symbols alongside wire color designations to map circuit paths. The starter solenoid, key switch, seat switch, brake switches, and PTO switch form an integrated safety interlock loop. When diagnosing power delivery to the clutch coil, trace the continuous blue wire from the PTO switch terminal through the clutch harness connector to ground.
To cross-reference color-coded harness layouts, consult the Bad Boy Mower Electrical Schematic Guide. Ground terminations are indicated by single-point frame stud symbols, which must be kept free of corrosion to ensure proper current draw across all 12-volt DC circuits.
| Assembly Area | Fastener Size & Pitch | Torque Specification | Recommended Thread Sealant |
|---|---|---|---|
| Engine Crankshaft Bolt | 7/16″-20 x 2-1/2″ (Grade 8) | 55 ft-lbs | Medium-Strength Threadlocker (Blue) |
| Transaxle Drive Pulley Nut | 1/2″-20 Locknut | 45 ft-lbs | Dry / None |
| Wheel Hub Retaining Nut | 3/4″-16 Slotted Nut | 130–150 ft-lbs | Dry (Secure with new Cotter Pin) |
| Spindle Housing Mounting | 3/8″-16 x 1-1/4″ (Grade 8) | 35 ft-lbs | Dry / Serrated Flange Head |
Troubleshooting System Mechanics via the Bad Boy ZT Elite Blueprint
Diagrams serve as an essential diagnostic tool for isolating mechanical wear, alignment issues, and component fatigue. Comparing physical measurements against manufacturer blueprint standards helps isolate root causes before performing component replacements.
Spindle Bearing Wear and Shaft Deflection Isolation
Excessive deck vibration or uneven cut height typically points to deck spindle degradation. Remove the belt and manually rotate each spindle housing to check for internal bearing failure. Radial or axial play greater than 0.005 inches indicates worn 6206-2RS ball bearings inside the cast housing.
When rebuilding the spindle structure per the schematic callouts, inspect the central shaft for galling or scoring where the bearing inner races seat. Pressing new bearings into the casting requires applying pressure only to the outer bearing race using a hydraulic shop press. Pressing against the inner race can cause brinelling, leading to premature bearing failure.
Do not exceed 75 ft-lbs on the main spindle shaft blade bolt. Overtightening compresses the internal spacer sleeve beyond design tolerances, preloading the ball bearings excessively and causing rapid heat buildup during high-RPM operation.
Hydrostatic System Sluggishness and Air Bleed Protocol
Loss of power in one or both drive wheels under thermal load indicates hydraulic fluid degradation, restricted filters, or trapped air within the Hydro-Gear ZT-3100 transaxles. First check that the bypass release valves (located at the rear chassis) are fully pushed in and engaged in the operating position.
If the drive system remains unresponsive after fluid and filter replacement (using 20W-50 motor oil or 15W-50 synthetic oil), execute the factory purging procedure as outlined in the drive system schematic:
- Elevate the rear drive wheels clear of the ground and secure the frame on heavy-duty jack stands.
- Pull both transaxle bypass levers out to disengage the internal hydraulic drive gear set.
- Start the engine, set throttle to 1800 RPM, and move the steering control levers fully forward and reverse 5 to 6 times.
- Push the bypass levers back into the run position. Move steering levers repeatedly until transaxle operation turns smooth and noise decreases.
Electric PTO Clutch Diagnostics and Fault Isolation
If the mower deck fails to engage when pulling the PTO switch, use a digital multimeter to check the clutch electrical system step by step:
- Supply Voltage: Disconnect the 2-pin Deutsch connector at the clutch harness and measure DC voltage across the supply pins with the PTO switch engaged and key ON. Voltage must read between 12.4V and 13.8V DC.
- Coil Resistance: Set the multimeter to Ohms (Ω) and measure resistance across the two clutch field coil terminals. OEM specification requires a resistance reading between 2.4 and 2.9 Ohms at 70°F (21°C). A reading below 2.0 Ohms indicates a shorted internal coil, while infinite resistance indicates an open circuit.
- Air Gap Clearance: Inspect the mechanical field armature gap using a feeler gauge inserted through the three inspection slots. Gap tolerance must remain within 0.012 to 0.024 inches. Adjust the three spring-loaded lock nuts evenly to restore proper air gap clearance.
Bad Boy ZT Elite Parts Diagram Technical FAQ
How Do I Determine Year-Specific Differences in Bad Boy ZT Elite Parts Schematics?
Bad Boy ZT Elite models produced between 2017 and current production runs feature minor structural design changes, including updates to deck lift linkages, pulley bracket configurations, and engine options (Kawasaki FR series vs. Kohler 7000 series). Locate your unit’s serial number plate on the main frame rail beneath the seat assembly. The 10th digit or the front prefix sequence decodes the production model year, ensuring you select the correct parts list when ordering replacement frame brackets or drive belts.
What Are the Factory Deck Belt Part Numbers Across Different Deck Sizes?
Belt lengths vary based on deck width configuration. The 48-inch deck uses OEM part number 041-1470-00 (5/8″ x 147″ pitch length). The 54-inch deck specifies OEM part number 041-1650-00 (5/8″ x 165″ pitch length). The 60-inch deck requires OEM part number 041-1750-00 (5/8″ x 175″ pitch length). Always verify part numbers on the deck belt routing decal located on the inner belt cover before purchasing replacement drive belts.
Where Are the Transaxle Oil Expansion Tanks Located on the Chassis?
The Hydro-Gear ZT-3100 expansion tanks are mounted high on the rear engine sub-frame support posts, behind the seat platform. The parts schematic illustrates the clear plastic tanks connected to the upper port of each transaxle housing via 1/2-inch ID rubber hydraulic hose. Maintain cold fluid levels at the “Full Cold” line marked on the reservoir body to allow space for thermal expansion during high-load operating conditions.
What Is the Correct Air Gap Adjustment for the Warner PTO Electric Clutch?
The specified armature air gap clearance for the Warner electric PTO clutch on the ZT Elite is 0.012 to 0.024 inches (0.30 to 0.60 mm). If the clutch slips or fails to pull in when hot, insert a feeler gauge through the three cutouts around the clutch housing perimeter. Turn the three 1/2-inch adjustment lock nuts clockwise or counterclockwise until equal drag is felt on the feeler gauge at all three points.
How Are Safety Interlock Switches Wired in the Electrical Blueprint?
The safety interlock system uses three primary switches connected in series to the starter relay trigger circuit: the seat occupancy switch (normally open), the dual steering control lever park-brake switches (normally open), and the PTO switch (normally closed when disengaged). If any switch in the chain fails to trip when activated, current flow to the starter solenoid coil is interrupted, preventing the engine from cranking.
Step-by-Step Guide to Understanding the Bad Boy Zt Elite Parts Diagram
Identify – Determine your Bad Boy ZT Elite deck size (48, 54, or 60 inches) and engine model configuration.
Locate – Find the specific component system within the parts diagram, such as the deck drive, transaxle, or frame layout.
Reference – Match exploded view key numbers directly to the official OEM part numbers in the diagram legend.
Connect/Route – Follow the structural schematic for correct belt routing paths, tensioner spring placement, and hardware stacking.
Verify – Check all reassembled components against required torque specifications, including tightening spindle bolts to 75 ft-lbs.
Troubleshoot – Inspect moving parts for binding or misalignment if deck vibration or belt slippage occurs after reassembly.
