Cedar 3 Bin Compost System Diagram: 2026 Layout Setup

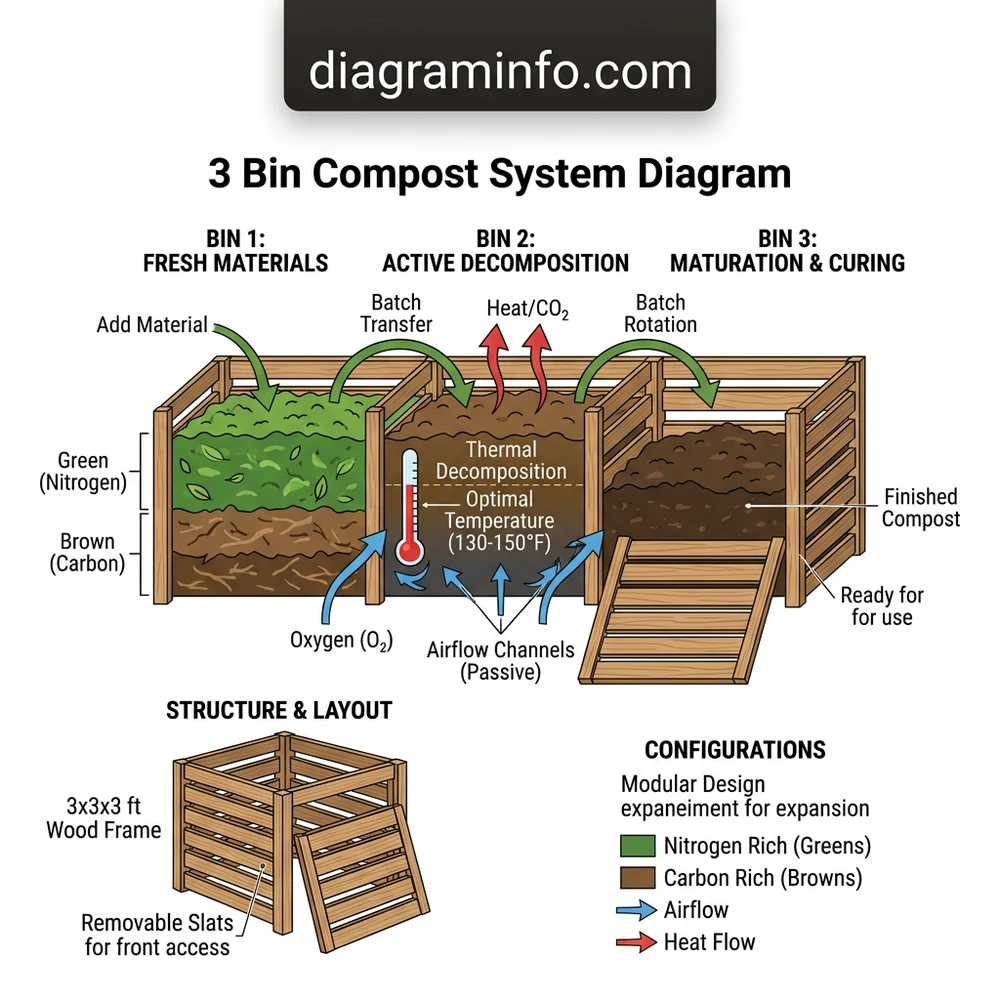

The 3 bin compost system diagram illustrates a continuous 3-bay modular wooden layout, typically 3x3x3 feet per bay (27 cu ft capacity each). Bin 1 accepts raw organic waste, Bin 2 holds active curing compost undergoing thermal decay (135°F–160°F), and Bin 3 stores finished humus, connected by removable front slats for easy batch movement.
📌 Key Takeaways
- Optimal bin dimensions are 3x3x3 feet (27 cubic feet per bay) to maintain internal temperatures between 135°F and 160°F.
- Removable front slat configuration allows easy pitchfork access and batch transfer between adjacent processing bins.
- 1/2-inch galvanized hardware cloth or mesh siding ensures necessary lateral airflow while blocking pest intrusion.
- Anaerobic conditions occur if moisture exceeds 60% or pile compaction prevents central oxygen distribution.
- Consult local agricultural extension guidelines or structural engineers when scaling total system volume past 3 cubic yards.
An engineered 3 bin compost system provides a continuous-batch aerobic processing framework designed for precise thermal management, organic waste transformation, and scalable material handling. Unlike single-chamber static piles, a multi-stage bin configuration establishes dedicated zones for initial decomposition, thermophilic curing, and final stabilization. Standardized CAD schematics and structural blueprints dictate specific volumetric sizing—typically 3x3x3 feet to 4x4x4 feet per bay—to sustain internal core temperatures between 135°F and 160°F. Understanding the structural layout, airflow distribution channels, and material specifications ensures optimal bio-chemical processing efficiency and maximum equipment service life under continuous moisture exposure.
3 Bin Compost System Diagram: Structural Component Overview
Every element within a professional 3 bin compost system layout serves a specific biomechanical or structural function. A standard engineering blueprint divides the assembly into load-bearing framing, ventilated wall enclosures, front access channels, and vector-proof base lining. Failure to adhere to specified structural tolerances can result in premature timber rot, inadequate static pressure for passive ventilation, or structural collapse under wet bulk density conditions exceeding 800 lbs per cubic yard.
Recommended Best Deal Products
| Component ID | Material Specification | Engineering Function |
|---|---|---|
| Vertical Corner Posts | 4×4 Pressure-Treated ACQ or Western Red Cedar | Primary load-bearing superstructure; anchors base to ground level. |
| Side & Rear Wall Slats | 1×6 Cedar or Composite Decking (0.75″ Air Gaps) | Provides lateral biomass retention while allowing passive convective airflow. |
| Front Slat Guide Channels | 2×2 Pressure-Treated Lumber or Aluminum U-Channel | Holds removable front retaining boards to facilitate loader access and manual turning. |
| Base Hardware Mesh | 0.5-inch 19-Gauge Hot-Dip Galvanized Wire Cloth | Pest barrier preventing burrowing vectors while retaining fine particulate. |
| Hinged Top Covers | 2×2 Frame with Corrugated Polycarbonate Sheeting | Regulates precipitation influx and retains solar thermal radiation. |
To ensure structural integrity under maximum hydraulic load, all mechanical fasteners must consist of 305 or 316 stainless steel screws (3-inch #10 for framing, 1-5/8 inch for mesh retention). Galvanized framing fasteners are susceptible to accelerated corrosion from bio-organic acid runoff.
The structural layout relies on four primary 4×4 vertical support members set on concrete footing pads or directly embedded in ground level aggregate. Intersecting partition walls isolate the three processing bays, ensuring that active thermophilic degradation in Bay 1 does not contaminate mature humus in Bay 3. Aligning build practices with standardized timber fabrication guidelines ensures the frame maintains square alignment through repeated moisture and freezing expansion cycles.
Analyzing the 3 Bin Compost System Schematic and Layout Configuration
The operational schematic of a 3 bin compost system relies on a progressive batch processing sequence. Organic material transitions laterally through three discrete environmental stages: raw batch receiving, thermophilic breakdown, and mesophilic stabilization.
Each individual bin bay must maintain a minimum working volume of 27 cubic feet (1 cubic yard, measured 3ft x 3ft x 3ft) to establish the critical mass required for self-insulating thermophilic heating above 135°F.
Execution of the 3 bin workflow follows a strict physical transfer protocol derived from system layout blueprints:
Stage 1: Active Material Deposition (Bin 1)
Raw feedstock is layered in Bin 1 according to a Carbon-to-Nitrogen (C:N) ratio of approximately 30:1. The bottom layer utilizes 4 to 6 inches of coarse woody material (chipped brush) placed directly over the 0.5-inch hardware cloth to promote baseline convective airflow. Once Bin 1 reaches its 36-inch fill height, the pile self-insulates and initiates intense microbial activity. Internal probes should monitor temperatures until the core reaches 135°F–160°F for a minimum of 72 consecutive hours to eliminate pathogens and weed seeds.
Stage 2: Aerobic Inversion and Curing (Bin 2)
When core temperatures in Bin 1 begin to decline below 110°F (indicating localized oxygen depletion and carbon exhaustion), the entire volume is manually or mechanically inverted into Bin 2. This transfer breaks up anaerobic pockets, introduces fresh oxygen into the matrix, and redistributes un-decomposed perimeter materials into the hot central core. This process reflects principles found in commercial passive aeration soil systems, where mechanical movement restores macro-pore continuity.
Stage 3: Humus Maturation and Screening (Bin 3)
After a second heating cycle in Bin 2, the curing biomass is transferred into Bin 3. Moisture content drops from 60% field capacity down to 40%. In this final bay, actinomycetes and fungal colonies stabilize the material into rich, finished compost. The front removable slat assembly allows workers to shovel finished product directly through a 0.25-inch rotary or flat shaker screen.
Diagnosing Process Anomalies from the 3 Bin Compost System Blueprint
Deviations in thermal profiles, moisture retention, or mechanical alignment indicate design or operational failures. Utilize this diagnostic framework to identify root causes using structural schematics and physical indicators.
Hydrogen sulfide (H2S) odors indicate severe anaerobic conditions caused by waterlogging or inadequate wall spacing. Do not close top lids completely on anaerobic bins, as explosive methane concentrations, though rare, can accumulate in sealed enclosures under thermal stress.
Issue 1: Core Temperature Fails to Exceed 100°F in Bin 1
Root Cause: Insufficient volumetric mass, low nitrogen content, or excessive heat loss through wall gaps.
Correction: Verify pile dimensions equal or exceed 36 inches in all axes. Check C:N balance; add high-nitrogen accelerants (green waste, manure) if C:N exceeds 40:1. In cold climates, line interior side walls with temporary 0.5-inch exterior-grade plywood shields to reduce wind-driven thermal convection while retaining rear wall exhaust capacity.
Issue 2: Persistent Anaerobic Odor During Stage 2 Transfer
Root Cause: Pore space collapse due to excessive moisture (>65% field capacity) or structural compaction.
Correction: Incorporate 0.75-inch hardwood chips during the invert transfer from Bin 1 to Bin 2. Inspect the lower wall air gaps shown in your structure schematic; clear any dried slurry or root intrusion blocking the lower 0.75-inch wall slots.
Issue 3: Front Retaining Slats Binding in Guide Channels
Root Cause: Out-of-plumb corner posts caused by ground frost heave or wood swelling from direct sap absorption.
Correction: Re-verify post vertical alignment using a plumb line. Sand down edge clearances on removable slats, maintaining a 0.25-inch expansion allowance on each side channel track as specified in the structural configuration blueprint. Similar tolerances are required in commercial anaerobic bio-digester schematics to accommodate material thermal expansion.
3 Bin Compost System Diagram Technical FAQ
What Are the Optimal Dimensional Specifications for the 3 Bin Compost System Layout?
Each individual bin chamber should measure 36 inches to 48 inches wide, deep, and high. Volumes below 27 cubic feet (3x3x3 feet) lack sufficient thermal mass to maintain active thermophilic decomposition. Bins larger than 48 inches wide create internal compaction zones that impede ambient oxygen penetration to the center core.
Why Does the 3 Bin Compost System Diagram Specify Removable Front Slats?
Removable front slats allow incremental height adjustments as biomass volume changes. Dropping individual 1×6 boards into vertical U-channels allows operators to load or turn material without lifting heavy loads over a fixed 3-foot wall, reducing operator fatigue and simplifying loader bucket access.
How Does Hardware Cloth Mesh Gauge Affect System Airflow and Pest Retention?
A 0.5-inch 19-gauge hot-dip galvanized hardware cloth strikes the optimum balance between structural longevity, rodent exclusion, and air permeability. Mesh openings larger than 0.5 inches allow burrowing rodents to enter, while smaller mesh screens (such as 0.25-inch) clog rapidly with damp organic particles, cutting off lower convective airflow.
What Moisture Levels Are Indicated in the Thermal Batch Configuration Schematic?
Target moisture content varies across bays: Bin 1 requires 55% to 65% moisture (feels like a wrung-out sponge) to optimize bacterial reproduction. Bin 2 should be maintained at 50% to 55% for fungal digestion. Bin 3 dries to 35% to 45% moisture to prepare the finished humus for screening and long-term storage.
Step-by-Step Guide to Understanding the 3 Bin Compost System Diagram
Identify – Analyze the three-bay structure layout, noting dimensions (3x3x3 ft) and airflow gap specifications on the diagram.
Locate – Select a level, well-drained outdoor location near a water source to position the 3 bin frame ground support posts.
Reference – Use the configuration blueprint to assemble the 4×4 corner posts, divider frames, and 1/2-inch mesh side panels.
Connect/Route – Install side support channels and slide in the removable 1×6 front slats in sequence for each individual bay.
Verify – Ensure proper alignment of front channels, check for adequate ventilation clearance, and test slat removal sliding motion.
Troubleshoot – Inspect frame connections for sagging under weight, adjust moisture levels, or add wire mesh if pests bypass gaps.
