Ceiling Fan 3-Way Switch Wiring Diagram 2026: Connection Mapping
The ceiling fan 3-way switch wiring diagram shows component layout, connection points, and routing paths. Use it to identify parts, diagnose issues, and follow correct installation or repair procedures.
📌 Key Takeaways
- Understanding the ceiling fan 3-way switch wiring diagram is essential for proper implementation
- Each component has a specific role and connection point
- Following safety guidelines prevents common mistakes
- This diagram serves as a reference for practical applications
- Regular review helps maintain accurate understanding
Precise electrical wiring is paramount in both industrial settings and advanced residential projects, demanding a deep understanding of circuit design and component interaction. This guide provides a detailed “ceiling fan 3-way switch wiring diagram” to facilitate correct installation and operation of a ceiling fan controlled from two distinct locations. Mastering this configuration ensures not only optimal functionality but also strict adherence to safety protocols and electrical codes, critical for avoiding costly reworks or hazardous conditions. Understanding each wire’s function and its exact terminal assignment is the foundation of any reliable electrical system.

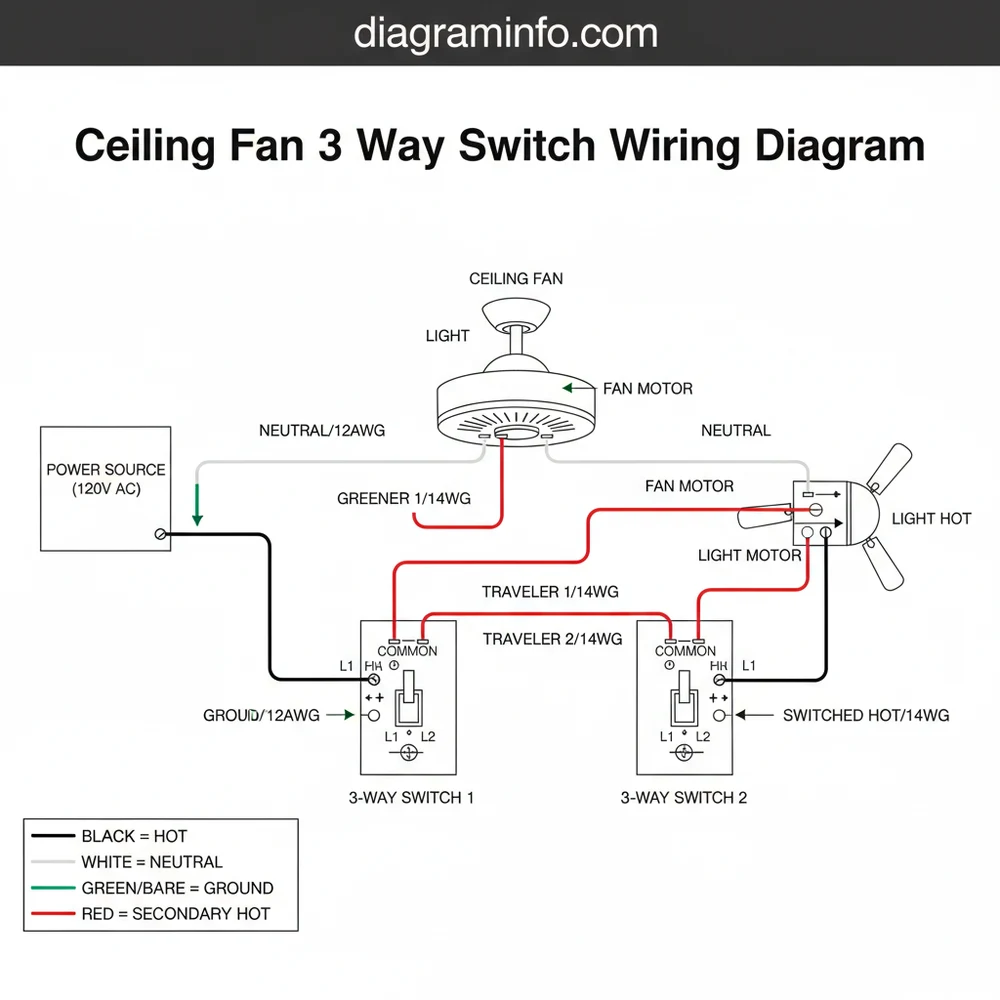

(Imagine a detailed wiring diagram showing:
1. An electrical panel connection with Line (Hot), Neutral, Ground.
2. A 2-wire cable (Black, White, Ground) entering Switch Box 1.
3. Switch 1 (3-way) with common, two traveler terminals, and ground screw.
4. A 3-wire cable (Black, Red, White, Ground) connecting Switch Box 1 to Switch Box 2.
5. Switch 2 (3-way) with common, two traveler terminals, and ground screw.
6. A 2-wire cable (Black, White, Ground) leaving Switch Box 2 to the Ceiling Fan.
7. Ceiling Fan unit with internal wiring (Hot, Neutral, Ground).
Arrows indicating current flow and labels for each wire and terminal.)
Wire Color Reference Table
| Wire Color (North America) | Function | Pin/Terminal Identification | Notes |
|---|---|---|---|
| Black | Unswitched Hot (Line) OR Switched Hot (Load) OR Traveler | Brass Screw (Common/Line/Load), Traveler Screw | Always carries voltage. Can be incoming line, outgoing load, or one of the two traveler wires between 3-way switches. |
| Red | Switched Hot (Load) OR Traveler | Brass Screw (Load), Traveler Screw | Typically used as a traveler wire in 3-wire circuits or for switched loads. Always carries voltage. |
| White | Neutral Wire | Silver Screw (Neutral Bus/Terminal) | Returns current to the source. Must never be used as a hot wire unless properly re-identified (e.g., wrapped in black or red tape), which is generally not recommended for clarity in modern installations. |
| Green or Bare Copper | Equipment Grounding Conductor (EGC) | Green Screw, Grounding Bus Bar | Provides a safe path for fault current. Essential for safety and must be properly connected to all metal enclosures and devices. |
Step-by-Step Connection Guide
Successfully wiring a ceiling fan with 3-way switch control requires meticulous attention to the “ceiling fan 3-way switch wiring diagram” and a clear understanding of each connection point. This guide assumes power is fed to the first switch box, and a 3-wire cable (14/3 or 12/3 AWG) runs between the two 3-way switch boxes. Always confirm the power is OFF at the main breaker before proceeding with any electrical work.
Before commencing any wiring, always de-energize the circuit at the main electrical panel. Verify zero voltage presence using a non-contact voltage tester or multimeter. Failure to do so can result in severe injury or electrocution. All work must comply with local electrical codes, such as the National Electrical Code (NEC).
- Prepare Wiring and Components: Ensure you have two 3-way switches, appropriate wire nuts, electrical tape, and cable clamps. The incoming power will be a 2-wire cable (Black, White, Ground), and the connection between the two 3-way switches will require a 3-wire cable (Black, Red, White, Ground). The outgoing connection to the fan will typically be a 2-wire cable (Black, White, Ground).
- Wire the First 3-Way Switch (Switch 1 – Power Source):
- Ground Wire (Bare/Green): Connect the incoming bare copper or green insulated ground wire, the ground wire from the 3-wire cable to Switch 2, and a pigtail to the green ground screw on Switch 1. All ground wires in the box should be bonded together.
- Incoming Hot Wire (Black): Identify the incoming “hot wire” (Line) from the electrical panel. This black wire carries constant 120V AC. Connect this black wire directly to the dark-colored “Common” screw terminal on Switch 1. Refer to your specific switch’s pin assignment, as the common terminal is usually distinct.
- Traveler Wires (Black & Red – to Switch 2): Connect the black wire from the 3-wire cable (running to Switch 2) to one of the two lighter-colored “Traveler” terminals on Switch 1. Connect the red wire from the 3-wire cable to the remaining “Traveler” terminal on Switch 1.
- Neutral Wire (White): The incoming white “Neutral wire” from the panel will not connect directly to Switch 1. Instead, it will be spliced to the white neutral wire of the 3-wire cable running to Switch 2. This creates a continuous neutral path. Use a wire nut for this connection. In some legacy systems, a white wire might be re-identified as a hot; however, for modern installations, maintaining clear neutral identification is crucial.
- Wire the Second 3-Way Switch (Switch 2 – Fan Load):
- Ground Wire (Bare/Green): Connect the incoming bare copper or green ground wire from Switch 1, the ground wire from the 2-wire cable going to the fan, and a pigtail to the green ground screw on Switch 2. All ground wires in this box should be bonded.
- Traveler Wires (Black & Red – from Switch 1): Connect the black and red “Traveler wires” originating from the 3-wire cable (coming from Switch 1) to the two lighter-colored “Traveler” terminals on Switch 2. It doesn’t matter which traveler goes to which terminal, as long as they are on the traveler terminals.
- Switched Hot Wire (Black – to Fan): Identify the black wire from the 2-wire cable running to the ceiling fan. This is your “switched hot” (Load) wire. Connect this black wire to the dark-colored “Common” screw terminal on Switch 2.
- Neutral Wire (White): The white “Neutral wire” from the 3-wire cable (coming from Switch 1) will be spliced to the white neutral wire of the 2-wire cable going to the fan. This ensures the fan receives a continuous neutral return path. Use a wire nut for this connection.
- Wire the Ceiling Fan Unit:
- Ground Wire (Bare/Green): Connect the bare copper or green ground wire from the 2-wire cable (coming from Switch 2) to the green ground screw or terminal on the fan mounting bracket and the fan unit itself.
- Switched Hot Wire (Black): Connect the black “switched hot” wire from the 2-wire cable (coming from Switch 2) to the black (or sometimes blue for light kit) hot wire lead on the ceiling fan. Secure with a wire nut.
- Neutral Wire (White): Connect the white “neutral wire” from the 2-wire cable (coming from Switch 2) to the white neutral wire lead on the ceiling fan. Secure with a wire nut.
- Final Inspection and Testing: Once all connections are secure and neatly organized within the electrical boxes, verify all ground wires are connected, and no bare conductors are exposed. Install the switches and fan according to manufacturer specifications. Restore power at the main electrical panel and test the functionality from both 3-way switch locations. For advanced circuits, especially those integrating smart home controls, understanding smart switch wiring diagrams can be beneficial.
Common Wiring Mistakes & Troubleshooting
Even seasoned technicians can encounter issues with 3-way switch installations due to the inherent complexity. Understanding common pitfalls detailed in the “ceiling fan 3-way switch wiring diagram” is crucial for effective troubleshooting.
Attempting to troubleshoot energized circuits carries significant risk. Always disconnect power at the circuit breaker before investigating wiring issues. Use appropriate personal protective equipment (PPE) and adhere to lockout/tagout procedures if working in a commercial or industrial environment.
- Misidentification of the Common Wire:
- Consequence: The fan will likely not operate from either switch, or it will only operate from one switch but not the other, leading to intermittent or no functionality. The common wire is the critical path for either the incoming line voltage or the outgoing load voltage.
- Fix: Power off the circuit. On a 3-way switch, the common terminal is typically identified by a darker screw (often brass or black) or labeled “COM”. Use a multimeter (with power off) to trace continuity, or (with extreme caution and power on temporarily for testing) a voltage tester to find the constantly hot wire in the first switch box to connect to its common, and the wire leading to the fan’s hot terminal for the second switch’s common. Ensure these critical “hot wire” connections are correct.
- Incorrect Traveler Wire Connections:
- Consequence: The fan may only work when both switches are in a specific position, or it may not work at all. This results in unpredictable circuit behavior.
- Fix: Power off the circuit. The two traveler wires (typically black and red in the 3-wire cable between switches) must be connected to the two lighter-colored traveler terminals on both 3-way switches. The specific traveler wire (black or red) does not need to connect to the same physical terminal (e.g., top traveler terminal on Switch 1 doesn’t have to go to top traveler terminal on Switch 2), but both traveler wires must connect to both traveler terminals on each switch. Verify the “pin assignment” for each switch.
- Missing or Improper Ground Wire Connections:
- Consequence: While the fan might operate, the circuit lacks crucial safety protection. In the event of an electrical fault, metal components (like the fan housing or switch plate) could become energized, posing a severe shock hazard.
- Fix: Power off the circuit. Ensure all bare copper or green insulated “ground wire” conductors are properly connected to the green ground screws on each switch, the fan mounting bracket, and ultimately to the equipment grounding conductor in the electrical panel. All ground wires within a box should be twisted together and pigtailed to each device requiring grounding. This ensures a continuous path for fault current, often referred to as “terminal block” grounding.
- Loose or Damaged Connections:
- Consequence: Intermittent operation, flickering lights, localized heat build-up at the connection point, or complete failure of the circuit. Loose connections increase resistance, leading to “voltage” drops and potential fire hazards.
- Fix: Power off the circuit. Visually inspect all wire nuts and screw terminals. Ensure wires are stripped to the correct length (typically 1/2 to 3/4 inch) and fully inserted into wire nuts or securely wrapped clockwise around screw terminals. Tighten all screw terminals firmly, but do not overtighten to avoid stripping the screw or damaging the device. Confirm the appropriate “gauge” wire is used for the circuit’s amperage.
- Neutral Wire Misuse:
- Consequence: If a “neutral wire” is mistakenly used as a hot wire (e.g., as a traveler without re-identification), it can lead to short circuits, device damage, and serious safety risks.
- Fix: Power off the circuit. Adhere strictly to the standard “wire color code.” White wires are for neutrals only in this application. Never use a white wire to carry switched or unswitched hot unless it is permanently re-identified with black or red electrical tape at all accessible points, which is generally discouraged for clarity. Ensure neutrals are only spliced to other neutrals.
For installations requiring high precision or adherence to stringent industrial standards, using crimped spade or ring terminals under screw connections is preferred over direct wire wraps. This ensures maximum contact surface area and pull-out resistance. Always match the terminal gauge to the wire gauge for optimal performance, especially when dealing with higher amperage circuits where specific torque specifications for electrical connections are often mandated.
FAQ
What specific wire gauge should be used for a standard ceiling fan 3-way switch circuit?
For typical residential ceiling fan circuits in North America, 14 AWG (American Wire Gauge) copper wire is standard for a 15-amp circuit, and 12 AWG copper wire for a 20-amp circuit. Always match the wire gauge to the circuit breaker’s amperage rating to prevent overheating and comply with NEC guidelines. Most ceiling fans draw minimal current, making 14 AWG sufficient, but always check the fan’s power consumption and your home’s existing circuit capacity. If you are extending a 20-amp circuit, you must use 12 AWG wire.
Can I use a dimmer switch in a 3-way ceiling fan circuit?
Yes, but with critical caveats. Only one of the two 3-way switches in the circuit can be a dimmer, and it MUST be a specific 3-way compatible dimmer switch, not a standard single-pole dimmer. Additionally, the dimmer must be rated for the type of load (e.g., incandescent, LED, fan motor). For ceiling fans, you usually need a separate fan speed control and a light dimmer if you want to control both functions, or a specialized fan/light 3-way control system. Standard dimmers are not designed for motor loads and can damage the fan motor. For comprehensive understanding, review different types of dimmer switches and their applications.
What if my existing wiring colors don’t match the standard wire color code in the diagram?
Older installations or specific regional practices might deviate from the standard “wire color code” (Black for hot, White for neutral, Green/Bare for ground, Red for switched hot/traveler). In such cases, a multimeter is indispensable. Power off the circuit, then use the multimeter to identify continuous hot wires (line), switched hot wires (load), and neutral wires. Always verify the function of each wire before making connections, irrespective of its insulation color, to ensure correct “pin assignment.” If a white wire is used as a hot, it should be re-identified with black or red electrical tape, although this is less common in modern practices.
How do I test the 3-way switch circuit before installing the ceiling fan?
After wiring both 3-way switches and ensuring all wire nuts are secure, but before installing the fan, you can perform a continuity test (with power off) or a voltage test (with extreme caution and power on temporarily). With power off, use a multimeter’s continuity setting across the common and each traveler terminal, cycling the switch, to ensure proper internal switching. With power on, use a voltage tester at the location where the fan connects: the black wire should show 120V AC when the switches are in one combination (fan on), and 0V AC when in another combination (fan off). This confirms the “switched hot” functionality of the “hot wire” and the integrity of the “terminal block” connections.
Per NEC Article 310.15, the ampacity of insulated conductors (e.g., 14 AWG and 12 AWG) is specified, considering factors like conductor material, insulation type, and ambient temperature. For residential wiring, 14 AWG is typically rated for 15 Amps and 12 AWG for 20 Amps under standard conditions. Always refer to the latest NEC edition for precise “gauge” and “voltage” handling requirements.
