Kohler Plumbing Parts of a Toilet Diagram: 2026 Component Guide
A standard parts of a toilet diagram details the tank assembly (fill valve, flush valve, flapper, overflow tube) and bowl assembly (siphon jet, integrated P-trap style trapway, closet flange). Water enters via the supply line, fills the tank to 0.5 inches below the overflow pipe, and discharges into the waste drain assembly upon flushing.
📌 Key Takeaways
- Tank water line must sit 0.5 to 1 inch below the top of the overflow tube to prevent continuous water loss.
- The internal S-trap/P-trap design inside the ceramic bowl creates a water seal that blocks sewer gas backflow.
- Wax ring closet flange seals require hand-tightening plus a 1/4 turn (30-40 in-lbs torque) to prevent leaks without cracking porcelain.
- Worn flappers and mineral-clogged fill valve diaphragms cause over 80% of phantom flushing and run-on issues.
- Consult a licensed plumber if main waste line backups reach the vent pipe or cause subfloor structural saturation.
Understanding the internal schematics and hydraulic routing of a standard gravity-fed flush toilet requires a clear visual breakdown. Whether servicing commercial fixtures or modern residential installations, analyzing a parts of a toilet diagram allows technicians to isolate metering valves, seals, and waste path components quickly. Modern fixtures rely on precise fluid dynamics across the tank assembly, bowl, and waste outlet, requiring exact mechanical alignments to prevent sewer gas egress and fluid leaks. This guide examines every subsystem shown in the schematic, providing structural dimensions, material standards, and diagnostic procedures for plumbing professionals and service engineers.

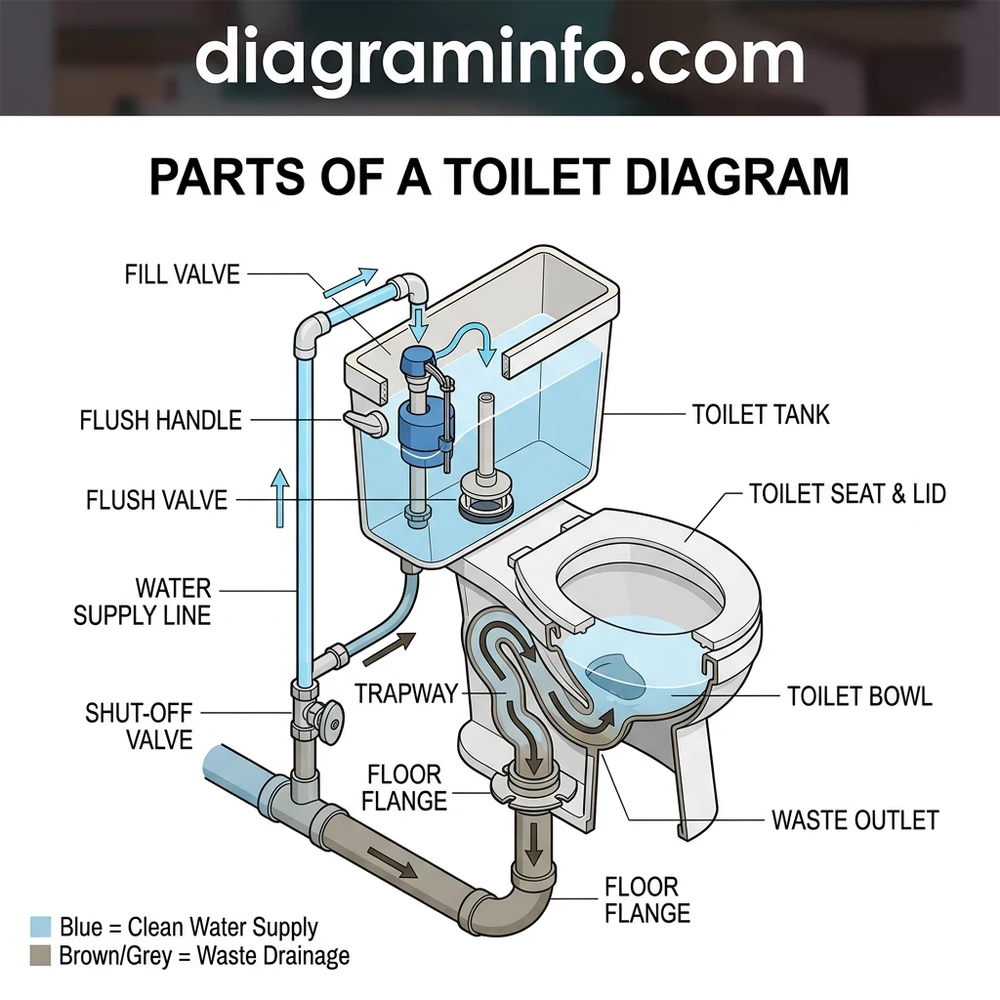

Anatomy and Callouts: Parts Of A Toilet Diagram Breakdown
Standard gravity-flush fixtures utilize two primary sub-assemblies: the fluid supply and tank apparatus, and the waste disposal bowl casting. As illustrated in the schematic, water enters via a 3/8-inch compression supply line into the fluid metering fill valve (ballcock assembly). An adjustable float mechanism governs the fill cutoff point, calibrated according to manufacturer specs to maintain the static water line exactly 1/2 inch below the top edge of the overflow tube.
The flush valve assembly sits at the lowest elevation of the tank chamber, utilizing either a 2-inch or 3-inch elastomeric flapper—or a vertical canister tower valve on high-efficiency 1.28 GPF (Gallons Per Flush) systems. Actuation via the trip lever lifts the seal, releasing stored volume into the bowl through rim jets and the primary siphon jet orifice located at the bowl throat.
The lower vitreous china casting functions as an engineered fluid trapway, serving the same hydraulic isolation role as an external P-trap or waste trap. This integrated smooth-bore pathway connects the bowl to the building’s waste infrastructure via a 3-inch or 4-inch floor-mounted closet flange. Between the horn of the bowl and the flange, a high-density wax ring or reinforced synthetic seal establishes a gas-tight, fluid-proof barrier. Where direct stack venting is unachievable due to architectural constraints, an Air Admittance Valve (AAV valve) or vertical vent pipe maintains atmospheric equalization across the drain assembly, preventing trap siphonage.
| Component Name | Standard Material Spec | Dimensional / Operating Parameter |
|---|---|---|
| Fill Valve (Ballcock) | Acetal Plastic / Polycarbonate | 20–80 PSI working inlet pressure |
| Flush Valve & Tower | ABS Plastic / Silicone Seal | 2-inch or 3-inch seat diameter |
| Integrated Trapway | Vitreous China (Glazed Internal) | 2-inch minimum fully glazed passage |
| Closet Flange & Bolts | Schedule 40 PVC / Solid Brass | 1/4″-20 x 2-1/4″ bolt dimensions |
| Wax Ring / Gasket | Petroleum Wax / Polyolefin Sleeve | Conforms to ASME A112.19.2 |
Modern 1.28 GPF and dual-flush units rely on higher tank head pressure and wider 3-inch flush valves rather than higher water volume. Glazing quality inside the vitreous china trapway directly affects coefficient of friction, impacting discharge velocity across long horizontal waste branch lines.
How to Trace Hydraulic Lines on Parts Of A Toilet Diagram
Reading a technical schematic for fixture installation or system modeling requires tracing the sequence of fluid motion across four operational phases: static charge, activation, evacuation, and seal replenishment.
- Phase 1: Static Charge and Metering: High-pressure potable water enters through the wall-stub shutoff valve into a flexible braided stainless steel tailpiece connector. The fill valve modulates flow until the internal diaphragm closes under float arm buoyancy. Simultaneously, a small fraction of water is routed through the refill tube into the vertical overflow pipe to maintain static water height in the bowl trapway.
- Phase 2: Mechanical Actuation: Depressing the tank lever rotates the lift arm, raising the flapper or tower canister via a stainless steel link chain. Water cascades through the tank outlet port into the bowl rim distribution channel and jet manifold.
- Phase 3: Siphonic Evacuation: As liquid rapidly fills the bowl throat, air inside the integrated P-trap pathway is displaced. When the trapway fills completely, a natural siphon differential forms between the bowl atmospheric level and the downstream vertical discharge line. This negative pressure pulls effluent cleanly into the drain assembly.
- Phase 4: Siphon Break and Refill: Air enters the throat when the bowl empties, breaking the siphonic pull. The flapper drops back onto its valve seat. Water continuing to flow through the fill valve’s refill tube replenishes the water seal inside the bowl, blocking sewer gas intrusion.
Standard rough-in dimension from the finished wall surface to the center of the floor closet flange is 12 inches nominal (optional 10-inch or 14-inch configurations exist). Flange height must sit 1/4-inch above finished floor grade to properly compress the wax gasket.
When reviewing overall building layouts, ensure that branch drain slope adheres to residential DWV pipe sizing guidelines to avoid flow stagnation. In heavy-use commercial environments, engineers often compare these gravity tank schematics against commercial flushometer installation schematics to determine pipe sizing requirements. Furthermore, while residential waste branches are kept separate, understanding shared main stack dynamics is as crucial as analyzing kitchen drain assembly and garbage disposal plumbing configurations.
Diagnosing Faults in the Parts Of A Toilet Diagram Waste Assembly
When diagnosing mechanical or hydraulic failure modes referenced in the schematic, systematic testing prevents premature component replacement. Troubleshooting begins by correlating visible symptoms with specific sub-assemblies on the schematic.
A frequent failure point involves continuous water leakage from the tank into the bowl. This occurs when chlorine exposure degrades the rubber flapper face, or when the fill valve altitude adjustment fails, forcing excess fluid into the overflow tube. Testing with dye tablets in the tank and isolating the flapper boundary quickly confirms seal integrity.
Another major structural issue is leaks surrounding the closet flange junction. If the toilet rocks on an uneven floor, the wax seal matrix shears, allowing waste liquid and volatile organic compounds (VOCs) to migrate into the subfloor. Inspecting alignment between brass closet bolts, slip joint washers on incoming supply lines, and PVC flange slots is critical during routine service overhauls.
Do not exceed 30 to 40 inch-pounds of torque when tightening brass closet bolts or tank-to-bowl mounting hardware. Overtightening will fracture the vitreous china casting, causing immediate catastrophic water damage.
Technical FAQ: Parts Of A Toilet Diagram Questions Answered
What is the standard rough-in measurement for a toilet flange on a plumbing diagram?
According to standard residential building codes, the standard rough-in distance is 12 inches measured from the unfinished framing stud wall (or finished wall surface) to the exact center point of the waste flange. Specialty offset flanges or dedicated 10-inch and 14-inch toilet rough-in models are specified for non-standard rough-in scenarios.
How does an AAV valve function compared to a standard vent pipe?
A standard vent pipe extends vertically through the roof envelope to equalize pressure and vent sewer gases outdoors. An Air Admittance Valve (AAV valve) is a mechanical, one-way spring- or gravity-loaded valve installed locally on a branch line. It opens under negative pressure during a flush to introduce ambient room air into the drain assembly, then seals tight under neutral or positive pressure to prevent gas escape.
Why is an integrated S-trap or P-trap path engineered inside the toilet porcelain casing?
Unlike sinks which utilize an exposed external P-trap joined by a threaded slip joint, toilets feature a fully glazed internal siphon trapway molded directly into the vitreous china casting. This internal pathway creates the precise geometric constriction and siphon action necessary to discharge solid waste cleanly while retaining a static water trap seal.
What torque specifications apply to closet flange hold-down bolts?
Manufacturer technical specifications recommend tightening closet bolts to hand-tight plus a half-turn, equating to approximately 30 to 40 inch-pounds (in-lbs) using a hand wrench. Always use plastic shims to level the fixture base on uneven flooring rather than torquing flange bolts tighter, which risks cracking the china base flange.
Can a toilet drain assembly share a branch waste line with a garbage disposal or sink drain?
No. Plumbing codes strictly prohibit direct horizontal connection of fixtures discharging food solids or greywater—such as a kitchen sink with a garbage disposal—upstream of a water closet branch line without proper stack venting and pipe sizing separation. Toilet waste branches must connect directly to a dedicated 3-inch or 4-inch soil pipe branch or main stack.
Step-by-Step Guide to Understanding the Parts Of A Toilet Diagram
Identify – Locate the specific repair area on the parts of a toilet diagram, distinguishing between tank control hardware and bowl drainage components.
Locate – Isolate the water supply shut-off valve behind the toilet bowl and turn it clockwise to stop incoming water pressure.
Reference – Match the physical component (such as fill valve, flapper, or closet flange) with its labeled counterpart on the schematic diagram.
Connect/Route – Install the replacement part, ensuring proper alignment of the fill tube into the overflow pipe or seating the flapper cleanly over the flush valve seat.
Verify – Turn on the water supply, inspect tank fill levels to ensure water stops 0.5 inches below the overflow pipe, and perform test flushes.
Troubleshoot – Check for slow leaks around the tank-to-bowl gasket, wax ring base, or waste line integration with the vent pipe system.
