7-Way Trailer Battery Charging Diagram: Installation Setup 2026
To wire auxiliary 12V battery charging on a standard 7-way RV blade connector, connect Pin 4 (Black or Orange wire, 10-gauge) to the tow vehicle’s 12V positive terminal via a 30A or 40A auto-reset circuit breaker. Pin 1 (White wire, 10-gauge) provides the primary ground back to the vehicle chassis.
📌 Key Takeaways
- Auxiliary power circuits require minimum 10 AWG wire protected by a 30A or 40A auto-reset circuit breaker.
- Pin 4 on a standard 7-way RV blade plug delivers 12V auxiliary power directly from the tow vehicle alternator.
- The ground wire (Pin 1, 10 AWG White) must match the current capacity of the 12V charge line.
- Excessive voltage drop from undersized wiring is the primary cause of slow trailer battery charging.
- A DC-to-DC charger is recommended when charging lithium (LiFePO4) batteries from a tow vehicle alternator.
Maintaining reliable charge across auxiliary batteries in travel trailers, dump trailers, and enclosed cargo rigs requires an accurate understanding of standard towing schematics. While a traditional 4-pole flat connector handles essential illumination such as running lights, left turn signal, and right turn signal, it lacks the dedicated high-current conductor needed to charge an onboard battery. To supply active auxiliary power and operate an electric brake system, tow vehicles utilize an industry-standard 7-way RV blade connector. Interpreting a trailer battery charging diagram allows technicians and equipment owners to wire charge lines, brake controllers, and isolation relays correctly while preventing severe voltage drop across long wire runs.

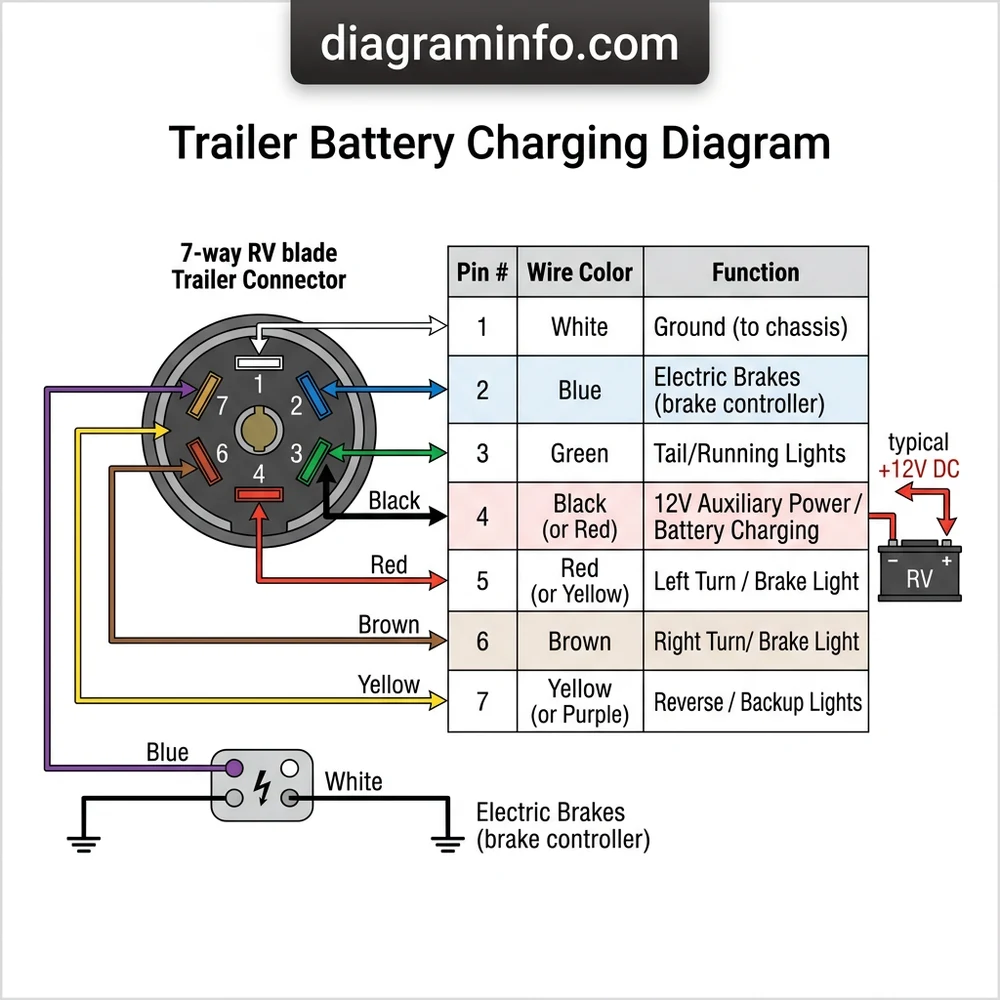

Understanding the Trailer Battery Charging Diagram Pinout Configuration
According to SAE J2863 and ATA standard wiring conventions, the standard 7-way RV blade connector standardizes power distribution across seven dedicated terminals. Unlike basic light-only setups, the 7-way connector isolates low-current lighting signals from high-amperage charging and braking circuits. Referencing the trailer battery charging diagram ensures that terminal positions match between the vehicle receptacle and the trailer plug, avoiding short circuits across sensitive modules.
| Pin # | Wire Color | Function | Recommended Wire Gauge & Specs |
|---|---|---|---|
| 1 | White | Ground Pin | 10 AWG – Minimum chassis ground return line |
| 2 | Blue | Electric Brake | 12 AWG – Feed from in-cab brake controller |
| 3 | Green | Running Lights / Tail Lights | 14 AWG – Clearance, side marker, and license plate lights |
| 4 | Black or Red | Auxiliary Power (+12V Battery Charge) | 10 AWG to 8 AWG – Dedicated battery charging feed |
| 5 | Yellow | Left Turn Signal & Brake Light | 14 AWG – Dual-function pulse circuit |
| 6 | Brown | Right Turn Signal & Brake Light | 14 AWG – Dual-function pulse circuit |
| 7 | Purple | Reverse Lights / Auxiliary | 14–16 AWG – Backup lights or surge brake solenoid lockout |
Manufacturer specs indicate that standard RV blade plugs require terminal screw clamping torques between 12 to 15 in-lbs. Ensure all conductor wire ends are tinned or fitted with wire ferrules before securing them inside the plug housing to prevent individual strand breakage under tow vehicle vibration.
Step-by-Step Wiring Instructions for Auxiliary Power and Brake Circuits
Executing an installation based on the trailer battery charging diagram requires strict adherence to current capacity limits and circuit protection protocols. Complete the wiring following this mechanical sequence:
Step 1: Install Primary Tow Vehicle Circuit Protection
Begin at the tow vehicle positive battery terminal. Mount a 30-amp or 40-amp auto-reset thermal circuit breaker within 18 inches of the battery post. Connect an 8 AWG or 10 AWG red conductor to the load side of the breaker. This primary breaker shields the charge wire running along the vehicle frame from catastrophic direct shorts.
Step 2: Wire the Auxiliary Power Isolation Relay

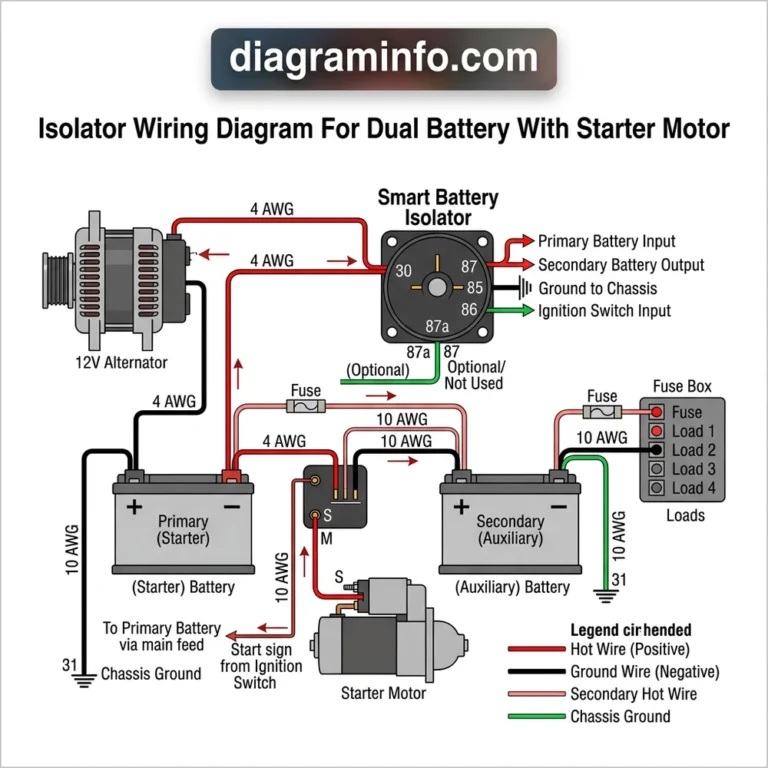

Route the charge cable from the circuit breaker to a 40A continuous-duty ignition-isolated relay or battery isolator. Wire the relay coil terminal to an engine-run (switched ignition) fuse tap in the engine bay fuse panel. This ensures that the auxiliary power terminal on Pin 4 receives energy only when the alternator is active, preventing the trailer from discharging the tow vehicle starter battery when the engine is off.
Step 3: Establish Main Vehicle and Trailer Grounding
Secure a 10 AWG white ground conductor directly from the vehicle chassis frame to Pin 1 of the 7-way RV blade socket. Clean the chassis contact area down to bare metal and apply dielectric grease to prevent oxidation. On the trailer side, run a matching 10 AWG ground pin wire from Pin 1 directly to the primary ground busbar on the trailer frame and to the negative terminal of the auxiliary battery.
Step 4: Connect the In-Cab Electric Brake Controller Output
Route a dedicated 12 AWG blue signal cable from the electric brake controller harness under the vehicle dashboard back to Pin 2 of the 7-way receptacle. Wire the electric brake actuator magnets on the trailer in parallel across this blue wire and the main ground return line.
Step 5: Terminate Lighting and Auxiliary Signal Lines
Connect the vehicle light circuit outputs—green for running lights, yellow for left turn signal, brown for right turn signal, and purple for reverse lights—to their corresponding pins. If retrofitting a setup from a 4-pole flat connector, splice the existing 4-wire bundle directly into Pins 1, 3, 5, and 6, while running new dedicated lines for auxiliary power (Pin 4) and electric brake (Pin 2).
Step 6: Route Charge Line to the Trailer Battery Distribution Hub
From Pin 4 of the trailer plug cable, extend a 10 AWG conductor inside the trailer tongue to an inline 30A fuse or breaker. Connect this line to the positive terminal of the trailer battery, the breakaway switch power inlet, and the interior distribution panel.
Auxiliary Power System Design: Direct Alternator vs. DC-to-DC Charger Wiring
Direct alternator charge circuits relying purely on vehicle battery voltage often underperform due to severe line loss across 20 to 30 feet of wiring. OEM vehicle charge lines typically supply approximately 13.6 to 14.2 volts at the engine bay, but internal wire resistance drops this potential to 12.2–12.8 volts by the time current reaches the trailer battery terminals. Modern tow vehicles built after 2015 featuring smart alternator technology compound this issue by reducing charging system output voltage to maximize engine fuel efficiency.
To overcome voltage drop and properly charge AGM or Lithium Iron Phosphate (LiFePO4) auxiliary batteries—which require precise bulk charging thresholds of 14.2V to 14.6V—installing an onboard DC-to-DC charger is the industry standard. As shown in advanced trailer battery charging diagrams, the DC-to-DC charger intercepts the incoming +12V auxiliary power wire (Pin 4) and boosts the fluctuating input voltage to an optimized multistage charging profile.
When installing a 20A or 30A DC-to-DC charger on the trailer, upsize the main charge wire running from the tow vehicle engine bay to the rear bumper socket to 8 AWG. This reduces voltage drop on the input side, allowing the DC-to-DC charger to pull its rated current without triggering under-voltage lockout protection on the device.
Common Trailer Battery Charging Wiring Mistakes and How to Avoid Them
Wiring errors in trailer battery systems can destroy electrical components, cause premature battery failure, or lead to runaway trailer hazards. Diagnosing system failures requires identifying these primary points of failure:
- Relying on the Hitch Ball for Grounding: Neglecting to run a dedicated heavy-gauge wire from the ground pin (Pin 1) to the chassis reliance on the trailer hitch ball as a return path. Hitch ball grounding causes severe electrical resistance, leading to dim running lights, flickering turn signals, and erratic electric brake controller feedback.
- Direct Unisolated Charge Connections: Wiring Pin 4 directly to the tow vehicle battery without an ignition-controlled relay or smart isolator allows the trailer house loads to draw down the vehicle starter battery while parked.
- Undersized Auxiliary Power Conductors: Using standard 14 AWG or 16 AWG primary wire for the main charge line creates excessive internal resistance. This generates localized heat and chokes current delivery, preventing the auxiliary battery from exceeding a 50% state of charge.
- Incorrect Breakaway Switch Tap Locations: Splice errors often connect the breakaway safety switch downstream of a battery disconnect switch. If the disconnect switch is turned off during transit, the breakaway system loses high-amperage power, preventing emergency electric brake lockup if the trailer detaches.
Never wire an emergency breakaway switch through an active DC-to-DC converter output. The breakaway switch must connect directly to the positive terminal of the onboard trailer battery using a fused 10 AWG line to guarantee immediate actuation current to the electric brake magnets during a separation event.
Diagnostic Workflows for Trailer Battery Charging Diagram Troubleshooting
When the trailer auxiliary battery fails to maintain charge, perform a systematically sequenced diagnostic routine using a Digital Multimeter (DMM) set to DC Volts and Direct Resistance (Ohms).
Phase 1: Open-Circuit Voltage Verification at Vehicle Receptacle
Start the tow vehicle engine and idle at normal operating temperature. Insert DMM test probes into Pin 1 (Ground Pin) and Pin 4 (Auxiliary Power Pin) of the 7-way RV blade bumper connector. The voltage reading must display between 13.6V DC and 14.4V DC. If reading shows zero volts, inspect the under-hood thermal circuit breaker and verify isolated relay triggering.
Phase 2: Loaded Voltage Drop Test
Plug the trailer harness into the vehicle receptacle. Turn on interior trailer loads or active battery charging. Measure voltage across the trailer battery terminals while current is flowing through the system. Compare this reading against the voltage at the tow vehicle main battery terminals:
| Voltage Delta (Vehicle Battery vs Trailer Battery) | System Condition Status | Corrective Technical Action Required |
|---|---|---|
| 0.1V – 0.4V DC | Optimal Operating Range | None; nominal line resistance. |
| 0.5V – 0.9V DC | Moderate Line Loss | Inspect terminals for corrosion; upsize charge wire gauge. |
| > 1.0V DC | Critical System Fault | Check ground return resistance; install an onboard DC-DC charger. |
Phase 3: Ground Return Continuity Check
Turn off the vehicle engine and disconnect the 7-way plug. Switch the multimeter to Resistance (Ω). Place one lead on the plug ground pin (Pin 1) and the second lead on clean trailer frame steel. The measured resistance must remain below 0.2 Ohms. Any resistance above 0.5 Ohms indicates loose hardware, frame paint contamination, or degraded crimp terminals that require service.
Trailer Battery Charging Diagram Questions Answered
Can I charge a trailer battery using a 4-pin flat connector adapter?
No. A standard 4-pin flat connector only provides pinouts for ground pin, running lights, left turn signal/brake, and right turn signal/brake. It lacks a dedicated auxiliary power conductor. Adapter plugs that convert a 4-pin flat connector to a 7-way RV blade housing leave the auxiliary power (Pin 4) and electric brake (Pin 2) pins disconnected, rendering automatic alternator battery charging impossible without adding independent power runs.
Why does my trailer battery drain the tow vehicle battery when parked?
This parasitic drain occurs when the auxiliary power wire running to Pin 4 lacks an ignition-controlled isolation relay or continuous-duty solenoid. Without an isolator, the trailer battery and vehicle battery remain wired in parallel at all times. When the engine stops, power flows from the higher-voltage battery to the lower-voltage battery, depleting both starter and auxiliary reserves as interior trailer loads operate.
What wire gauge is required for the auxiliary power charge line?
For standard charge circuit lengths under 20 feet, 10 AWG copper conductor wire protected by a 30A circuit breaker is the minimum industry standard. For circuit lengths exceeding 20 feet (common on long travel trailers and goosenecks), or when charging high-capacity AGM/Lithium banks through a DC-to-DC converter, use 8 AWG stranded copper wire to mitigate high line loss and voltage drop.
How does the electric brake controller interact with the charging system?
The electric brake controller operates on an independent circuit from the charging line, sending a pulsed 12V signal along Pin 2 (blue wire) based on deceleration input. However, both the electric brake magnets and the battery charge line share the common ground pin (Pin 1). If the ground wire is undersized or corroded, feedback from the charging system can enter the brake ground return, causing erratic trailer brake performance or false controller fault codes in the vehicle cab.
Do I need a separate circuit breaker for my trailer battery charge wire?
Yes. You must install a auto-reset circuit breaker or inline fuse at both ends of the auxiliary power charge line. Place one breaker near the tow vehicle battery (protecting the wire running down the vehicle frame) and place a second fuse or breaker near the trailer battery terminal (protecting the trailer tongue wiring). This double-protection configuration prevents fires if the charge wire short-circuits to the frame anywhere along the harness assembly.
