350 Chevy Alternator Bracket Diagram: 2026 Guide
The 350 Chevy alternator bracket diagram details mounting positions across the cylinder head, water pump, and intake manifold. Top bracket bolts torque to 30 ft-lbs using 3/8″-16 fasteners, securing the alternator alongside the HVAC compressor drive belt. Proper bracket alignment ensures correct belt tension across the condenser fan, pulleys, and blower motor charging system.
📌 Key Takeaways
- Torque upper mounting bolts to 30 ft-lbs and lower pivot bolts to 35 ft-lbs into the cylinder head.
- Ensure precise offset alignment between the alternator pulley, HVAC compressor, and crankshaft pulley to prevent belt throw.
- Verify correct spacer placement behind the rear bracket mount to maintain clearance for the water pump housing.
- Improper bracket tensioning causes premature pulley bearing wear, belt slippage, and inadequate blower motor voltage.
- DIY installation requires standard socket sets, but persistent belt squeal or pulley misalignments warrant professional inspection.
Proper accessory mounting on the Chevrolet 350 small block engine is critical for maintaining correct belt tension, preventing pulley squeal, and ensuring uninterrupted power to your vehicle’s electrical and climate control systems. Whether you are running a classic V-belt geometry or a modern serpentine belt drive, understanding the schematics of your mounting hardware keeps generator and air conditioning components perfectly co-planar. Utilizing an accurate 350 chevy alternator bracket diagram ensures that primary charging hardware, water pump bypass mounts, and auxiliary compressor cradles align seamlessly across all operational engine speeds.

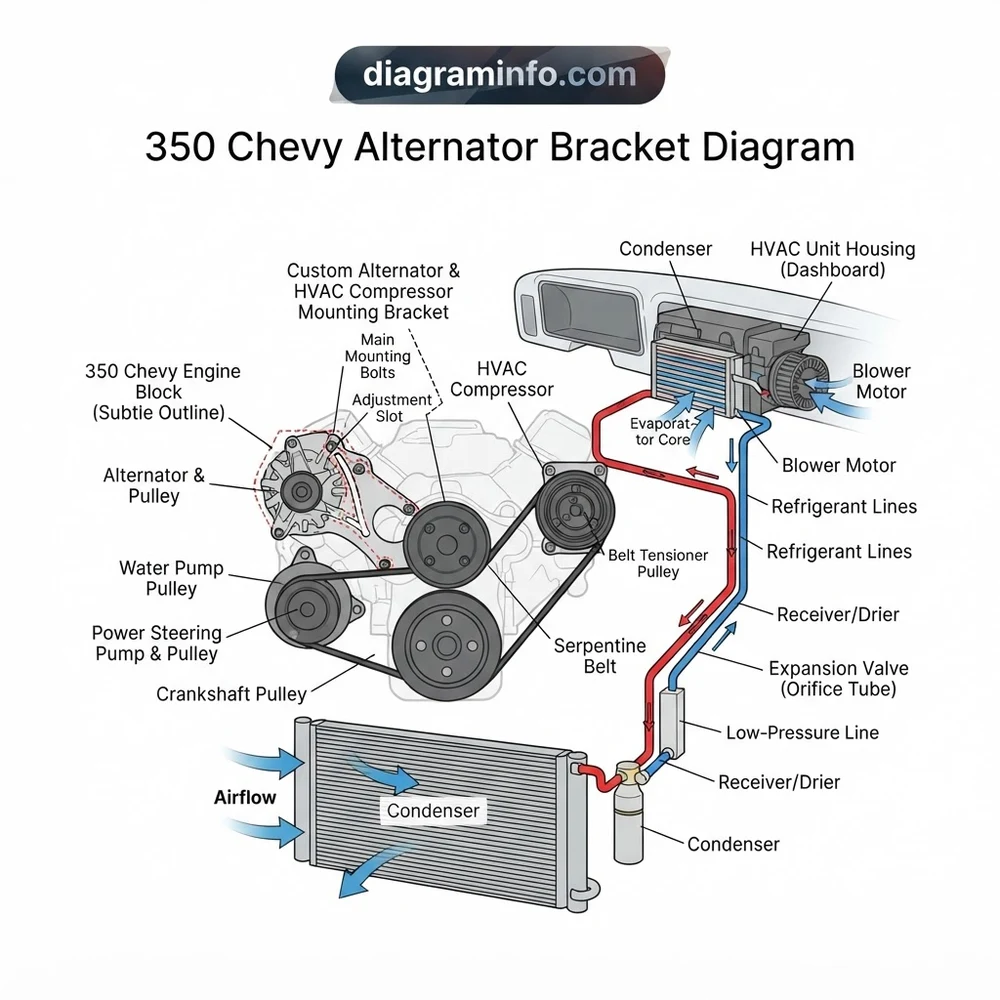

350 Chevy Alternator Bracket Diagram Component Breakdown
Analyzing a 350 chevy alternator bracket diagram requires identifying the specific distinction between Short Water Pump (SWP) and Long Water Pump (LWP) configurations, as well as driver-side versus passenger-side alternator locations. Small block Chevrolet (SBC) engines utilize two primary anchor regions: the cylinder head face mounting holes (typically 3/8″-16 UNC threads) and the water pump housing bolt bosses. In high-demand applications where the charging system must support a heavy electrical load—such as high-amp draw from an HVAC blower motor, electric cooling fans, and cabin climate controls—bracket rigidity is paramount to prevent belt deflection.
Upper Tensioning Arm and Water Pump Mounting Locations
The upper adjustment arm provides dynamic slot travel for tensioning V-belts or establishes the fixed anchor position in spring-tensioned serpentine belt layouts. On LWP setups, this arm bolts to the upper passenger-side water pump bypass housing bolt hole. On SWP setups, it typically anchors to the intake manifold or exhaust manifold stud. Proper spacer selection behind the upper adjustment arm keeps the belt aligned with the primary crankshaft pulley and prevents uneven belt wear.
Lower Pivot Bracket Assembly and Air Conditioning Compressor Integration
The lower pivot bracket supports the structural mass of the alternator casing. This cast iron or thick-gauge stamped steel cradle mounts to the lower cylinder head mounting holes. On vehicles equipped with factory integrated air conditioning, the lower bracket often bridges directly across to the A/C compressor saddle. Mounting an A/C compressor adjacent to the alternator requires strict attention to clearance around high-pressure refrigerant lines, ensuring they clear heat exchanger components without binding.
Accessory Alignment, Heat Exchanger Clearance, and Airflow Routing
A primary function of the accessory drive structure is preserving front-of-engine clearance for cooling components. Misaligned bracketry shifts the alternator forward, risking blade contact with the radiator shroud or front heat exchanger assembly. Adequate physical clearance guarantees that incoming ram air passes unobstructed through the condenser core before reaching the radiator, maintaining optimal thermal transfer for both engine coolant and the cabin air handler system.
Factory torque specs and hardware dimensions for cast iron and aluminum cylinder heads.
| Component Reference | Hardware Size / Spec | Torque Spec (Cast Iron) | Torque Spec (Aluminum) |
|---|---|---|---|
| Lower Head Mount Bolt | 3/8″-16 x 1.00″ Grade 8 | 30 ft-lbs (40.6 Nm) | 22 ft-lbs (29.8 Nm) |
| Water Pump Bypass Bolt | 3/8″-16 x 2.25″ Grade 5 | 25 ft-lbs (33.8 Nm) | 20 ft-lbs (27.1 Nm) |
| Alternator Pivot Bolt | 3/8″-16 x 4.50″ Grade 8 | 35 ft-lbs (47.4 Nm) | 35 ft-lbs (47.4 Nm) |
| Adjustment Slot Locking Bolt | 5/16″-18 x 1.00″ Grade 5 | 20 ft-lbs (27.1 Nm) | 18 ft-lbs (24.4 Nm) |
How to Install Parts Using the 350 Chevy Alternator Bracket Diagram
Correctly installing hardware from a 350 chevy alternator bracket diagram requires systematic positioning to ensure precision alignment across all driven pulleys. Misalignment of even 1/16th of an inch can cause premature V-belt destruction, thrown serpentine belts, and accelerated bearing wear on both the alternator and the A/C compressor. For detailed belt geometry layouts, consult our detailed Chevy Small Block V-Belt Routing Guide.
Step 1: Pre-Installation Inspection and Surface Preparation
Clean all cylinder head face mounting bosses and water pump mounting surfaces using a wire wheel or solvent cleaner. Remove rust, debris, or heavy paint buildup that could disrupt flat mating between the bracket face and the block. Verify that the tapped 3/8″-16 holes in the cylinder head are free of stripped threads or broken bolts. If installing aluminum aftermarket heads, thread engagement must be checked to ensure at least 0.50 inches of full thread purchase.
Step 2: Mounting the Lower Cradle to the Engine Block
Align the lower pivot bracket against the cylinder head face or water pump leg according to your specific 350 chevy alternator bracket diagram configuration (LWP vs. SWP). Insert the primary mounting bolts hand-tight. Place the required alignment spacers between the rear bracket face and the cylinder head boss if using offset aftermarket heads. Slide the long 3/8″ pivot bolt through the bracket ears and the lower alternator mounting foot to verify axial clearance before final torquing.
Step 3: Positioning Upper Arm and Setting Belt Alignment
Attach the upper adjustment arm to the water pump housing or intake manifold boss. Torque the pivot hardware loosely so the arm can swing through its full arc. Position the alternator inside the lower pivot cradle and upper arm, then install the lower pivot bolt and upper locking bolt finger-tight. Use a straightedge or laser alignment tool against the crankshaft pulley face, water pump pulley face, and alternator pulley face to confirm all three run in a perfectly parallel plane.
Angular pulley misalignment must not exceed 0.5 degrees. Parallel offset between the alternator pulley groove and the crank pulley groove must remain within 0.030 inches (0.76 mm). Use precision shim washers behind bracket mounting spacers to correct forward or rearward offset.
Step 4: Final Tensioning and Torque Procedures
Apply tension to the accessory belt using a mechanical pry bar placed against the solid cast portion of the alternator body (never against the stamped sheet-metal fan blades or rear aluminum housing). While holding tension, torque the upper adjustment bolt to 20 ft-lbs, followed by the lower main pivot bolt to 35 ft-lbs. Check belt deflection: a properly tensioned V-belt should flex 1/4 to 1/2 inch under moderate thumb pressure midway along its longest free span.
Diagnosing Belt Pulley Alignment and HVAC Compressor Bracket Issues
When accessory drive brackets experience flex or misalignment, mechanical noise and belt slip quickly follow. High electrical current demands from cabin air handling systems put severe mechanical torque resistance on the alternator shaft. For complete step-by-step electrical load testing, review our guide on Automotive HVAC Electrical Diagnostics.
Correcting Pulley Misalignment and Belt Squeal
Squealing under acceleration or heavy electrical load is the primary symptom of belt slippage. If tightening the belt does not solve the squeal, suspect bracket deflection or pulley offset. Inspect the V-belt sidewalls or serpentine belt ribs for uneven glassing or thread fraying. Glazing on one side of the belt indicates that the alternator bracket is pulled out of parallel, forcing the belt to ride against the pulley flange. Re-check spacer thickness against the 350 chevy alternator bracket diagram to restore parallel alignment.
Excessive belt tension applied to eliminate slip caused by weak or flexed brackets will destroy the front alternator roller bearing and the water pump shaft seal within a few hundred miles of operation. Never exceed maximum belt tension limits to compensate for poor bracket geometry.
Managing High Electrical Loads from Cab Air Handler and Cooling Fans
Modern climate control systems utilize high-capacity evaporator fan blowers and electric condenser cooling fans. When these systems engage, the total current draw can spike above 80 Amperes. According to OEM technical specifications, every 10 Amps of electrical output requires approximately 0.4 horsepower from the engine accessory drive. Under maximum electrical loads, weak 14-gauge steel brackets will flex toward the engine centerline, causing immediate loss of belt tension. Upgrading to a 1/4-inch billet aluminum or reinforced steel bracket eliminates load-induced flex.
Resolving Interference with Refrigerant Lines and Intake Components
On vehicles fitted with aftermarket air conditioning or serpentine conversion packages, space around the upper alternator adjusting arm is minimal. Ensure that aluminum refrigerant lines exiting the A/C compressor maintain a minimum of 1.0 inch of thermal and vibration clearance from the alternator rear B+ output terminal and upper adjustment bracket. If you are converting from stock V-belts to full serpentine drives, cross-reference your geometry with our comprehensive SBC Serpentine Conversion Manual.
Frequently Asked Questions About the 350 Chevy Alternator Bracket Diagram
What is the primary difference between long and short water pump 350 Chevy alternator bracket diagrams?
The primary difference lies in the axial placement of the alternator relative to the front engine block face and the anchor points used. Short Water Pump (SWP) setups (common on pre-1969 Chevy passenger cars and pre-1973 light trucks) place the alternator on the driver side, anchoring to the exhaust manifold and intake manifold. Long Water Pump (LWP) setups (standard on 1969-up cars and 1973-up trucks) shift the alternator to the passenger side, utilizing the cylinder head face holes and the upper water pump housing bolt for mounting.
How does high electrical draw from an HVAC blower motor impact alternator bracket load?
When the HVAC blower motor operates on high speed alongside the refrigerant compressor clutch, the alternator must generate peak electrical amperage. This high output creates counter-electromotive force (magnetic resistance) inside the alternator casing. This magnetic drag acts as a mechanical brake on the alternator shaft, exerting up to 15-20 ft-lbs of twisting torque against the mounting bracket. If the bracket lacks structural triangulation or thickness, this force pulls the pulley out of alignment, causing belt slip.
Can I bolt an OEM 350 Chevy alternator bracket directly to aftermarket aluminum cylinder heads?
Yes, but special precautions are required. Most OEM cast iron brackets use 3/8″-16 bolts threaded into cast iron heads. When bolting to aluminum heads, you must use hardened flat washers under bolt heads to prevent galling the soft aluminum. Additionally, thread engagement must be monitored (minimum 1/2-inch engagement), and torque values should be reduced by roughly 20-25% compared to cast iron specs (refer to the specification table above) unless hardened thread inserts (Heli-Coils) are installed.
Why does my V-belt flip over or pop off the alternator pulley when the engine accelerates?
A V-belt flipping off its pulley is caused almost exclusively by dynamic bracket flex or severe pulley angular misalignment. Under rapid RPM increases, the alternating load from the engine vibration combined with bracket flex forces the belt to twist in the pulley groove. Once the side angle exceeds the groove flange slope, the belt turns sideways and pops off. Installing a rear support brace between the back of the alternator casing and the intake manifold will solve this issue.
How do I route return ducting and heater hoses around passenger-side alternator bracket mounts?
On Small Block Chevy 350 applications equipped with passenger-side LWP alternator brackets, the 5/8-inch and 3/4-inch heater core supply/return hoses route directly over or behind the upper tensioning arm. Ensure hoses are secured with rubber-insulated P-clamps to the intake manifold or inner fender apron. They must maintain a minimum 2.0-inch distance from the spinning alternator cooling fan and rear output terminals to prevent chafing or thermal melting.
Step-by-Step Guide to Understanding the 350 Chevy Alternator Bracket Diagram
Identify – Locate the mounting points on the driver or passenger side SBC cylinder head, intake manifold, and water pump.
Locate – Position the main lower alternator bracket frame, matching OEM spacer dimensions to maintain alignment with the HVAC compressor.
Reference – Consult the diagram to select the correct 3/8″-16 bolt lengths and thread fasteners into the cylinder head.
Connect/Route – Mount the upper adjusting arm and route the drive belt around the alternator, water pump, and HVAC compressor pulleys.
Verify – Apply tension using a pry bar, torque pivot bolts to 35 ft-lbs, and verify belt alignment across all pulleys.
Troubleshoot – Test system voltage and cabin blower motor performance; adjust belt tension if squealing or slippage occurs.
