A 7-way RV blade trailer connector uses a pine tree root system diagram layout to ground at pin 1 (white, 10 AWG). Pin 2 (blue, 12 AWG) powers electric brake controllers, pin 3 (green) controls running lights, pin 4 (black, 10 AWG) feeds 12V auxiliary power, while pins 5 and 6 handle left and right turn signals.
📌 Key Takeaways
- Pin 1 connects to a minimum 10 AWG white ground wire directly attached to the trailer frame.
- Blue 12 AWG wire powers electric brakes via an inline brake controller output signal.
- Black 10 AWG wire delivers 12V DC auxiliary power protected by a 30A circuit breaker.
- Miswiring turn signals with running lights causes full system backfeed and lighting failures.
- Complex brake controller signal faults or shorted auxiliary lines require multimeter diagnosis.
Modern commercial trailers and heavy RV tow vehicles rely on complex multi-circuit electrical architectures to deliver power, braking signals, and illumination across extended chassis lengths. When reading technical schematics, master technicians refer to the branched distribution layout as a pine tree root system diagram due to how the main power trunk splits off into dedicated sub-harnesses. Understanding how signals route from the vehicle’s brake controller and battery isolator down to the individual trailer hubs, running lights, and auxiliary battery banks is essential for preventing voltage drop, ground isolation faults, and wire harness degradation under high continuous loads.

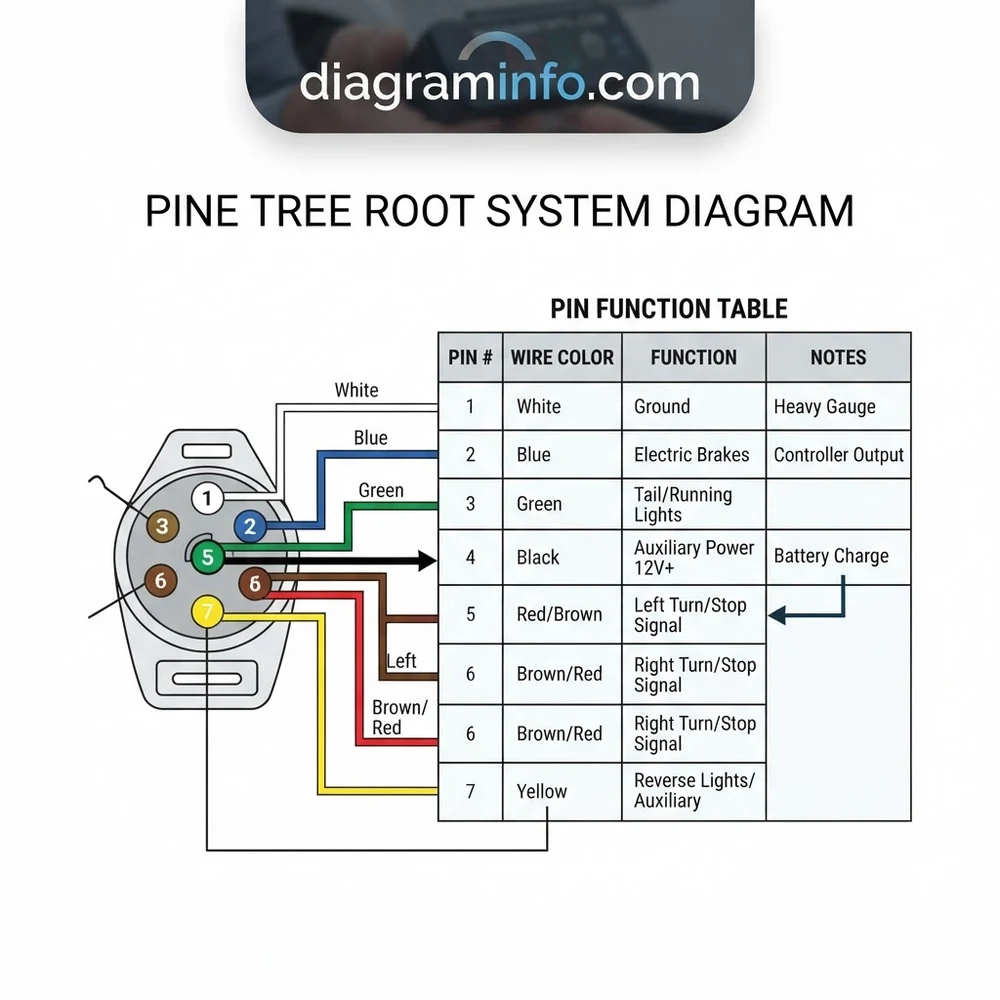

Diagram showing 7-way RV blade pinout assignments (ground pin, electric brake feed, auxiliary power, running lights, turn signals) with branching harness trunk routing.
Understanding the Pine Tree Root System Diagram Pinout
According to SAE J2863 and standard OEM trailer manufacturing guidelines, the 7-way RV blade connector utilizes a specific pin topology viewed from the wire-insertion side of the socket. Utilizing the pine tree root system diagram as a reference, main feeders split at the junction box into specific branch circuits handling signal lighting, high-amperage braking currents, and continuous battery charge lines.
| Pin Position | Standard Color | Circuit Function | Wire Gauge & Specification |
|---|---|---|---|
| Pin 1 (10 o’clock) | White | Main Ground Pin Return | 10 AWG (Direct Chassis Ground) |
| Pin 2 (1 o’clock) | Blue | Electric Brake Controller Output | 12 AWG / 10 AWG (Pulsed DC Signal) |
| Pin 3 (3 o’clock) | Green (or Brown) | Running Lights & Tail Lamps | 14 AWG (15A Max Load) |
| Pin 4 (5 o’clock) | Black (or Red) | 12V Direct Auxiliary Power | 10 AWG (30A/40A Breaker Protected) |
| Pin 5 (7 o’clock) | Red (or Yellow) | Left Turn Signal & Stop Light | 14 AWG (Combined Brake/Turn) |
| Pin 6 (9 o’clock) | Brown (or Green) | Right Turn Signal & Stop Light | 14 AWG (Combined Brake/Turn) |
| Pin 7 (Center) | Yellow (or Purple) | Reverse / Auxiliary Lockout | 14 AWG (Surge Brake Solenoid/Backup) |
Note: RV Standard color codes differ from traditional SAE automotive utility trailer standards. Always verify terminal function with a multimeter using the pine tree root system diagram circuit paths rather than relying solely on jacket color insulation.
How to Wire 7-Way RV Blade Harnesses Using the Pine Tree Root System Diagram
Proper installation of a 7-way RV blade receptacle requires systematic termination to ensure balanced current density across all branches. Follow this detailed sequence to wire your vehicle and trailer junction box correctly according to the branch schematics outlined in the pine tree root system diagram.
Step 1: Terminating the Heavy-Gauge Ground Pin Connection
Strip approximately 3/8 inch of insulation from the 10 AWG white ground conductor. Insert the copper strands into the Pin 1 terminal (located at 10 o’clock on the RV blade connector body). Torque the terminal set screw to 18-20 in-lbs. Route the opposite end directly to the tow vehicle frame chassis using a star washer and clean copper ring terminal to guarantee low-impedance ground return paths.
Step 2: Calibrating Brake Controller and Electric Brake Feed
Connect the 12 AWG (or 10 AWG for triple-axle builds) blue wire to Pin 2 (1 o’clock position). This line delivers pulse-width modulated (PWM) voltage from the cab-mounted brake controller. Ensure this primary trunk line runs unobstructed through the central harness trunk before branching off at the primary distribution node to each electric brake magnet coil assembly.
Step 3: Wiring Auxiliary Power and Running Lights Circuits
Terminate the 10 AWG black conductor to Pin 4 (5 o’clock position) for continuous 12V auxiliary power. This circuit feeds onboard RV battery charging systems and hydraulic pumps. Next, insert the 14 AWG green wire into Pin 3 (3 o’clock position) to energize the running lights circuit. Connect an inline 30-amp auto-reset circuit breaker on the auxiliary power supply near the vehicle battery source as detailed in our electric trailer brake controller installation manual.
Step 4: Connecting Left/Right Turn Signal Lines and Flat Connector Adapters
Attach the 14 AWG red wire (Left Turn/Stop) to Pin 5 at the 7 o’clock socket, and the 14 AWG brown wire (Right Turn/Stop) to Pin 6 at the 9 o’clock socket. When linking this primary 7-way plug trunk to lightweight utility trailers, integrate a standard 4-way flat connector piggyback cable. Ensure the flat connector isolates turn signals and running lights while leaving auxiliary charge and electric brake feeds safely capped inside the weatherproof junction housing.
SAE J2863 Termination Spec: Maximum voltage drop across any signal branch (running lights, turn signals) must not exceed 0.5V DC under maximum rated current draw (15A). Use marine-grade heat-shrink adhesive butt connectors for all branch splices.
Tracing Electric Brake and Auxiliary Power Distribution Lines
In heavy-duty equipment trailers and commercial multi-axle setups, current distribution splits at the main terminal box in a distinct radial structure, as depicted in the pine tree root system diagram. The high-draw electric brake feed and auxiliary power charging trunks require careful circuit sizing and isolation protection.
The electric brake controller delivers output proportional to vehicle deceleration, supplying up to 15-20 Amps across four to six brake magnets. If the gauge size drops below 12 AWG along the central trunk, resistance rises exponentially, degrading braking efficiency. When routing wire pairs along trailer frame rails, apply protective loom tubing and route away from extreme heat sources such as exhaust pipes or direct suspension travel paths. Consult standard commercial heavy equipment harness routing standards for physical strain-relief tie down spacing limits (maximum 18-inch intervals).
Similarly, the auxiliary power branch transfers current from the alternator to charge house batteries or run 12V hydraulic power units. Because current spikes can occur during slide-out or jack operation, the auxiliary power line must incorporate a heavy-duty relay or battery isolator near the tow vehicle starter battery. This prevents the trailer load from discharging the tow vehicle’s starting engine battery when unpowered.
Diagnostic Procedures for Ground Pin and Running Lights Voltage Drops
Electrical troubleshooting on multi-circuit commercial trailers requires logical tracing of line drops using a Digital Multimeter (DMM) rather than simple visual inspection. Below is the field testing protocol for diagnosing intermittent lighting failures and ground loop problems using the pine tree root system diagram circuit topology.
- Ground Resistance Measurement: Set DMM to Ohms (Ω). Measure resistance between the ground pin on the trailer plug (Pin 1) and bare metal frame chassis. Resistance must read less than 0.2 Ω. Any higher resistance indicates corroded earth studs or poor crimp bonds.
- Running Lights Line Drop Test: Turn tow vehicle parking lights ON. Measure DC voltage across Pin 3 (running lights) and Pin 1 (ground pin) at the rear plug. Voltage must read between 12.2V DC and 12.8V DC. A voltage reading below 11.5V DC indicates excess resistance in the main trunk or corroded pin blades.
- Brake Controller Output Pulse Check: Engage the manual override lever on the cab brake controller. Verify smooth voltage scaling from 0V to maximum battery output (12V+) at Pin 2 relative to the ground pin.
Troubleshooting Common Pine Tree Root System Diagram Harness Errors
Field mechanics frequently encounter harness faults resulting from mismatched color conventions, overloaded grounds, or incorrect flat connector splicing. Review the failure modes below to rectify electrical faults rapidly.
Never ground electric brake return wires exclusively to the trailer frame skin. Always run dedicated ground return conductors back to the junction box main ground pin (Pin 1). Chassis-only grounds lead to intermittent brake loss during suspension flex and frame oxidation.
One of the most frequent wiring errors occurs when mixing traditional RV blade color standards with standard SAE utility wire colors. For example, in traditional RV blade standards, Green represents running lights, while in standard SAE 4-pole automotive standards, Green represents the right turn/brake signal. Always refer to pin position function on the plug face rather than wire insulation color alone.
Another common mistake involves adapting a 7-way RV blade harness down to a 4-pole flat connector plug. When bridging circuits via a adapter harness, mechanics often leave the auxiliary power and brake lines floating without weather caps, leading to direct short-circuits to ground when exposed to road spray and de-icing chemicals. Reference our detailed 7-way to 4-way flat connector adapter guide for weatherproofing terminal pins.
Pine Tree Root System Diagram and 7-Pin Adapter FAQs
How do I convert a 7-way RV blade plug to a standard 4-pole flat connector?
To convert from a 7-way plug down to a 4-pole flat connector, map four specific active pins: Pin 1 (Ground Pin), Pin 3 (Running Lights), Pin 5 (Left Turn/Stop), and Pin 6 (Right Turn/Stop). Pin 2 (Electric Brake), Pin 4 (Auxiliary Power), and Pin 7 (Reverse) remain unused and must be sealed using heat-shrink end caps or isolated junction posts inside the junction box.
Why are my electric brakes locking up or failing to engage?
Brake locking or non-engagement stems from either a shorted brake controller feed line (Pin 2) or a high-resistance ground pin return connection (Pin 1). If Pin 2 short-circuits to the continuous 12V auxiliary power line (Pin 4) inside a damaged harness trunk, full battery voltage will continuously power the brake magnets, locking the wheels instantly upon plug insertion.
What wire gauge is required for the auxiliary power charge line?
Manufacturer specifications dictate minimum 10 AWG copper wire for the 12V auxiliary power charge circuit (Pin 4) over distances up to 25 feet. For commercial trailers with heavy auxiliary battery banks or hydraulic power packs requiring long runs (>30 feet), upgrade the central trunk line to 8 AWG to reduce line voltage drop below 0.3V DC under load.
How do standard RV blade color codes differ from standard SAE trailer wire colors?
In standard RV blade pinout arrangements, Green handles running lights, Brown handles right turn/stop, Yellow handles reverse lights, and White handles ground. In traditional SAE 4-pole utility trailer standards, Brown handles running lights, Green handles right turn/stop, Yellow handles left turn/stop, and White handles ground. Always trace functions using pin locations on the connector face rather than assuming wire insulation colors match across vehicle makes.
Step-by-Step Guide to Understanding the Pine Tree Root System Diagram
Identify – Unplug power sources and inspect the terminal arrangement of your 7-way RV blade harness.
Locate – Find the primary chassis ground point on the trailer tongue rail before running main power feeds.
Reference – Match wire colors to terminal pins using the pine tree root system diagram pinout layout.
Connect – Secure the 10 AWG ground, 12V auxiliary, brake controller, turn signal, and running light wires.
Verify – Test signal voltage across each pin using a 12V circuit tester while operating vehicle controls.
Troubleshoot – Check inline fuses, terminal corrosion, and ground continuity if lights or brakes fail to engage.
