Husky Pressure Washer Parts Diagram: Component Breakdown (2026)
A Husky pressure washer parts diagram maps the structural layout of electric and gas models. It details the axial cam pump assembly, thermal relief valve, unloader valve, high-pressure water outlet, and engine or motor connections. Use this schematic to locate part numbers, O-ring configurations, and pump seal assemblies required for accurate component replacement and maintenance.
📌 Key Takeaways
- Thermal relief valves are set to trigger at 140°F (60°C) to prevent thermal damage to internal pump seals.
- Critical identification includes distinguishing between axial cam and triplex pump configurations.
- Torque pump housing bolts to 10-12 ft-lbs to maintain a proper high-pressure water seal without stripping.
- Unloader valve wear and degraded O-rings represent over 70% of low-pressure system failures.
- Replace spray tips, hoses, and external seals as DIY; consult a professional for internal engine crankshaft issues.
Analyzing a husky pressure washer parts diagram is critical when executing high-pressure pump rebuilds, engine coupling servicing, or valve body replacements on units such as the Husky HU80709, HU80915, or HD80900 series. Whether powered by Honda GC-series overhead cam engines, Kohler SH265 units, or electric induction motors, these pressure washers rely on precise mechanical alignment across the axial cam pump assembly, unloader valve circuit, and thermal management systems. Utilizing OEM exploded schematics ensures accurate component identification, correct O-ring seat placement, and strict adherence to factory torque specifications during teardowns and maintenance routines.

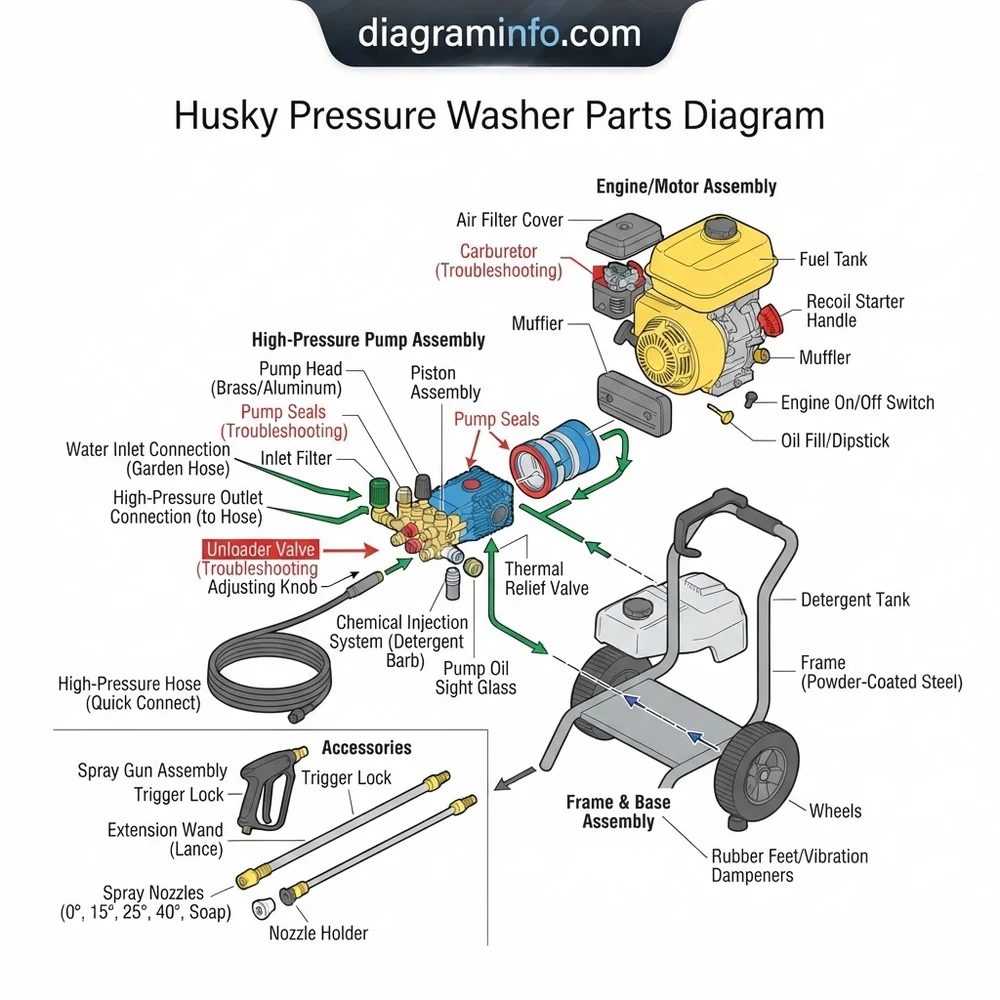

Husky Pressure Washer Parts Diagram: Complete Hydraulic and Engine Assembly Layout
The overall mechanical structure detailed in a standard Husky technical blueprint is divided into three functional sub-systems: the power plant drive interface, the axial cam pump manifold assembly, and the high-pressure discharge plumbing network. Most Husky gas models utilize an direct-drive axial cam pump mounted directly to a 7/8-inch or 3/4-inch engine crankshaft via a hardened steel keyway and locking pinch bolts.
Understanding how individual components interact inside the fluid end is necessary before attempting a pump overhaul or seal replacement. Water enters through an inlet fitting equipped with a 40-mesh stainless steel filter screen to prevent particulate contamination. It passes into the low-pressure manifold chamber, where three reciprocating ceramic-coated pistons—driven by an angled swash plate—compress the fluid across alternating inlet and outlet check valves. For detailed guidance on service intervals and seal replacement kits, consult our reference guides on pressure washer pump seals replacement, adjusting bypass pressures via our unloader valve adjustment guide, and evaluating drive types in our axial cam vs triplex pump configuration overview.
Factory manifold bolt torque specs range from 8 to 10 ft-lbs (96–120 in-lbs) using an alternating cross-pattern. Thermal relief valves are calibrated to actuate at 140°F (60°C) to bleed off superheated bypass water, preventing internal seal deformation.
| Component Callout | System Function | OEM Part Reference / Spec | Maintenance Torque / Tolerance |
|---|---|---|---|
| Unloader Valve Assembly | Diverts flow to bypass loop when trigger gun is released | P/N 310881G / AR-42118 | 14–16 ft-lbs (Housing thread) |
| Thermal Relief Valve | Vents fluid when bypass fluid exceeds thermal threshold | 1/4″ NPT (P/N 190589GS) | Hand-tight + 1.5 turns (max 100 in-lbs) |
| Check Valve Kit (6-Pack) | Controls directional flow across intake and discharge ports | P/N 190591GS / AR-1828 | N/A (Check cage seated flush) |
| High-Pressure Seals (V-Packing) | Prevents water crossover into pump crankcase oil gallery | 12mm / 14mm ID Dual-Lip elastomer | Coat with silicone grease prior to seating |
| Axial Wobble Plate Bearing | Converts rotational shaft drive to linear plunger stroke | Heavy-Duty Thrust Needle Assembly | Pre-lubricated SAE 85W-90 synthetic oil |
How to Read a Husky Pressure Washer Schematic for Pump Overhauls
Interpreting a technical schematic requires a structured approach to prevent assembly errors, particularly regarding seal orientation and check valve sequencing. Exploded blueprints use numbered callouts mapped to a companion bill of materials (BOM), showing the exact order of component extraction from the wet end to the mechanical drive interface.
Mapping Pump Manifold Callouts and Fastener Sequences
When reviewing the manifold section on a schematic, notice the four or six main head bolts securing the brass or aluminum manifold to the drive crankcase. Unthreading these bolts must be done evenly in half-turn increments to prevent warping the mounting face or snapping internal alignment dowels. The diagram illustrates how the pump head separates cleanly from the piston guides, revealing the spring-loaded plungers.
Identifying Internal Seals, O-Rings, and Check Valve Orientations
A frequent mistake during field rebuilds is installing check valves backwards. The technical layout indicates six individual check valve assemblies arranged in two banks: three low-pressure suction valves located under the water inlet manifold, and three high-pressure discharge valves situated directly below the outlet gallery. Each valve consists of a plastic cage, a stainless steel return spring, a poppet valve, and a sealing O-ring. The schematic clearly demonstrates that all six check valve cages must face inward toward the center fluid chamber.
High-pressure V-packing seals must be stacked strictly in accordance with the diagram detail view: Brass pressure ring first, followed by the elastomer V-packing (groove facing toward the high-pressure head), intermediate brass washer, and low-pressure lip seal. Reversing this orientation causes instant pressure loss and water intrusion into the oil sump.
Engine-to-Pump Coupling Alignment and Keyway Fitting
The engine interface configuration shows a hollow drive shaft slipping over the engine PTO shaft. An integrated square keyway transfers rotational torque from the engine to the axial wobble plate. When reassembling, apply anti-seize compound to the crankshaft. Align the keyway slot precisely as displayed in the schematic detail inset, ensuring the engine lock bolts pass through the flange alignment slots and torque evenly to 18 ft-lbs.
Diagnosing Pressure Loss Using the Husky Pressure Washer System Layout
Systematic troubleshooting of hydraulic pressure anomalies begins by cross-referencing operating symptoms against the specific flow path laid out in the parts diagram. Pressure degradation is almost always caused by mechanical component wear within three specific zones in the fluid end.
Cavitation and Low-Pressure Output Analysis
If operating pressure drops below rated PSI (e.g., a 2600 PSI unit dropping to 1200 PSI), follow the low-pressure intake path on the diagram. Inspect the inlet garden hose adapter, internal mesh screen, and the primary suction check valves. Debris trapped under a check valve seat holds the poppet open, preventing the chamber from building compression. If the check valves are intact, inspect the high-pressure V-packing seals for groove erosion or heat tearing.
Thermal Relief Venting and Bypass Valve Sticking
When the trigger gun is released, the unloader valve piston shifts upward, opening an internal bypass channel that recirculates water inside the pump head. If the unloader pin sticks due to mineral build-up, the pump remains trapped in bypass mode. Water rapidly heats up due to kinetic friction. According to OEM technical specifications, once fluid temperatures hit 140°F, the thermal relief valve opens to vent hot water onto the ground. If you observe continuous dripping from the thermal relief port, replace both the thermal valve and service the unloader valve O-rings.
Never allow a Husky pressure washer to idle in bypass mode (engine running, trigger released) for longer than 2 minutes. Extended bypass running causes rapid thermal expansion, warping plastic valve cages and degrading plunger seals even if the thermal relief valve actuates correctly.
Cracked Manifold and High-Pressure Seal Failures
Winter freeze damage typically manifests as fine hairline fractures along the underside of the manifold block, visible on the exploded diagram where the high-pressure gallery meets the unloader housing. Water leaking continuously from between the pump body and engine mounting flange indicates that the low-pressure water seals have failed, allowing fluid past the plungers and into the crankcase oil reservoir. Check oil sight glass or dipstick: milky, emulsified oil confirms total high-pressure and low-pressure seal failure.
Husky Pressure Washer Blueprint and Component Specifications FAQ
Where do I locate the exact model number on my Husky pressure washer frame?
The model number sticker is located directly on the tubular steel frame rail near the lower crossmember or under the engine mounting baseplate. Common model designations include HU80709, HU80915, HD80900, and HU80432. Always use the full model number printed on this decal when referencing OEM exploded parts schematics, as pump manufacturer specifications (AR, FAIP, Homestead) vary across model years.
What torque specifications apply to Husky axial pump manifold bolts?
For standard aluminum or brass axial cam pump manifolds found on Husky gas pressure washers, torque M6 manifold bolts to 85–108 in-lbs (7–9 ft-lbs). For larger M8 fasteners used on heavy-duty replacement pump heads, torque to 132–156 in-lbs (11–13 ft-lbs). Always tighten bolts in an alternating star pattern to ensure even force distribution across the high-pressure head gasket and seal rings.
Can I replace a FAIP axial pump with an Annovi Reverberi pump using the existing blueprint layout?
Yes, provided the replacement pump matches three key dimensional parameters shown in the engine coupling blueprint: crankshaft diameter (typically 7/8-inch or 3/4-inch straight shaft with keyway), bolt circle pattern (standard 4-bolt flange with 3-5/8″ center-to-center diagonal spacing), and minimum engine power output (usually 5.5 HP to 6.5 HP for gas models). Hose connections (M22 male thread output and 3/4″ NH garden hose inlet) align directly with standard spray wand assemblies.
Why is water leaking from the bottom of the pump casing near the thermal relief valve?
Water discharge from the thermal relief valve port indicates that the pump fluid temperature exceeded 140°F (60°C). This occurs when the washer operates in bypass mode for an extended period without the spray gun trigger engaged, or because the unloader valve internal check pin is stuck in bypass mode. If the valve continues leaking cold water upon startup, the internal bi-metal disk or seat seal has worn out and the valve assembly (1/4″ NPT fitting) must be replaced.
Step-by-Step Guide to Understanding the Husky Pressure Washer Parts Diagram
Identify – Identify your Husky model number and select the corresponding parts diagram schematic.
Locate – Locate the specific failed sub-assembly, such as the pump manifold or carburetor layout.
Reference – Reference the callout numbers on the diagram to match part names and part numbers.
Connect/Route – Connect or route replacement hoses, seals, and valves following the diagram’s physical sequence.
Verify – Verify hardware torque settings (10-12 ft-lbs for pump bolts) and seal placements before testing.
Troubleshoot – Troubleshoot pressure drops or fluid leaks by checking seal orientations against the schematic.
