Pentair Pool Filter Parts Diagram: Component Breakdown 2026
A Pentair pool filter parts diagram illustrates the internal and external layout of D.E., cartridge, or sand filters. Key elements include the manual air relief valve, heavy-duty clamp band assembly, filter cartridges or grids, top closure manifold, and bottom drain plug. Always lubricate the main tank O-ring with silicone lubricant during reassembly.
📌 Key Takeaways
- Identify key elements including the high-flow manual air relief valve, clamp assembly, and internal manifold structure.
- Always replace the tank body O-ring (Part # 190003) if stretched or cracked to prevent severe pressure leaks.
- Torque the filter clamp nut to 150 in-lbs (approx. 12.5 ft-lbs) until spring coils contact each other.
- Cracked internal manifolds or broken air bleed assemblies are primary causes of bypass debris in pool water.
- DIY cartridge/grid replacement is straightforward; major structural tank wall cracks require immediate professional replacement.
Proper maintenance and mechanical overhaul of commercial and residential filtration systems require a clear understanding of equipment architecture. The pentair pool filter parts diagram serves as the definitive engineering blueprint for identifying high-wear components, verifying hydraulic flow paths, and executing precise mechanical teardowns. Whether servicing a Clean & Clear Plus cartridge configuration or an FNS Plus D.E. pressure vessel, reading the technical schematic ensures accurate part ordering and safe assembly. This guide provides an in-depth breakdown of Pentair’s structural layout, pressure boundaries, OEM specs, and field diagnostic procedures.
Pentair Pool Filter Parts Diagram: Internal Structure and Components
Analyzing the pentair pool filter parts diagram reveals a system divided into two primary mechanical zones: the high-pressure outer containment vessel and the internal filtration assembly. According to OEM specifications, Pentair fiberglass-reinforced chemical-resistant tanks are engineered to withstand continuous operating pressures up to 50 PSI, though nominal operating range sits between 10 and 25 PSI depending on system head loss.
The upper and lower tank halves are joined by a heavy-duty stainless steel tension clamp kit. Inside, fluid dynamics dictate that untreated water enters through the lower bulkhead, passes upward through the internal air bleed bypass, and filters radially inward through the media elements before discharging through the top grid manifold assembly.

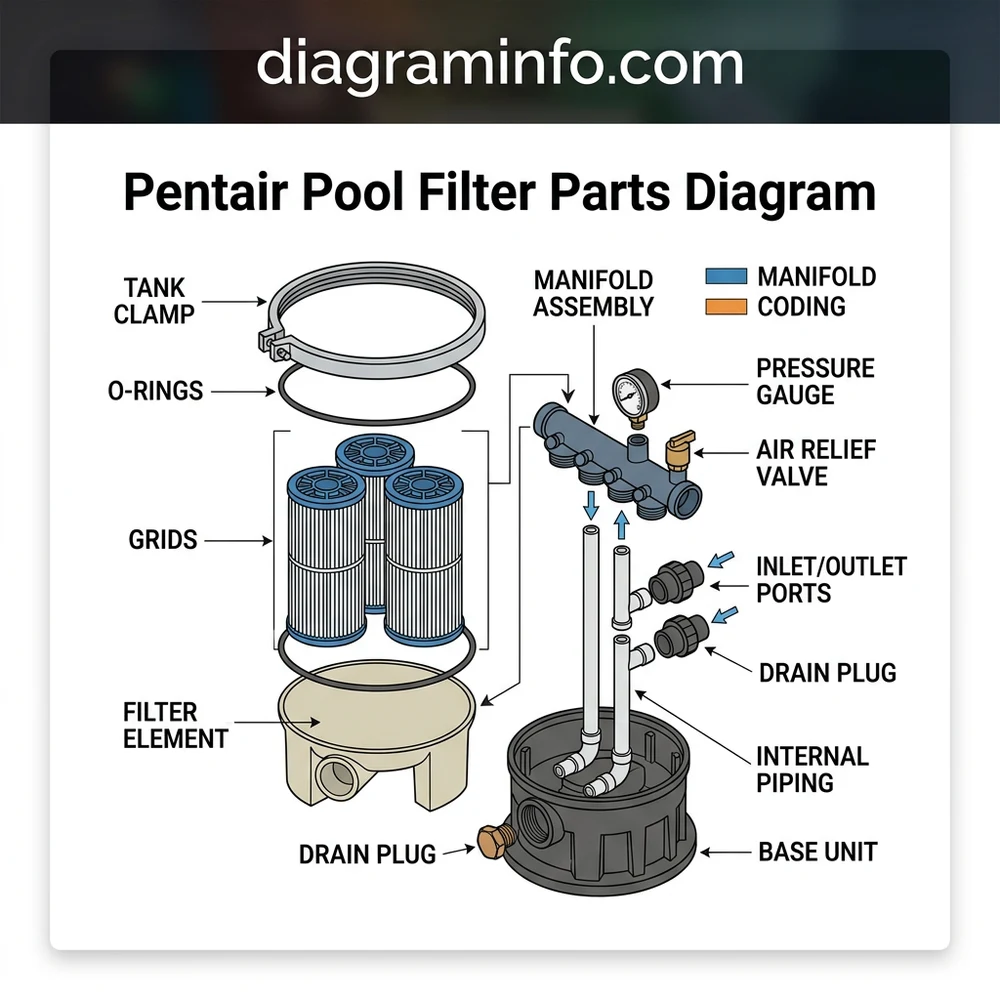

| Schematic Ref # | Component Description | OEM Part Number / Specification | Primary Function |
|---|---|---|---|
| 1 | High Flow Manual Air Relief Valve | Part #98209800 (1/4″ NPT) | Purges trapped air during system priming |
| 2 | Pressure Gauge (0-60 PSI) | Part #190058 (Back-mount) | Monitors differential pressure across media |
| 3 | Tension Clamp Assembly | Part #190003 (Includes spring/nut) | Secures upper and lower shell pressure seam |
| 4 | Tank O-Ring Seal | Part #39006300 (Buna-N Nitrile) | Establishes liquid-tight seal at shell belly band |
| 5 | Top Manifold / Core Assembly | Part #178584 (Clean & Clear) | Collects filtered water and secures top grids |
| 6 | Drain Cap & Plug Assembly | Part #190030 (1.5″ NPT) | Facilitates tank evacuation and winterization |
When replacing internal elements on Pentair Quad D.E. or Clean & Clear systems, inspect the bottom locating module for micro-cracks. A fractured lower module allows unfiltered bypass water into the return line, undermining filtration efficiency down to 5 microns.
Navigating the Pentair Schematic for Assembly and Maintenance
Utilizing a pentair pool filter parts diagram during routine maintenance prevents costly reassembly errors and mechanical failure under hydraulic load. Follow this technical teardown and rebuilding protocol based on factory service manual standards.
1. System Depressurization and De-energization
Shut off power to the circulation pump at the breaker panel. Open the manual air relief valve located atop the filter dome counterclockwise until the pressure gauge drops to 0 PSI. Do not attempt clamp removal until fluid flow ceases entirely.
2. Tension Clamp Disassembly
Using a 7/8-inch deep-well socket, loosen the brass barrel nut on the clamp assembly. Back the nut off until the coil spring relaxes completely. Remove the washer, spring, and brass nut, then carefully detach the two-piece clamp band from the tank perimeter.
3. Shell Separation and Seal Inspection
Lift the upper tank lid vertically off the lower body. Inspect the main body O-ring (Part #39006300) for flattening, dry rot, or chemical swelling. Clean the sealing groove on the lower tank flange using a lint-free microfiber cloth. Apply a light coat of 100% fluorosilicone lubricant—never petroleum jelly, which degrades Buna-N elastomers.
Clamp Nut Torque Spec: Tighten the 7/8-inch brass barrel nut on the tension clamp until the coils of the heavy-duty spring touch coil-to-coil (approximately 150 in-lbs / 12.5 ft-lbs torque). Do not over-torque beyond spring compression contact.
4. Element Stack Alignment
Align the internal air bleed tube through the designated port in the top manifold assembly. Seat the manifold firmly onto the center core or grid pipes. When reinstalling the tank lid, verify that the internal bypass line remains clear of obstruction and properly inserted into the air relief filter screen.
Pentair Pool Filter Diagram Troubleshooting: Pressure and Leak Fixes
High-pressure vessel hazard. Operating a pool filter system with damaged clamp hardware or improper torque can cause explosive vessel separation, leading to severe equipment damage or personal injury. Always bleed air completely before starting the pump.
Diagnosing system failures requires cross-referencing hydraulic symptoms against the pentair pool filter parts diagram layout. Mechanical issues generally manifest as external pressure leaks, internal bypass, or sudden pressure spikes.
Symptom: Water Bleeding from the Belly Clamp Seam
Consult the schematic for the clamp and O-ring orientation. Leaks along the center seam usually indicate a pinched main O-ring, debris embedded in the sealing lip, or an under-torqued clamp spring. If the clamp spring coils are fully compressed and leakage persists, replace both the tank O-ring and the brass sleeve washers.
Symptom: Unfiltered Debris Returning to Pool
Trace the internal bypass flow path on your blueprint. Check for three potential failure points:
- A torn mesh air-bleed sock on top of the internal air relief tree.
- Cracked or warped plastic manifolds allowing water to bypass cartridge end-caps.
- Damaged spider gaskets if your layout includes an integrated multiport valve schematic configuration.
For related hydraulic diagnostics upstream of the filter, refer to our comprehensive technical guide on pool pump impeller troubleshooting to isolate suction-side flow restrictions from filter-side backpressure issues. Additionally, if your equipment pad utilizes a push-pull valve, inspect our backwash valve seals diagnostic reference for internal O-ring wear patterns. For multi-port setups, view our multiport valve schematic analysis to diagnose direct bypass failures.
Pentair Pool Filter Parts Configuration FAQs
What operating pressure should be indicated on the Pentair pressure gauge?
Baseline operating pressure varies by plumbing configuration, typically ranging between 8 and 15 PSI with clean filter media. According to OEM specifications, once the gauge reads 8 to 10 PSI above your clean starting baseline, the filter elements must be removed and cleaned or backwashed.
How do you service the High Flow manual air relief valve assembly?
Unscrew the air relief valve counterclockwise from the top tank boss. Inspect the internal stem O-ring (Part #273512) and the mechanical pressure gauge thread tape. Clean the internal mesh screen located at the top of the internal air bleed pipe, smear a light silicone coat on the O-ring, and hand-tighten back into the lid.
What indicates that the tank clamp ring must be replaced?
Inspect the clamp band structural integrity during every teardown. Replace the clamp assembly immediately if you observe stress fractures along the stainless steel band, stripped threads on the T-bolt, or corrosion on the tension spring that prevents full coil-to-coil compression.
Why is silicone grease required for Pentair tank O-rings?
Pentair uses Buna-N (Nitrile) and EPDM elastomers for tank seals. Petroleum-based lubricants (such as Vaseline or motor oil) break down synthetic rubber polymers, causing swelling, stretching, and loss of tensile strength. Always specify 100% silicone or PTFE-based pool lubricant.
Step-by-Step Guide to Understanding the Pentair Pool Filter Parts Diagram
Identify – Locate your specific Pentair filter model serial tag on the lower tank body.
Locate – Find the target component on the exploded parts diagram reference schematic.
Reference – Match diagram reference numbers with official Pentair OEM replacement part numbers.
Connect/Route – Align replacement O-rings, manifolds, and cartridges into the lower tank housing structure.
Verify – Hand-tighten and torque the clamp band bolt until spring coils touch, then pressure test system.
Troubleshoot – Check high-flow air valve and tank seam for air or water leaks if pressure fails to equalize.
