Buggy 150cc Go Kart Wiring Diagram: 2026 Pinout Guide
A typical 150cc GY6 buggy go kart wiring diagram uses a 5 or 6-pin CDI unit. The hot wire (black/yellow) feeds ignition coil pulses, green serves as the main ground wire, and blue/yellow connects the pickup coil. The AC stator outputs power on black/red, while the starter solenoid handles high-amperage cranking.
📌 Key Takeaways
- Standard 150cc GY6 buggies utilize a 12V DC system with a 5-pin AC-fired or 6-pin DC-fired CDI box.
- Green wire universally serves as the primary ground wire; poor grounding causes over 80% of electrical failures.
- Solid red wire connects battery 12V positive directly to key switch and voltage regulator.
- Always install a 10A-15A inline fuse between battery positive terminal and main harness.
- Verify ignition coil primary resistance (0.4-0.6 ohms) before replacing CDI or stator components.
Navigating a 150cc GY6-based dune buggy or go kart electrical system requires a precise understanding of harness layouts, pinouts, and grounding points. OEM schematics across manufacturers like Hammerhead, TrailMaster, Kandi, and Carter often share the same foundational Chinese 150cc GY6 engine architecture, yet aftermarket modifications and wire color shifts frequently cause system faults. This technical guide breaks down the full buggy 150cc go kart wiring diagram, detailing pin assignment specifications, wire color codes, terminal identification, and exact circuit routing to ensure robust ignition, charging, and auxiliary power performance.
System Components for the Buggy 150cc Go Kart Wiring Diagram
Before tracing wires through a frame harness, mechanics must identify the main electrical hardware components that form the 12V DC power distribution and AC ignition architecture. Most 150cc buggies utilize a single-cylinder GY6 engine platform operating with an engine-driven magneto stator, an external pickup coil, a voltage regulator/rectifier, a capacitive discharge ignition (CDI) box, an ignition coil, a starter solenoid relay, and a battery circuit.
Recommended Best Deal Products
Manufacturers implement either an AC-fired or DC-fired CDI module on 150cc engines. An AC CDI derives power directly from the stator’s high-voltage source coil (typically yielding 40V AC to 80V AC during cranking), while a DC CDI relies on a 12V DC hot wire supplied from the main ignition switch. Verify module dimensions before testing; DC CDI units are generally larger and receive continuous battery voltage when the key is on.
The charging circuit relies on either a 6-pole, 8-pole, or 11-pole stator located beneath the flywheel. The stator produces multi-phase AC voltage routed through yellow and white wires to the regulator/rectifier. The rectifier converts this raw AC waveform into regulated DC current (13.8V to 14.4V DC) to maintain battery charge and power auxiliary loads like headlights, tail lights, and instrument panels. Understanding these sub-circuits prevents improper bypasses that burn out stator windings or ruin expensive electronic control units.

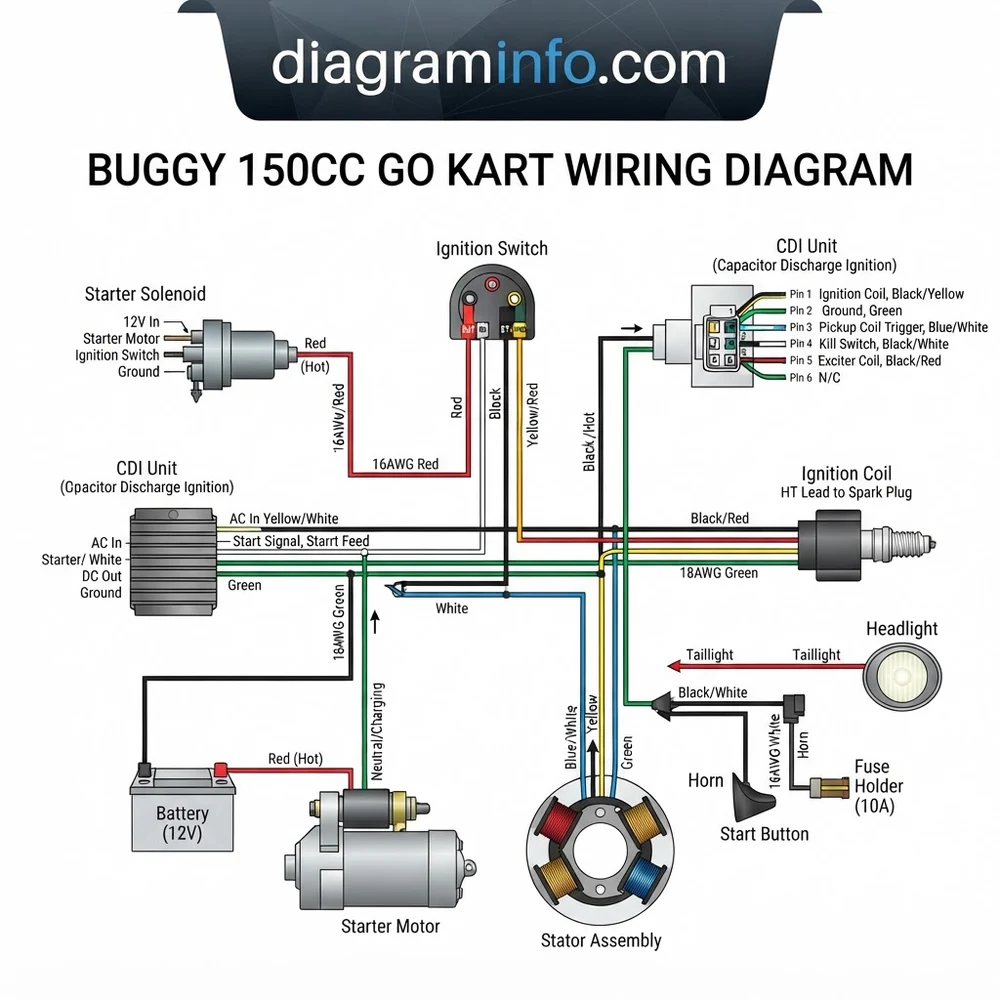

GY6 Wire Color Code and Pin Assignment Reference Guide
Although minor variations occur between factory production runs, standard GY6 buggy wiring follows a standardized color convention. The table below details the primary wire color code, functional circuit designation, pin assignment, and standard operating voltage levels found across most 150cc go kart harnesses.
| Wire Color | Circuit Function | Terminal / Pin Assignment | Operating Voltage & Spec |
|---|---|---|---|
| Solid Green | System Main Ground Wire | Frame Chassis / Battery Negative (-) | 0V (Reference Ground) |
| Solid Red | Main Hot Wire (Fused Battery +) | Solenoid B+ Terminal to Key Switch Pin 1 | 12.6V DC (Constant Battery) |
| Solid Black | Switched Hot Wire | Key Switch Output to Fuse Block / DC CDI | 12.0V – 14.4V DC (Key ON) |
| Yellow | Stator AC Lighting Output | Stator Plug to Rectifier Pin 1 | 15V – 50V AC (Varies with RPM) |
| White | Stator AC Charging Output | Stator Plug to Rectifier Pin 2 | 15V – 60V AC (Varies with RPM) |
| Blue / Yellow | Pick-Up Pulser Coil Signal | Flywheel Sensor to CDI Pin 1 | 1.5V – 4.0V AC Peak (Cranking) |
| Black / Yellow | Ignition Coil High Primary Pulse | CDI Output to Ignition Coil Primary (+) | 100V – 300V Peak Pulse |
| Black / White | Engine Kill Circuit Line | CDI Shut-off Pin to Ignition Switch / E-Stop | 0V (Grounded to Kill Ignition) |
| Green / Red | Neutral Wire Switch Signal | Gear Selector Switch to Dash Neutral Light | Switched Ground (0V in Neutral) |
Resistance values for healthy ignition components off a 150cc engine: Pick-up trigger coil (Blue/Yellow to Green Ground): 100Ω to 150Ω. AC Exciter coil (Black/Red to Green Ground): 400Ω to 600Ω. Primary Ignition Coil (Input terminal to ground): 0.2Ω to 0.8Ω. Secondary Ignition Coil (without cap to ground): 3.0kΩ to 5.0kΩ.
Wiring Sequence for the Buggy 150cc Go Kart Wiring Diagram
When assembling a new chassis harness or repairing damage on a project buggy, complete wire connections in a controlled, sub-system sequence. Connecting high-draw battery circuits prior to verifying signal lines risks component shorting if an unintended chassis bridge exists.
1. High-Current Starter and Main Battery Harness Setup
Begin installation by connecting the heavy-gauge red battery cable directly to the large input lug of the starter solenoid relay switch. Mount a primary 15A or 20A inline blade fuse close to the battery terminal along a dedicated 14-gauge red hot wire lead that runs directly to the key switch terminal block. Run a heavy 10-gauge green ground wire directly from the battery negative terminal to an unpainted engine crankcase bolt, establishing a solid zero-volt reference point. Connect a secondary green strap from the engine block to a dedicated frame terminal block to ground all auxiliary chassis equipment.
2. Charging Circuit and Rectifier Pin Assembly
Route the stator bundle exiting the right side engine cover up toward the main wiring plate. Connect the white and yellow AC stator wires directly into the lower pins of the standard 4-pin or 5-pin voltage regulator module. Connect the regulator green ground wire to the frame chassis block. Connect the regulator red output lead back into the fused main hot wire circuit. On 5-pin rectifiers, the additional black wire acts as a voltage sense line and must connect to the switched black hot wire exiting the ignition key switch.
3. CDI Module and Ignition Triggering Circuit
For a standard 6-pin dual-plug AC CDI setup, execute the following pin connections:
- Pin 1 (Top Left, 2-Pin Plug): Connect the Black/Red wire from the stator exciter coil.
- Pin 2 (Bottom Left, 2-Pin Plug): Connect the Black/White ignition cutoff wire coming from the key switch and handlebar emergency stop button.
- Pin 3 (Top Right, 4-Pin Plug): Connect the Black/Yellow primary pulse line out to the positive terminal of the ignition coil.
- Pin 4 (Upper Middle Right): Connect the Blue/Yellow pick-up pulser signal line from the stator.
- Pin 5 & 6 (Bottom Right Pins): Join both pins directly to the solid green ground wire harness.
Do not supply 12V DC battery voltage to the Black/Red wire pin of an AC CDI module. Applying battery voltage directly to an AC exciter pin will permanently destroy the internal capacitor structure of the CDI unit within seconds.
4. Starter Safety Switch and Key Switch Routing
Route the 4-pin key switch connector as follows: Pin 1 receives continuous battery power via the fused red hot wire. Pin 2 outputs switched power through a black wire when turned ON. Pin 3 routes a green ground wire to the switch. Pin 4 outputs the Black/White kill signal when the key is turned OFF. Interlock the starter solenoid control circuit by routing the Yellow/Red signal wire through the brake pedal safety switch and the engine neutral wire position sensor before terminating at the solenoid low-current spade terminal.
Voltage, Wire Gauge, and Terminal Block Specifications
Using improper wire sizing on custom 150cc buggies causes voltage drop, excess heat accumulation, and unpredictable electrical failures under heavy vibration or load conditions. According to OEM automotive standards, wire gauge selection must align with circuit amperage draw across the length of the chassis layout.
| Circuit Load Type | Max Current Draw | Recommended Wire Gauge | Max Acceptable Voltage Drop |
|---|---|---|---|
| Starter Motor High-Draw Cable | 40A – 60A (Inrush) | 10 AWG to 8 AWG | < 0.5V DC during cranking |
| Main Power Feed & Charging Wire | 10A – 15A | 14 AWG | < 0.2V DC at idle |
| Ignition Systems (CDI & Coil) | 3A – 5A Peak | 16 AWG | < 0.1V AC/DC signal distortion |
| Sensors, Neutral Switch & Indicators | < 1A | 18 AWG to 20 AWG | < 0.1V DC |
| Auxiliary LED Lights & Horn | 5A – 10A | 16 AWG | < 0.3V DC under full load |
When installing a central terminal block for accessories, ensure all crimp connections utilize marine-grade heat-shrink spade and ring terminals. Standard electrical tape connections corrode rapidly when exposed to off-road mud and moisture, causing high resistance conditions that mimic component failure.
Buggy 150cc Go Kart Wiring Diagram Diagnostics and Common Failures
Diagnosing an electrical fault on a 150cc dune buggy requires isolating whether the failure stems from the ignition primary side, the low-voltage charging system, or poor grounding across the tube frame chassis.
Fault 1: Complete Absence of Spark at the Plug (No-Spark Condition)
A missing spark is the most common diagnostic event on GY6 engines. First, disconnect the Black/White wire leading to the CDI unit. This disconnects all kill switches, including the key switch, dash toggle button, and remote safety cutoffs. Test for spark by cranking the engine. If spark returns, a short to ground exists along the Black/White kill line or inside a faulty toggle switch. If no spark persists, measure AC voltage across the Black/Red exciter wire and green ground during cranking; readings below 25V AC indicate a degraded ignition stator coil assembly.
Fault 2: Battery Discharges Rapidly During Operation
If the battery dies while riding despite being brand new, the charging system is non-functional or suffering from a high parasitic draw. Set a multimeter to DC volts across the battery terminals. Start the engine and rev to 4,000 RPM. A functional system shows between 13.5V DC and 14.4V DC. If voltage stays at static battery level (12.2V – 12.6V DC), test for AC voltage entering the regulator across the yellow and white stator leads. If AC voltage is present (20V AC to 40V AC), replace the failed voltage regulator/rectifier module.
Fault 3: Starter Solenoid Clicks But Engine Will Not Crank
A single sharp click from the starter relay accompanied by a loss of power indicates high resistance on the heavy cable connections or an undercharged battery. Measure the voltage drop across the relay terminals while holding the start button. If voltage drops significantly across the two large copper terminals, the internal contact disk inside the solenoid relay switch is oxidized and requires replacement. If the voltage drops across the entire battery, inspect the primary green ground wire frame mount point for corrosion, paint insulation, or loose hardware.
Buggy 150cc Go Kart Wiring Diagram Frequently Asked Questions
How do I identify if my 150cc buggy uses an AC or DC CDI unit?
Measure the voltage at the power input terminal of the CDI plug with the key switch ON (engine off). If you read 12V DC on the input pin, it is a DC CDI system. If there is 0V DC with the key ON, but you read 30V-80V AC while cranking the engine, the vehicle utilizes an AC CDI system. Additionally, DC CDI units are noticeably larger in physical volume than AC modules.
What wire gauge should be used when rewiring a 150cc go kart electrical harness?
Use 10 AWG wire for high-current starter motor and main battery grounding circuits. Main power feeds from the battery to the key switch and charging output lines require 14 AWG wire. General accessory lighting, ignition CDI triggering lines, and kill switches run efficiently on 16 AWG or 18 AWG automotive stranded copper wire.
Why does my starter relay click without turning over the engine?
Clicking indicates the relay control circuit is functioning, but insufficient current reaches the starter motor. Common causes include a discharged battery (below 12.0V DC under load), corroded battery terminal terminals, a loose main chassis ground wire, or degraded copper contacts inside the starter solenoid itself.
Where should the main ground wire connect on a GY6 150cc buggy chassis?
The primary ground cable must run directly from the battery negative (-) terminal to an unpainted bolt on the aluminum crankcase or engine mounting bracket near the starter motor. A secondary ground wire must bridge the engine casing directly to a clean terminal block or bare metal tab on the tubular steel chassis frame.
Can I run LED light bars directly off the stator wire leads?
No. Standard GY6 stator leads (yellow and white wires) output unregulated AC voltage that fluctuates between 15V AC and over 50V AC depending on engine RPM. Connecting DC-rated LED lights directly to stator leads will immediately damage the LED driver circuitry. Auxiliary lighting must be connected downstream of the DC voltage regulator or directly to a fused battery terminal block controlled by a relay switch.
Step-by-Step Guide to Understanding the Buggy 150Cc Go Kart Wiring Diagram
Identify – Map harness routes using the buggy 150cc go kart wiring diagram and isolate primary sub-assemblies.
Locate – Position CDI box, voltage regulator, starter solenoid, and engine stator connectors on the chassis frame.
Reference – Match wire color code combinations on harness to corresponding pin assignment terminals on components.
Connect/Route – Secure the main ground wire to clean chassis metal and route hot wire leads through an inline fuse.
Verify – Measure battery terminal voltage (12.6V DC) and confirm continuity across all safety switch grounds.
Troubleshoot – Test output voltage at ignition coil using a multimeter if no-spark condition persists during cranking.
