This technical article delves into the intricate fuel system of the 2014 Chevrolet Silverado, specifically focusing on models equipped with the LML Duramax 6.6L diesel engine. Understanding this system is paramount for accurate diagnostics, maintenance, and repair. The accompanying diagram, when thoroughly reviewed, illustrates the low-pressure and high-pressure fuel circuits, detailing the journey of diesel fuel from the tank through critical components like the fuel filter/water separator, high pressure fuel pump (HPFP), common rails, and injectors, highlighting both supply and fuel return line paths.

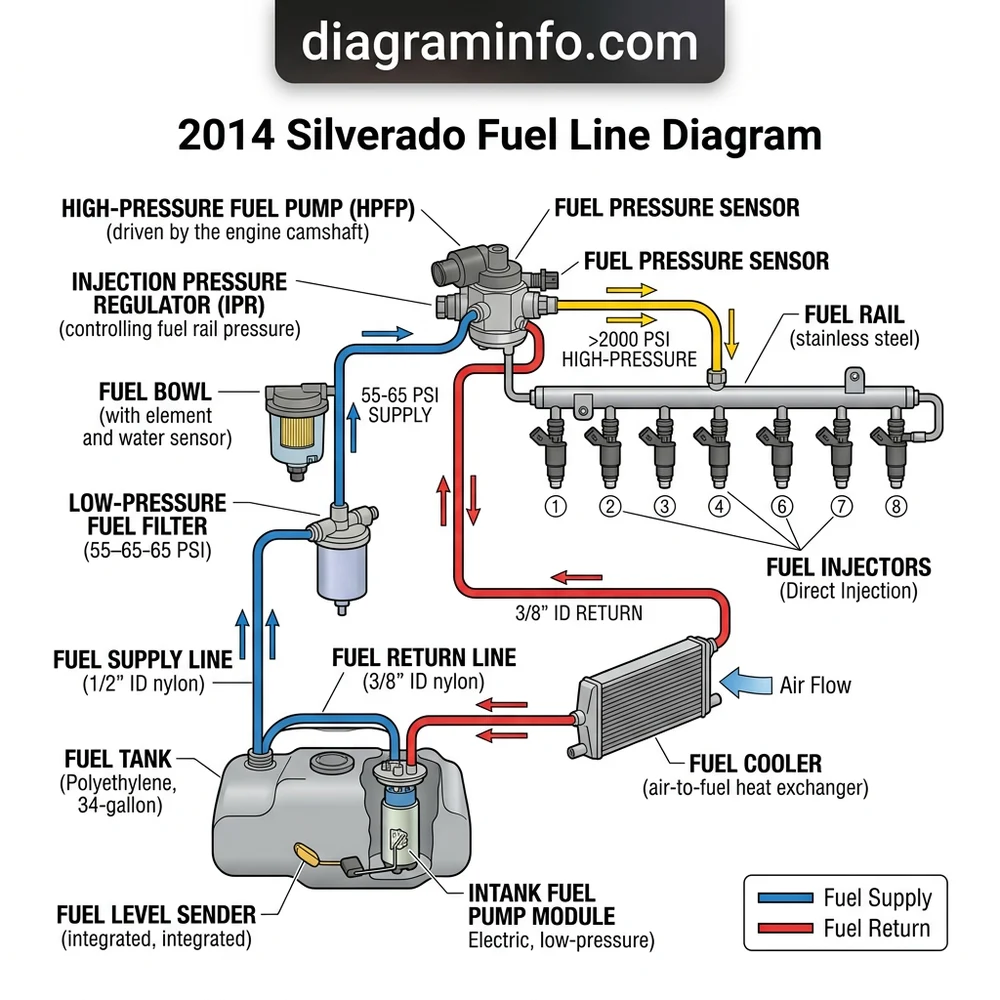

FUEL SYSTEM COMPONENTS BREAKDOWN
The 2014 Silverado Duramax LML fuel system is a sophisticated common-rail design, featuring distinct low-pressure and high-pressure circuits. Each component plays a crucial role in ensuring precise fuel delivery and optimal engine performance. Refer to the diagram above for visual correlation with the following breakdown.
| Component | Diagram Reference | Function |
|---|---|---|
| Fuel Tank | A | Stores diesel fuel. Contains the fuel sender unit for level monitoring and the fuel pickup tube. |
| Low-Pressure Supply Line | B | Transports fuel from the tank to the fuel filter/water separator, under suction created by the HPFP. |
| Fuel Filter/Water Separator (Fuel Bowl) | C | Houses the primary fuel filter element and provides a sump for water separation. Includes the fuel heater (to prevent gelling in cold weather) and the manual primer pump for bleeding air. This component is often referred to as the “fuel bowl.” |
| Low-Pressure Line to HPFP | D | Connects the filtered fuel outlet from the fuel bowl to the inlet of the high pressure fuel pump. |
| High Pressure Fuel Pump (HPFP) | E | The Bosch CP4.2 pump creates extremely high fuel pressure (up to 29,000 psi / 2,000 bar) for injection. It also incorporates a low-pressure transfer pump to draw fuel from the tank. The injection pressure regulator, also known as the Fuel Control Actuator (FCA), is integral to the HPFP, regulating fuel volume delivered to the high-pressure pumping elements. |
| High-Pressure Fuel Lines | F | Rigid steel lines that transport fuel at high pressure from the HPFP to the common fuel rails. |
| Common Fuel Rails | G | Reservoirs that maintain consistent high fuel pressure for all injectors. Each rail has a fuel rail pressure sensor that provides feedback to the Engine Control Module (ECM). |
| Fuel Injectors | H | Electronically controlled nozzles that atomize and inject fuel directly into the combustion chambers at precise timings and quantities. |
| Fuel Return Line | I | Returns excess fuel (from injectors, rails, and the HPFP) back to the fuel tank. This line also helps regulate pressure and cools the fuel after its journey through the hot engine bay. |
| Fuel Cooler | J | Often integrated into the fuel return line circuit, this component dissipates heat from the returned fuel, preventing tank temperatures from becoming excessively high. |
Unlike earlier Duramax generations, the LML does not feature a dedicated electric lift pump from the factory. Fuel is primarily drawn from the tank by the transfer section of the Bosch CP4.2 high pressure fuel pump. The manual primer pump on the fuel filter housing is critical for bleeding air from the system after maintenance.
COMMON FAILURE POINTS & SYMPTOMS
The LML Duramax fuel system, while robust, has several known failure points that technicians frequently encounter. Understanding these issues is critical for efficient diagnosis.
1. High Pressure Fuel Pump (HPFP) – Bosch CP4.2:
Symptom: Common symptoms include engine stalling, no-start condition, reduced engine power (limp mode), or rough idling. Often accompanied by DTCs such as P0087 (Fuel Rail/System Pressure Too Low) or P0088 (Fuel Rail/System Pressure Too High).
Diagnosis: A catastrophic CP4 failure, often termed “CP4 disaster,” introduces metal debris throughout the entire high-pressure fuel system. Diagnosis involves checking for metallic sheen in the fuel filter, low fuel rail pressure readings during cranking/running, and potentially disassembling components like the fuel pressure relief valve or injectors for debris inspection. Fuel quality and additives are paramount to HPFP longevity.
2. Fuel Injectors:
Symptom: Rough idle, excessive smoke (white/blue/black depending on issue), misfires, reduced fuel economy, increased engine noise (e.g., injector knock). DTCs like P0201-P0208 (Injector Circuit Malfunction) or P02D1-P02DC (Cylinder Balance/Contribution) are common.
Diagnosis: Perform a cylinder contribution test using a capable scan tool. A diesel injector return rate test can isolate leaking injectors. Visual inspection for external leaks or carbon buildup can also provide clues. Incorrect injector programming after replacement can also cause issues.
3. Fuel Filter/Water Separator (Fuel Bowl) Clogging:
Symptom: Reduced engine power, hesitation under acceleration, hard starting, or frequent regeneration cycles due to increased exhaust temperatures from restricted fuel flow. In extreme cases, a no-start condition.
Diagnosis: Initial check involves inspecting the filter for obvious contamination. Replacing the filter and observing changes in performance is a primary diagnostic step. A restricted filter will also cause increased vacuum on the low-pressure side of the HPFP, potentially leading to cavitation and premature HPFP wear.
4. Fuel Line Leaks & Air Intrusion:
Symptom: Hard starting (especially after sitting), extended cranking, engine stalling, or visible fuel leaks. Air in the system can cause erratic idle and misfires.
Diagnosis: Visually inspect all low-pressure fuel lines for cracks, chafing, or loose connections. Pay close attention to connections at the fuel filter housing, tank module, and HPFP. A common issue is a loose or cracked connection at the manual primer pump. Pressurizing the low-pressure side with a hand pump and observing for leaks (or vacuum testing for air intrusion) can pinpoint issues.
5. Fuel Control Actuator (FCA) / Injection Pressure Regulator:
Symptom: Erratic fuel rail pressure, sudden drops or spikes in pressure, engine surging, stalling, or entering limp mode. DTCs related to fuel rail pressure control.
Diagnosis: Monitor fuel rail pressure actual vs. desired with a scan tool. If the FCA is sticking or failing, the actual pressure will deviate significantly from the desired pressure. While sometimes replaceable separately, it’s an integral part of the HPFP.
REPAIR & REPLACEMENT STEPS: FUEL FILTER/WATER SEPARATOR
Regular replacement of the fuel filter/water separator is arguably the most critical preventative maintenance task for the LML Duramax fuel system. This procedure ensures clean fuel delivery and protects expensive high-pressure components.
1. Preparation and Safety:
Park the vehicle on a level surface and engage the parking brake.
Allow the engine to cool completely.
Gather necessary tools: suitable wrenches (e.g., 27mm for filter cap), drain pan, shop rags, new GM OEM fuel filter (ACDelco TP1015 or equivalent, GM P/N 12633243 or updated), and safety glasses.
Ensure you have at least 1 gallon of fresh diesel fuel for priming.
Diesel fuel is flammable. Work in a well-ventilated area away from open flames or sparks. Wear appropriate personal protective equipment (PPE), including gloves and eye protection.
2. Draining the Fuel Bowl:
Locate the fuel filter housing (fuel bowl) on the top-front of the engine (passenger side).
Place a drain pan directly underneath the fuel filter housing.
Open the yellow drain valve at the bottom of the fuel filter housing by twisting it counter-clockwise. Allow all fuel and water to drain completely.
Once drained, close the valve securely by twisting it clockwise. Do not overtighten.
3. Removing the Old Filter:
Disconnect the electrical connector for the fuel heater and Water-In-Fuel (WIF) sensor from the bottom of the filter housing.
Using a 27mm wrench or a specialized fuel filter cap wrench, carefully loosen and remove the top cap of the fuel filter housing. The cap and filter element will come out as one assembly.
Lift the cap and filter straight up and out. Be mindful of residual fuel.
Separate the old filter element from the cap. Discard the old filter and O-rings.
4. Installing the New Filter:
Clean the inside of the fuel filter housing thoroughly, removing any debris or sludge.
Lubricate the new O-rings on the filter cap and the filter element with clean diesel fuel.
Install the new filter element onto the cap, ensuring it seats properly.
Insert the new filter and cap assembly into the fuel filter housing. Push down firmly to ensure the filter is seated correctly.
Thread the cap back onto the housing by hand until snug.
Using the wrench, tighten the cap to manufacturer specifications.
According to OEM specifications for the LML Duramax, the fuel filter cap should be torqued to 22 lb-ft (30 Nm).
Reconnect the electrical connector for the fuel heater and WIF sensor.
5. Priming the Fuel System:
Locate the manual primer pump on top of the fuel filter housing.
Pump the primer plunger repeatedly until it becomes firm to the touch. This indicates the fuel bowl is full and air has been purged from the low-pressure system. It may take 50-100 pumps or more depending on how much air was introduced.
Start the engine and allow it to idle for a few minutes. Check for any fuel leaks around the filter housing.
* If the engine runs rough or stalls, repeat the priming process. Some technicians prefer to cycle the ignition key to the “ON” position (without cranking) several times to allow the in-tank pump (if equipped, or for diagnostic purposes) to run, though the primary priming for LML is manual.
For optimal performance and to prevent premature wear on the HPFP, always use genuine GM or high-quality aftermarket fuel filters. Adhere to the manufacturer’s recommended service intervals, typically every 10,000-15,000 miles or annually, whichever comes first, especially in areas with poor fuel quality.
