6.6 Duramax Fuel Line Diagram: Routing & Maintenance 2026

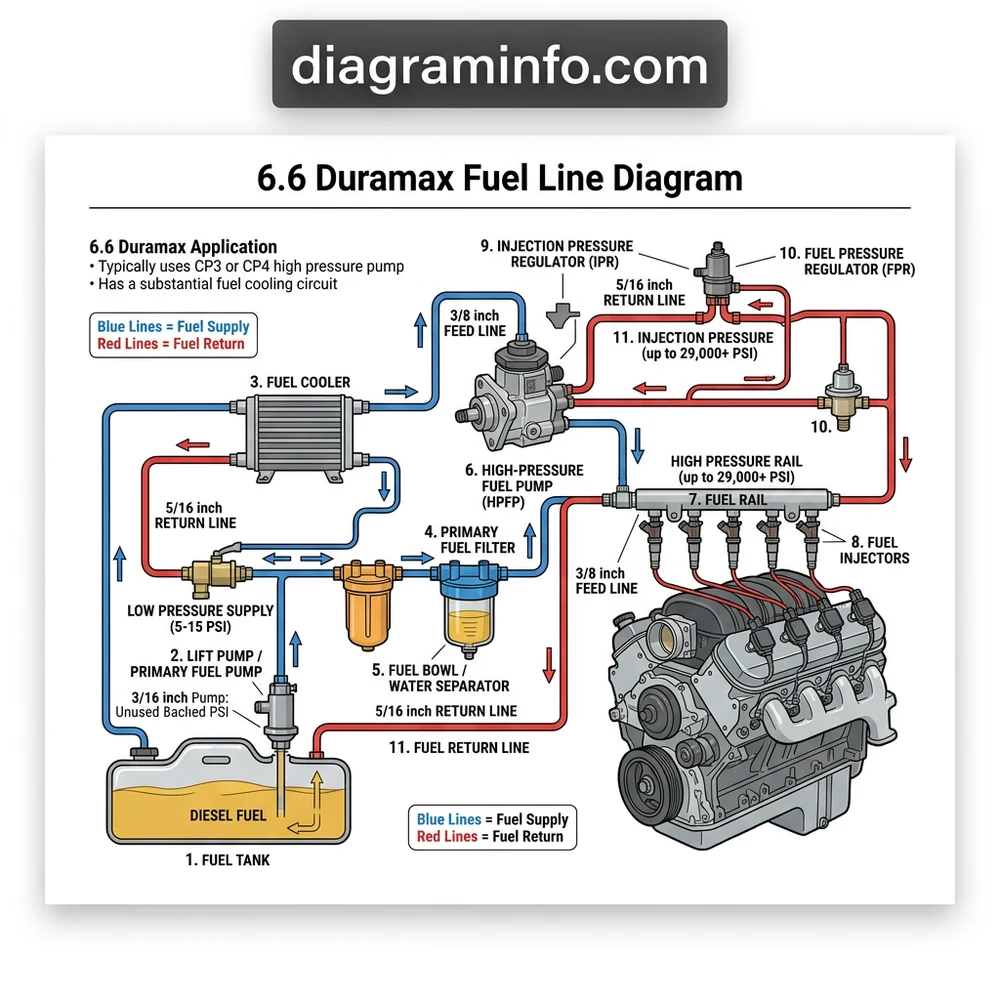

The 6.6 Duramax fuel line diagram illustrates the path from the fuel tank through the lift pump, primary fuel filter (fuel bowl), high-pressure fuel pump (HPFP), common rail, and injectors, incorporating the fuel return line. Proper routing ensures optimal fuel delivery and pressure, managed by components like the injection pressure regulator.
📌 Key Takeaways
- The 6.6 Duramax system utilizes a lift pump, fuel filter/bowl, HPFP, common rail, and injection pressure regulator for precise fuel delivery.
- Identify the fuel return line for proper fuel pressure regulation and air bleeding within the 6.6 Duramax fuel system.
- Ensure proper torque on fuel line fittings (typically 18-22 ft-lbs) to prevent leaks and maintain system integrity.
- The most common failure points include injector leaks, HPFP degradation, and clogged fuel filters (fuel bowl), often causing hard starts or power loss.
- While fuel filter replacement is DIY-friendly, HPFP or injector replacement typically requires specialized tools and professional expertise.
The 6.6 Duramax engine, particularly the LBZ and LMM variants (2006-2010), utilizes a sophisticated high-pressure common rail fuel system designed for optimal performance and emissions control. Understanding its intricate layout is crucial for accurate diagnosis, maintenance, and repair. This comprehensive article, complete with a detailed 6.6 Duramax fuel line diagram, will guide you through the system’s architecture, component identification, operational principles, and common issues, empowering you with the knowledge to address complex fuel system challenges.
(Imagine a detailed diagram showing the fuel flow from the tank, through the filter, to the HPFP, fuel rails, injectors, and back via the return lines. Key components like the fuel tank, fuel filter housing, primer pump, fuel heater, fuel cooler, high pressure fuel pump (HPFP), fuel rails, fuel pressure regulator, fuel injectors, and all associated fuel lines would be clearly labeled with flow arrows.)
FUEL SYSTEM COMPONENTS BREAKDOWN
The 6.6 Duramax fuel system is engineered to deliver precise fuel quantities at extremely high pressures. Referring to the 6.6 Duramax fuel line diagram above, you can trace the fuel’s journey and identify each critical component:
- Fuel Tank: The primary reservoir for diesel fuel. It typically includes a sender unit for the fuel gauge and a pickup tube.
- Fuel Supply Line: The primary conduit carrying fuel from the tank to the fuel filter housing. On many 6.6 Duramax models (e.g., LBZ/LMM), this is a suction line, as there is no electric lift pump from the factory.
- Fuel Filter Housing Assembly: A multi-function component located on the engine. It houses the replaceable fuel filter element, the primer pump for bleeding air, a fuel heater to prevent gelling in cold weather, and a Water-in-Fuel (WIF) sensor. The fuel bowl is the lower section where water collects.
- Fuel Heater: An electrically-powered element within the fuel filter housing that warms the fuel to prevent paraffin wax crystallization and gelling, particularly crucial in cold climates. It activates based on fuel temperature thresholds.
- Primer Pump (Hand Pump): Integrated into the fuel filter housing, this manual pump is used to draw fuel from the tank and purge air from the low-pressure side of the system after maintenance (e.g., filter replacement).
- Low-Pressure Fuel Line (to HPFP): Connects the filtered fuel from the fuel filter housing directly to the High-Pressure Fuel Pump (HPFP) inlet.
- High Pressure Fuel Pump (HPFP – Bosch CP3): As shown in the 6.6 Duramax fuel line diagram, this mechanical pump (driven by the engine) is the heart of the high-pressure system. It draws low-pressure fuel and pressurizes it up to 26,000+ PSI for delivery to the fuel rails. The CP3 pump also incorporates the Fuel Pressure Regulator (FPR), sometimes referred to as the Injection Pressure Regulator (IPR) or Fuel Rail Pressure (FRP) regulator on this platform.
- Fuel Pressure Regulator (FPR / IPR): An electronically controlled valve located on the HPFP (or sometimes the fuel rail itself, depending on the system). It modulates the amount of fuel entering the high-pressure pumping chambers to control the pressure within the fuel rails.
- High-Pressure Fuel Lines (to Rails): Robust steel lines that transport the extremely high-pressure fuel from the HPFP to each of the two fuel rails.
- Fuel Rails (Common Rails): Two steel manifolds (one per cylinder bank) that store high-pressure fuel and distribute it evenly to the injectors. They also incorporate a pressure sensor to monitor actual rail pressure.
- Fuel Injectors: Electronically controlled solenoids (or piezoelectric, though Duramax uses solenoid on CP3 models) that receive high-pressure fuel from the rail and precisely spray it into the combustion chambers at the exact moment required by the ECM.
- Fuel Return Lines (Low Pressure): A network of lines that collects unused fuel from the HPFP, FPR, and injectors, returning it to the fuel tank. This fuel is often warm due to pressurization and circulation.
- Fuel Cooler: Located on the fuel return line, this heat exchanger uses engine coolant or ambient air to cool the warm return fuel before it re-enters the tank, preventing excessive fuel temperature in the tank.
Early 6.6 Duramax engines (LB7, LLY, LBZ, LMM) do not feature an in-tank or frame-mounted electric lift pump from the factory. The CP3 high-pressure pump is responsible for drawing fuel from the tank, making the low-pressure side a suction system. This design makes these systems particularly sensitive to air leaks or restrictions in the fuel supply line.
COMMON FAILURE POINTS & SYMPTOMS
Understanding the common failure points in the 6.6 Duramax fuel system, as illustrated by the 6.6 Duramax fuel line diagram, is critical for efficient diagnosis. Prompt identification of symptoms can prevent cascading damage and costly repairs.
- Fuel Filter Housing Assembly (including Primer Pump & Fuel Heater):
- Symptoms: Hard starting (especially after filter change), rough idle, loss of power under load, fuel leaks, WIF light illumination, engine stalling.
- Diagnosis: A common issue is air ingress due to a cracked housing, worn primer pump O-rings, or a loose WIF sensor. Check for visible fuel leaks around the housing, particularly after pumping the primer. A malfunctioning fuel heater can lead to fuel gelling in cold temperatures, causing fuel starvation. The fuel bowl can accumulate excessive water if drain procedures are neglected, triggering the WIF sensor.
- High Pressure Fuel Pump (HPFP – CP3):
- Symptoms: Extended crank times, engine cranking but no start, loss of power, check engine light (DTCs P0087, P0088, P1093), black smoke.
- Diagnosis: Internal wear leads to reduced volume and pressure output. Monitor actual vs. desired fuel rail pressure using a scan tool. A significant discrepancy (e.g., actual pressure consistently below desired by several thousand PSI under load) points to a failing HPFP. The injection pressure regulator within the HPFP can also fail, causing pressure control issues.
- Fuel Injectors:
- Symptoms: Excessive white or black smoke, rough idle, misfires, fuel odor in oil, increased oil level, reduced fuel economy, knocking sounds, high balance rates (monitored via scan tool).
- Diagnosis: Sticking or leaking injectors can cause combustion issues. Perform an injector return rate test to identify leaking injectors. Elevated balance rates indicate an injector struggling to maintain engine smoothness. Fuel in oil suggests internal injector leakage into the cylinder head.
- Fuel Return Lines & Fuel Cooler:
- Symptoms: Fuel leaks, fuel odor, excessive fuel temperature codes, reduced efficiency.
- Diagnosis: Visible inspection for cracks or chafing on the fuel return lines. A clogged or damaged fuel cooler can lead to elevated fuel temperatures, which can affect fuel density and potentially system performance.
- Fuel Supply/Return Lines (Low Pressure):
- Symptoms: Hard starting, air in fuel (visible in clear lines or upon priming), engine surging, loss of power, fuel leaks.
- Diagnosis: Cracks, loose fittings, or chafing in the low-pressure lines can allow air to enter the system, as the HPFP operates under suction from the tank. Inspect all connections, especially those near the frame and tank.
Working with the high-pressure side of a common rail diesel fuel system is extremely dangerous. Fuel pressures can exceed 26,000 PSI, capable of causing severe injury or death. Always depressurize the system according to manufacturer specifications and wear appropriate personal protective equipment before attempting any service.
REPAIR & REPLACEMENT STEPS: Fuel Filter & Primer Pump Housing
Replacing the fuel filter and inspecting the associated primer pump housing is a fundamental maintenance task on the 6.6 Duramax. This procedure directly addresses common issues related to fuel quality and air ingress, as referenced in the 6.6 Duramax fuel line diagram.
Procedure for Fuel Filter & Primer Pump Housing Replacement (LBZ/LMM)
Tools Required: Fuel filter wrench, drain pan, clean rags, new fuel filter, new housing O-ring (if applicable), torque wrench, safety glasses, gloves.
- Prepare the Vehicle:
- Park the vehicle on a level surface and engage the parking brake.
- Turn off the engine and remove the key to prevent accidental starting.
- Locate the fuel filter housing on the driver’s side of the engine, typically above the wheel well.
- Drain the Fuel Filter Housing:
- Place a drain pan directly beneath the fuel filter housing.
- Open the yellow drain valve at the bottom of the fuel bowl. Allow all fuel and accumulated water to drain completely.
- Once drained, close the drain valve securely.
- Remove the Old Fuel Filter:
- Using a specialized fuel filter wrench, carefully loosen the fuel filter canister by turning it counter-clockwise.
- Once loose, slowly unscrew the filter by hand. Be prepared for a small amount of residual fuel to spill.
- Carefully remove the filter and its internal O-ring (if not attached to the filter). Dispose of the old filter and O-rings properly.
- Inspect the Housing and Primer Pump:
- Thoroughly clean the fuel filter housing base and inspect it for any cracks, damage, or wear, particularly around the primer pump shaft and the water-in-fuel (WIF) sensor port.
- If the primer pump feels loose, excessively spongy, or does not build pressure, it may indicate internal O-ring failure, warranting housing replacement or a primer pump rebuild kit.
- Inspect the electrical connector for the fuel heater and WIF sensor for corrosion or damage.
- Install the New Fuel Filter:
- Ensure the new fuel filter comes with fresh O-rings. Lubricate the new O-rings with clean diesel fuel.
- Thread the new fuel filter onto the housing base by hand. Ensure it starts straight to avoid cross-threading.
- Once finger-tight, use the fuel filter wrench to tighten it an additional 1/4 to 1/2 turn past hand-tight, or to the manufacturer-specified torque (typically 18-22 ft-lbs or 24-30 Nm). Do not overtighten, as this can damage the housing.
- Prime the Fuel System:
- With the new filter installed, actuate the primer pump (plunger on top of the housing) repeatedly until it becomes firm. This indicates that the fuel filter housing and low-pressure lines are full of fuel and free of air.
- Pump the primer approximately 30-50 times, listening for the sound of fuel filling the system. It should become noticeably harder to pump.
- Cycle the ignition key to the ON position (without starting) for 15-30 seconds several times to allow the electric lift pump (if aftermarket) or the HPFP (by design) to pull additional fuel and build pressure.
- Start the Engine and Check for Leaks:
- Start the engine and allow it to idle for several minutes.
- Carefully inspect around the entire fuel filter housing, including the drain valve and the WIF sensor, for any signs of fuel leaks.
- If any leaks are present, shut off the engine immediately and address the source.
- Monitor for rough idling or stalling, which could indicate air still in the system. If so, repeat the priming steps.
For 2006-2010 LBZ/LMM Duramax 6.6L engines, the fuel filter torque specification is typically 18-22 lb-ft (24-30 Nm). Always consult the OEM service manual for the exact specifications for your specific year and model. The WIF sensor often has a lighter torque spec, around 8-10 lb-ft (11-14 Nm).
FAQ
What are the signs of air in the 6.6 Duramax fuel system?
Air in the fuel system can manifest as hard starting (especially after sitting or after fuel system service), prolonged cranking, rough idling, engine surging, a noticeable loss of power, and potentially a “gurgling” sound from the fuel filter housing or lines. Since the 6.6 Duramax relies on the HPFP to pull fuel, even small air leaks can significantly impact performance. Consult our guide on Duramax Air in Fuel Diagnosis for more detailed troubleshooting.
How often should I change the fuel filter on my 6.6 Duramax?
General recommendations suggest changing the fuel filter every 10,000-15,000 miles or annually, whichever comes first. However, if you frequently use low-quality fuel, tow heavily, or operate in dusty conditions, more frequent changes may be necessary. Always prioritize fuel quality and regular draining of the fuel bowl to prolong filter life and protect sensitive components like the HPFP and injectors. For more specifics, review our article on Duramax Maintenance Schedule.
Can I run my 6.6 Duramax without a fuel cooler?
It is strongly advised against operating a 6.6 Duramax without a functional fuel cooler. The high-pressure common rail system generates significant heat within the fuel as it’s pressurized and circulated. The fuel cooler’s purpose is to dissipate this heat from the fuel return line before the fuel re-enters the tank. Removing or bypassing it can lead to elevated fuel temperatures in the tank, potentially degrading fuel quality, reducing fuel density (affecting power output), and putting additional strain on the fuel pump and injector components. This is part of the integrated design shown in the 6.6 Duramax fuel line diagram.
What is the typical lifespan of a 6.6 Duramax HPFP (CP3)?
The Bosch CP3 high pressure fuel pump in the 6.6 Duramax is known for its robustness, often lasting well over 200,000 miles with proper maintenance and clean fuel. However, its lifespan can be significantly shortened by consistent exposure to contaminated fuel, running the tank dry frequently, or neglect of fuel filter changes. Catastrophic failures are often preceded by symptoms like hard starting or significant drops in fuel rail pressure. Regular monitoring of fuel rail pressure with a scan tool can help identify a failing pump before complete failure. For details on related systems, check out our resource on Duramax CP3 vs. CP4 Pumps.
Step-by-Step Guide to Understanding the 6.6 Duramax Fuel Line Diagram: Routing & Maintenance 2026
Identify – Locate the specific fuel system component on the 6.6 Duramax fuel line diagram that requires attention, such as the HPFP or fuel return line.
Locate – Physically locate the corresponding component on your vehicle, using the diagram for spatial reference and hose routing.
Reference – Compare the diagram’s hose connections and routing paths to ensure proper orientation and identify potential discrepancies or damage.
Connect/Route – Follow the diagram precisely when replacing or rerouting fuel lines, paying close attention to fittings and connection types.
Verify – After any work, double-check all connections for tightness and proper routing against the 6.6 Duramax fuel line diagram to prevent leaks.
Troubleshoot – If issues persist, re-examine the diagram for overlooked components like the injection pressure regulator or fuel bowl, and verify system integrity.
Frequently Asked Questions
What are the main components of the 6.6 duramax fuel line diagram?
The 6.6 Duramax fuel line diagram includes the fuel tank, lift pump, primary fuel filter/fuel bowl, high-pressure fuel pump (HPFP), common rail, injection pressure regulator, fuel injectors, and the fuel return line. These work in sequence to deliver and regulate fuel to the engine.
What are symptoms of a failing 6.6 duramax fuel pump?
Symptoms of a failing 6.6 Duramax fuel pump (specifically the lift pump or HPFP) include hard starting, loss of power, engine stalling, unusual noises from the fuel pump area, and an illuminated check engine light with fuel pressure codes. Reduced fuel flow and erratic pressure are key indicators.
How do I diagnose a fuel leak in 6.6 duramax fuel line diagram?
To diagnose a fuel leak, visually inspect all fuel lines, fittings, and the fuel bowl for wet spots or drips, especially after the engine has run. Check for signs of fuel around the HPFP and injectors. A pressure test can also reveal drops in pressure, indicating an internal or external leak.
What is the fuel pressure spec for 6.6 duramax fuel line diagram?
The 6.6 Duramax low-pressure side typically operates around 4-10 PSI, supplied by the lift pump to the HPFP. The high-pressure common rail can operate from idle at ~3,500 PSI up to ~26,000 PSI at full load, regulated by the injection pressure regulator for optimal performance.
How long does 6.6 duramax fuel pump last?
The lifespan of a 6.6 Duramax fuel pump varies significantly. The lift pump might last 100,000-200,000 miles, while the high-pressure fuel pump (HPFP) can last longer, often 150,000-300,000 miles, depending on fuel quality, maintenance, and operating conditions. Regular fuel filter changes extend life.
Can I replace the 6.6 duramax fuel filter myself?
Yes, replacing the 6.6 Duramax fuel filter, located in the fuel bowl assembly, is a common DIY maintenance task. It typically involves draining the fuel bowl, unscrewing the old filter, installing a new one, and priming the system. Refer to your vehicle’s service manual for specific steps.
