Low Voltage Lighting Wiring Diagram: Easy Setup Guide
A low voltage lighting wiring diagram illustrates how to connect a transformer to light fixtures using low-voltage cables. It typically involves connecting the hot wire and neutral wire to the primary side, while the secondary side distributes power to lamps, often incorporating a ground wire for safety.
📌 Key Takeaways
- Explains the relationship between the transformer and the light fixtures
- The transformer is the most important component to identify correctly
- Always check voltage drop across long wire runs for consistent brightness
- Use waterproof connectors for all outdoor landscape lighting joints
- Use this diagram when installing path lights, deck lights, or spotlights
Successfully installing a landscape lighting system requires more than just placing fixtures in the ground; it necessitates a clear understanding of a low voltage lighting wiring diagram to ensure safety, longevity, and optimal performance. Whether you are illuminating a garden path or highlighting architectural features, the way you map out your electrical runs determines if your lights will shine brightly or flicker and dim over time. This guide is designed to provide you with a comprehensive roadmap for interpreting these diagrams, focusing on the critical connections between your power source, transformer, and individual light fixtures. By following this technical breakdown, you will learn how to manage voltage drop, identify terminal connections, and execute a professional-grade installation that stands the test of time.
To begin your project, you must first understand the anatomy of a low voltage lighting wiring diagram. At its core, the diagram illustrates the transition from high-voltage residential power (120V) to safe, low-voltage power (typically 12V or 15V). The diagram begins at the primary power source, usually a GFCI-protected outdoor outlet. From here, the diagram tracks the flow of electricity into the transformer’s primary side, where the hot wire, neutral wire, and ground wire are connected. The transformer then steps down the voltage to the secondary side, which is where your landscape wire attaches.
In a standard diagram, you will see two main lines exiting the transformer: the “Common” line and the “Hot” or “Voltage Tap” line. Most high-quality transformers offer multiple voltage taps (e.g., 12V, 13V, 14V, 15V) to compensate for the distance of the run. The diagram will visually represent how the fixtures are linked, typically showing either a “Daisy Chain” layout, a “T-Tap” layout, or a “Hub” method. The Daisy Chain is the most common, where one wire runs from the transformer to the first light, then to the second, and so on. The T-Tap method involves a central trunk line with smaller branch lines “tapping” into it, which helps balance the voltage more effectively across longer distances. Understanding these visual symbols—such as the circle for the fixture, the solid line for the main cable, and the terminal blocks inside the transformer—is the first step toward a successful setup.

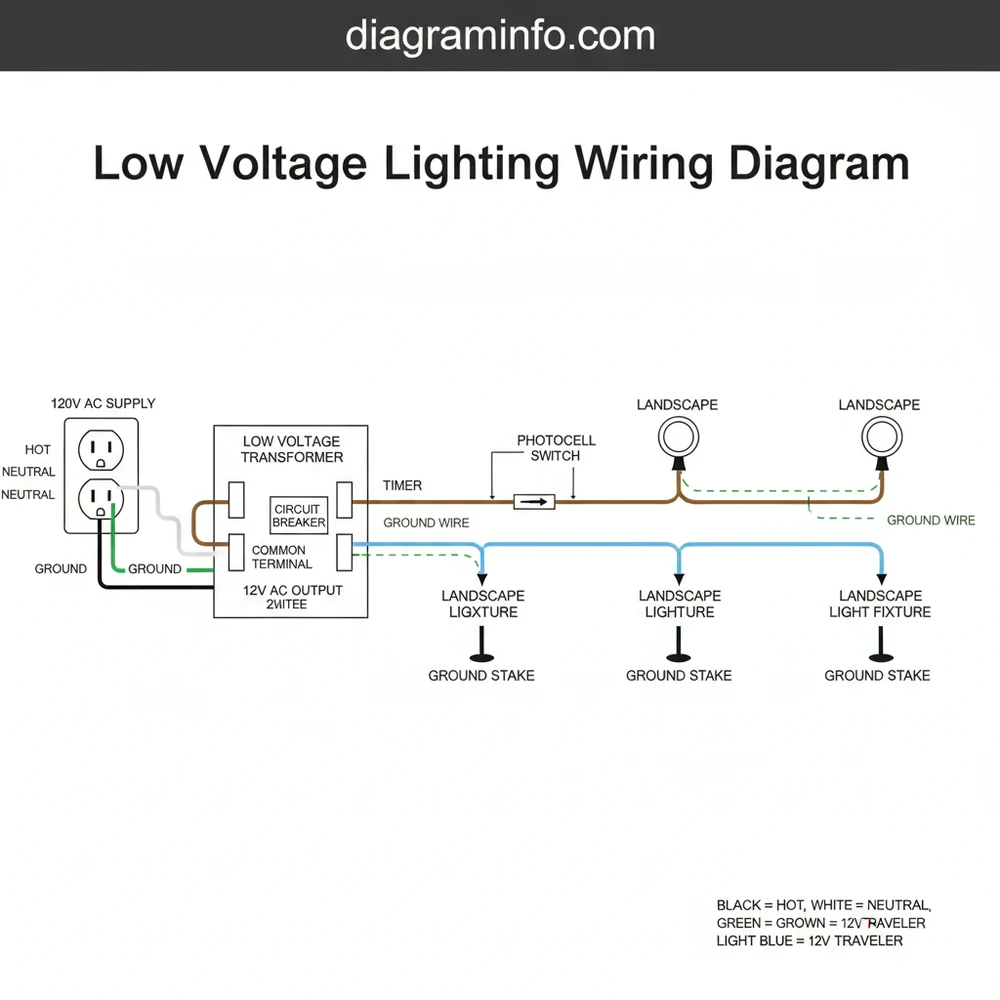

[DIAGRAM_PLACEHOLDER – A detailed wiring diagram showing a 120V GFCI outlet connecting to a transformer. The transformer secondary side shows a “Common Terminal” and a “15V Tap.” A 12-gauge wire runs in a ‘T-Tap’ configuration to four LED landscape fixtures, with specific callouts for the ground wire on the primary side and the waterproof connectors at each fixture.]
Low voltage systems are specifically designed to be safe for DIY installation because the 12V-15V output does not pose a significant shock hazard. However, the primary side (the outlet and transformer plug) still carries 120V, which requires strict adherence to standard electrical safety protocols including the use of a ground wire.
The technical complexity of a low voltage lighting wiring diagram often lies in the specific wire connections and terminal identifications. On the primary side (the input), you are dealing with a standard three-prong configuration. The hot wire (usually black) connects to the brass screw or designated hot terminal, the neutral wire (white) connects to the silver terminal, and the green or bare copper ground wire attaches to the green grounding screw. This ensures the transformer housing is safely grounded.
On the secondary side (the output), the wiring changes to a two-strand direct burial cable. This cable is typically categorized by its gauge—most commonly 12/2 or 10/2. The “12” refers to the thickness of the copper, while the “2” indicates there are two insulated strands. When connecting these to the transformer, one strand goes into the common terminal, and the other goes into a voltage tap. Unlike high-voltage AC wiring, low-voltage DC or AC landscape systems are generally not polarized at the fixture, meaning it often doesn’t matter which of the two strands connects to which wire on the light fixture itself, though consistency is a hallmark of professional work.
In some advanced setups involving smart controllers or indoor switching, you might encounter a traveler wire. While more common in 120V three-way switch circuits, a traveler wire in a low-voltage context might be used to communicate signals between a master controller and a secondary relay. Always consult your specific diagram to ensure these communication lines are not accidentally energized with high voltage.
Never exceed the maximum wattage rating of your transformer. A good rule of thumb is the 80% rule: if you have a 100-watt transformer, do not load it with more than 80 watts of total fixture demand. This prevents overheating and extends the life of the internal components.
Detailed Step-by-Step Installation Guide
Following a low voltage lighting wiring diagram requires a methodical approach to ensure every connection is secure and weatherproof. Use these steps to move from the planning phase to the final glow.
1. Mount the Transformer: Begin by mounting your transformer near an outdoor GFCI outlet. It should be at least 12 inches above the ground to prevent moisture accumulation. Do not plug it in yet. Identify the primary power cord and the secondary terminal block where your landscape wires will eventually reside.
2. Layout Your Fixtures: Place your lights in their intended locations according to your design. Before digging, lay your 12-gauge or 10-gauge wire along the ground next to the fixtures. This allows you to visualize the run and ensures you have enough length to account for loops and connections.
3. Prepare the Main Line: Strip approximately 1/2 inch of insulation from the two strands of your main cable at the transformer end. Insert one strand into the common terminal and the other into the 12V tap. Tighten the screws firmly. In a low voltage lighting wiring diagram, the common terminal is the return path for the electrical circuit.
4. Make Fixture Connections: At each light fixture, use a waterproof wire connector to join the fixture wires to the main run. If you are using a “hub” method, all fixture wires will meet at a central junction box. If using a “Daisy Chain,” you will “tap” into the main line using “pierce” connectors or, preferably, by cutting the main line and using a three-way waterproof nut.
5. Identify Terminal Polarity: While many LED fixtures are non-polar, some specific high-output models require you to match the ribbed side of the main wire to a specific lead on the light. Refer to your diagram to see if your specific gauge wire has a “ribbed” or “lettered” side for easier identification.
6. Test the Voltage: Before burying the wires, plug in the transformer and turn the system on. Use a multi-meter at the furthest fixture to check the voltage. If the voltage is below 10.5V, your lights may flicker. Move the wire at the transformer from the 12V tap to the 13V or 15V tap to compensate for the resistance (voltage drop) in the long wire run.
7. Bury the Cables: Once the system is functioning correctly, use a square-edged shovel to create a trench approximately 6 inches deep. Tucking the wires into the trench protects them from lawnmowers and aerators. Ensure any excess wire is coiled near the fixture to allow for future adjustments in placement.
- ✓ Multimeter for testing voltage at the end of the run.
- ✓ Wire strippers compatible with 10/2 and 12/2 gauge wire.
- ✓ Waterproof, silicone-filled wire nuts or heat-shrink connectors.
- ✓ Square-blade shovel for trenching.
Troubleshooting Common Wiring Issues
Even with a perfect low voltage lighting wiring diagram, issues can arise during or after installation. The most frequent problem is “Voltage Drop,” where lights at the end of a long run appear dimmer than those closest to the transformer. This occurs because electricity loses pressure as it travels through long stretches of wire. To fix this, you can use a thicker gauge wire (moving from 14 to 12, or 12 to 10) or increase the voltage tap at the transformer.
Another common issue is a tripped circuit breaker or a blown fuse in the transformer. This usually indicates a short circuit, often caused by a staple or a sharp rock piercing the wire insulation and connecting the two strands together. If your lights flicker, check the common terminal and the voltage tap screws; if they are loose, they can create an intermittent connection that generates heat and causes the system to fail.
If only one light in the middle of a run is out, the issue is likely a failed connector. Standard “pinch” or “pierce” connectors that come with many DIY kits are notorious for failing over time as moisture enters the wire. Replacing these with silicone-filled waterproof wire nuts is the most effective solution.
Always leave a “service loop” of about 12 inches of extra wire at every fixture connection. This extra slack is invaluable if you ever need to move a fixture to accommodate growing plants or if you need to re-strip the wire due to corrosion in the future.
Tips and Best Practices for a Long-Lasting System
To ensure your landscape lighting remains a highlight of your home for years to come, prioritize high-quality components and meticulous wiring habits. While it might be tempting to save money on thinner gauge wire, using 12/2 or 10/2 wire provides much better conductivity and physical durability. Additionally, always use LED fixtures rather than halogen. LEDs draw significantly less amperage, which means you can run more lights on a single transformer and face fewer issues with voltage drop.
When making connections, avoid using electrical tape alone. In an outdoor environment, the adhesive on electrical tape will degrade, leading to shorts. Always use connectors specifically rated for direct burial. If your transformer has a brass screw for the ground wire, ensure it is tight and free of corrosion. Periodically check the transformer’s location to ensure it hasn’t been overgrown by shrubs, as the unit needs airflow to dissipate heat.
Finally, consider the layout of your wiring diagram before you dig. A “Hub” system, where all wires return to a central, weather-protected junction box, is often the easiest to troubleshoot. If a light goes out, you only have to check the hub connection rather than digging up the entire line to find a buried splice. Investing in a professional-grade transformer with a stainless steel housing and a built-in timer or photocell will also reduce maintenance requirements significantly.
By adhering to a well-structured low voltage lighting wiring diagram and understanding the relationship between the hot wire, common terminal, and wire gauge, you can create a stunning outdoor environment. Proper wiring is the foundation of any landscape project, ensuring that your investment provides safety, security, and beauty for many nights to come.
