Fleck 5600 Water Softener Pipe Diagram: Component Breakdown 2026
A standard water softener pipe diagram routes hard water into the control valve inlet via 3/4-inch or 1-inch lines, directs conditioned water through the outlet, and routes backwash discharge through an air gap to a dedicated drain assembly, P-trap, or sink tailpiece, strictly preventing back-siphonage into potable water.
📌 Key Takeaways
- Bypass valve connections utilize 3/4-inch or 1-inch NPT fittings with high-temperature silicone grease on all O-rings.
- Maintain a 1.5-inch vertical air gap above the drain assembly to prevent back-siphonage into household drinking water.
- Always shut off main water supply and relieve system pressure before cutting main supply lines or installing brass tee connections.
- Kinked drain tubing or improper connection near the garbage disposal vent pipe causes regeneration cycle overflows.
- DIY installation is feasible for pre-plumbed loops, but main line cutting or drain tie-ins requiring P-trap modifications require a licensed plumber.
An essential blueprint for residential and commercial water conditioning installations is the water softener pipe diagram. Correctly mapping fluid pathways ensures system efficiency, prevents cross-contamination, and complies with universal plumbing codes (UPC/IPC). Proper execution requires integrating hard water feed lines, soft water delivery loops, bypass valves, and dedicated discharge pathways. Navigating backflow prevention requirements, sizing Schedule 40 PVC, and correctly plumbing the drain assembly with an air gap are vital for optimal performance. This technical guide breaks down schematic layouts, pipe sizing specifications, and hydraulic considerations necessary to execute an error-free, code-compliant installation.

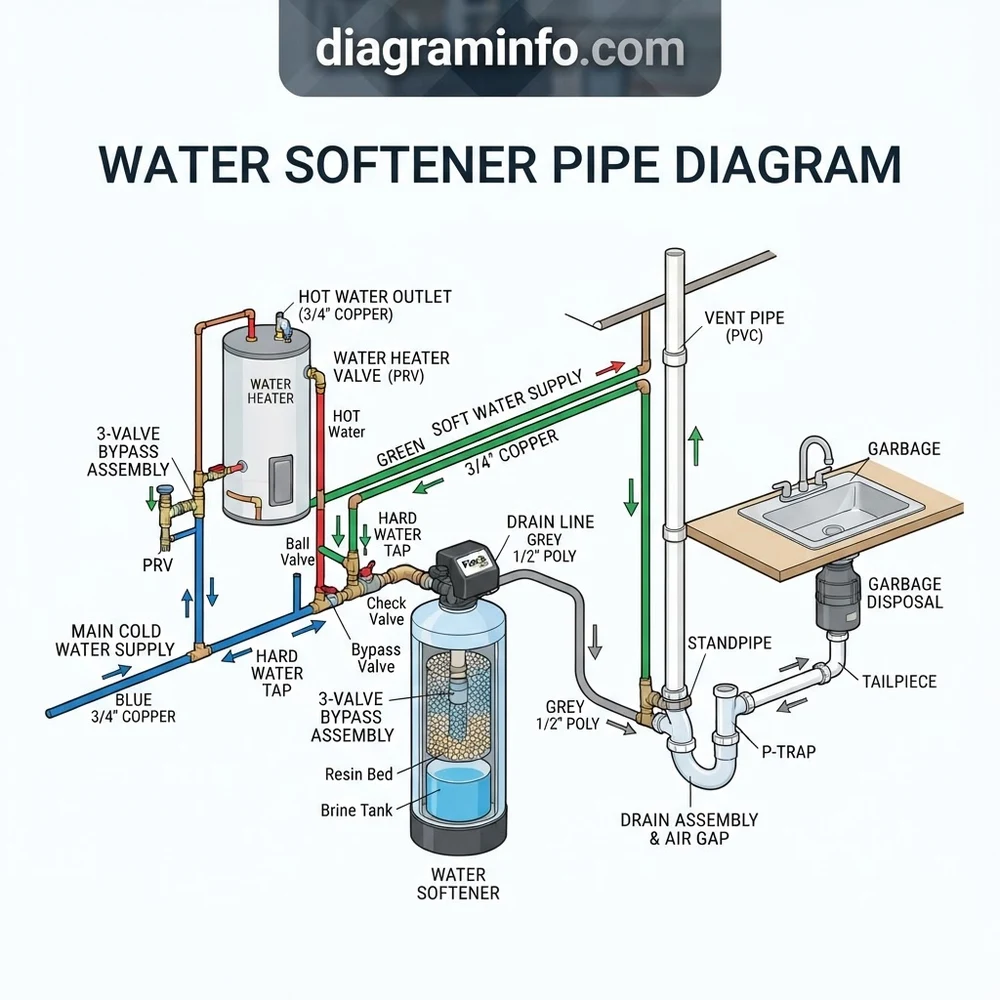

Anatomy of a Water Softener Pipe Diagram and Plumbing Assembly
Every comprehensive water softener pipe diagram categorizes system layout into three operational zones: supply processing, service distribution, and regeneration discharge. Understanding the mechanical interaction between these piping paths prevents severe pressure drops and guarantees full flow rates across downstream fixtures during backwash cycles.
Main Service Lines and Bypass Valve Routing
According to OEM specs and IPC standards, raw hard water enters the facility through the main supply trunk—typically 3/4-inch or 1-inch Schedule 40 PVC, CPVC, or copper piping. As depicted in the schematic, the main inlet splits prior to feeding irrigation or unconditioned outdoor bibs. The line then connects directly to the bypass valve assembly. A 3-valve bypass configuration or a manufacturer-integrated bypass block allows manual isolation of the media tank for resin bed servicing without interrupting unconditioned water service to the property.
Brine Tank Connections and Discharge Drain Assembly
The brine tank operates on a dedicated suction/fill loop, utilizing a 3/8-inch flexible polyethylene tube linked to the control valve injector assembly. The drain assembly represents a critical hydraulic path during regeneration, where backwash water flushes concentrated mineral brine out of the resin tank. This line runs via rigid PVC or reinforced flexible tubing toward the disposal point.
Venting Components: AAV Valve, Vent Pipe, and P-Trap Integration
Discharging wash water into a sanitary system requires backsiphonage isolation. The discharge line must terminate above a dedicated P-trap or sink tailpiece using an approved air gap fitting. Where direct connection to a main vent pipe stack is inaccessible, an Air Admittance Valve (AAV valve) must be plumbed downstream of the trap. The AAV valve equalizes pressure during rapid regeneration flushes, preventing trap siphonage while keeping hazardous sewer gases sealed inside the drainage stack.
All backwash drain lines must maintain a physical vertical air gap equal to twice the effective diameter of the discharge pipe, but never less than 1.0 inch (25.4 mm) above the flood-level rim of the receiving drain fixture to eliminate cross-contamination hazards.
| Component Reference | Material Specification | Operational Parameters |
|---|---|---|
| Main Inlet/Outlet Piping | 3/4″ or 1″ Sch 40 PVC / Copper | Max 125 PSI; 15–25 GPM service flow |
| Discharge Drain Line | 1/2″ or 3/4″ Rigid PVC / PE Tubing | Peak 3.5–7.0 GPM backwash rate |
| Bypass Valve Assembly | Noryl Plastic / Lead-Free Brass | 3-position manual bypass block |
| Air Gap Fitting / P-Trap | 1-1/2″ or 2″ Sch 40 PVC | 1.5″ minimum physical air gap gap distance |
How to Plumb Systems Using the Water Softener Pipe Diagram
Executing an installation based on a technical water softener pipe diagram requires systematic pipe cutting, fitting fitting dry-runs, and proper joint sealing. Ensure you integrate related conditioning loops, such as whole-house filtration systems, upstream of the softener vessel to prevent premature media bed fouling.
Step 1: Main Line Isolation and Bypass Installation
Shut off the primary water supply valve and drain the lowest plumbing fixture tailpiece in the building. Cut into the main service trunk using a tubing cutter for copper or a ratcheting shear for PVC. Install two tee fittings to branch off the supply line. Sweat copper adapters or solvent-weld PVC slip joint connections onto the inlet and outlet ports of the bypass assembly. Ensure correct flow orientation by matching the molded directional arrows on the control head valve body.
Step 2: Connecting the Vessel Control Valve and Tailpiece Assembly
Attach the control valve to the mineral tank thread neck, ensuring the top distributor basket O-ring is lubricated with food-grade silicone grease. Thread quick-connect tailpiece fittings into the control head inlet and outlet ports. Connect the incoming hard water feed line to the inlet tailpiece and tie the soft water output loop into the downstream domestic distribution trunk. Use two wrenches when tightening threaded joints to avoid apply torque directly to the composite control valve body.
Step 3: Routing the Backwash Line with Slip Joint and Air Gap
Run a dedicated 1/2-inch or 3/4-inch PVC line from the valve drain port to the chosen waste receptor. If tying into a sink drain assembly or nearby laundry standpipe, install a code-compliant air gap fitting above the flood rim. Secure the discharge line to the wall structure with pipe clamps every 4 feet to resist hydraulic shock (water hammer) generated during valve actuation. If plumbing directly to a utility sink drain line, install a dedicated branch tailpiece with a compression slip joint nut ahead of the standard sink P-trap.
For long discharge runs exceeding 20 linear feet or elevated drain lines extending over 8 feet vertically above the control valve, upgrade the discharge line pipe diameter from 1/2-inch to 3/4-inch Schedule 40 PVC to limit backpressure buildup below 8 PSI at peak regeneration flow.
Troubleshooting Backsiphonage, Pressure Drops, and Drain Faults
Deviations from the specifications mapped in a water softener pipe diagram often introduce system operational faults. Below are primary diagnostic routines to resolve hydraulic bottlenecks and wastewater discharge issues.
Diagnosing Flow Restrictions and Pressure Losses
A significant drop in downstream dynamic water pressure (greater than 15 PSI across the unit) typically points to pipe sizing mistakes or media bed compression. Verify that 3/4-inch or 1-inch supply piping was used rather than necking down to 1/2-inch fittings at the bypass block. If pressure drops suddenly after installation, verify that the manual bypass valve is in the 100% open service position. Partial bypass seat engagement causes extreme fluid turbulence and restrictor loss.
Resolving Brine Overflow and Backsiphonage Faults
Excessive standing water in the brine tank points to a clogged drain line or improper discharge venting. Check the backwash line for kinks or partial blockages. If the drain line discharges directly into a P-trap without an air gap, negative pressure events in the main waste stack can siphon raw sewage back into the control valve body or suck brine solution out of the tank prematurely. When connecting near a garbage disposal or undersink trap, inspect the waste tee knocked-out plug and verify that an AAV valve is functioning correctly to release vacuum lock.
Never hard-pipe a water softener drain hose directly into a sewer line, garbage disposal unit, or sink tailpiece branch without an physical air gap gap. Solid pipe interconnections violate health codes and present high risks of siphoning toxic waste back into potable drinking water supplies.
Frequently Asked Water Softener Pipe Diagram Questions
Can I route the water softener drain line into a garbage disposal?
Directly connecting a soft water drain line into a garbage disposal appliance is prohibited by mechanical code. A garbage disposal connection lacks an approved backwash air gap and risks clogging the soft water drain tube with shredded food debris. The discharge line must vent into a dedicated P-trap or drain assembly equipped with an elevated air gap fitting.
Is an AAV valve required on the water softener drain line P-trap?
An Air Admittance Valve (AAV valve) is required if the dedicated drain line P-trap is situated more than 42 inches away from a main vented stack or if traditional atmospheric venting through the roof structure is impossible. The AAV valve admits air during high-velocity discharge, preventing trap siphonage without allowing sewer odors to leak into the room.
What pipe diameter is specified in a standard water softener pipe diagram?
Main supply lines require 3/4-inch or 1-inch nominal pipe sizing (PVC, CPVC, or copper) depending on the peak flow requirement of the facility. The brine tank suction line utilizes 3/8-inch outer-diameter flexible polyethylene tubing, while the regeneration discharge drain line mandates 1/2-inch Schedule 40 PVC minimum for runs under 20 feet, and 3/4-inch PVC for longer or elevated runs.
Why is an air gap mandatory on the backwash drain assembly?
An air gap provides physical separation between the end of the pressurized soft water discharge line and the non-pressurized sanitary sewer receptor. This physical void makes it hydrodynamically impossible for wastewater or municipal sewage to siphon back into the water softener tank during catastrophic main-line depressurization events.
Where should a pressure reducer valve be positioned relative to the softener layout?
A pressure reducer valve installation must always be positioned upstream of the water softener bypass assembly. Standard residential water softener control valves are rated for a maximum static operating pressure of 125 PSI. Placing the PRV ahead of the softener protects internal seals, control discs, and pre-filter housings from municipal supply pressure spikes.
Step-by-Step Guide to Understanding the Water Softener Pipe Diagram
Identify – Locate the hard water main line, soft water delivery line, and nearby drain assembly point.
Locate – Reference the control valve inlet and outlet ports, identifying arrow indicators on the bypass valve.
Reference – Consult the water softener pipe diagram to map pipe diameter changes and air gap distance specs.
Connect/Route – Route the 1/2-inch drain line to the P-trap or tailpiece adapter, securing a 1.5-inch air gap.
Verify – Turn on main water in bypass mode, inspect soldered or push-fit joints, and check for leaks.
Troubleshoot – Adjust bypass push-valves and clear restricted drain lines if system fails to draw brine.
