Modern Audi A4 platforms—specifically the B8, B8.5, and B9 chassis equipped with 2.0T TFSI and 3.0T engines—rely on an advanced solid-state thermal management network. Rather than utilizing simple mechanical switches or bimetallic relays, the electronic cooling topology uses a dedicated Fan Control Module (J293) commanded directly by the Engine Control Module (J623). Navigating a labeled Audi A4 cooling system diagram requires a comprehensive understanding of board-level electronic components, high-current power distribution paths, and pulse-width modulation (PWM) signaling architectures. This guide provides an in-depth electronic breakdown of the cooling control circuit schematic, tracing signal pathways from microcontrollers to solid-state output drivers.

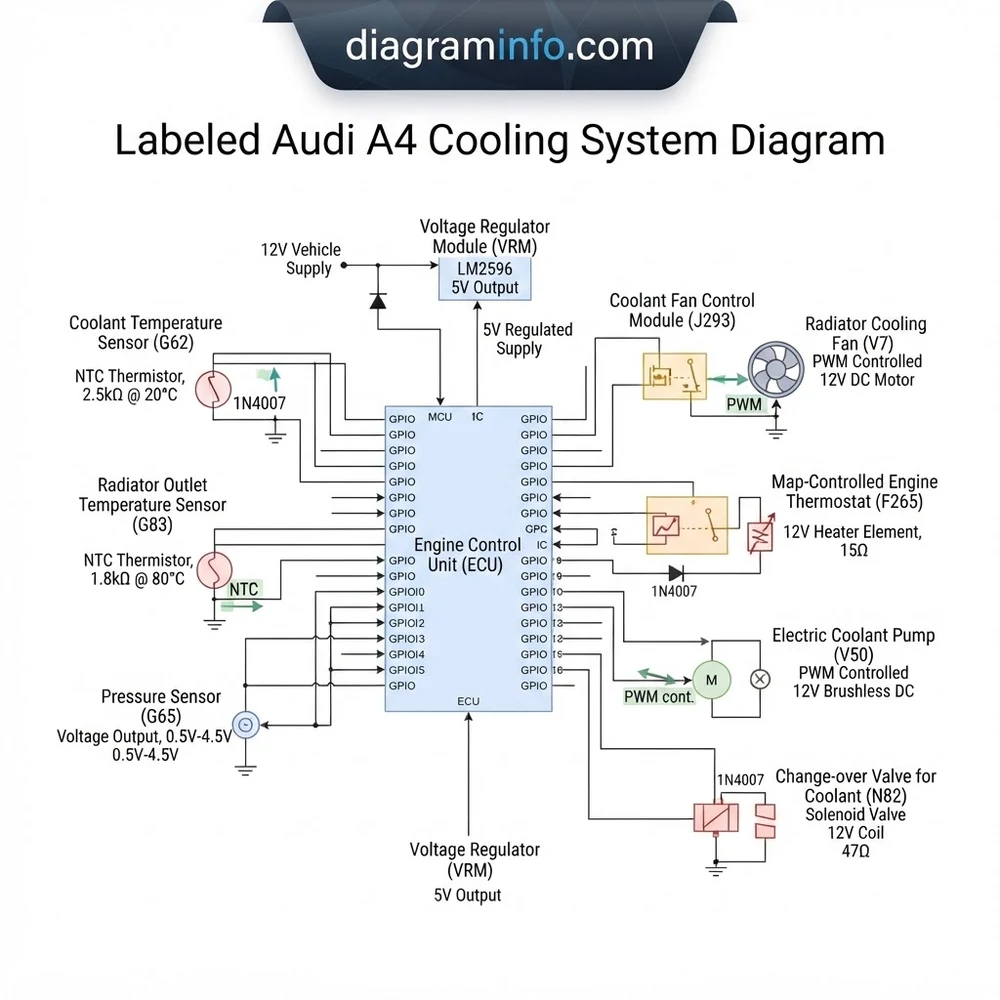

Decoding the Labeled Audi A4 Cooling System Diagram Electronics
The electronic core of the Audi A4 cooling framework is housed within the J293 module, located on the lower left radiator shroud assembly. The schematic maps out a multi-layer Printed Circuit Board (PCB) designed to convert high-frequency digital instructions into proportional high-amperage current for the primary (V7) and secondary (V177) radiator fan motors. Understanding each integrated component on the diagram is essential for board-level diagnostics and harness tracing.
Recommended Best Deal Products
Central to the schematic is an automotive-grade 8-bit or 32-bit microcontroller. This processing unit acts as the primary integrated circuit responsible for decoding 10Hz to 100Hz PWM signals transmitted from the Engine Control Module. The microcontroller evaluates engine coolant temperature (ECT) sensor inputs, ambient air temperature, and HVAC refrigerant pressure data before modulating its internal GPIO (General Purpose Input/Output) pins to drive the gate-driver stage.
To power these logic-level components, the PCB includes a dedicated Low-Dropout (LDO) voltage regulator. This surface-mount integrated circuit steps down the vehicle’s unstable 12V–14.4V primary battery bus (Terminal 30) to a ripple-free 5.0V or 3.3V VCC rail. A high-precision quartz crystal oscillator generates the internal system clock signal (typically 8MHz to 16MHz), establishing the precise timing foundation required by the microcontroller to sample input pulses without phase drift.
Inductive switching protection is handled by a high-current freewheeling diode network (or active body-diode MOSFET configurations). When power to the electric fan motor winding is rapidly switched off during PWM duty cycle shifts, the collapsing magnetic field creates a severe negative back-EMF spike. The flyback diode clamped across the output terminals provides a safe recirculating path, protecting sensitive PCB traces from voltage transients exceeding 100V.
Power handling relies on heavy-gauge copper trace routing combined with a multi-layer ground plane. The ground plane serves a dual
| Diagram Label | Component / Module Name | Circuit Identification | Operating Voltage / Specs | Pinout & Wire Color |
|---|---|---|---|---|
| IC-101 | Microcontroller Unit (MCU) | J293 Logic Controller | 5.0V DC VCC (Logic Level) | Pin 4 (PWM In) – Green/Blue |
| VR-01 | LDO Voltage Regulator | VCC Power Supply Rail | Input: 12V DC / Output: 5V DC | Pin 1 (Batt In) – Red/White |
| D-201 / D-202 | Schottky Flyback Diode | Inductive Spike Clamping | 60V / 40A Reverse Breakdown | Parallel across V7 Fan Terminals |
| Y-101 | Crystal Oscillator | System Clock Reference | 16.000 MHz (±20 ppm) | Connected to MCU Pins XTAL1/XTAL2 |
| Q-301 / Q-302 | N-Channel Power MOSFETs | Fan Motor High-Side Switch | 40V VDS / 80A Continuous | Pin 2 (PWM Out) – Thick Red/Black |
| GND-PLANE | Copper Ground Plane Layer | Main Earth & Heat Sink | 0.0V Ground Reference | Chassis Stud – Solid Brown Wire (10mm²) |
Tracing Microcontroller and GPIO Signals Across the Cooling Schematic
Reading a technical schematic for the Audi A4 electronic fan control system requires tracking signal flow from power entry down to low-voltage gate controls and high-current mechanical outputs. The system converts digital commands from the powertrain bus into physical fan rotations.
Recommended Best Deal Products
According to OEM service specifications for B8/B9 Audi A4 vehicles, the J293 control module uses inverse PWM logic. A 10% duty cycle command from the ECM requests maximum fan speed (100%), while a 90% duty cycle requests minimum fan speed. If the signal line drops to 0% (continuous low) or 100% (open circuit), the internal microcontroller interprets this as a bus failure and defaults the cooling fans to 100% speed emergency operation.
1. Power Distribution and Regulation Stage
Unswitched 12V battery power arrives at the J293 module via terminal T4a/1 on a heavy 10.0mm² Red/White wire protected by a 40A or 60A high-amp fuse (SA1 or SA2 in the plenum chamber fuse box). This line feeds directly to the high-side drain terminals of the power MOSFET switches and to the input pin of the onboard voltage regulator. The LDO voltage regulator filters high-voltage transients using input bypass capacitors and outputs a steady 5V DC rail. This regulated voltage powers the internal microcontroller, signal optocouplers, and the crystal oscillator circuit.
2. ECM Signal Processing and GPIO Modulation
The ECM transmits thermal commands over a thin 0.5mm² Green/Blue wire connected to J293 control connector terminal T4a/4. As shown in the electronic schematic, this line passes through an RC low-pass filter (resistor-capacitor network) to eliminate high-frequency electromagnetic interference (EMI) generated by the ignition coils and generator. The filtered pulse train enters a dedicated GPIO input pin on the microcontroller. The MCU calculates the signal’s duty cycle based on clock pulses received from the external 16MHz crystal oscillator. Once validated, the MCU’s internal logic outputs a high-frequency PWM drive signal through its output GPIO pins to an integrated circuit gate driver.
Module Power Supply: 11.0V – 14.5V DC | PWM Command Signal Frequency: 10 Hz to 100 Hz | Nominal Gate Driver Voltage: 10V to 12V DC (charge-pump boosted) | Fan Motor Current Draw: Primary Fan (V7) up to 35A; Secondary Fan (V177) up to 25A | J293 Chassis Ground Mounting Torque: 9 Nm (6.6 ft-lbs).
3. Power Switching, Free-Wheeling Diode Loop, and Ground Return
The gate-driver integrated circuit boosts the 5V logic signal from the MCU to approximately 10V-12V, ensuring full saturation of the power MOSFET switches. When the MOSFETs switch on, current flows from terminal T4a/1, across the PCB’s heavy copper trace, through the fan motor windings (V7/V177), and back into the board’s heavy copper layer. Current exits the module via a 10.0mm² solid Brown wire connected directly to the chassis ground stud. Parallel freewheeling diode arrays clamped across the output terminals absorb inductive current spikes whenever the MOSFETs switch off during PWM modulation, preserving the structural integrity of the copper trace pathways and preventing thermal stress on adjacent PCB components.
Never short the PWM signal wire (Green/Blue) directly to 12V battery power during bench testing. Excess voltage applied to the signal line will bypass the internal protection zener diode and permanently burn out the microcontroller’s input GPIO pin, requiring total replacement of the J293 module assembly.
Diagnosing Faults in the Labeled Audi A4 Cooling System Diagram
Diagnosing electronic thermal control failures on the Audi A4 requires systematically checking component-level functionality against the schematic diagram parameters. Technicians should use a Digital Multimeter (DMM), an Oscilloscope, and a VCDS (VAG-COM Diagnostic System) or ODIS scan tool to locate electrical breaks, ground faults, or component short circuits.
Common fault codes associated with board-level and schematic failures include:
- P0691: Coolant Fan 1 Control Circuit Low (Short to Ground in control wire or failed MOSFET gate driver).
- P0692: Coolant Fan 1 Control Circuit High (Short to Positive voltage in wiring harness or internal driver breakdown).
- P0480: Cooling Fan 1 Control Circuit Electrical Malfunction (Open circuit, missing 12V supply, or dead J293 voltage regulator).
- P0481: Cooling Fan 2 Control Circuit Electrical Malfunction (Secondary output channel or relay circuit failure).
1. Testing LDO Voltage Regulator Output and Microcontroller VCC
If the radiator fans fail to run under any condition and diagnostic tools report a loss of communication with the fan controller, check the low-voltage power circuit on the PCB:
- Connect your multimeter ground lead to the main Brown chassis ground wire at the J293 harness connector.
- Probe the 12V supply pin at terminal T4a/1 (Red/White wire). Verify battery voltage (12.2V to 14.2V DC) is present. If missing, check main fuse SA1.
- Back-probe the internal VCC test pad on the PCB (if back-probing an exposed module) or measure voltage at the sensor reference line. The voltage regulator must output a steady 5.0V DC (±0.15V).
- If the regulator voltage reads below 4.5V DC or zero, the onboard voltage regulator has suffered a thermal breakdown, or a shorted surface-mount capacitor has pulled the VCC rail to ground.
2. Oscilloscope Inspection of PWM Signal and Crystal Oscillator Clock
When fans run continuously at 100% full speed as soon as the ignition key is turned on, the cause is typically a missing PWM command or a stalled clock circuit:
- Connect a digital storage oscilloscope (DSO) channel 1 probe to the Green/Blue wire at terminal T4a/4. Ground the probe to the chassis stud.
- Turn the ignition switch ON and observe the signal waveform. You should observe a clean square wave operating at approximately 10Hz to 100Hz frequency.
- Vary the HVAC A/C settings or execute a fan command test using a VCDS diagnostic tool (refer to our detailed VCDS cooling fan diagnostic procedure for step-by-step block adaptation). The duty cycle square wave should smoothly change width.
- If the square wave is present at terminal T4a/4 but the module fails to modulate fan speed, probe the two leads of the crystal oscillator (Y-101) on the PCB. Verify a clean 16MHz sinusoidal clock waveform. An inactive or cracked oscillator freezes the microcontroller logic, locking the fans into safety default mode.
3. Diode Integrity and PCB Ground Plane Continuity Checks
High-current draw, melted harness connectors, or blown main supply fuses point to failures in the power-switching or protection circuits:
- Disconnect the main battery ground terminal before performing resistance checks.
- Set your DMM to Diode Test Mode. Place the positive probe on the output trace side of the motor terminal and the negative probe on the positive supply input trace.
- A healthy flyback diode will display a forward voltage drop of approximately 0.3V to 0.6V DC. A zero-ohm reading in both directions indicates a shorted flyback diode, which creates a direct short from 12V to ground whenever the fan turns on, blowing fuse SA1 instantly.
- Inspect the heavy solid-copper trace layers and multi-point ground vias connecting the PCB to the aluminum cooling plate. Extreme thermal cycles on high-mileage Audi A4 models can cause ground plane delamination or fractured solder joints along high-amperage return pathways. Re-solder cracked pad connections or replace the J293 control unit if severe trace lifting is identified.
Audi A4 Electronic Cooling Control FAQ and Voltage Regulator Specs
How do you test the voltage regulator output on an Audi A4 fan control module?
To test the onboard LDO voltage regulator, supply 12V DC battery power across terminal T4a/1 (Red/White) and terminal T4a/2 (Brown ground). Measure DC voltage across the output pin of the surface-mount voltage regulator integrated circuit and the ground plane. A functional regulator maintains a stable 5.0V DC output. If output drops below 4.75V DC under load, the integrated circuit is defective, preventing the microcontroller from booting and rendering the cooling fans inoperative.
What causes the microcontroller in the Audi A4 cooling control circuit to default to 100% fan speed?
The microcontroller enters fail-safe mode (100% maximum fan operation) whenever it loses the incoming PWM control signal from the Engine Control Module. Common causes include a broken Green/Blue signal wire, corrosion inside the T4a wiring harness connector, a shorted input filter capacitor, or an internal fault within the MCU’s signal processing GPIO circuit. Interruption of the clock reference from the crystal oscillator also forces full-speed safety operation to prevent engine overheating.
Why does the cooling diagram show a flyback diode parallel to the radiator fan motor?
The electric fan motors (V7 and V177) are highly inductive loads. When the solid-state MOSFET switches interrupt current to modulate fan speed, the collapsing magnetic field in the motor coils generates severe high-voltage inductive kickback. The flyback diode connected parallel to the motor terminals safely recirculates this inductive current back through the windings, preventing high-voltage transients from punching through the MOSFET semiconductor junctions or destroying sensitive low-voltage board traces.
How does ground plane degradation affect PWM signals in the Audi A4 schematic?
A degraded ground plane introduces excessive electrical noise and ground-bounce into the PCB logic layer. Because the PWM control signal relies on a clean voltage reference ground to correctly calculate duty cycle percentages, high ground impedance causes signal distortion. This interference leads to erratic fan behavior, false diagnostic trouble codes (such as P0691 or P0692), and rapid thermal cycling of the power switching transistors.
What are the terminal pinouts for the J293 cooling fan control module trace connections?
On standard B8/B8.5 Audi A4 models, connector T4a uses four main pins: Pin 1 (Red/White wire, 10.0mm²) provides direct 12V battery power from Fuse SA1; Pin 2 (Brown wire, 10.0mm²) connects to the main chassis ground plane stud; Pin 3 (Black/Red wire, 0.75mm²) provides ignition switched 12V (Terminal 15); and Pin 4 (Green/Blue wire, 0.5mm²) carries the low-current digital PWM control signal directly from the ECM GPIO output driver.
Step-by-Step Guide to Understanding the Labeled Audi A4 Cooling System Diagram
Identify – Locate the cooling control module and sensors using the labeled audi a4 cooling system diagram reference key.
Locate – Position the main electronic fan control module near the radiator shroud and check the primary fuse box feed.
Reference – Cross-reference wiring colors and pin numbers on the microcontroller input/output pinout table.
Connect/Route – Connect multimeter test leads to test voltage regulator output (5.0V ±0.1V) and inspect protective diode orientation.
Verify – Measure signal frequency on the GPIO fan command line during engine warm-up to verify proper duty cycle.
Troubleshoot – If signals are missing, check power rails, ground buses, and sensor thermistor resistance against factory resistance charts.
