Cuisinart Coffee Maker Parts Diagram: Component Breakdown 2026
A Cuisinart coffee maker parts diagram maps the internal fluid and electrical system layout. Key components include the aluminum heating tube, inline thermal fuse (typically 128°C to 228°C rated), check valve, microswitch, and silicone transport tubing. The diagram illustrates wire routing between the PCB power board, heating element, and reservoir switches.
📌 Key Takeaways
- Inline thermal fuses operate between 128°C–228°C and cut power instantly during over-temperature faults.
- Internal silicone fluid tubing utilizes 1/4-inch food-grade connections secured with tension spring clamps.
- The control PCB step-down transformer converts 120V AC household power down to low-voltage DC logic signals.
- Clogged one-way check valves cause over 70% of low-pressure steam leaks and slow brew cycle issues.
- Basic switch or hose replacements are ideal DIY tasks, while shorted PCB trace repairs require technician service.
Diagnosing appliance hardware requires an exact understanding of component relationships, fluid routes, and power distribution systems. A standard Cuisinart coffee maker layout relies on a closed-loop thermal siphon system integrated with digital control logic. Utilizing a detailed Cuisinart coffee maker parts diagram allows technicians and advanced mechanics to quickly identify failed thermal cutoffs, trace circuit board relays, and replace mechanical wear items such as silicone check valves and solenoid valves. Whether servicing popular drip platforms like the DCC-1200 series or thermal carafe platforms, this technical schematic breakdown provides the specs needed for fast teardown and bench testing.
Cuisinart Coffee Maker Parts Diagram: Internal System Component Breakdown
To accurately service a drip coffee platform, you must understand both the hydraulic and high-voltage electrical sub-assemblies. The typical Cuisinart coffee maker configuration consists of two primary operational systems: the liquid heating loop and the control logic system. Below is an overview of the core components mapped within the standardized parts schematic.
Recommended Best Deal Products
| Component Name | Technical Function | Electrical / Mechanical Spec |
|---|---|---|
| Heating Element Assembly | Dual-pass aluminum thermal block with internal water tube | 120V AC, 1025W–1425W, 10–15 Ω nominal coil resistance |
| Thermal Cutoff Fuses (TCO) | Over-temperature safety circuit breaker wired in series | 216°C or 228°C rating, 15A 250V AC inline rating |
| Silicone One-Way Check Valve | Prevents heated water/steam from backflowing into reservoir | High-temp silicone, 0.5–1.0 PSI cracking pressure |
| Main Control PCB | Processes user inputs, controls triac power switches and auto-off timer | 120V AC input, 5V/12V DC logic rails, relay rated 16A |
| NTC Thermistor / Sensor | Monitors heating plate temperature for keep-warm adjustment | 50kΩ NTC thermistor @ 25°C (varies by model generation) |
The base plate houses the main cast-aluminum horseshoe element. According to OEM specs, modern units place two thermal cutoffs (TCOs) in fiberglass insulating sleeves directly against the aluminum element housing. If the unit runs dry or the thermistor fails to signal the relay, these fuses blow to open the circuit and prevent catastrophic casing deformation. When performing bench diagnostics, utilizing precise small appliance multimeter testing allows you to isolate whether a failure stems from these inline fuses or the main switch PCB.
Factory wiring harnesses on standard 12-cup Cuisinart units generally use 18 AWG high-temperature silicone glass fiber insulation wire. Faston crimp terminals must be used for replacement to withstand base plate operating temperatures exceeding 180°C.
Analyzing the Cuisinart Coffee Maker Schematic and Blueprint Layout
Reading a technical schematic for these appliances requires working through both the hydraulic circuit and the electrical flow path simultaneously. The layout is designed around thermodynamic pressure differential rather than motorized water pumping (except on specialized single-serve Grind & Brew platforms).
Hydraulic Fluid Route Architecture

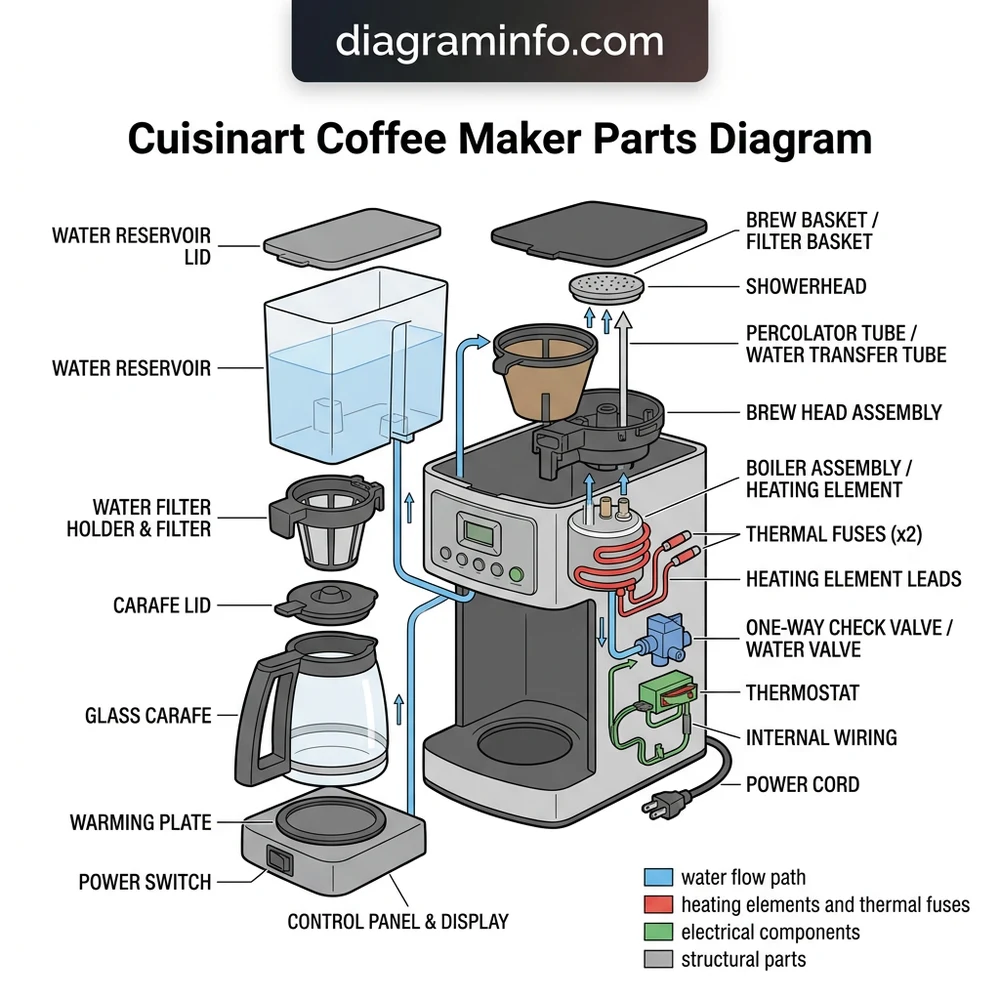

As shown in the system structural blueprint, liquid flows from the cold water reservoir base through an elbow connector into a food-grade silicone intake tube. It passes through the inline rubber check valve into the aluminum element pipe. As electrical current energizes the heater block, water inside the narrow tube reaches boiling point rapidly. Steam expansion generates localized pressure, forcing the valve upstream to snap shut. This pressure drives expanding hot water upwards through the silicone riser tube, terminating at the showerhead assembly over the filter basket.
High-Voltage and Control Signal Wiring Schematic
The electrical blueprint shows standard AC Line (L1) entering through a strain relief bushing directly to the main power switch or micro-relay on the printed circuit board. From the PCB output switch relay, current flows directly through the primary thermal cut-off (TCO) fuse, passes through the heater coil, enters the secondary TCO, and returns along the neutral line (N). A secondary circuit tees off the main board to feed a step-down transformer or switch-mode power supply powering the front LCD display and programming interface.
Recommended Best Deal Products
Models built prior to 2018 utilized mechanical rocker switches for main line power. Modern digital platforms utilize a low-voltage soft-latch switch driving a 12V DC coil relay on the power board. Always check for proper DC relay trigger voltage before condemning the heating element.
When dismantling the housing shell, mechanical fasteners are usually recessed within deep screw wells on the underside plastic chassis. Servicing requires a long-shank Security Torx T10 or oval-head security bit, depending on the production model year. Refer to commercial espresso schematics if working on industrial hybrid models, as fluid loop configurations diverge significantly from residential drip platforms.
Diagnosing Component Failures with the Cuisinart Coffee Maker Parts Diagram
Troubleshooting requires systematic isolation using a digital multimeter set to resistance (ohms) and AC voltage modes. Below is a structured diagnostic workflow for identifying failure points using the system parts diagram.
Diagnosing No-Power and No-Heat Symptoms
If the appliance shows no power lights on the digital display, begin your check at the main AC power cord leads. Verify 120V AC at the PCB input terminal blocks. If line voltage is present but the screen remains dark, check the board’s low-voltage DC rectifier circuit output. If the display energizes but the boiler fails to heat, test resistance across the heating element terminals with power disconnected.
Line voltage (120V AC) is exposed inside the chassis base plate during live testing. Always disconnect line power before conducting continuity or resistance measurements. Use insulated test probes during voltage checks.
- Thermal Fuse Continuity: Unclip the fiberglass protective sleeves from the inline TCOs. Test continuity across each fuse terminal. An open circuit (∞ Ω) indicates a blown TCO. Replace using crimp connectors only—do not solder, as soldering heat will trigger the thermal fuse element. Consult our thermal fuse replacement guide for crimping standards.
- Heating Element Resistance: Measure resistance directly across the element copper spade connections. A functional 1025W–1425W heating block must read between 10 Ω and 15 Ω. A reading of infinity indicates an open internal heating coil, requiring complete heater unit replacement.
- Check Valve Hydraulic Isolation: If the unit heats and steams heavily but fails to discharge water into the filter basket, remove the intake hose. Inspect the silicone check valve flapper. Mineral scale buildup or valve petrification traps the flapper shut, preventing fluid movement.
Cuisinart Coffee Maker System Configuration and Assembly FAQs
What resistance should I measure across a working Cuisinart heating element?
A healthy OEM heating element on standard 120V Cuisinart drip models measures approximately 10 Ω to 15 Ω of resistance. If your multimeter registers an open circuit (OL) or zero resistance (a direct short), the internal resistive element wire has failed and the thermal block assembly must be replaced.
Why does the Cuisinart parts diagram display two thermal fuses on the element?
Cuisinart integrates dual thermal cutoffs (TCOs) in series along the heating tube line to comply with UL thermal protection standards. The primary TCO acts as main over-temperature protection, while the secondary TCO provides redundant fail-safe protection in the event the primary fuse short-circuits or fails to trigger during a dry-boil thermal runaway event.
How do I determine if a failure is caused by the PCB switch or the thermal element?
Disconnect line power, isolate the heating element leads, and measure coil resistance. If element resistance reads between 10 Ω and 15 Ω and both TCO fuses show zero ohms resistance (continuity), power up the unit and check for 120V AC across the output relay leads on the PCB during a brew cycle. Zero volts out of an activated board confirms a failed board switch relay or blown PCB trace.
Can I service or replace individual silicone check valves in the hydraulic system?
Yes. The check valve is an inline component positioned between the reservoir outlet elbow and the aluminum heating element intake. You can pop the valve housing out of the silicone tubing, soak it in a citric acid descaling bath to clean mineral scale, or replace it entirely using an OEM-spec silicone umbrella valve assembly.
What fastener tools are required to remove the base housing on modern models?
Most modern Cuisinart chassis assemblies use deeply recessed T10 Security Torx screws or tamper-proof oval-head fasteners along the bottom perimeter. Servicing requires a specialized thin-shank screwdriver set with a minimum length of 4 inches to reach down into the plastic chassis screw wells.
Step-by-Step Guide to Understanding the Cuisinart Coffee Maker Parts Diagram
Identify – Unplug the appliance and empty the reservoir before analyzing the component configuration.
Locate – Remove the security screws on the bottom plate to expose the heating element and thermal fuse.
Reference – Match internal wire coloring and tubing connections to the Cuisinart coffee maker parts diagram.
Connect/Route – Install replacement hoses or thermal fuses following the specified routing schematic.
Verify – Measure electrical continuity across the thermal fuse and boiler element using a digital multimeter.
Troubleshoot – Run a test cycle with fresh water to verify heat output, valve pressure, and leak-free operation.
