A pool filtration system diagram illustrates water flow from surface skimmers and main drains into the pump suction port. Water exits through the multiport valve into the filter tank, passes through optional heaters or chlorinators rated at 30–50 PSI PVC configuration, and returns safely via pool wall return jets.
📌 Key Takeaways
- Operating system pressure must remain between 10 to 25 PSI under standard filtration cycles.
- Suction lines utilize 1.5-inch or 2-inch Schedule 40 PVC connected directly to skimmers and main drains.
- Never adjust the 6-way multiport valve setting while the pump motor is actively running.
- Suction-side air leaks at the pump lid O-ring cause low pressure and loss of prime.
- Complex plumbing configurations involving gas heaters or automated chlorinators require professional installation.
Understanding hydraulic distribution and electrical line routing through a pool filtration system diagram is essential for maintaining target turnover rates, managing Total Dynamic Head (TDH), and ensuring proper water sanitation. Whether commissioning a new commercial equipment pad or retrofitting a residential variable-speed pump, precise interpretation of the pad blueprint prevents pump cavitation, dead-heading, and dangerous pressure spikes. This technical reference breaks down standard hydraulic layout configurations, detailing suction and discharge piping, multiport valve ports, and electrical bonding grids according to ANSI/APSP/ICC-15 standards.
Pool Filtration System Diagram: Primary Equipment Components
An optimized equipment pad relies on a series of matched hydraulic components designed to handle specific Gallons Per Minute (GPM) flow rates at targeted operational pressures. Intersecting suction side lines carry raw water from the pool, while pressure lines direct filtered, heated, and sanitized water back to the pool return fittings.
| Component Identification | Specification / Dimension Standard | Operational Function & Limits |
|---|---|---|
| Suction Manifold / 3-Way Diverter Valves | 2.0″ or 2.5″ Schedule 40 PVC / CPVC | Regulates flow ratio between surface skimmers and main floor drains; max fluid velocity 6 ft/sec. |
| Circulation Pump (Volute & Pot) | 115V / 230V Dual Voltage; 1.5 – 3.0 HP Variable Speed | Draws water via negative pressure; primable volumetric strain basket captures large debris. |

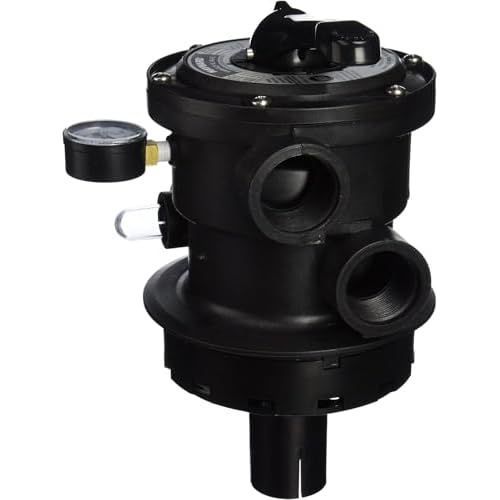

| Multiport Valve (MPV) | 1.5″ or 2.0″ Side/Top Mount; 6-Position Manual Diverter | Routes hydraulic flow across media for Filter, Backwash, Rinse, Waste, Recirculate, or Closed modes. |
| Filter Vessel (Sand / DE / Cartridge) | Fibreglass Reinforced Tank; 50 PSI Max Pressure Rating | Traps particulate matter down to 5-30 microns depending on filter media type; operating range 8-30 PSI. |
| Inline Heater / Heat Pump | 100k – 400k BTU Gas or Electric Heat Exchanger | Raises thermal water energy; requires internal pressure switch (>2.5 PSI) and bypass loop for high flow. |
| Chemical Sanitizer / Salt Cell | Inline Electrolytic Cell or Off-line Erosion Feeder | Generates or dispenses free available chlorine; MUST be installed as the final downstream component. |
Every component on the pool filtration system diagram must conform to pipe sizing standards. Modern high-efficiency systems mandate 2.0-inch or 2.5-inch Schedule 40 PVC suction lines to keep water velocity under 6 feet per second (FPS), preventing pump starvation and reducing cavitation wear on the wet-end impeller assembly.

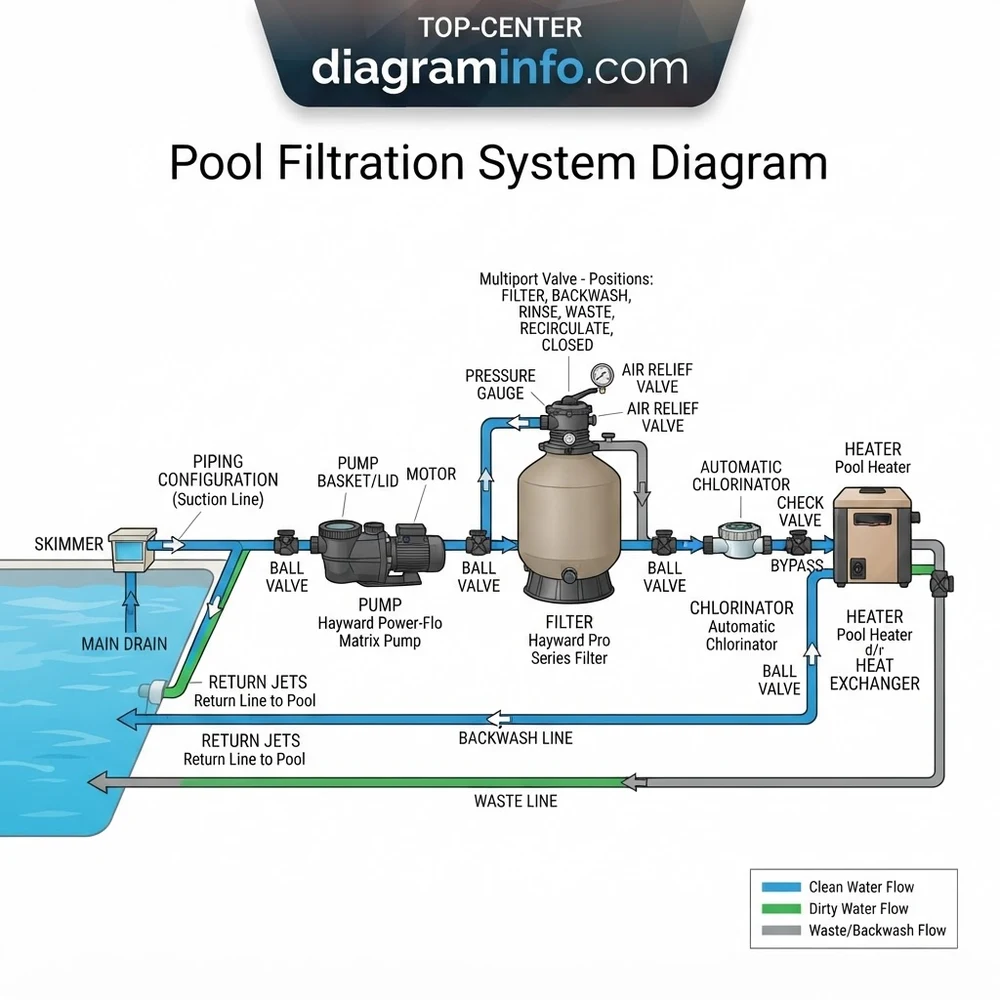

Tracing Hydraulic Flow Across the System Schematic
Understanding the directional flow through a technical schematic requires tracing water movement across three primary phases: Suction, Filtration, and Return.
1. The Suction Phase Circuit
Water enters the hydraulic loop from the pool basin through two independent sources: the surface skimmer assembly and the deep-end main drains. These lines run underground as individual Schedule 40 PVC pipes into a dual-port or 3-way diverter valve manifold located on the equipment pad. The diverter valve controls suction balance, sending water directly into the pump housing strainer pot. As the variable-speed motor spins the wet-end impeller, it generates vacuum pressure (measured in inches of mercury, in. Hg), drawing water past the lint-and-hair basket diffuser.
2. The Filtration and Pressure Phase
Water exits the pump discharge port under positive hydro-static pressure (typically 10-25 PSI under normal operation) and travels into the inlet port of the Multiport Valve (MPV). Based on the mechanical setting of the MPV spider gasket:
- Filter Mode: Water enters top tank diffuser, flows downward through silica sand or diatomaceous earth (DE) grids, and returns up through lateral pipes out to the heat loop.
- Backwash Mode: Flow direction inside the tank is reversed from bottom to top, lifting the media bed to flush trapped debris out through the waste discharge port.
For systems utilizing high-capacity cartridge elements, water bypasses an MPV entirely and enters directly through the filter inlet manifold, passing outside-in through synthetic media cores. For additional installation requirements on modern variable-speed equipment, reference our variable speed pump wiring schematics.
3. Thermal Conditioning and Sanitation Return Phase
Exiting the filter, pressurized water flows to the inline pool heater or heat pump ex-tank connection. A mechanical check valve with a 2 PSI cracking pressure must be placed between the heater exit and any chemical injection equipment. Finally, water flows through an inline chlorinator or electrolytic salt-chlorine generation cell before distributing through the return manifold back to the pool wall inlets. Technical details regarding thermal safety switches can be reviewed in our pool heater troubleshooting guide.
Diagnosing Faults with the Pool Filtration System Blueprint
Using the hydraulic baseline values in your pool filtration system diagram allows technicians to systematically diagnose system performance issues by analyzing tank pressure gauges and pump sight-glasses.
Never operate a filtration pad with the discharge valve or return lines closed. Trapped air inside a pressurized filter vessel can compress and cause violent tank separation if pressure exceeds 30 PSI. Always open the air relief valve on top of the filter tank prior to starting the circulation pump.
High Filter Tank Pressure (Above Baseline by 8-10 PSI)
When the tank pressure gauge reads significantly higher than the baseline established during clean media operation, flow resistance is located downstream of the pump impeller:
- Dirty Filter Media: Loaded sand beds, fouled DE grids, or clogged cartridge pleats restrict passage, increasing backpressure. Perform a backwash or manual element wash.
- Closed Return Valves: A partially closed 2-way valve on the return manifold downstream of the chlorinator restricts fluid exiting the pad.
- Calcified Salt Cell: Mineral scale bridging across titanium plates inside the electrolytic cell reduces cross-sectional hydraulic flow area.
Low Filter Pressure with Air Entrainment in Pump Basket
When operational PSI drops below baseline and air bubbles appear under the clear pump lid, the problem exists on the negative-pressure suction side:
- Suction Side Air Leak: Damaged pump lid O-rings, unsealed threaded inlet nipples, or dry-rotted valve stem O-rings allow air to enter the line, causing loss of prime.
- Clogged Skimmer/Main Drain Lines: Debris blockage in the suction manifold restricts water feed, forcing the pump into high-vacuum cavitation (>15 in. Hg).
Per NEC Article 680, all metallic components on the filtration pad (pump motor frame, heater casing, salt cell ground post) must be connected to a continuous solid 8 AWG copper bonding conductor linked to the pool structural rebar grid.
For details on dosing equipment installation and backflow protection, consult our guide on chemical feeder installations.
Pool Filtration System Configuration FAQs
What pipe diameter should be specified in a residential pool filtration system diagram?
Modern equipment pads require 2.0-inch Schedule 40 PVC pipe as standard for systems operating up to 80 GPM. Systems demanding flow rates between 80 GPM and 120 GPM must use 2.5-inch or 3.0-inch piping on the suction manifold to maintain water velocity below the mandatory 6 feet per second safety limit.
How does a multiport valve switch flow directions in a media filter schematic?
A multiport valve contains an internal diverter rotor sealed by a grooved rubber spider gasket. Turning the handle rotates the diverter, realigning internal internal ports to route water through the top manifold (Filter), reverse from the bottom lateral array (Backwash), or bypass the tank entirely (Recirculate/Waste).
Why must chemical dosing equipment be installed downstream of the pool heater on a layout?
Chemical feeders and salt chlorine generators produce highly concentrated acidic or oxidative byproduct flows when inactive. Installing chlorinators downstream—separated by a corrosion-resistant Hastelloy or Viton-sealed check valve—prevents concentrated chemical back-siphoning from eroding copper or titanium heater heat exchangers.
What is the function of the air relief valve located at the highest point on a filter blueprint?
Air trapped in the upper dome of a filter tank compresses under pump pressure, creating a potential blast hazard. The manual air relief valve vents captured air from the filter vessel during initial pump priming until a solid stream of water exits the bleed tube, ensuring safe pressure stabilization.
Step-by-Step Guide to Understanding the Pool Filtration System Diagram
Identify – Locate suction side intake pipes coming from skimmers and main drains.
Locate – Position the pump, multiport valve, and filter vessel on a level concrete pad.
Reference – Consult the pool filtration system diagram to verify valve handle positions and port orientations.
Connect/Route – Glue 2-inch PVC lines from pump discharge to filter inlet and return lines to pool jets.
Verify – Prime the pump housing, open air relief valve, and check running pressure between 10–20 PSI.
Troubleshoot – Inspect O-rings and union fittings with soapy water if air bubbles appear in the pump lid.
