Three-Phase Pad-Mounted Transformer Diagram: 2026 Setup
A pad-mounted transformer diagram details the cabinet layout, dividing high-voltage (HV) inputs (H1, H2, H3) on the left from low-voltage (LV) outputs (X0, X1, X2, X3) on the right. It outlines essential internal structures, including bayonet fuses, tap changers, pressure relief valves, oil level gauges, and grounding pads for safe system operation.
📌 Key Takeaways
- High-voltage (HV) primary bushings (H1-H3) are isolated in the left compartment; low-voltage (LV) bushings (X0-X3) occupy the right.
- Bayonet fuse assemblies and current-limiting fuses provide dual-stage overcurrent protection within the oil-immersed tank structure.
- Grounding pads require bare copper conductors bonded to the main grid, maintaining ground resistance below 5 ohms.
- Liquid level gauges and pressure relief valves prevent thermal expansion failures during peak load operating conditions.
- Only qualified lineworkers should access high-voltage compartments after verifying zero-voltage with a calibrated detector.
Navigating a pad-mounted transformer diagram requires a clear understanding of medium-voltage distribution systems, internal winding configurations, and cabinet compartmentation. Standardized under IEEE C57.12.34 and ANSI standards, these three-phase and single-phase liquid-filled units step down primary utility voltages (ranging from 2.4 kV up to 34.5 kV) to usable low-voltage secondary outputs such as 208Y/120V or 480Y/277V. This technical guide breaks down the complete electrical blueprint, mapping every critical high-voltage bushing, low-voltage terminal, protective fusing mechanism, and switching assembly to ensure safe installation, testing, and field maintenance.

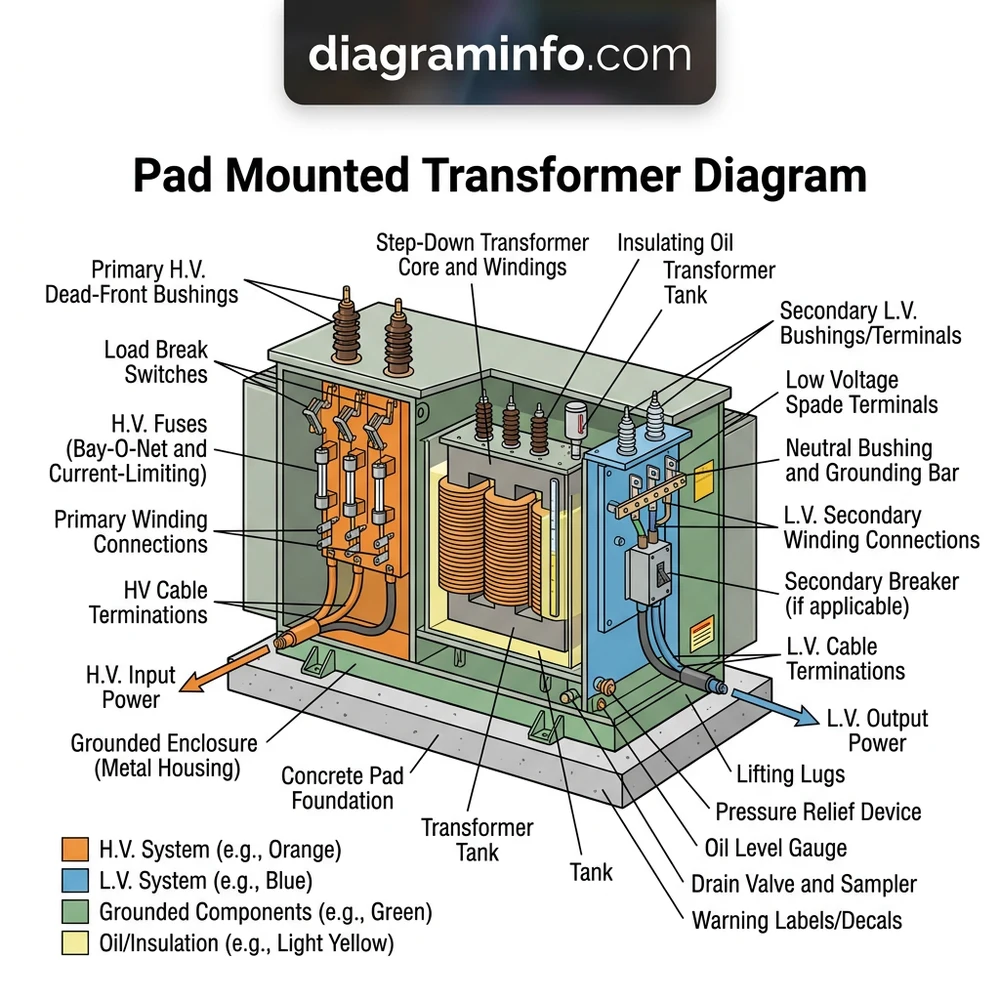

Pad-Mounted Transformer Diagram Component Layout and Structure
A standard pad-mounted transformer diagram separates the cabinet enclosure into two distinct, tamper-resistant compartments secured behind a locked, padlocked door structure. The physical layout is engineered in compliance with IEEE C57.12.28 enclosure integrity requirements, isolating medium-voltage primary components from low-voltage secondary connections to enhance field technician safety during maintenance operations.
Recommended Best Deal Products
The left compartment houses the High-Voltage (HV) primary interface. On a dead-front configuration, this side features insulated 200A loadbreak bushing wells or 600A deadbreak apparatus bushings. In a loop-feed arrangement, six primary bushings (labeled H1A, H2A, H3A for Incoming Loop A, and H1B, H2B, H3B for Outgoing Loop B) allow full ring-main utility integration. Mounted adjacent to these bushings are the primary protective elements, including Bay-O-Net expulsion fuse assemblies paired in series with internal ELSP current-limiting backup fuses, grounding parking stands, and multi-position loadbreak sectionalizing switches (radial/loop switches).
The right compartment contains the Low-Voltage (LV) secondary interface. Here, copper or aluminum spade terminals marked X1, X2, X3, and X0 (neutral) provide high-current distribution connections. The neutral terminal (X0) is bonded to the main tank wall via a removable heavy-gauge copper grounding strap. Surrounding these electrical terminals are the core mechanical and diagnostic accessories essential for monitoring tank health. These include a dial-type liquid level gauge, a top-oil temperature indicator, a manual pressure relief valve (PRV), an off-load tap changer control shaft, and an oil drain valve equipped with an integrated dielectric sampling port.
| Terminal / Part Marking | Component Description | Electrical Rating & Torque Specification |
|---|---|---|
| H1A, H2A, H3A | Primary High-Voltage Bushings (Loop A Inflow) | 15kV to 35kV Class / 200A Loadbreak Interface |
| H1B, H2B, H3B | Primary High-Voltage Bushings (Loop B Outflow) | 15kV to 35kV Class / 200A or 600A Deadbreak Interface |
| X1, X2, X3 | Secondary Phase Terminals (A, B, C Phases) | 208Y/120V or 480Y/277V; Torque to 40-45 ft-lbs (1/2″-13) |
| X0 | Secondary Neutral Terminal (Grounded) | Full-capacity line terminal with removable ground strap |
| PRV | Manual Mechanical Pressure Relief Valve | Relieves tank pressure above 10 PSIG; manual pull-ring |
| Tap Switch | 5-Position Off-Load Tap Changer Mechanism | ±2.5% and ±5% primary voltage adjustments (De-energized) |
How to Read a Pad-Mounted Transformer Schematic Blueprint
Interpreting a pad-mounted transformer blueprint involves tracing electrical paths from the incoming underground high-voltage utility cables down through the secondary load distribution bus bars. Schematics are drawn using standardized IEEE symbols, showing both internal core/coil wiring and external cabinet accessories.
Begin analysis on the primary side of the schematic diagram. Locating the incoming high-voltage feeds allows you to identify whether the unit operates within a radial-feed system (single set of primary bushings) or a loop-feed configuration (dual primary bushings per phase). Trace the line from terminals H1A, H2A, and H3A through the internal multi-position loadbreak switch. In a four-position loop selector switch (often designated as a LBOR switch), the schematic details four operational states: Loop A feeding the transformer and Loop B; Loop B feeding the transformer and Loop A; Loop A and B feeding the transformer simultaneously; or the transformer isolated from both loops while maintaining loop continuity downstream.
Next, follow the line through the protective fusing symbols. The primary schematic displays a two-stage protective scheme: an externally removable Bay-O-Net expulsion fuse drawn in series with a secondary current-limiting fuse (CLF). The expulsion fuse protects against secondary faults and overload conditions, while the partial-range current-limiting fuse ruptures under high-magnitude internal short circuits to prevent transformer tank rupture.
Recommended Best Deal Products
When reviewing an underground distribution system layout, verify phase sequence alignment across primary bushing elbows. Swapping H1A and H3A connections on a three-phase Delta-Wye primary configuration reverses internal phase rotation, which can cause instantaneous motor reversal on downstream customer equipment.
Move across the magnetic core symbol—represented by parallel vertical lines separating primary and secondary coils—to examine the secondary winding schematic. A standard three-phase commercial pad-mounted transformer blueprint typically depicts a Delta primary winding paired with a Grounded Wye secondary winding (Dyn1 or Dyn11 vector configuration). Check the schematic for phase identification markings: the primary delta legs connect across H1-H2, H2-H3, and H3-H1, while the secondary wye legs tie together at a common neutral point connected directly to X0.
OEM Installation Torque Specs: Low-voltage NEMA 4-hole or 6-hole spade terminals require 1/2″-13 stainless steel hardware torqued to 45 ft-lbs (61 Nm). High-voltage bushing wells require 15 ft-lbs (20 Nm) insertion torque when threading replacement 200A loadbreak inserts.
Finally, trace the cabinet grounding system represented by standard earth ground symbols. Note the tank ground pads situated at the bottom corners of both the HV and LV compartments. The schematic indicates that all metallic cable shielding, surge arresters, cabinet doors, and the X0 neutral strap must bond to a common copper ground loop (typically 2/0 AWG or 4/0 AWG bare copper) embedded beneath the concrete mounting pad.
Troubleshooting System Faults Using the Pad-Mounted Transformer Diagram
Field troubleshooting of pad-mounted transformers requires correlating physical symptoms with circuit paths, component symbols, and test points marked on the engineering diagram. System outages, low voltage complaints, and protective device trips can be systematically isolated by combining electrical measurements with schematic mapping.
When investigating a total loss of secondary voltage, start by confirming primary voltage presence at the loadbreak elbow test points using a high-voltage capacitive voltage detector. If primary voltage is confirmed on terminals H1A, H2A, and H3A, but secondary output is zero across X1, X2, and X3, refer to the protective fuse section on the pad-mounted transformer diagram. A cleared Bay-O-Net expulsion fuse indicates a downstream fault or severe transformer overload. Unhook the load, safely remove the Bay-O-Net fuse assembly using an insulated hot stick, and inspect the fuse element. If the expulsion fuse is intact, but continuity across the primary winding is open, the internal non-resettable backup current-limiting fuse (CLF) has likely operated due to a catastrophic internal winding failure.
Never attempt to operate an internal off-load tap changer or replace a Bay-O-Net fuse assembly while the transformer is under electrical load or showing signs of internal gas pressure. Always actuate the manual Pressure Relief Valve (PRV) pull-ring before opening internal fluid compartments or servicing fused components.
In cases of severe voltage imbalance on secondary phases—such as receiving 120V line-to-neutral on phase X1 and X2, but 0V or severely degraded voltage on phase X3—use the internal winding schematic to isolate the fault. De-energize the unit, lock out all power sources, remove the neutral ground strap from X0, and perform winding resistance and Transformer Turns Ratio (TTR) testing across all primary-to-secondary phase combinations. Compare your measured turns ratios against the nameplate specification chart shown on the diagram schematic. Deviations greater than 0.5% indicate shorted turns within that specific phase winding.
If fluid leaks or elevated operational temperatures occur, check the fluid sight glass and the dial-type thermometer located in the LV compartment layout. Elevated temperatures combined with continuous pressure venting through the manual pressure relief valve point to sustained overloads or dielectric oil degradation. Perform field sampling of the mineral oil or natural ester fluid via the bottom drain valve to conduct a transformer oil dielectric testing analysis. Dielectric breakdown ratings below 30 kV (per ASTM D877 standards) indicate fluid contamination or moisture ingress, requiring immediate fluid reconditioning or unit replacement.
For complex network issues involving multi-unit ring circuits, refer to your medium-voltage switchgear maintenance protocols to coordinate upstream breaker protection before re-energizing or performing switching operations on the internal loadbreak selector switch.
Pad-Mounted Transformer Configuration and Diagram FAQs
What Do H1, H2, H3 and X1, X2, X3 Designations Represent on the Diagram?
On a pad-mounted transformer diagram, “H” designations represent high-voltage primary terminals connected to incoming utility distribution lines (e.g., 13.8 kV or 24.94 kV). “X” designations represent low-voltage secondary terminals feeding customer loads (e.g., 208V, 240V, or 480V). Single-phase units use H1-H2 and X1-X2-X3 (for 120/240V split-phase), whereas three-phase units use H1, H2, H3 for the three incoming phases and X1, X2, X3, along with X0 for the neutral wire on grounded wye secondary circuits.
How Does a Loop-Feed Schematic Differ from a Radial-Feed Diagram?
A radial-feed schematic shows a single primary input per phase (H1, H2, H3), making the transformer the end point of a distribution line. A loop-feed diagram shows dual primary terminals per phase (H1A/H1B, H2A/H2B, H3A/H3B), allowing the transformer to sit in the middle of a continuous ring-main circuit. This configuration enables field technicians to isolate individual transformers for service using internal internal switching mechanisms without interrupting power to downstream transformers on the same loop.
What Cabinet Clearance Distances Are Required for Pad-Mounted Enclosures?
According to National Electrical Safety Code (NESC) standards and standard utility guidelines, pad-mounted transformer cabinets require a minimum clearance of 10 feet directly in front of the compartment door openings. This space ensures line technicians have sufficient room to operate hot sticks safely. Side and rear clearances must measure a minimum of 3 to 5 feet away from permanent structures, walls, or dense vegetation to allow proper convective cooling through the tank cooling fins and prevent thermal buildup.
How Do You Locate and Adjust Tap Changer Positions on the Internal Schematic?
The tap changer symbol is drawn connected directly to the primary winding coils on the internal electrical schematic. It displays five distinct switch positions: Position 3 represents the nominal voltage rating (100%), while Positions 1 and 2 offer +2.5% and +5.0% primary voltage step-ups (reducing secondary output for high primary line conditions). Positions 4 and 5 offer -2.5% and -5.0% step-downs (increasing secondary output under low primary line conditions). The physical control shaft is located inside the LV compartment and must only be rotated when the unit is fully de-energized.
Why Does the Primary Schematic Show Two Fuses Connected in Series?
Pad-mounted transformer schematics show dual fusing—a Bay-O-Net expulsion fuse in series with a current-limiting fuse—to provide full-range overcurrent protection. The Bay-O-Net fuse handles low-current overload events and secondary thermal faults; it can be replaced in the field. The current-limiting fuse clears high-current internal fault currents (up to 50,000A symmetrical) within a fraction of a cycle. This limits total fault energy and prevents severe internal arc flash, excessive gas accumulation, and tank rupture.
Step-by-Step Guide to Understanding the Pad-Mounted Transformer Diagram
Identify – Locate the high-voltage (left) and low-voltage (right) compartments on the schematic layout.
Locate – Position the H1, H2, H3 primary bushings and X0, X1, X2, X3 secondary terminal configurations.
Reference – Review the internal wiring diagram for bayonet fuse positioning and tap changer settings.
Connect – Route incoming primary cables to loadbreak elbows and secondary cables to distribution lugs.
Verify – Measure ground continuity, oil temperature levels, and phase-to-phase terminal voltage specifications.
Troubleshoot – Inspect pressure relief valves and bayonet fuse links if primary system tripping occurs.
