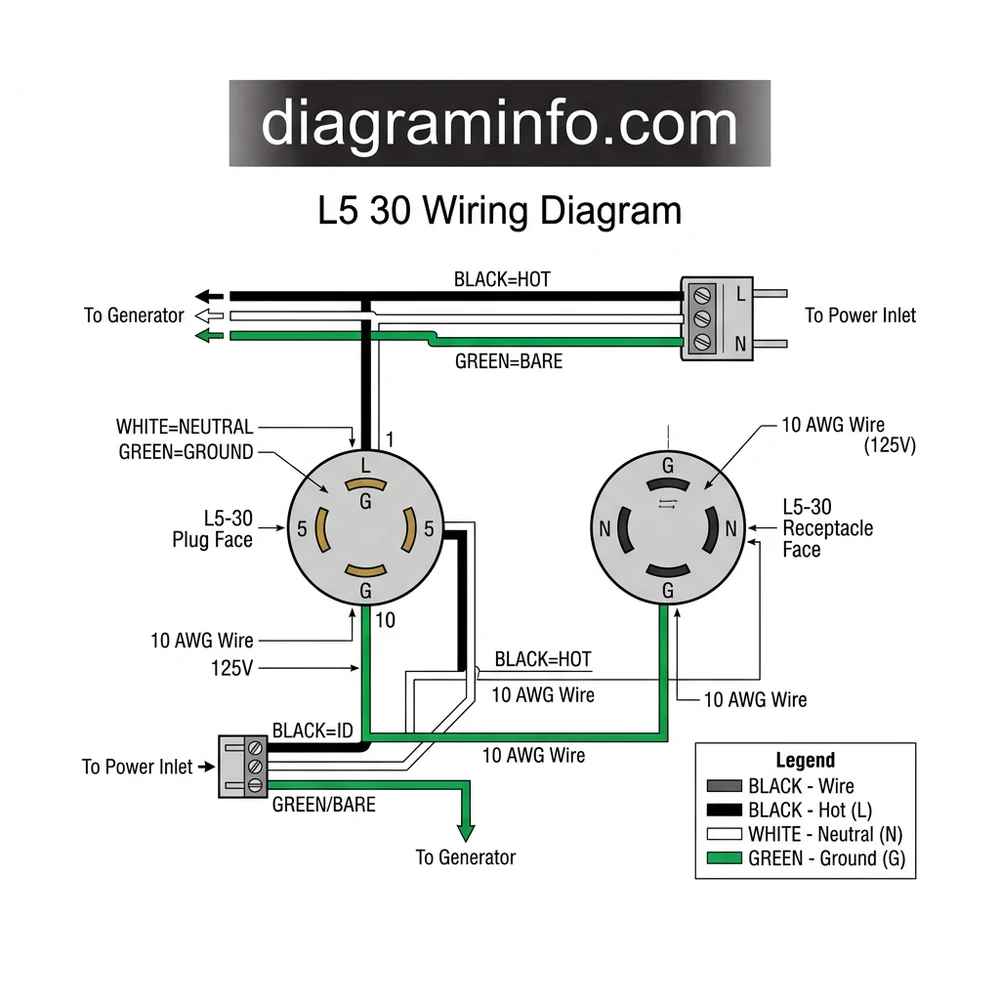

NEMA L5-30 Wiring Diagram: Pinout Guide (2026)
An L5-30 wiring diagram maps a 125V, 30-amp 3-wire twist-lock connector. Connect the hot wire (black) to the brass terminal marked ‘X’, the neutral wire (white) to the silver terminal marked ‘W’, and the ground wire (green/bare) to the green terminal marked ‘G’. Always use 10 AWG copper wire on a 30-amp circuit breaker.
📌 Key Takeaways
- NEMA L5-30 devices require 10 AWG copper wire protected by a 30-amp single-pole breaker at 125 volts.
- Terminal ‘W’ (silver) connects to neutral, ‘G’ (green hex screw) connects to ground, and ‘X’ (brass) receives hot power.
- Terminal screws must be torqued to 18-20 in-lbs to prevent loose, high-resistance connections and overheating.
- Reversing the hot wire and neutral wire creates a dangerous reverse-polarity shock hazard.
- Always consult a licensed electrician when integrating transfer switches or expanding service panels.
Wiring a NEMA L5-30 receptacle or plug correctly requires a clear understanding of terminal indexing, conductor sizing, and electrical safety standards. The NEMA L5-30 is a single-phase, 125-volt, 30-amp locking connector commonly utilized in industrial equipment, generator power inlets, marine shore power systems, and heavy-duty commercial installations. Utilizing an precise L5-30 wiring diagram ensures proper pin assignment, prevents hazardous reverse polarity conditions, eliminates excessive voltage drop, and maintains grounding integrity across high-draw continuous loads.
NEMA L5-30 Specifications and Pin Assignment Technical Breakdown
The NEMA L5-30 specification defined by ANSI/NEMA WD 6 governs 3-pole, 3-wire grounding twist-lock configurations rated for 125 VAC operating voltage and 30 amperes continuous current. Unlike standard straight-blade residential devices, the L5-30 features a curved locking blade design that requires insertion and clockwise rotation to lock the plug into the receptacle body. This structural retention mechanism prevents accidental disconnects under heavy vibration or tension.
To establish proper electrical connections, you must identify the three distinct terminal points inside the plug casing or back-wired receptacle terminal block:
- Ground Terminal (G): Designated by a distinctive curved L-shaped tab on the plug face. This terminal accepts the bare copper or green equipment grounding conductor and connects to a green-colored hex-head screw.
- Neutral Terminal (W): Designated by the “W” marking (indicating White or Neutral). This terminal connects to a silver-colored screw clamp and receives the grounded circuit conductor.
- Hot Terminal (X or L): Designated by an unmarked straight tab or “X”/”L” marking. This terminal connects to a brass-colored screw clamp and receives the ungrounded phase conductor carrying 125V nominal potential.
NEMA Designation: L5-30R (Receptacle), L5-30P (Plug)
Electrical Ratings: 125 Volts AC, 30 Amperes, Single-Phase
Configuration: 2-Pole, 3-Wire Grounding Locking Type
Terminal Capacity: #12 AWG to #8 AWG Solid or Stranded Copper
Terminal Torque Rating: 18 to 22 inch-pounds (in-lbs)
Cord Clamp Torque Rating: 12 to 16 inch-pounds (in-lbs)
Mastering the L5-30 Wiring Diagram Wire Color Code
Adhering to the standard wire color code is necessary to satisfy National Electrical Code (NEC) requirements and prevent cross-wiring errors during field installation. Standard north american electrical installations utilize specific insulation color conventions for single-phase 125V branch circuits.
| Conductor Function | Standard Wire Color Code | Terminal ID & Color | Technical Notes |
|---|---|---|---|
| Hot Wire (Line 1) | Black (or Red) | Terminal X / Brass Screw | 125V potential relative to neutral and ground. Connects to 30A single-pole breaker. |
| Neutral Wire | White | Terminal W / Silver Screw | Grounded current-carrying return path. Must match hot conductor size. |
| Ground Wire | Green or Bare Copper | Terminal G / Green Screw | Non-current carrying safety ground. Connects to ground bus in main panel. |
When wiring flexible portable cords (such as type SOOW, SOW, or STOW cable used on portable generators or marine shore connections), the internal wire color code remains identical: Black for the hot wire, White for the neutral wire, and Green for the equipment ground wire. According to OEM specs for heavy-duty wiring devices, all stranded wire conductors should be stripped precisely to ensure clean contact within the pressure-plate terminal block without stray wire strands protruding beyond the body insulation.
Selecting Wire Gauge and Handling Voltage Drop for L5-30 Circuits
Branch circuit design for an L5-30 receptacle demands careful consideration of conductor cross-sectional area to carry up to 30 amperes safely without thermal breakdown or excessive voltage drop.
Under NEC Article 310 and Table 310.16, the absolute minimum conductor size for a 30-ampere branch circuit rated at 60°C or 75°C insulation temperature is 10 AWG copper. Aluminum conductors require sizing up to 8 AWG minimum; however, most industrial L5-30 terminal blocks are listed exclusively for copper-to-copper connections. Using 12 AWG wire on a 30A circuit violates electrical safety standards and presents a severe fire hazard.
For long wire runs exceeding 85 feet between the distribution panelboard and the L5-30 outlet, upsize the conductor to 8 AWG copper to keep line voltage drop under the recommended 3% threshold (3.75V max drop at 125V nominal). Excess voltage drop degrades motor performance in air compressors, refrigeration compressors, and industrial tools.
When wiring portable cords, ensure the jacket designation matches the operating environment:
- SOOW Cord: 600V, oil-resistant rubber jacket, weather/water resistant. Ideal for shop environments and generator leads.
- STOW Cord: 600V, thermoplastic oil-resistant jacket. Suitable for portable outdoor power equipment.
- NM-B Cable: 600V, non-metallic sheathed cable (10/2 with ground). Used strictly for fixed indoor wall installations inside conduit or wall cavities.
If integrating the L5-30 outlet into an existing building distribution infrastructure, reference our related guides on generator transfer switch installation, main breaker panel load center wiring, and industrial power distribution box layout for broader system context.
Step-by-Step Installation Using the L5-30 Wiring Diagram
Follow this installation sequence to correctly execute the wiring of a NEMA L5-30 device using the provided diagram specifications.
Step 1: System Isolation and Verification
De-energize the supply circuit at the main panelboard. Lock out and tag out (LOTO) the 30-amp single-pole circuit breaker. Verify the absence of AC voltage across all phase wires using a calibrated digital multimeter or reliable voltage detector.
Step 2: Cable Preparation and Outer Jacket Stripping
1. For NM-B or portable cable, strip back approximately 1.75 inches (45 mm) of outer sheathing, taking care not to nick or cut the individual inner conductor insulation.
2. Strip 5/8 inch (16 mm) of insulation from the end of each conductor (Black, White, Green).
3. Inspect wire ends: solid wires must be straight and free of deep scoring; stranded flexible conductors should be neatly twisted to prevent fraying before terminal entry.
Step 3: Ground Conductor Connection
1. Loosen the terminal screw marked with the green finish and the grounding symbol (⏚).
2. Insert the green or bare copper ground wire into the green terminal chamber beneath the wire binding clamp.
3. Tighten the terminal screw to 20 in-lbs of torque. Ensure no bare conductor extends past the body shielding perimeter.
Step 4: Neutral Conductor Connection
1. Locate the terminal identified by the “W” letter or silver-colored screw plate.
2. Insert the white neutral wire directly into the terminal pocket.
3. Torque the terminal screw securely to 20 in-lbs. Confirm that the terminal clamp firmly sandwiches the copper strands and that no insulation is pinched under the screw plate.
Step 5: Hot Conductor Connection
1. Identify the remaining terminal, which features a brass terminal screw and is marked “X” or “L”.
2. Insert the black (or red) 125V hot wire into the terminal chamber.
3. Tighten the brass terminal screw to 20 in-lbs. Check that all wire strands are fully contained within the terminal block cavity.
Step 6: Housing Assembly and Strain Relief Adjustment
1. Align the device internal keyways and slide the front contact assembly into the outer back shell or faceplate junction box.
2. Fasten the structural assembly screws evenly in an alternating cross pattern.
3. Tighten the rear cord grip or cable clamp screws to 14 in-lbs to secure the outer cable jacket firmly. The strain relief clamp must bite into the overall cable sheath—never clamp down directly onto individual insulated conductors.
Do not solder (tin) stranded wire ends before inserting them into pressure-plate terminal blocks. Over time, soldered copper undergoes cold flow under pressure, causing the connection to loosen, create high electrical resistance, overheat, and potentially melt the connector shell or trigger an electrical fire.
Troubleshooting Errors in Your L5-30 Wiring Diagram Configuration
Incorrect wiring configurations can lead to equipment damage, breaker tripping, or severe shock hazards. Below are four common diagnostic scenarios encountered when testing an L5-30 outlet installation:
1. Hot and Neutral Reverse Polarity
Symptom: The plug functions, but attached equipment or diagnostic outlet testers show “Reverse Polarity” or “Hot/Neutral Swapped”.
Root Cause: The black hot wire was connected to the silver terminal (W) and the white neutral wire to the brass terminal (X).
Consequence: Internal switches or fuses on connected devices remain energized on the neutral side even when turned off, creating an immediate electrical shock hazard.
Fix: Power down the circuit, open the connector body, and swap the black and white wires to their correct terminals as dictated by the wire color code.
2. High-Resistance Heating or Shell Melting
Symptom: Discolored housing plastic around terminals, acrid odor, or intermittent power loss under heavy 25A–30A loads.
Root Cause: Insufficient terminal torque or undersized wire gauge (e.g., 12 AWG instead of 10 AWG copper).
Consequence: Loose contacts induce severe resistance heating under continuous current loading.
Fix: Cut away burned wire lengths, strip fresh copper, replace damaged connector shells, and verify terminal torque to 20 in-lbs using an inch-pound torque screwdriver.
3. GFCI Breaker Tripping on Generator/Inverter Power
Symptom: An upstream GFCI breaker trips immediately upon inserting an L5-30 load cord connected to a portable generator.
Root Cause: Neutral-to-Ground double bonding (a bonded neutral generator feeding a panel or subpanel with an established main bonding jumper).
Consequence: Parallel return paths cause imbalance in the GFCI sensing transformer.
Fix: Unbond the neutral wire inside the generator terminal box or install a switched-neutral transfer switch depending on local code and system grounding classification.
4. Loss of Ground Continuity
Symptom: Metal tool chassis or marine equipment yields mild electrical tingle or open ground test result.
Root Cause: Ground wire slipped out of the green terminal or broken earth grounding conductor inside the flex cord due to improper strain relief clamp adjustment.
* Fix: Inspect the ground pin contact inside the receptacle face. Ensure the green ground wire is firmly clamped inside the plug body and the external strain relief is clamped on the outer cable sleeve.
Frequently Asked Questions About NEMA L5-30 Wiring Configurations
Can I wire an L5-30 plug using 12 AWG wire?
No. Standard electrical codes (NEC Article 210) require 10 AWG copper conductors for 30-amp branch circuits. Wiring an L5-30 receptacle with 12 AWG wire creates an electrical hazard because a 30-amp breaker will allow current draws that exceed the safe continuous thermal ampacity of 12 AWG wire (rated for a maximum of 20A continuous load).
What is the difference between an L5-30 and a TT-30 connection?
While both are rated for 125V and 30A, the L5-30 is a 3-prong twist-lock configuration designed primarily for industrial, marine, and generator applications where vibration locking is required. The TT-30 (Travel Trailer) is a straight-blade 3-prong connector used almost exclusively in recreational vehicles (RVs). They are physically incompatible and require an adapter for cross-use.
How do I identify the hot wire terminal on an L5-30 receptacle?
On an L5-30 receptacle or plug, the hot wire terminal is identified by a brass screw finish and is often stamped with the letter “X” or “L”. The neutral terminal uses a silver-colored screw stamped with “W”, and the ground terminal uses a green hex screw marked with “G” or an earth ground symbol.
Why does my generator L5-30 outlet trip the breaker when connected?
Tripping often occurs due to a short circuit between the hot wire and the ground/neutral wire, an overloaded circuit exceeding 30 amps, or a neutral-ground bonding conflict when feeding an interlocked building load center without disconnecting the generator’s internal ground bond.
Is an L5-30 outlet capable of supplying 240 volts?
No. The NEMA “5” designation explicitly specifies a 125-volt, single-phase configuration consisting of one hot wire, one neutral wire, and one ground wire. If your equipment requires 240V single-phase power at 30 amps, you must use a NEMA L6-30 configuration, which utilizes two hot line conductors (208V/240V across phase legs) and one ground wire without a neutral.
