2026 Audi Phase Diagram of Carbon Dioxide Troubleshooting
In 2026 automotive R744 (CO2) climate systems, the phase diagram of carbon dioxide maps pressure versus temperature to diagnose supercritical transitions. Operating above 73.8 bar (1,070 psi) at 31.1°C, the ECU monitors high-side pressure sensors via OBD-II diagnostic code P17C4. Maintain pressure sensor fitting torque specs at 15 Nm.
📌 Key Takeaways
- CO2 refrigerant (R744) transitions to a supercritical fluid state above 31.1°C (88°F) and 73.8 bar (1,070 psi).
- ECU relies on high-pressure and temperature sensors to prevent system over-pressurization up to 130 bar.
- Always torque R744 pressure sensor fittings to 15 Nm using fresh HNBR or metallic seal washers.
- Frequent check engine light illuminated alongside diagnostic code P17C4 indicates pressure sensor signal out of range.
- High-pressure transcritical CO2 systems require certified professional recovery tools due to extreme operating pressures.
Automotive climate control and heat pump architectures in modern electric and hybrid vehicles increasingly utilize R744 (refrigerant-grade carbon dioxide) due to its zero Ozone Depletion Potential (ODP) and Global Warming Potential (GWP) rating of 1. Servicing these ultra-high-pressure climate loops requires a precise understanding of the phase diagram of carbon dioxide. Unlike conventional R134a or R1234yf systems that operate exclusively in sub-critical vapor-compression cycles, R744 thermal management systems frequently cross the critical boundary into trans-critical operation. Technicians must map thermodynamic phase states to maintain system efficiency, protect high-pressure variable-displacement compressors, and properly interpret controller sensor signals.

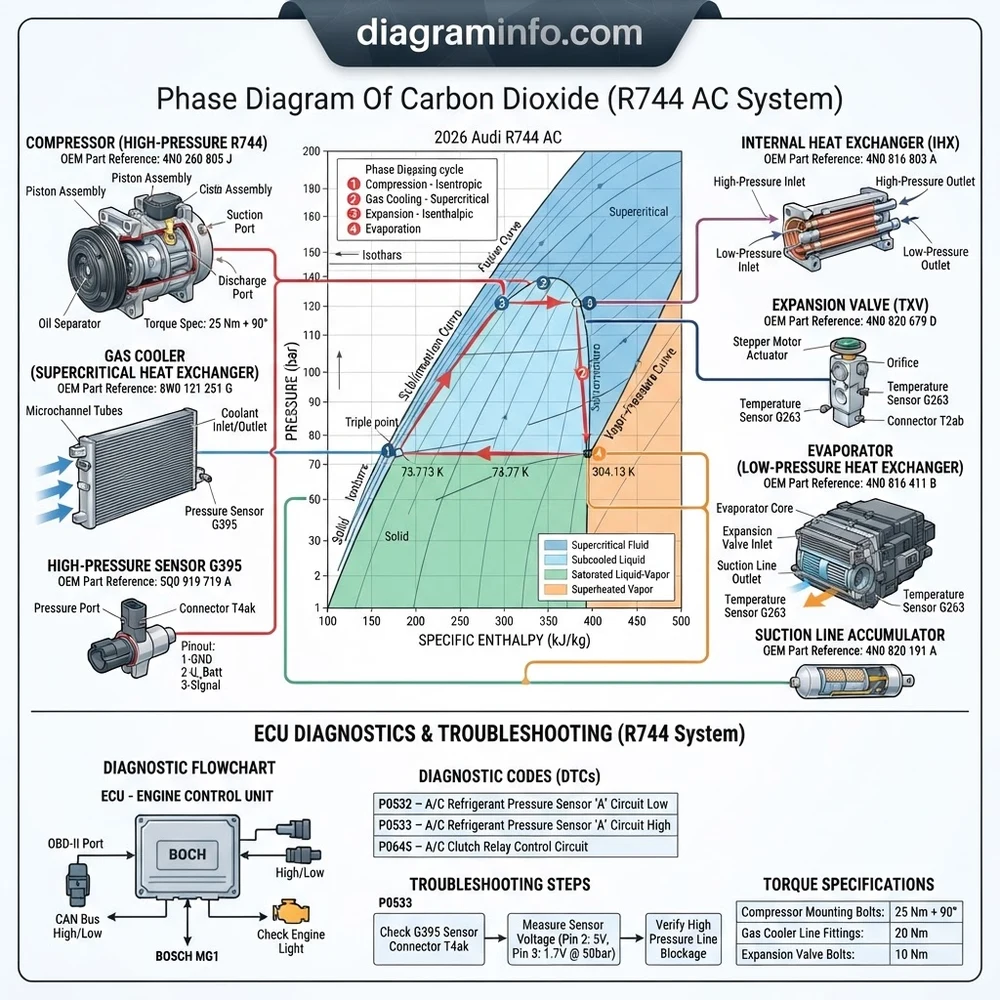

Understanding the Phase Diagram of Carbon Dioxide in R744 Climate Systems
The phase diagram of carbon dioxide defines the physical state of R744 across varying pressure (Bar/PSI) and temperature (°C/°F) thresholds. In automotive thermal management systems, the medium shifts between solid, liquid, vapor, and supercritical fluid states based on systemic thermal loading and compressor work output. Understanding these boundaries is necessary when evaluating system enthalpy and pressure-volume curves during active climate control cycles.
Key state boundaries on the R744 phase chart include:
- The Triple Point: Located at -56.6°C (-69.8°F) and 5.18 bar (75.1 PSI). Below this pressure threshold, liquid $CO_2$ cannot exist; the substance transitions directly between solid dry ice and vapor through sublimation. System evacuation procedures must avoid rapid depressurization below 5.2 bar while liquid is present to prevent dry ice blockages inside the evaporator core.
- The Sub-Critical Region: Operating below the critical temperature of 31.1°C (87.98°F) and critical pressure of 73.8 bar (1070.3 PSI). In this zone, condensation and evaporation occur across distinct liquid-gas saturation lines, similar to legacy refrigerant cycles.
- The Critical Point: The exact thermodynamic junction (31.1°C / 73.8 bar) where distinct phase boundaries between liquid and gas cease to exist.
- The Supercritical Region: Operating above 31.1°C and 73.8 bar. The refrigerant becomes a dense, high-pressure supercritical fluid. Instead of a condenser, the vehicle utilizes a high-pressure gas cooler to reject heat without phase change, managed via an Electronic Expansion Valve (EEV).
According to OEM service manuals, typical low-side suction pressures range from 25 to 45 bar (362–652 PSI), while high-side trans-critical gas cooler pressures reach 75 to 120 bar (1087–1740 PSI). Always verify target pressures against live ECU sensor data streams before performing recovery or recharge procedures. For deeper component servicing, refer to our comprehensive guide on r744 compressor overhaul procedures.
The table below provides reference values for carbon dioxide phase points alongside mechanical hardware specifications for R744 vehicle loops:
| State / Metric | Pressure (Bar / PSI) | Temperature (°C / °F) | Service & Hardware Spec |
|---|---|---|---|
| Triple Point | 5.18 bar / 75.1 PSI | -56.6°C / -69.8°F | Minimum vacuum break limit |
| Critical Point | 73.8 bar / 1070.3 PSI | 31.1°C / 87.98°F | Trans-critical shift threshold |
| Gas Cooler Max Operating | 135 bar / 1958 PSI | 120°C / 248°F | Pressure relief valve pop threshold |
| High-Pressure Sensor Fitting | N/A | N/A | Torque spec: 14 Nm (10.3 ft-lbs) |
| Gas Cooler Line Flange Bolt | N/A | N/A | Torque spec: 9 Nm (80 in-lbs) |
Interpreting Phase Diagram of Carbon Dioxide Deviations and Diagnostic Codes
When an R744 thermal system operates outside its designed envelope on the phase diagram of carbon dioxide, efficiency drops rapidly and structural over-pressurization risks increase. The climate control ECU continuously monitors refrigerant pressure thermistors and transducer signals across the high-pressure gas cooler and low-pressure evaporator lines. If system pressure exceeds nominal phase bounds relative to current temperature readings, the control module illuminates the check engine light or climate warning indicator and stores a diagnostic code.
R744 systems operate at pressures up to 10 times higher than R134a systems. Incorrect charging protocols that push the system beyond 135 bar can trigger automated mechanical relief valve venting. Never service R744 lines without verifying system pressure through OBD-II live data or certified high-pressure manifold gauges rated for at least 160 bar.
Refrigerant Overcharge and High-Pressure Thermal Runaway
An overcharged system forces the refrigerant density in the gas cooler higher than thermodynamic design limits. On the phase diagram of carbon dioxide, this shifts the high-pressure side trajectory vertically into the supercritical fluid zone without sufficient enthalpy change. The compressor faces excessive head resistance, causing increased mechanical load on the engine accessory drive or electric motor shaft. In belt-driven ICE configurations, this parasitic drag impacts engine performance and can even influence engine timing chain tensioner dampening due to torsional vibration spikes on the crankshaft pulley. The ECU will typically set diagnostic code P0533 (A/C Pressure Sensor A Circuit High Input) and disable compressor clutch engagement.
Refrigerant Undercharge and Phase-Lock Cavitation
An undercharged R744 system causes suction pressure to drop below the sub-critical evaporation curve line prematurely. As pressure drops toward the triple point boundary, fluid velocity destabilizes, leading to gas lock in the electronic expansion valve. The lack of mass flow starves the compressor of return gas needed for cooling internal components and carrying synthetic PAG/POE lubricant. Poor oil circulation results in erratic oil pressure within the compressor housing, generating internal friction, metallic debris, and triggering DTC P0531 (A/C Pressure Sensor Circuit Range/Performance).
Non-Condensable Gas Contamination
Air or moisture contamination severely distorts the actual operating line on the CO2 phase diagram. Atmospheric air introduces non-condensable gases that elevate total system pressure according to Dalton’s Law of Partial Pressures, without contributing to latent cooling capacity. This artificial pressure spike skews ECU calculations for target expansion valve positioning. For detailed information on valve recalibration, check our article on electronic expansion valve troubleshooting.
Diagnostic Procedure for R744 Systems Using OBD-II Data and Coolant Flow Metrics
Diagnosing state shifts on the phase diagram of carbon dioxide requires combining digital scan tool data with physical thermal checks. Follow this technical procedure to isolate system faults:
Modern automotive R744 loops utilize an Internal Heat Exchanger (IHX) to transfer heat between the warm high-pressure liquid/supercritical fluid leaving the gas cooler and the cold low-pressure vapor leaving the evaporator. This sub-cools the high-pressure side prior to expansion, moving the operating point further left on the phase diagram and maximizing coefficient of performance (COP).
Step 1: Read Sensor PID Stream via OBD-II
Connect an OEM-compatible diagnostic tool to the vehicle’s OBD-II port. Navigate to the Climate Control / ECU Data Stream and log the following live PIDs:
- High-side R744 Pressure Transducer (Bar / PSI)
- Gas Cooler Outlet Temperature Sensor (°C)
- Evaporator Suction Pressure Transducer (Bar / PSI)
- Evaporator Outlet Temperature Sensor (°C)
- Electronic Expansion Valve (EEV) Opening Percentage (%)
Step 2: Plot Real-Time Data Against Phase Chart Thresholds
Compare actual live pressure and temperature values against the saturation line on the phase diagram of carbon dioxide:
- Sub-critical Mode Test (Ambient < 20°C / 68°F): High-side pressure should track between 45 and 65 bar. Temperature and pressure must align with standard liquid-gas saturation tables.
- Trans-critical Mode Test (Ambient > 31°C / 88°F): High-side pressure must rise above 73.8 bar (typically 80–105 bar). The fluid is now supercritical. Temperature changes at the gas cooler outlet must correlate directly with EEV stepping changes.
Step 3: Evaluate Gas Cooler Heat Exchanger and Coolant Flow
In indirect heat pump systems, the gas cooler transfers heat into a secondary liquid coolant loop rather than directly to ambient air. Connect your scan tool to evaluate secondary coolant flow rates:
- Verify that the electric coolant pump achieves targeted RPM (typically 2200–3800 RPM under load).
- Inspect secondary coolant flow across the gas cooler heat exchanger. Low coolant flow prevents heat rejection, causing gas cooler outlet temperatures to spike above 70°C and driving high-side pressure into emergency shutdown zones (>125 bar).
- Check radiator shutter door actuation to ensure unhindered airflow across the secondary heat exchanger matrix. For full circuit schematics, review our documentation on automotive thermal management systems.
Step 4: Perform Physical Hardware and Tightening Verification
If sensor data reveals rapid pressure decay, perform leak detection using a specialized carbon dioxide sniffer rated for 2 grams/year sensitivity. When replacing pressure transducers or aluminum line seals, always strictly observe torque specifications. Fasteners tightened improperly can deform high-pressure metal seal washers, resulting in slow micro-leaks that degrade system performance over time.
Carbon Dioxide Phase Diagram FAQs for Automotive Technicians
Why does the phase diagram of carbon dioxide require trans-critical cycle management in MAC systems?
Because the critical point of carbon dioxide occurs at a relatively low temperature (31.1°C / 87.98°F), ambient outdoor temperatures on warm summer days cause the high-side refrigerant temperature to easily exceed this critical limit. Above this temperature, carbon dioxide cannot be condensed into a liquid regardless of pressure. The ECU must manage the system in a trans-critical state, using an Electronic Expansion Valve to maintain optimal high-side pressure that maximizes cooling enthalpy without exceeding component safety limits.
How does the ECU use the CO2 phase diagram to control the electronic expansion valve (EEV)?
The ECU continuously calculates maximum coefficient of performance (COP) based on look-up tables derived from the CO2 phase diagram. By monitoring the gas cooler outlet temperature, the ECU determines the optimal high-side pressure target. It then adjusts the EEV stepper motor opening percentage to restrict or expand refrigerant flow, keeping the high-side operating point mapped precisely along the optimum COP line within the supercritical region.
What diagnostic codes indicate an abnormal pressure-temperature shift across the CO2 phase line?
Common diagnostic codes associated with R744 phase state errors include: Diagnostic code P0530 (A/C Refrigerant Pressure Sensor Circuit Fault), P0532 (A/C Refrigerant Pressure Sensor Low Input – often indicating loss of charge or transition below triple-point threshold), P0533 (A/C Refrigerant Pressure Sensor High Input – indicating overcharge or gas cooler thermal lock), and P25A0 (A/C Refrigerant System Pressure Too High). Always clear codes only after verifying mechanical equilibrium.
How does PAG or POE oil circulation impact pressure readings on the CO2 thermodynamic chart?
Synthetic lubricants (specially formulated double-end-capped PAG or specific POE oils) are miscible with R744 under specific pressure and temperature regions of the phase diagram. If oil separation is inadequate or if oil viscosity breaks down due to overheating, oil film builds up inside the evaporator and gas cooler channels. This oil logging acts as an insulator, reducing heat transfer efficiency and causing pressure readings to deviate from theoretical thermodynamic phase curves by up to 10–15%.
What torque specs are required for high-pressure R744 sensor and pipe fittings?
Due to the extreme pressures encountered in trans-critical operation (up to 135 bar), torque specifications are far more critical than in traditional R134a systems. Standard high-pressure transducer sensors threading into block fittings must be torqued to 14 Nm (10.3 ft-lbs). M5 line flange securing bolts require 9 Nm (80 in-lbs), while M6 block flange connection bolts must be torqued to 12 Nm (106 in-lbs). Always replace single-use metal seals during component reassembly.
Step-by-Step Guide to Understanding the Phase Diagram Of Carbon Dioxide
Identify – Check the check engine light and read any active OBD-II diagnostic code using a professional scan tool.
Locate – Find the high-side R744 pressure sensor and temperature sensor downstream of the gas cooler assembly.
Reference – Plot the real-time pressure and temperature values onto the phase diagram of carbon dioxide to establish current fluid state.
Connect/Route – Attach high-pressure R744 manifold gauges to the service ports and verify sensor accuracy against mechanical gauges.
Verify – Ensure the ECU properly commands the electronic expansion valve to maintain the system within the optimal transcritical zone.
Troubleshoot – Inspect wiring harnesses for corrosion and replace faulty pressure sensors using the exact torque spec of 15 Nm.
