Jeep Wrangler Fuel System Diagram: Component Breakdown 2026
The Jeep Wrangler fuel system routes fuel from the tank, via the low-pressure pump, to the high-pressure fuel pump (HPFP) then through an injection pressure regulator to the injectors. The fuel return line sends excess fuel back to the tank, often via a fuel bowl for consistent supply, ensuring optimal engine performance and pressure regulation.
📌 Key Takeaways
- The High-Pressure Fuel Pump (HPFP) is critical for direct injection systems, often generating pressures exceeding 2000 psi for optimal atomization.
- Identifying the fuel return line’s routing is crucial for diagnosing pressure regulation issues and ensuring proper fuel circulation.
- Always relieve fuel system pressure before disconnecting any lines or components to prevent fuel spray and potential fire hazards.
- A common failure point is the fuel pump module, which often integrates the pump, filter, and fuel level sensor, leading to no-start conditions or stalling.
- When dealing with complex high-pressure fuel systems, consult a certified technician if you lack specialized tools or experience, especially with the injection pressure regulator.
This technical guide provides an in-depth examination of the Jeep Wrangler’s fuel system, specifically focusing on the 3.0L EcoDiesel (VM Motori EXL) engine found in the JL generation. Understanding the intricate components and operational flow is crucial for accurate diagnostics, effective maintenance, and efficient repair. This article leverages a detailed fuel system diagram to illustrate the complex interplay between fuel delivery, injection, and return, enabling technicians and experienced enthusiasts to systematically approach issues related to fuel supply and combustion.

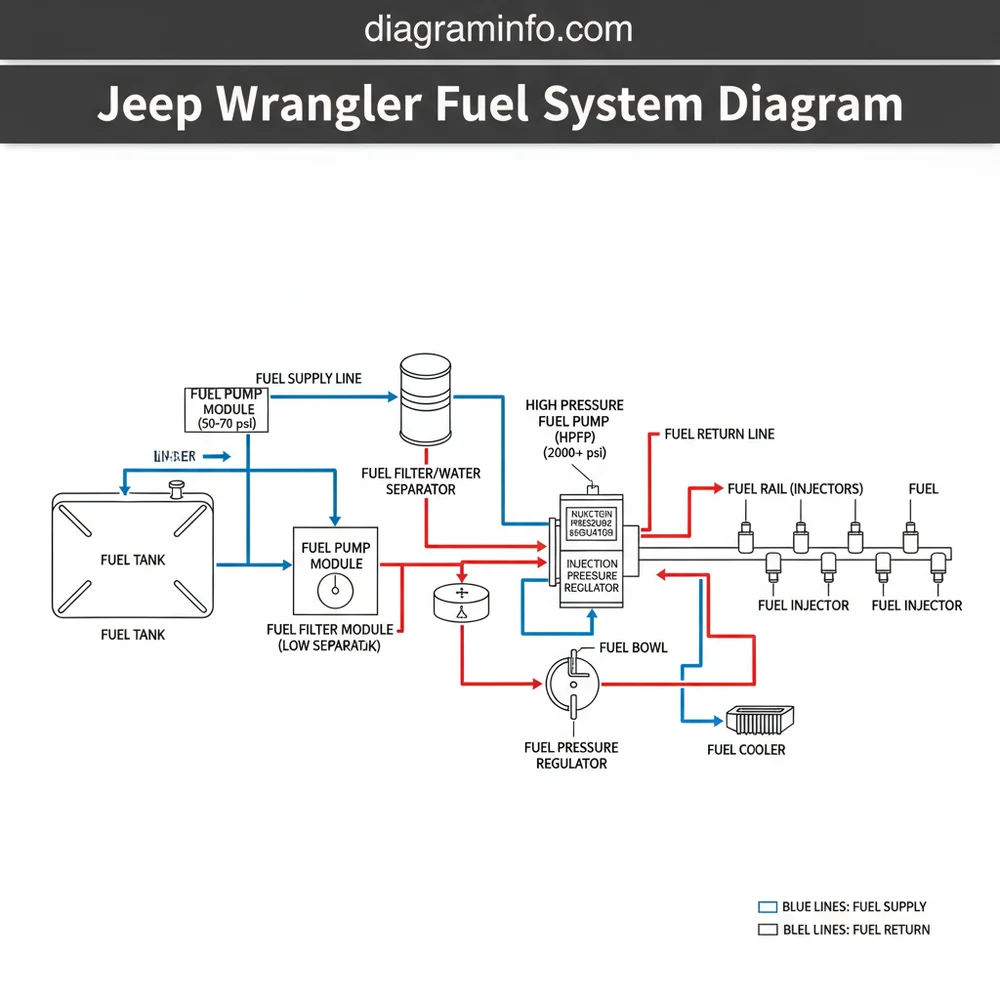

[DIAGRAM_PLACEHOLDER: A detailed technical diagram of the Jeep Wrangler JL 3.0L EcoDiesel fuel system, showing fuel flow paths (supply and return), key components like the fuel tank, lift pump, fuel filter module (with heater, water separator, primer pump), low-pressure lines, HPFP, fuel rail, injectors, fuel return line, and fuel cooler. Components are clearly labeled with numerical callouts, and pressure sensors/regulators are also indicated.]
Fuel System Components Breakdown
The Jeep Wrangler JL 3.0L EcoDiesel fuel system is a sophisticated high-pressure common rail (HPCR) design, meticulously engineered for optimal fuel efficiency and emissions control. Each component plays a critical role in ensuring precise fuel delivery to the combustion chambers. Refer to the diagram above for a visual representation of these elements.
1. Fuel Tank (1): Stores diesel fuel. Equipped with an integrated fuel sender unit and often a primary pickup screen.
2. Electric Lift Pump (In-tank or Frame-mounted) (2): Located either within the fuel tank or along the frame rail, this low-pressure pump draws fuel from the tank and supplies it to the fuel filter module. It typically operates at pressures ranging from 30-70 psi, priming the system for the high-pressure stages.
3. Fuel Filter Module / Fuel Bowl Assembly (3): This multi-functional unit is critical for diesel engine longevity. It houses the primary fuel filter element, a water separator with a drain valve, a fuel heater (3a) to prevent waxing in cold conditions, and often an integral primer pump (3b) (manual or electric) used for bleeding air from the system after maintenance. The fuel bowl ensures particulate and water removal, protecting downstream components.
4. Low-Pressure Fuel Lines (4): Connect the fuel filter module to the HPFP, carrying pre-filtered fuel at the lift pump’s pressure. These lines are robust, designed to withstand diesel fuel’s properties.
5. High-Pressure Fuel Pump (HPFP) (5): This critical component, often driven by the engine’s camshaft or a dedicated belt, pressurizes fuel to extreme levels, commonly exceeding 29,000 psi (2,000 bar) for modern common rail systems. The HPFP has an integrated injection pressure regulator (5a) (also known as a Fuel Metering Unit or Fuel Quantity Actuator) that controls the amount of fuel entering the high-pressure pumping elements, thereby regulating rail pressure.
6. High-Pressure Fuel Rail (6): A common manifold that receives highly pressurized fuel from the HPFP and distributes it to each fuel injector. It includes a rail pressure sensor to monitor the actual pressure.
7. Fuel Injectors (7): Electronically controlled solenoid or piezoelectric units that precisely spray atomized fuel directly into the combustion chamber. Their timing and quantity are managed by the Powertrain Control Module (PCM).
8. Fuel Return Line (8): Unused fuel, as well as excess fuel used for cooling and lubrication of the injectors and HPFP, is routed back to the fuel tank via this lower-pressure line. This helps maintain system temperature.
9. Fuel Cooler (9): Located in the fuel return circuit, this component dissipates heat from the returning fuel before it re-enters the tank. This is crucial for maintaining fuel integrity and preventing excessive thermal load on the tank and its components, especially with modern high-pressure systems generating significant heat.
10. Fuel Pressure/Temperature Sensors (10): Various sensors located throughout the system monitor fuel pressure (low-side, rail pressure) and temperature, providing critical feedback to the PCM for optimal engine operation and diagnostics.
Modern diesel fuel systems, like the Jeep Wrangler’s 3.0L EcoDiesel, rely heavily on the PCM’s precise control over fuel pressure and injection timing. Misinterpretations from fuel pressure sensors or faulty actuators can lead to significant drivability issues, impacting overall engine diagnostics. Always consult OEM diagnostic procedures when troubleshooting common rail systems.
Common Failure Points & Symptoms
Understanding typical failure points within the Jeep Wrangler fuel system, particularly the 3.0L EcoDiesel, is crucial for efficient troubleshooting. Here’s a breakdown of common issues, their symptoms, and initial diagnostic approaches.
1. High-Pressure Fuel Pump (HPFP)
Symptom: Engine hard starts, no start, rough idle, loss of power, reduced fuel economy, illuminated Check Engine Light (CEL) with fuel pressure codes (e.g., P0087, P0088, P1259). Metal shavings in the fuel filter indicate catastrophic failure.
Diagnosis: Monitor actual vs. desired rail pressure using a scan tool. Check for fuel system leaks. Inspect the fuel filter for metal particulate contamination, a definitive sign of HPFP internal wear. A detailed look into diesel particulate filter maintenance might reveal secondary symptoms related to improper combustion.
2. Fuel Injectors
Symptom: Rough idle, misfires, excessive black or white smoke from exhaust, increased fuel consumption, cylinder contribution codes (e.g., P0201-P0206), strong diesel smell, “fuel knock.”
Diagnosis: Perform a cylinder contribution test with a scan tool. Conduct an injector return flow test to identify leaking or stuck-open injectors. Inspect injector wiring and connectors for damage or corrosion. Fuel injector calibration is critical after replacement.
3. Fuel Filter Module / Fuel Bowl (Clogged Filter or Water in Fuel)
Symptom: Reduced engine power, hesitation under acceleration, hard starting, stalling, illuminated “Water in Fuel” light, or general fuel starvation symptoms.
Diagnosis: Check the “Water in Fuel” sensor. Drain the water separator. Replace the fuel filter. Inspect the fuel bowl housing for cracks or leaks. Ensure the primer pump operates correctly after filter replacement.
4. Electric Lift Pump (Low-Pressure Fuel Pump)
Symptom: Engine cranks but won’t start, extended crank times, low power, hesitation, diagnostic trouble codes (DTCs) related to low fuel pressure on the low-pressure side (e.g., P0087 – Fuel Rail/System Pressure – Too Low).
Diagnosis: Verify fuel pump relay operation. Measure low-side fuel pressure at the filter inlet or test port using a specialized gauge. Listen for pump operation when the ignition is switched on.
5. Fuel Pressure Sensors (Rail Pressure Sensor, Low-Pressure Sensor)
Symptom: Inconsistent engine performance, sudden power loss, limp mode, hard starting, or no start. Specific DTCs indicating sensor circuit malfunction or implausible pressure readings (e.g., P0191, P0193, P0087).
Diagnosis: Use a scan tool to monitor sensor readings in real-time. Compare readings to specified values and other known good sensors if applicable. Check sensor wiring for continuity and shorts.
6. Fuel Cooler / Fuel Lines
Symptom: Fuel leaks, overheating fuel (less common but can affect HPFP and injector longevity), potentially impacting fuel density and injection precision.
Diagnosis: Visually inspect all fuel lines for cracks, chafing, or signs of leakage. Check the fuel return line for proper flow. Inspect the fuel cooler for external damage or internal blockages if fuel temperature issues are suspected.
Working on high-pressure diesel fuel systems can be extremely dangerous. Fuel pressures can exceed 29,000 psi (2000 bar). Always depressurize the system before servicing and wear appropriate personal protective equipment (PPE), including eye protection and gloves. Diesel fuel is highly combustible; ensure no ignition sources are present.
Repair & Replacement Steps: 3.0L EcoDiesel Fuel Filter Replacement
Replacing the fuel filter on a Jeep Wrangler 3.0L EcoDiesel is a critical maintenance item that directly impacts the longevity of your high-pressure fuel system components. This procedure specifically addresses the filter element within the fuel bowl assembly, often located on the frame rail.
Tools & Materials Required:
New OEM Fuel Filter Element (e.g., Mopar Part #68436631AA or equivalent)
Drain Pan
Socket Wrench Set (typically 36mm or similar for the filter cap)
Torque Wrench
Clean Shop Rags
Safety Glasses & Gloves
Diagnostic Scan Tool (for priming, if manual primer pump is not present or insufficient)
Procedure:
1. Safety First: Ensure the vehicle is parked on a level surface, engine off and cool. Engage the parking brake. Wear appropriate PPE. Disconnect the negative battery terminal to prevent accidental system activation, particularly if your system features an electric primer pump.
2. Locate the Fuel Filter Module: The fuel filter module (fuel bowl) is typically mounted on the frame rail, usually on the driver’s side, near the transmission. Identify the filter cap, fuel lines, and the water-in-fuel sensor connection.
3. Drain the Fuel Bowl: Place a suitable drain pan underneath the fuel filter module. Locate the water drain valve (often a yellow or white petcock at the bottom of the filter housing). Slowly open the drain valve and allow the fuel and any accumulated water to drain into the pan. Close the valve once the flow subsides.
4. Disconnect Electrical Connector: Carefully disconnect the electrical connector for the water-in-fuel sensor located at the bottom of the housing.
5. Remove the Filter Cap: Using the appropriate large socket (e.g., 36mm), carefully unscrew the fuel filter cap. It may require significant force initially. Once loose, remove the cap and the old filter element simultaneously. Some residual fuel will likely spill; have rags ready.
6. Clean the Housing and Install New Filter: Thoroughly clean the inside of the fuel filter housing, removing any debris or sludge. Ensure the sealing surface for the O-ring is clean. Install the new fuel filter element into the housing, ensuring it seats correctly.
7. Replace O-Ring and Reinstall Cap: Inspect the new O-ring supplied with the filter element. Lubricate it lightly with clean diesel fuel. Place the O-ring onto the filter cap. Thread the cap back onto the housing by hand to avoid cross-threading.
8. Torque the Filter Cap: Using your torque wrench, tighten the fuel filter cap to the manufacturer’s specified torque. According to OEM specifications for the 3.0L EcoDiesel, the fuel filter cap torque is typically 25 Nm (18 ft-lbs). Overtightening can crack the housing, while undertightening can cause leaks.
9. Reconnect Electrical Connector: Reattach the water-in-fuel sensor electrical connector firmly.
10. Prime the Fuel System: This is a critical step to remove air from the system.
Electric Primer/Scan Tool Method: Reconnect the battery. Cycle the ignition key to the “RUN” position (without starting the engine) for 15-30 seconds, then turn it “OFF.” Repeat this 3-5 times. This activates the in-tank lift pump to prime the system. A diagnostic scan tool can also be used to command the lift pump on for a more controlled priming process.
11. Check for Leaks and Start Engine: After priming, visually inspect the filter housing and lines for any fuel leaks. Start the engine. It may crank longer than usual or run rough for a few seconds as residual air is purged. Allow it to idle for a few minutes and re-check for leaks.
Fuel Filter Cap Torque (3.0L EcoDiesel JL): 25 Nm (18 ft-lbs). Always verify with the latest OEM service manual for your specific model year, as specifications can vary slightly.
FAQ
What are the critical maintenance intervals for the Jeep Wrangler 3.0L EcoDiesel fuel system?
The manufacturer typically recommends replacing the diesel fuel filter every 20,000 miles (32,000 km) or 24 months, whichever comes first, though this can vary by driving conditions and model year. If you frequently drive in dusty environments or use lower-quality fuel, more frequent replacement may be beneficial. Always refer to your owner’s manual or OEM service schedule for precise recommendations. Neglecting fuel filter replacement is a leading cause of premature HPFP and injector failure due to contamination.
Can I use gasoline in my 3.0L EcoDiesel Jeep Wrangler by mistake? What happens?
Absolutely not. Using gasoline in a diesel engine can cause catastrophic damage very quickly. Gasoline lacks the lubricating properties of diesel fuel, leading to immediate wear on precision components like the HPFP and injectors. It also has a lower flash point, which can cause uncontrolled combustion (knocking) and severe engine damage. If you accidentally put gasoline in your EcoDiesel,
do not start the engine*. The entire fuel system, from the tank to the injectors, will need to be drained, flushed, and potentially components replaced. This often requires comprehensive engine diagnostics and specialized servicing.Why does my “Water in Fuel” light come on, and what should I do?
The “Water in Fuel” light indicates that the water separator in your fuel filter module has detected an accumulation of water beyond a safe threshold. Water is highly detrimental to diesel fuel systems, causing corrosion and significant damage to the HPFP and injectors. When this light illuminates, you should immediately (and safely) pull over and drain the water separator. Most fuel filter modules have a drain valve at the bottom. Follow the procedure in your owner’s manual to drain the water until clear fuel flows out. If the light persists, the filter may need replacement, or there could be an issue with the sensor itself.
What role does the fuel cooler play in the diesel fuel system?
The fuel cooler, located in the fuel return line circuit, is essential for managing the thermal load generated by the high-pressure fuel system. The HPFP and injectors operate at extremely high pressures and, through the process, impart significant heat into the fuel. Without a fuel cooler, this heated fuel would return directly to the tank, potentially raising the overall fuel temperature excessively. Elevated fuel temperatures can reduce fuel density, decrease lubrication, and accelerate wear on the lift pump and other components, ultimately impacting the efficiency and longevity of the entire fuel delivery system.
| Component | Typical Operating Pressure | Key Diagnostic Value |
|---|---|---|
| Electric Lift Pump | 30-70 psi (2-5 bar) | Low-side fuel pressure monitoring |
| High-Pressure Fuel Pump (HPFP) | 5,000-29,000+ psi (350-2000+ bar) | Actual vs. Desired Rail Pressure (Scan Tool) |
| Fuel Injectors | Matches Rail Pressure | Injector Return Flow Test, Cylinder Contribution Test |
Step-by-Step Guide to Understanding the Jeep Wrangler Fuel System Diagram: Component Breakdown 2026
Identify – Locate the specific component you need to address on the Jeep Wrangler fuel system diagram, such as the high-pressure fuel pump (HPFP) or fuel return line.
Locate – Physically locate the corresponding component on your vehicle, using the diagram to understand its placement relative to other engine or chassis parts.
Reference – Consult the diagram to trace the routing of fuel lines, electrical connections, and the function of critical elements like the injection pressure regulator or fuel bowl.
Connect/Route – When replacing parts, ensure all new fuel lines, especially the fuel return line, and electrical connectors are routed and secured precisely according to the diagram.
Verify – After assembly, perform a fuel pressure test to confirm proper operation and pressure within the system, ensuring the HPFP and all other components are functioning correctly.
Troubleshoot – If initial tests or engine operation indicate issues, re-examine the diagram for potential missed connections, incorrect routing, or overlooked components causing symptoms.
Frequently Asked Questions
What are the main components of the jeep wrangler fuel system diagram?
The main components include the fuel tank, low-pressure fuel pump (in-tank), fuel lines, fuel filter, high-pressure fuel pump (HPFP for direct injection models), fuel rail, injectors, injection pressure regulator, and the fuel return line. Some systems also utilize a fuel bowl to ensure consistent fuel supply to the HPFP, especially during off-road conditions.
What are symptoms of a failing jeep wrangler fuel system diagram pump?
Symptoms of a failing fuel pump often include difficulty starting, engine misfires, a noticeable loss of power under acceleration, or the engine stalling, particularly at high speeds or under load. A whining noise from the fuel tank area can also indicate a struggling pump, as it may be working harder to maintain adequate fuel pressure for the engine.
How do I diagnose a fuel leak in jeep wrangler fuel system diagram?
Diagnosing a fuel leak involves visually inspecting all fuel lines, connections, the fuel tank, and the fuel rail for wet spots or a strong fuel odor. Look closely at the fuel return line and areas around the fuel filter. A fuel pressure tester can help isolate leaks by allowing you to monitor pressure drops, indicating a compromised seal or line integrity somewhere in the system.
What is the fuel pressure spec for jeep wrangler fuel system diagram?
Fuel pressure specifications for a Jeep Wrangler vary significantly by engine and model year. For older, port-injected engines, low-pressure system might range from 49-60 psi. Modern direct-injection engines, particularly with an HPFP, will have a low-pressure side around 50-75 psi and a high-pressure side that can exceed 2000 psi, regulated by the injection pressure regulator.
How long does jeep wrangler fuel system diagram fuel pump last?
A Jeep Wrangler fuel pump typically lasts between 100,000 to 150,000 miles, but this can vary based on factors like fuel quality, driving conditions, and maintenance. Regularly running the tank low can stress the pump due to lack of cooling. Consistent fuel filter replacement (if applicable) can also extend its lifespan by reducing contaminants.
Can I replace the jeep wrangler fuel system diagram fuel filter myself?
Replacing the fuel filter on a Jeep Wrangler depends on the model year. Many newer Wranglers integrate the fuel filter into the fuel pump module inside the fuel tank, making it a more involved replacement requiring tank removal. Older models might have an accessible inline fuel filter that is simpler for a DIY enthusiast to replace, following safety precautions.
